Hazardous Location Linear
Hazardous Location Linear
Power: 20W, 40W, 60W, 80W
Luminous Flux: 2,660lm - 11,200lm
Luminous Efficacy: 133lm/W - 140lm/W
Color Temperature: 3000K, 4000K, 5000K
CRI: ≥73
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +50°C / -40°F ~ +122°F
Lifetime: ≥ 50,000hrs
UL 1598A Listed
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Specification Table
EX-1020
2,660-2,800lm
133-140lm/W
2 foot
23.77pounds
EX-1040
5,320-5,600lm
133-140lm/W
2 foot / 4 foot
40.78 pounds
EX-1060
7,980-8,400lm
133-140lm/W
4 foot
40.78 pounds
EX-1080
10,640-711,200lm
133-140lm/W
4 foot
40.78 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 10

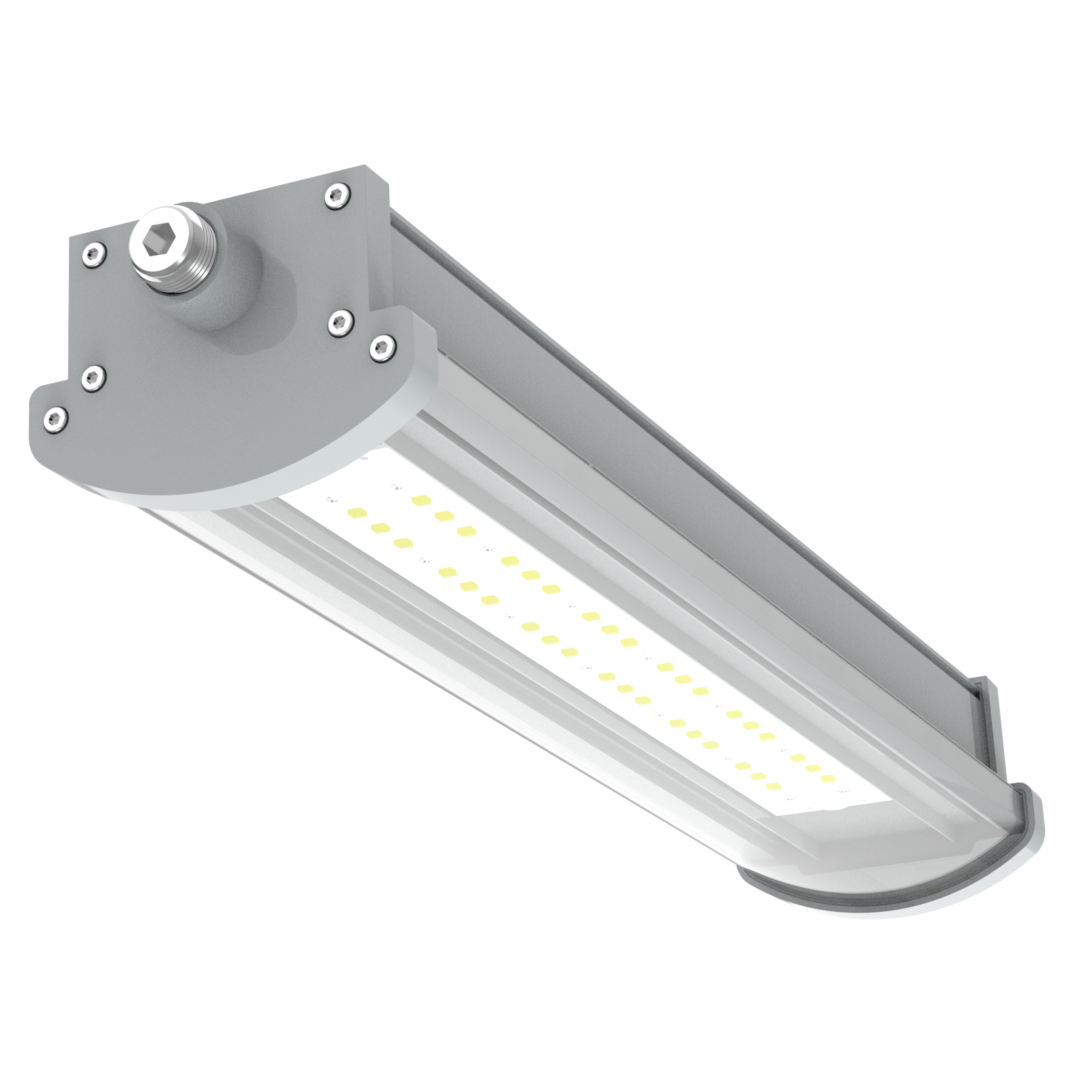

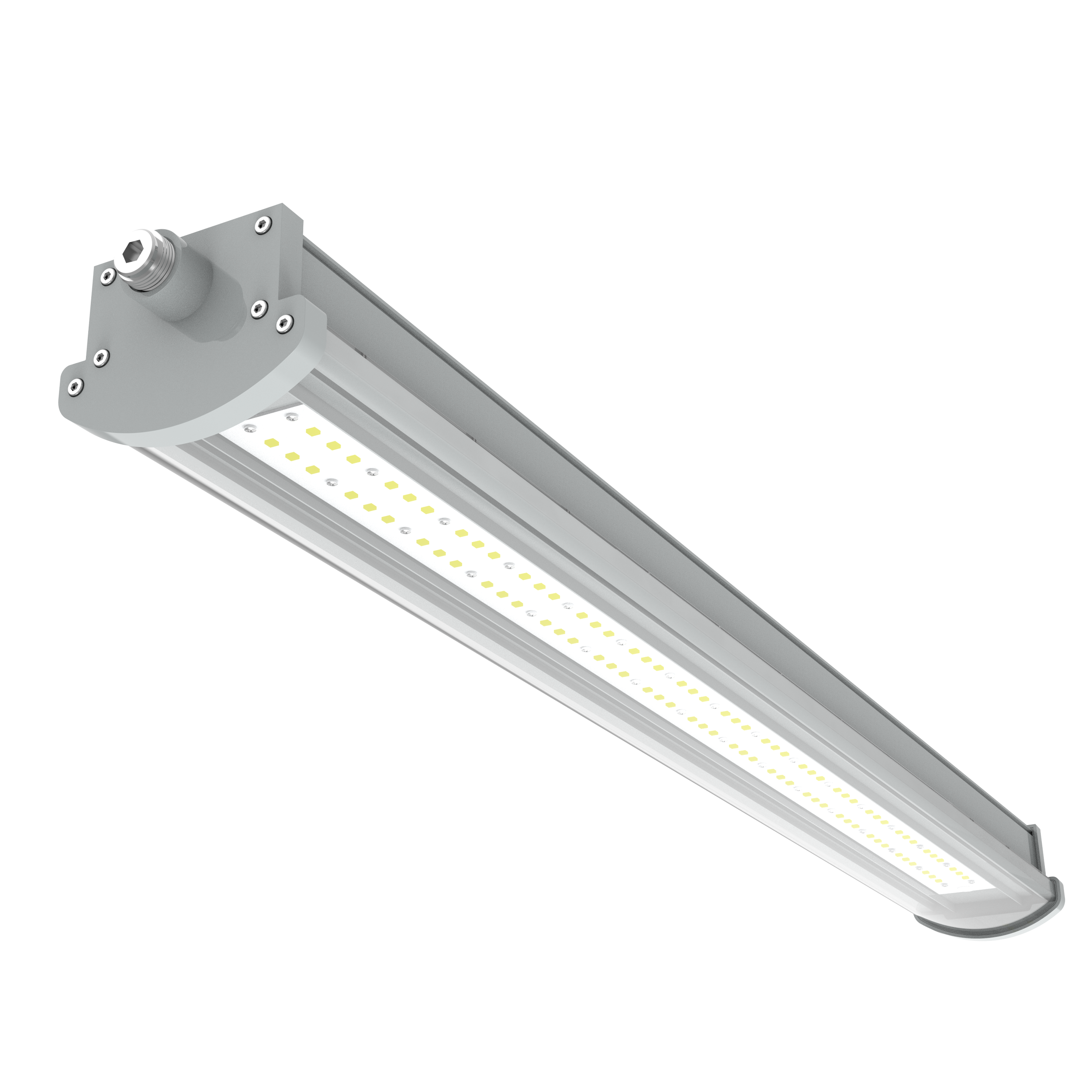

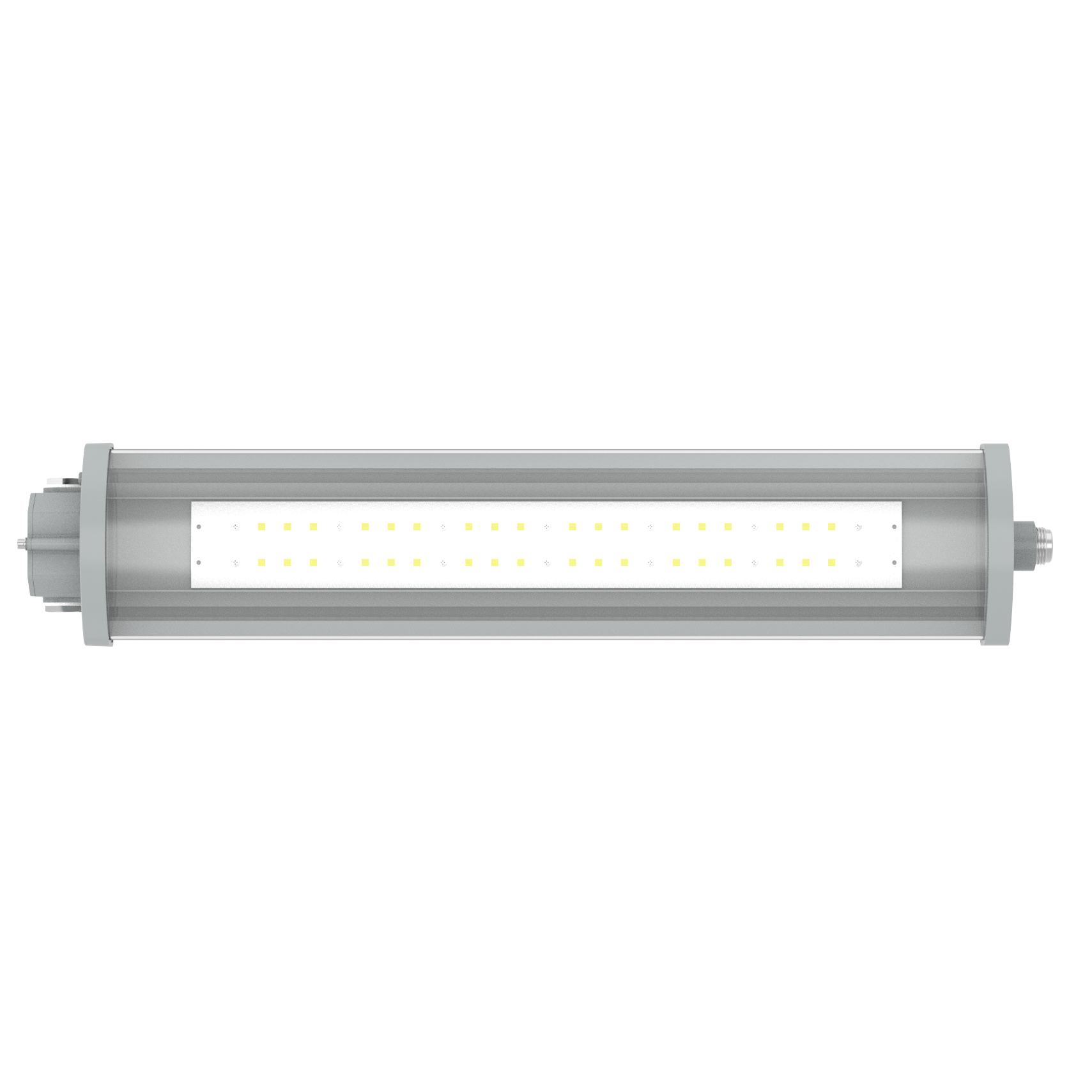

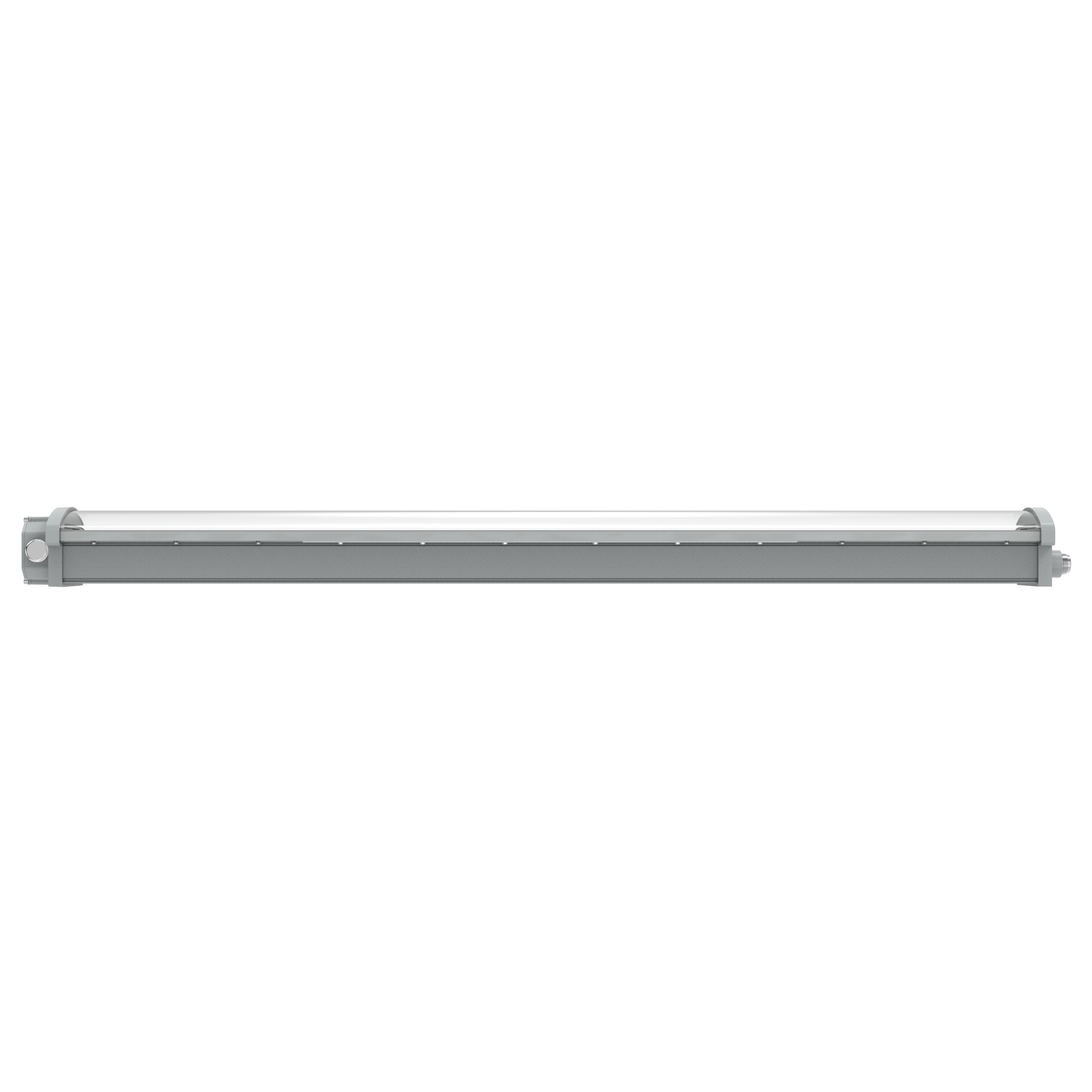

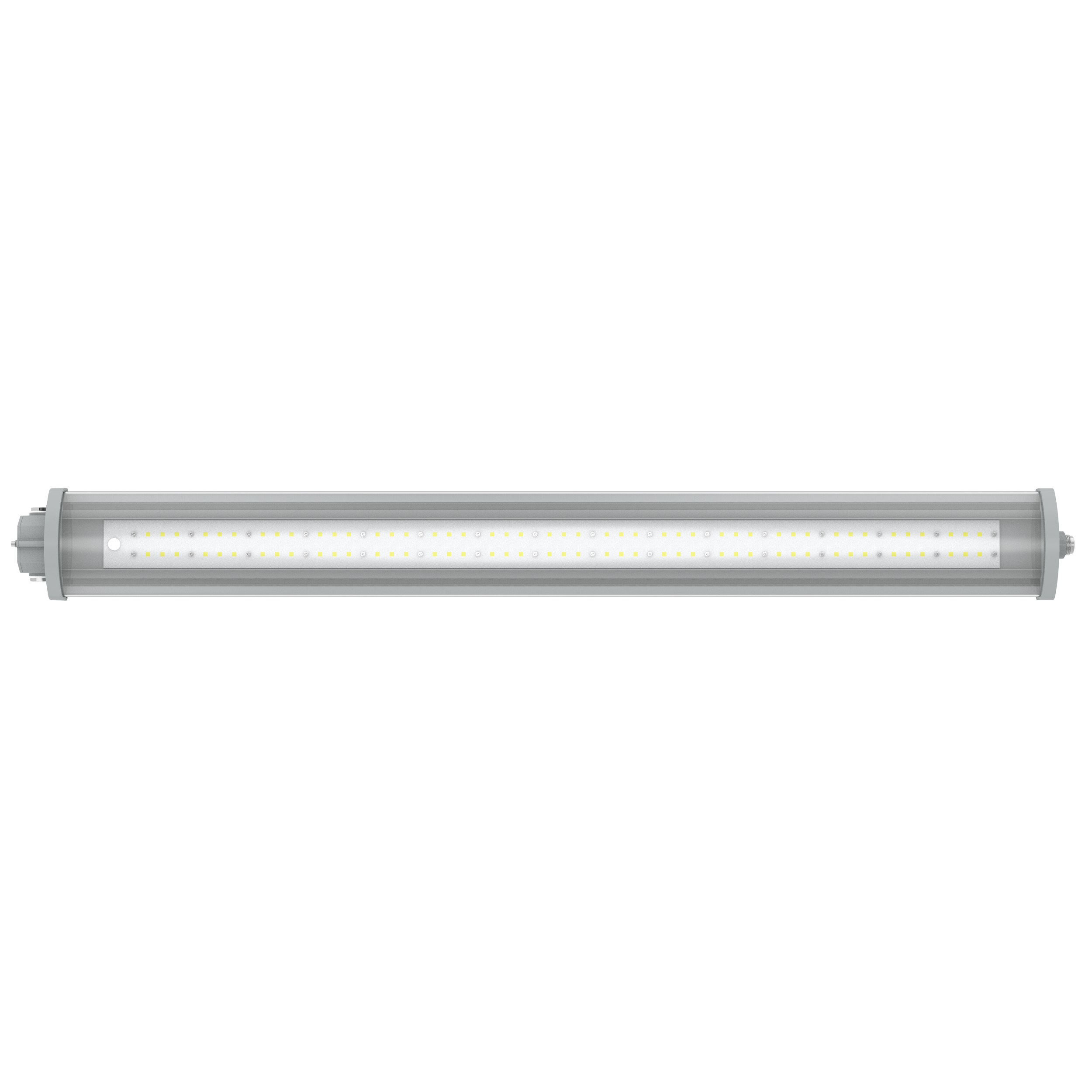

PRODUCT
PHOTOS
qty 6

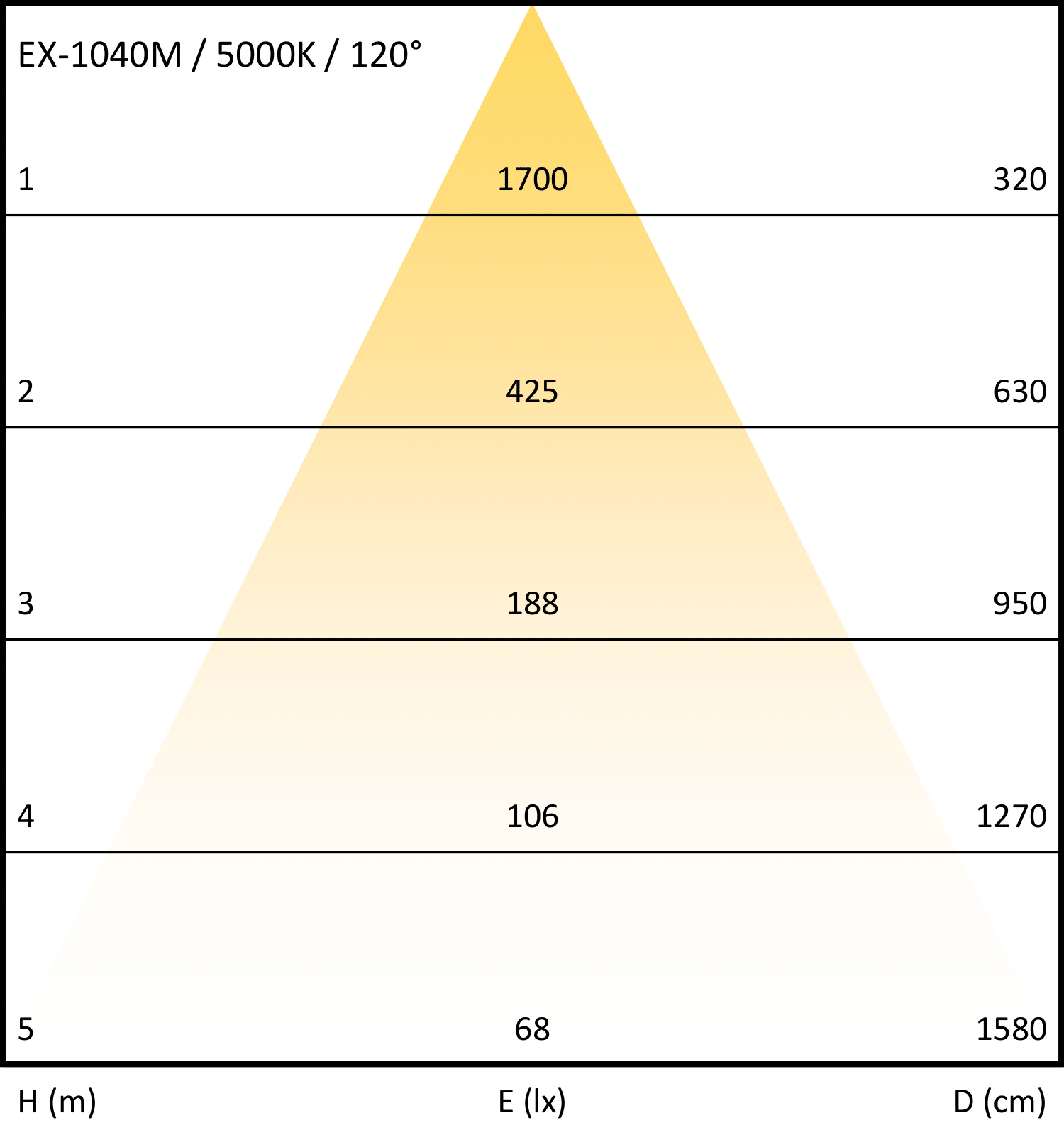

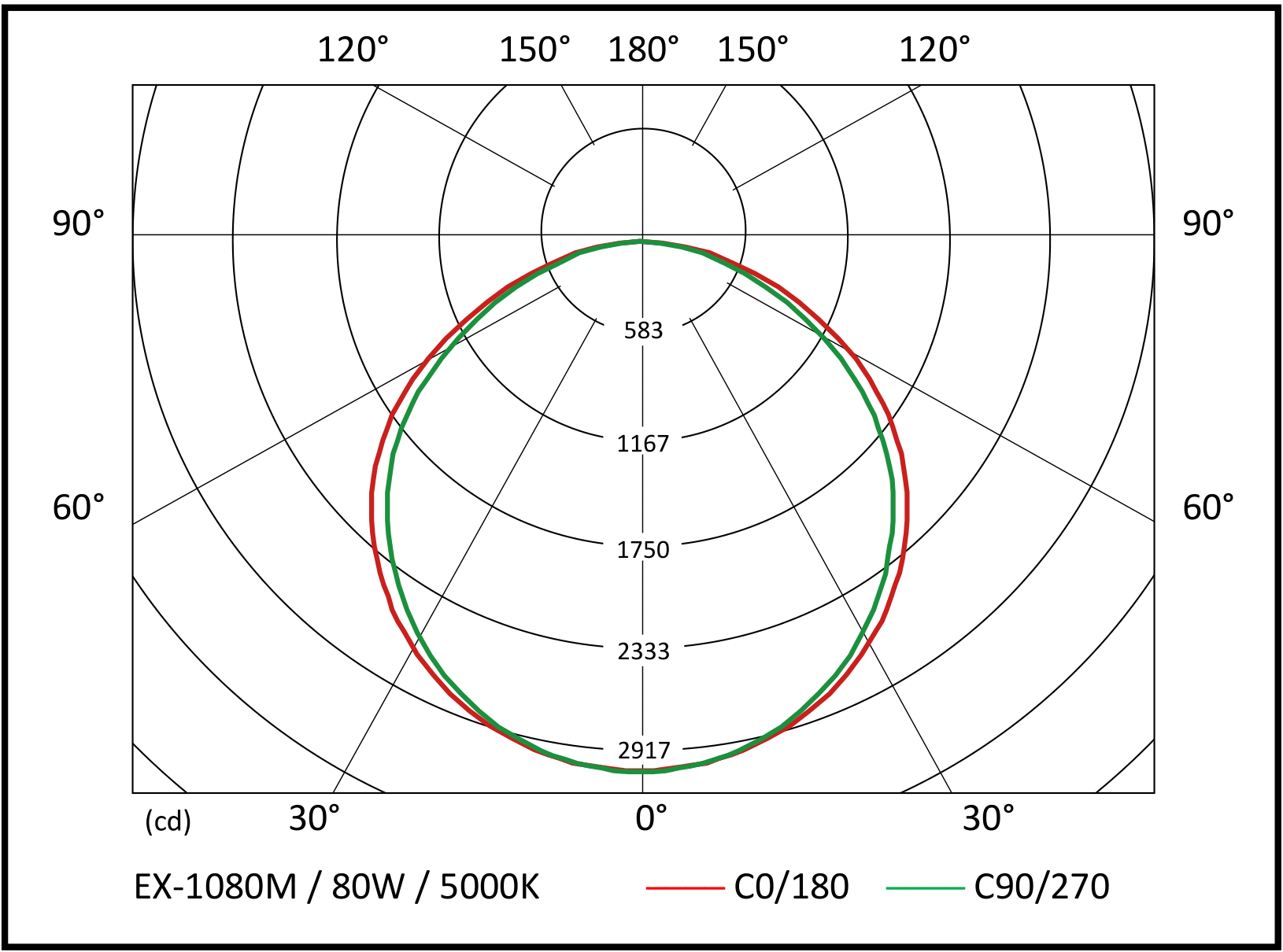

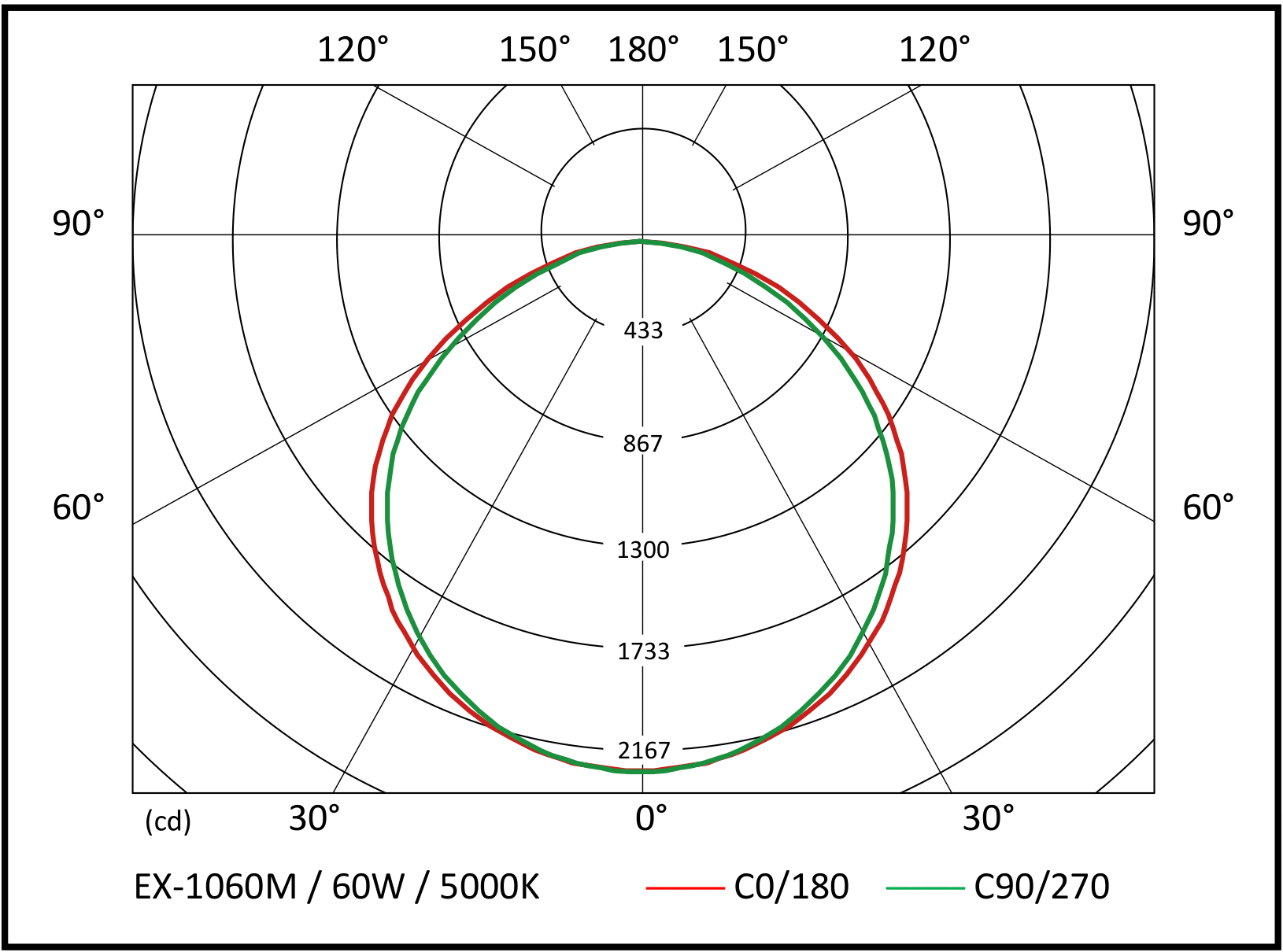

Photometrics
