Hazardous Location Area Light
Hazardous Location Area Light
Power: 100W, 150W, 200W
Luminous Flux: 12,300lm - 25,400lm
Luminous Efficacy: 123lm/W - 127lm/W
Color Temperature: 4000K, 5000K
CRI: ≥73
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +60°C / -40°F ~ +140°F
Lifetime: ≥ 50,000hrs
UL 1598A Listed
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Specification Table
EX-5100
12,300-12,700lm
123-127lm/W
1.41 ft² EPA
B3-U1-G3
14.33 pounds
EX-5150
18,450-19,050lm
123-127lm/W
1.41 ft² EPA
B4-U1-G3
14.33 pounds
EX-5200
24,600-25,400lm
123-127lm/W
1.41 ft² EPA
B4-U1-G3
14.33 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 6
PRODUCT
PHOTOS
qty 12

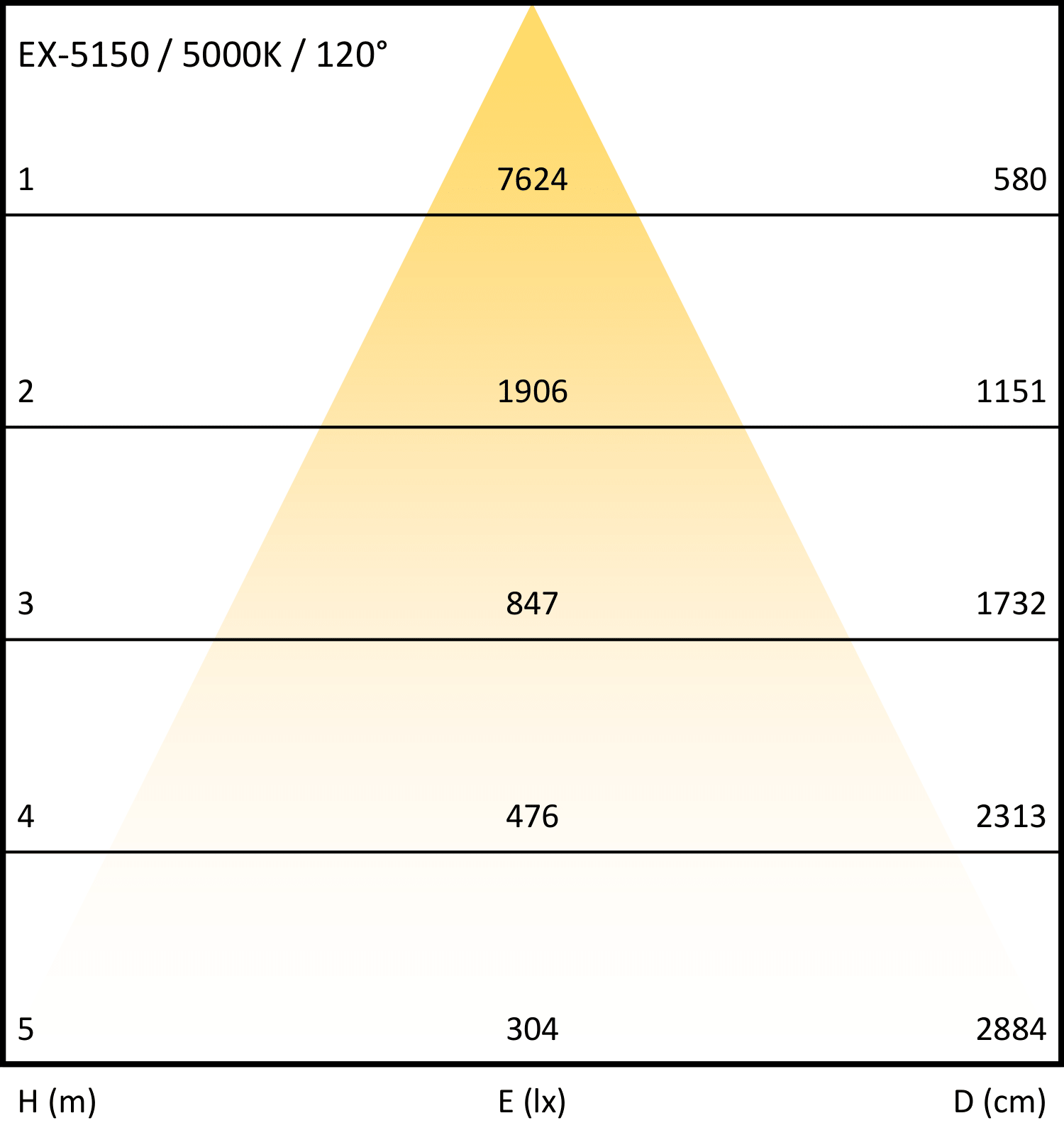

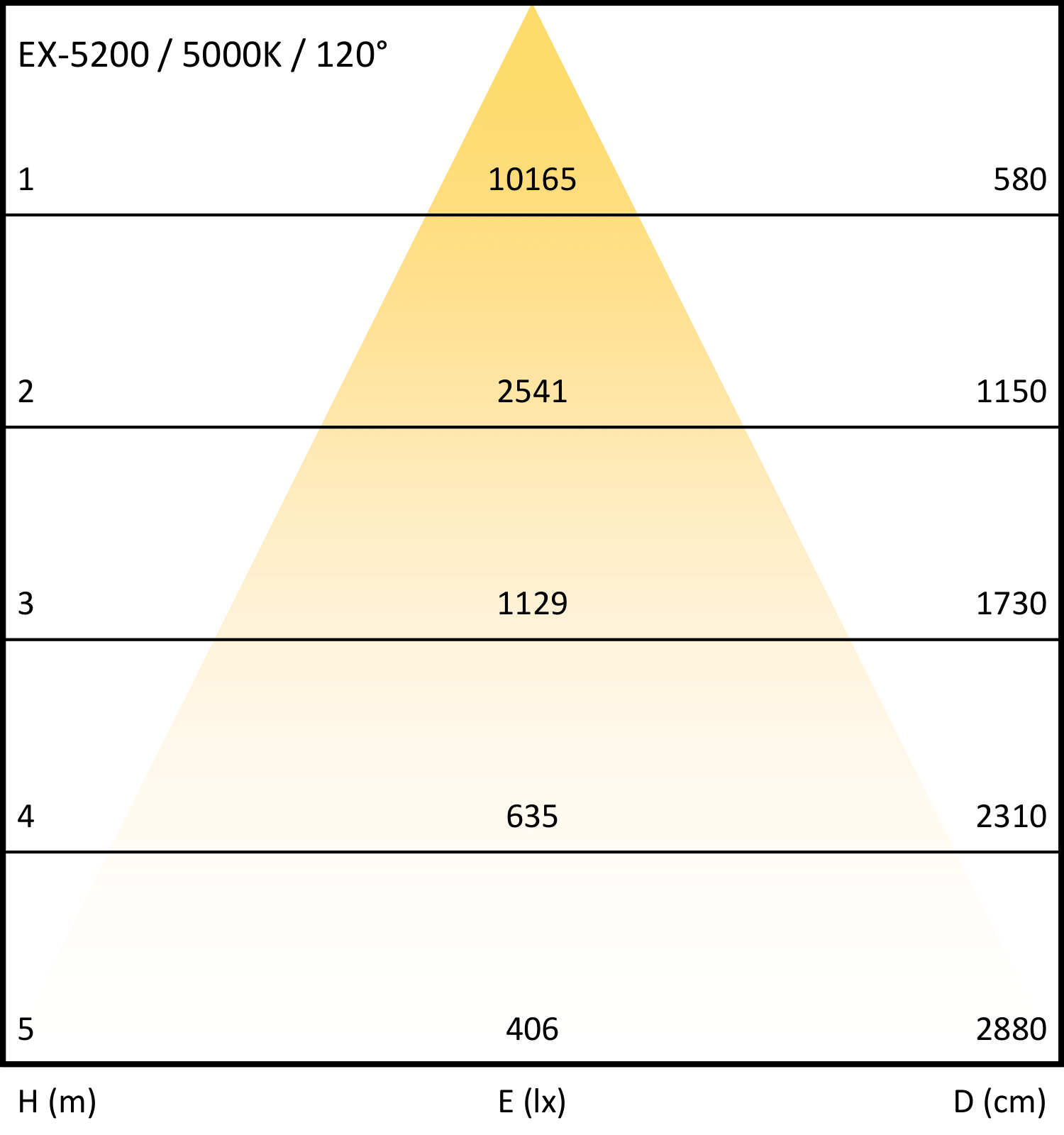

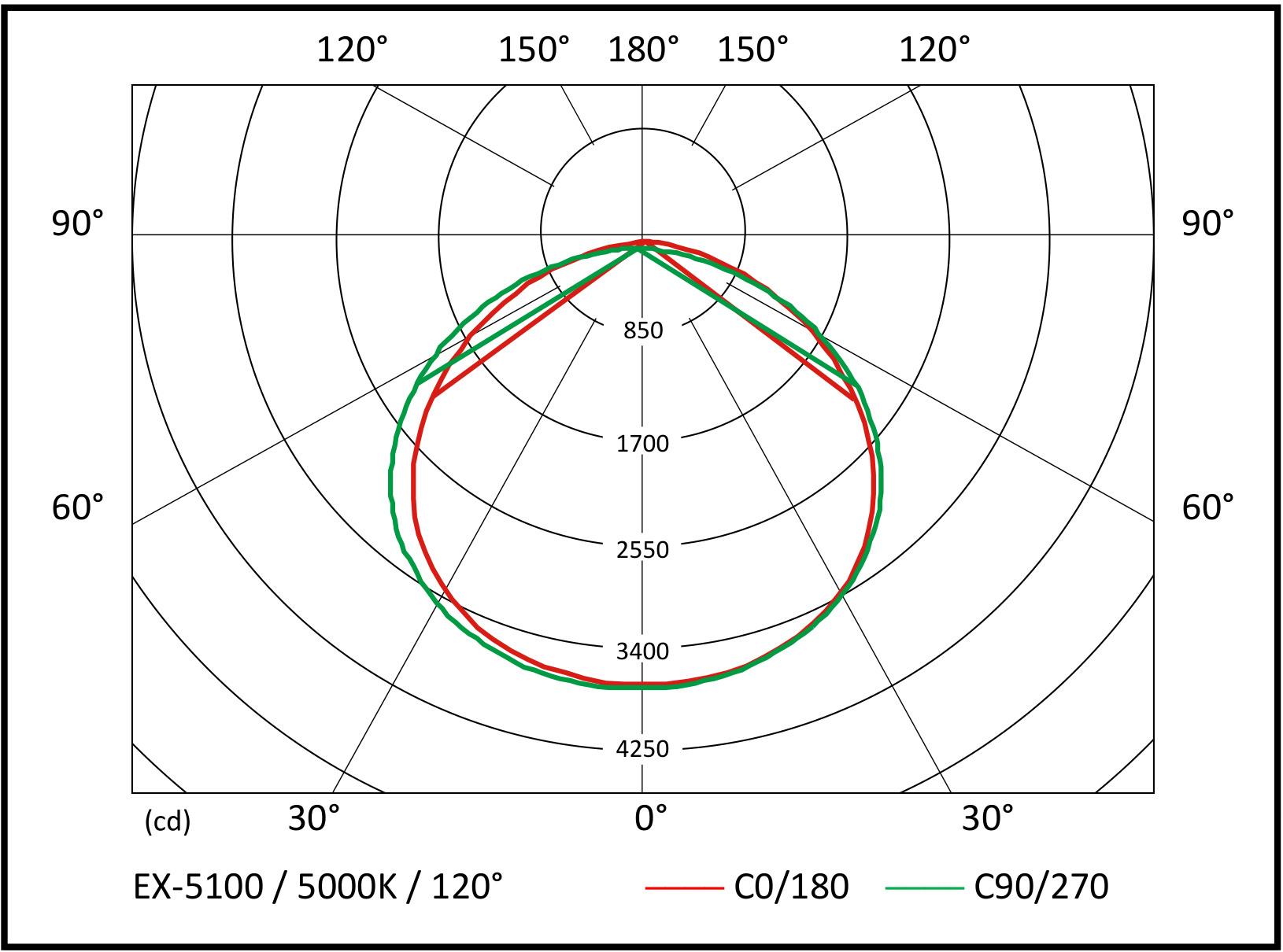

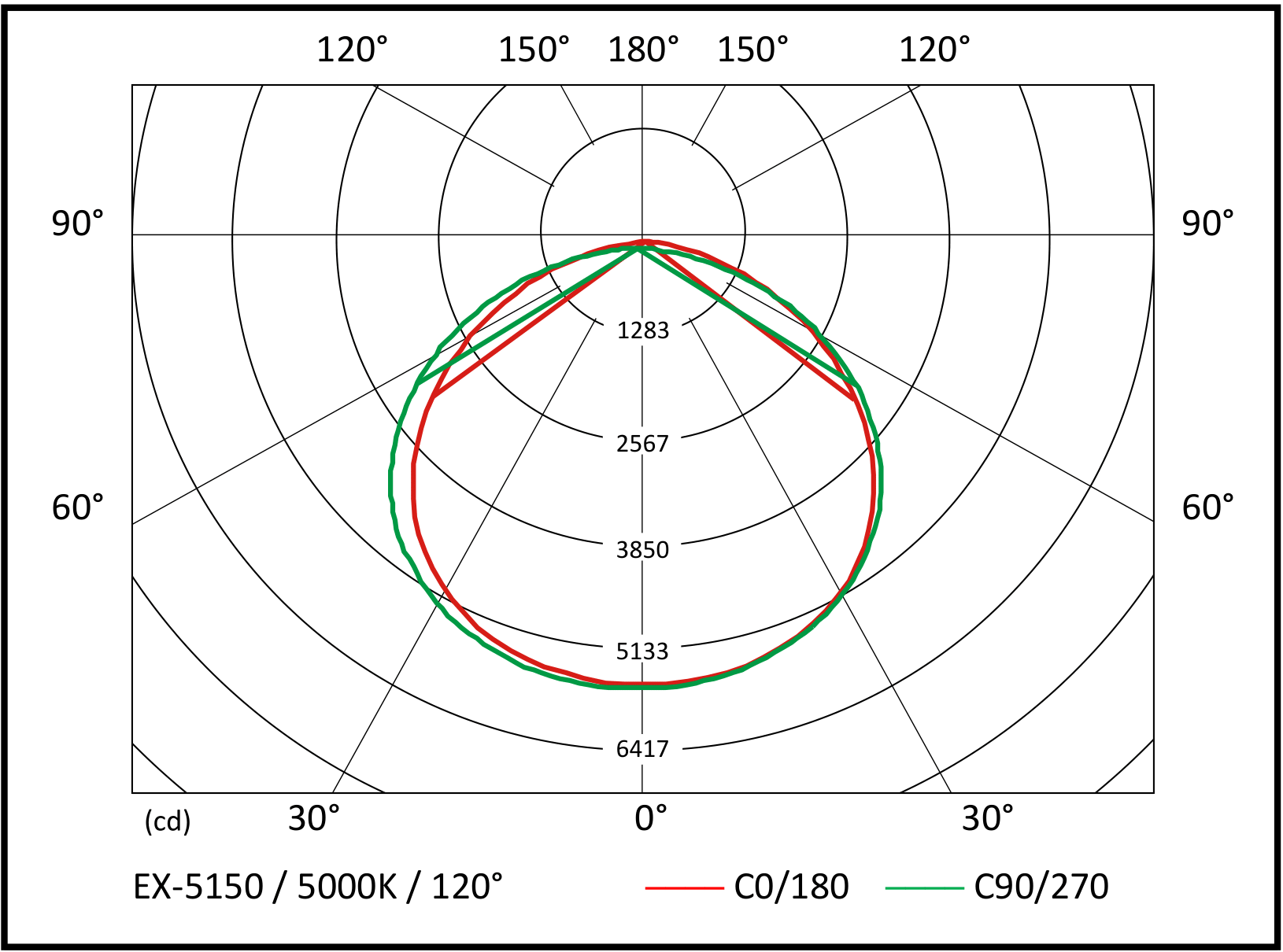

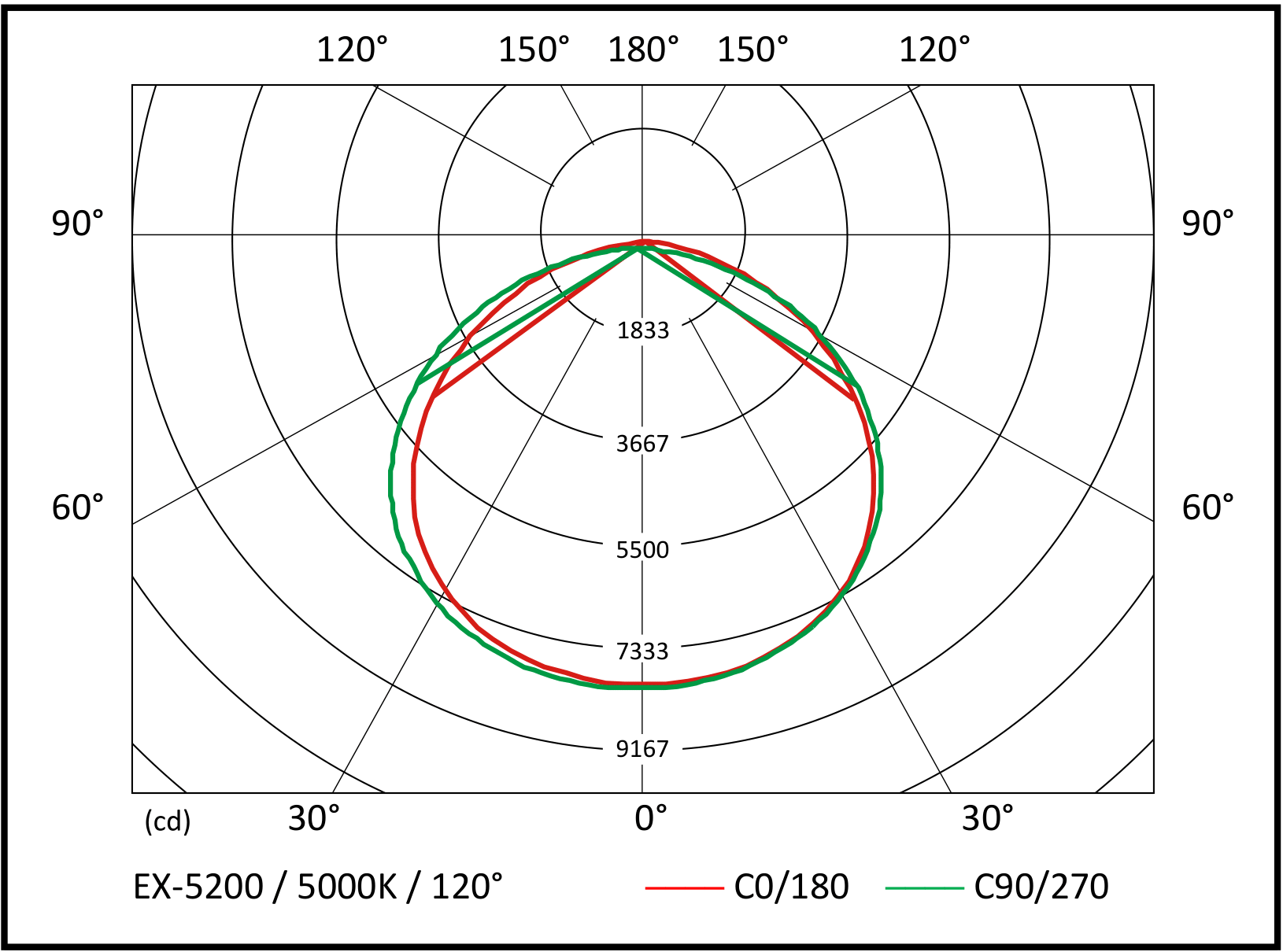

Photometrics
