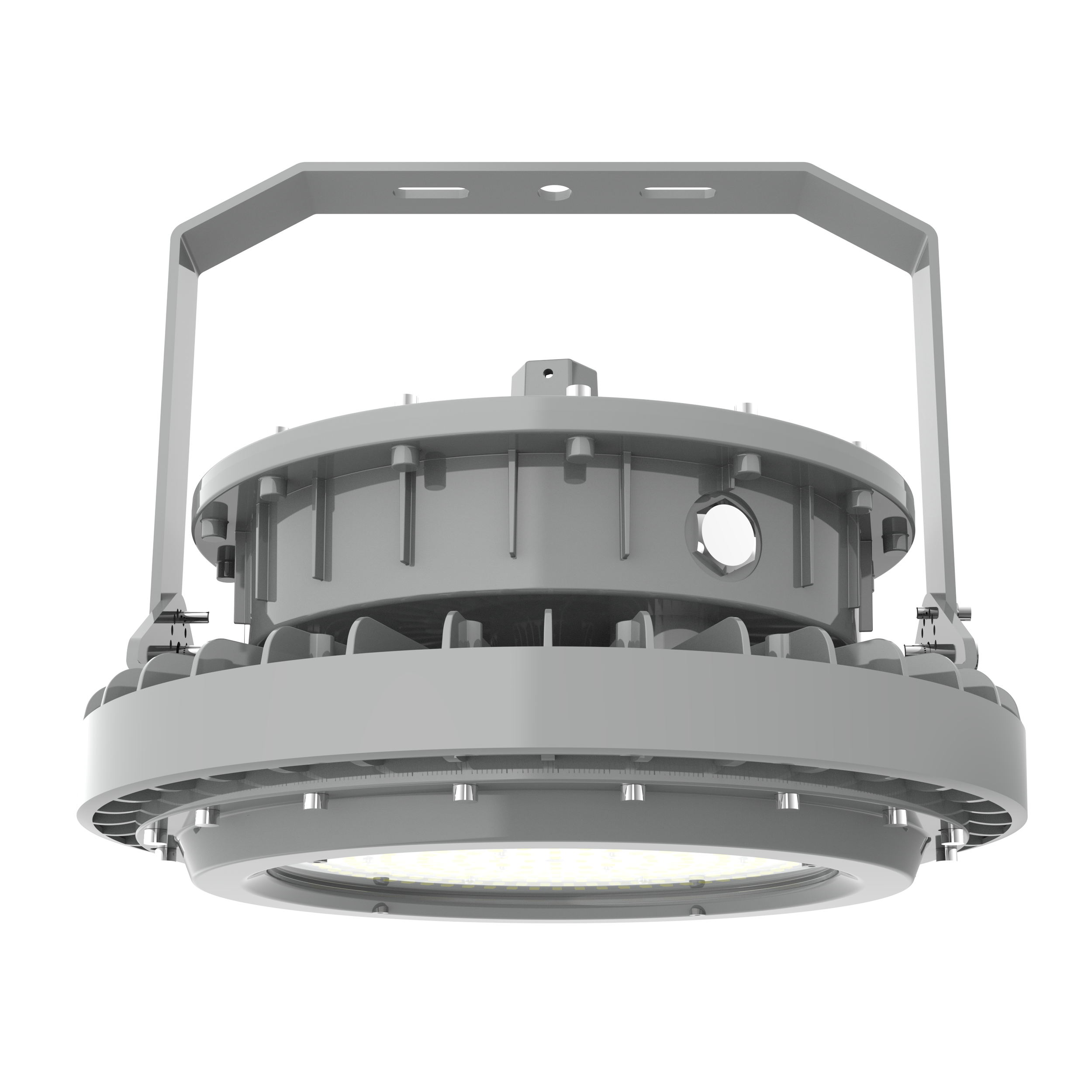

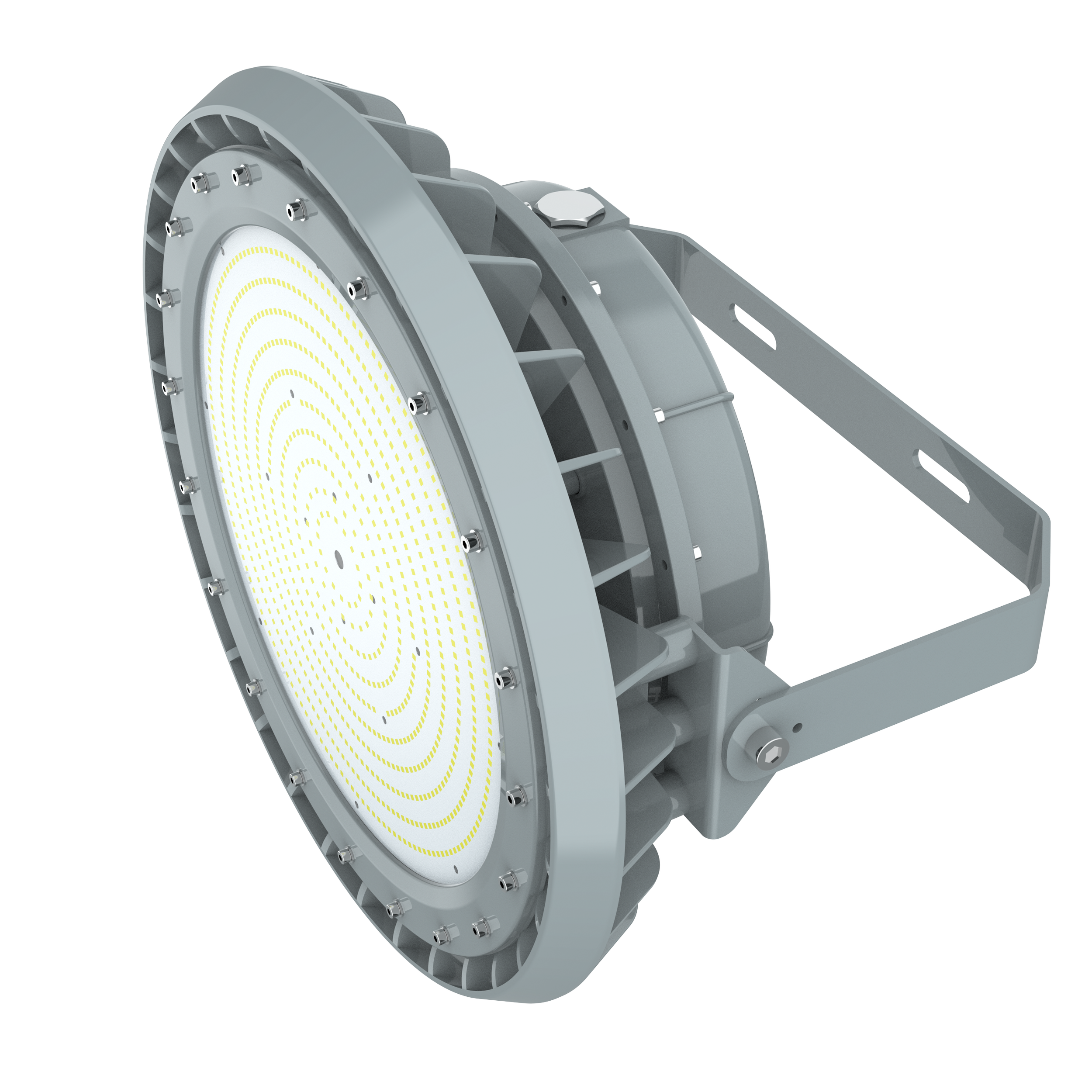

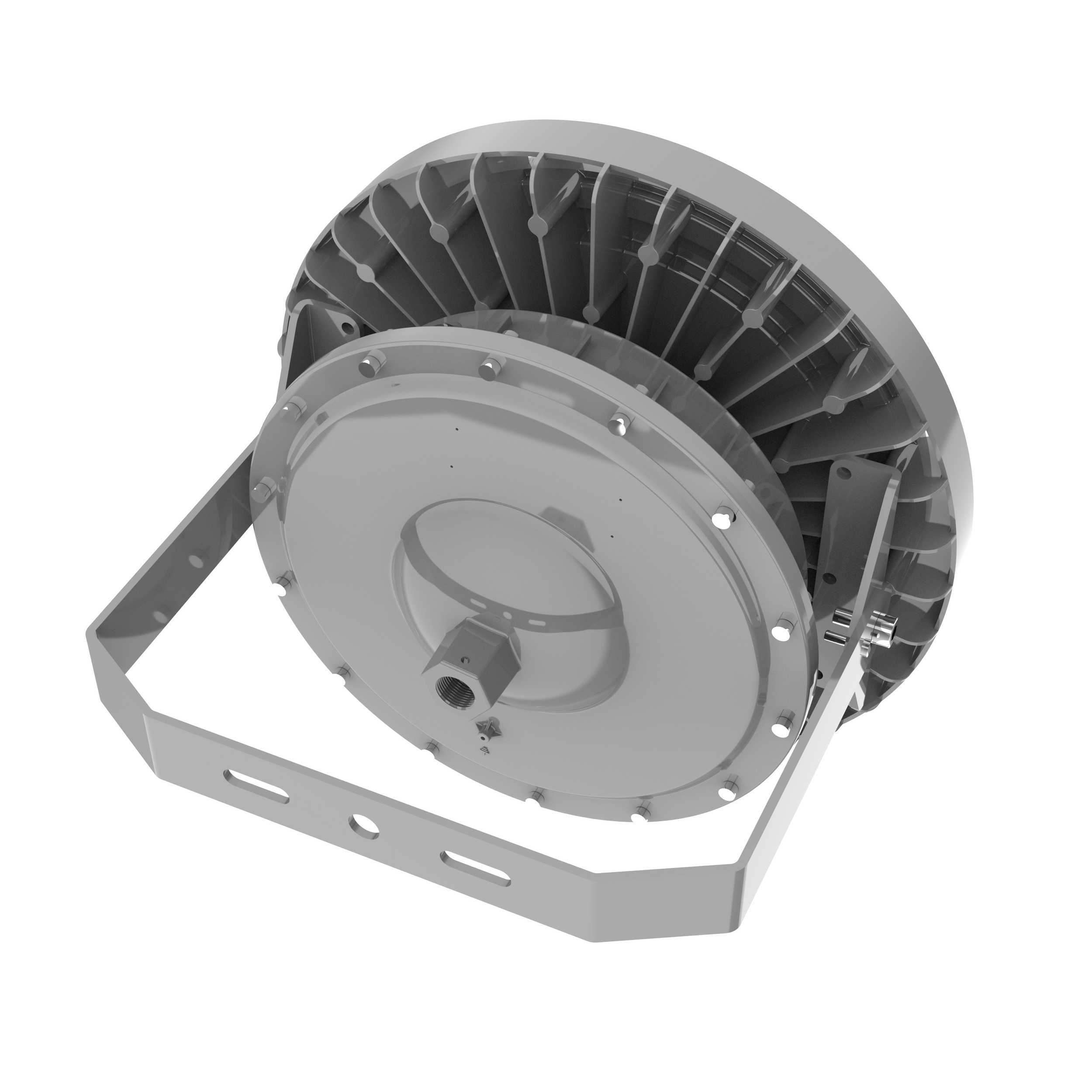

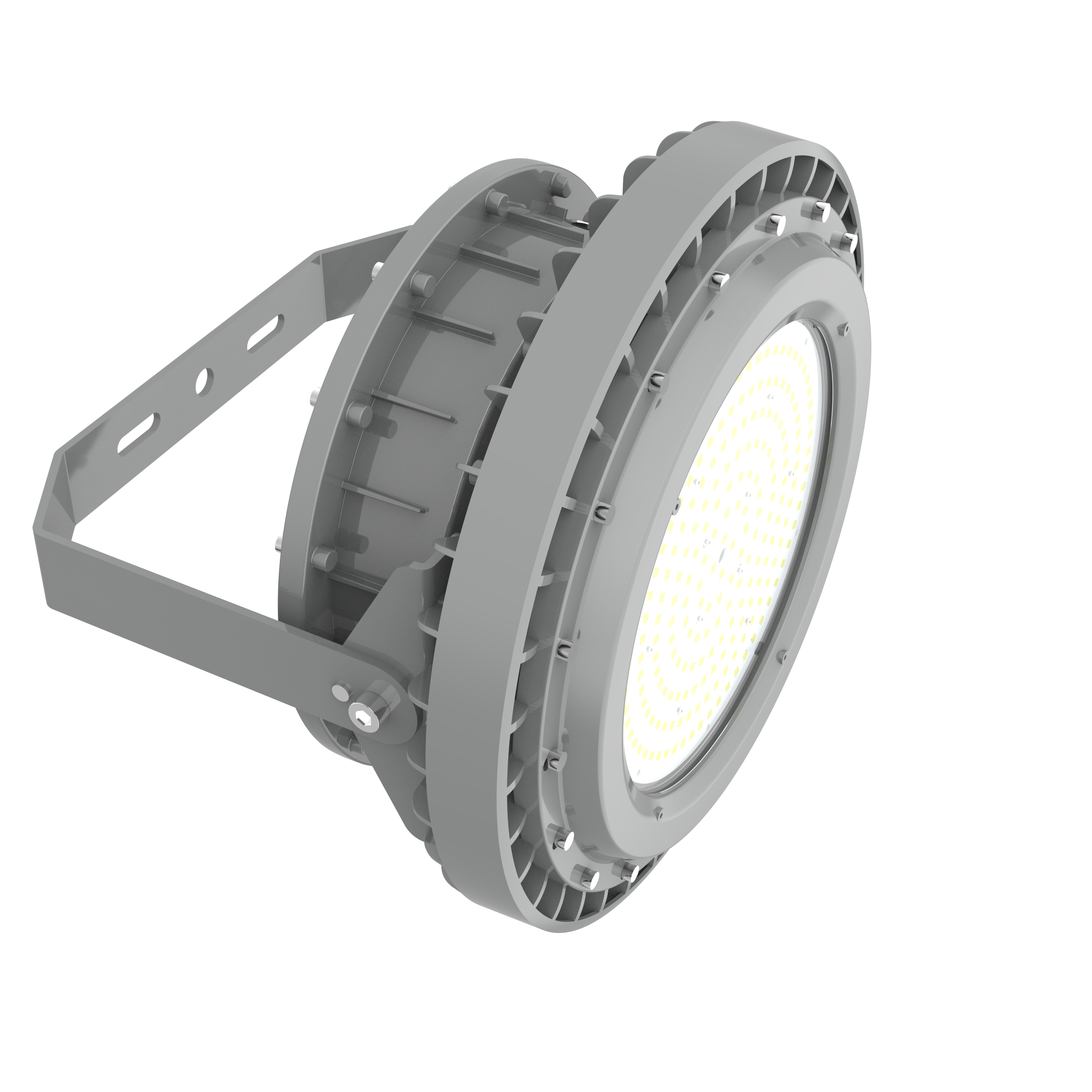

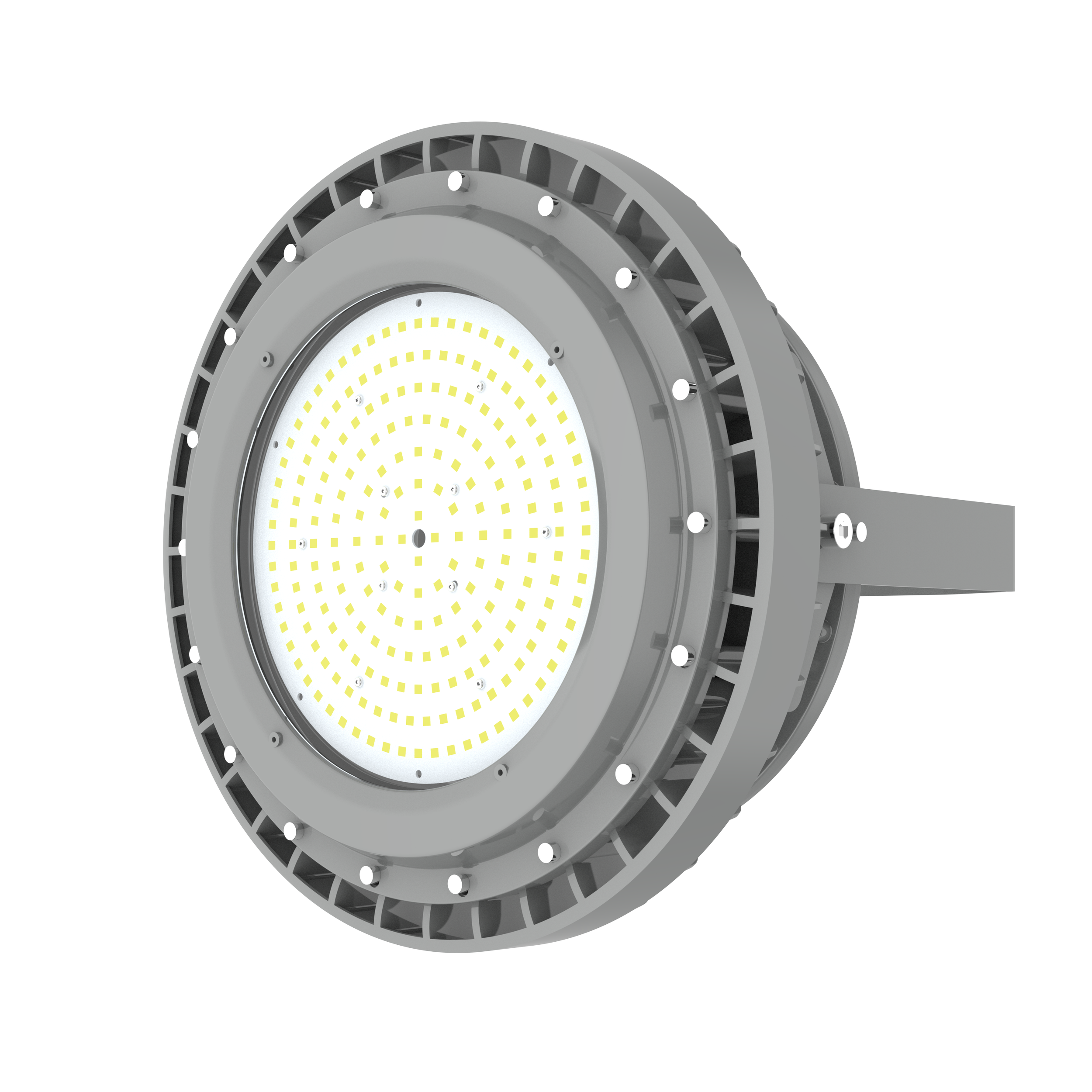

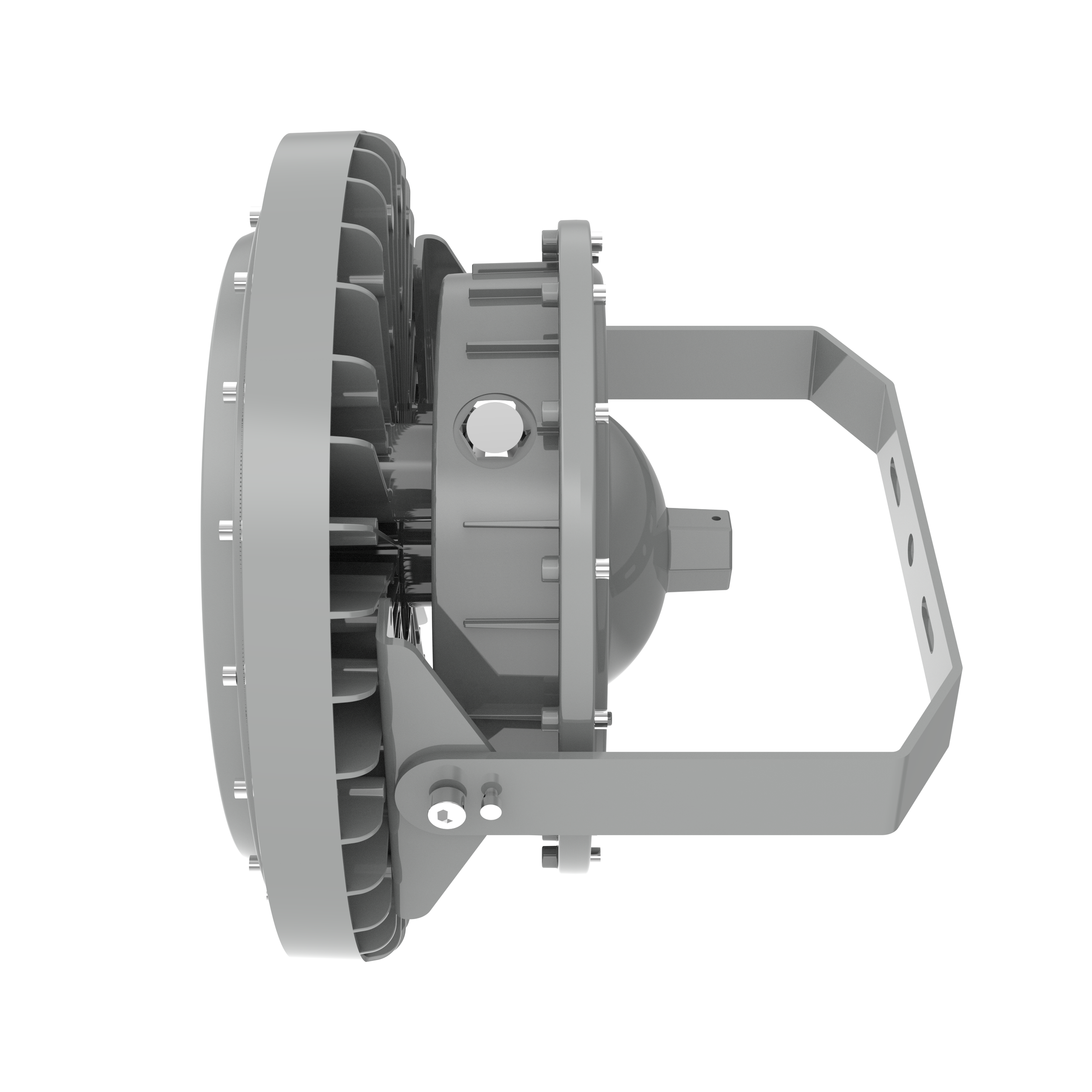

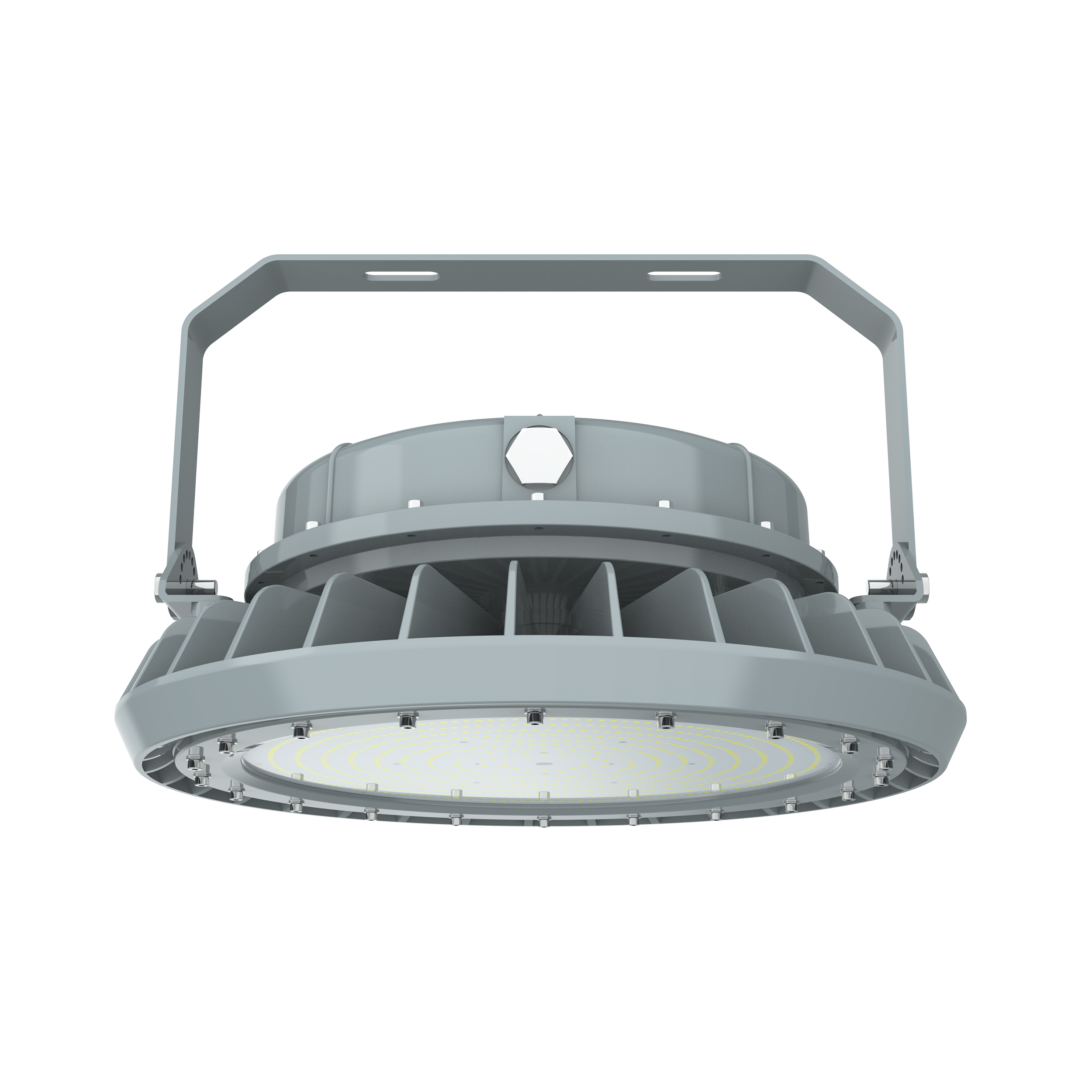

Hazardous Location High Bay
Hazardous Location High Bay
Power: 60W, 100W, 150W, 200W, 280W, 300W, 400W
Luminous Flux: 7,980lm - 56,000lm
Luminous Efficacy: 133lm/W - 140lm/W
Color Temperature: 4000K, 5000K
CRI: ≥73
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC, 200-480V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +50°C / -40°F ~ +122°F
Lifetime: ≥ 50,000hr
UL 1598A Listed
Class I, Division I, Groups C, D
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Specification Table
EX-3060
7,980-8,400lm
133-140lm/W
0.94 ft² EPA
B3-U1-G0
7.71 pounds
EX-3100
13,300-14,000lm
133-140lm/W
2.13 ft² EPA
B3-U1-G1
38.36 pounds
EX-3150
19,950-21,000lm
133-140lm/W
2.13 ft² EPA
B4-U1-G1
38.36 pounds
EX-3200
26,600-28,000lm
133-140lm/W
0.94 ft² EPA
B4-U1-G2
38.36 pounds
EX-3280
37,240-39,200lm
133-140lm/W
0.94 ft² EPA
B4-U1-G2
38.36 pounds
EX-3300
39,900-42,000lm
133-140lm/W
0.94 ft² EPA
B4-U1-G2
38.36 pounds
EX-3400
53,200-56,000lm
133-140lm/W
2.11 ft² EPA
B4-U1-G2
47.88 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 22
PRODUCT
PHOTOS
qty 8

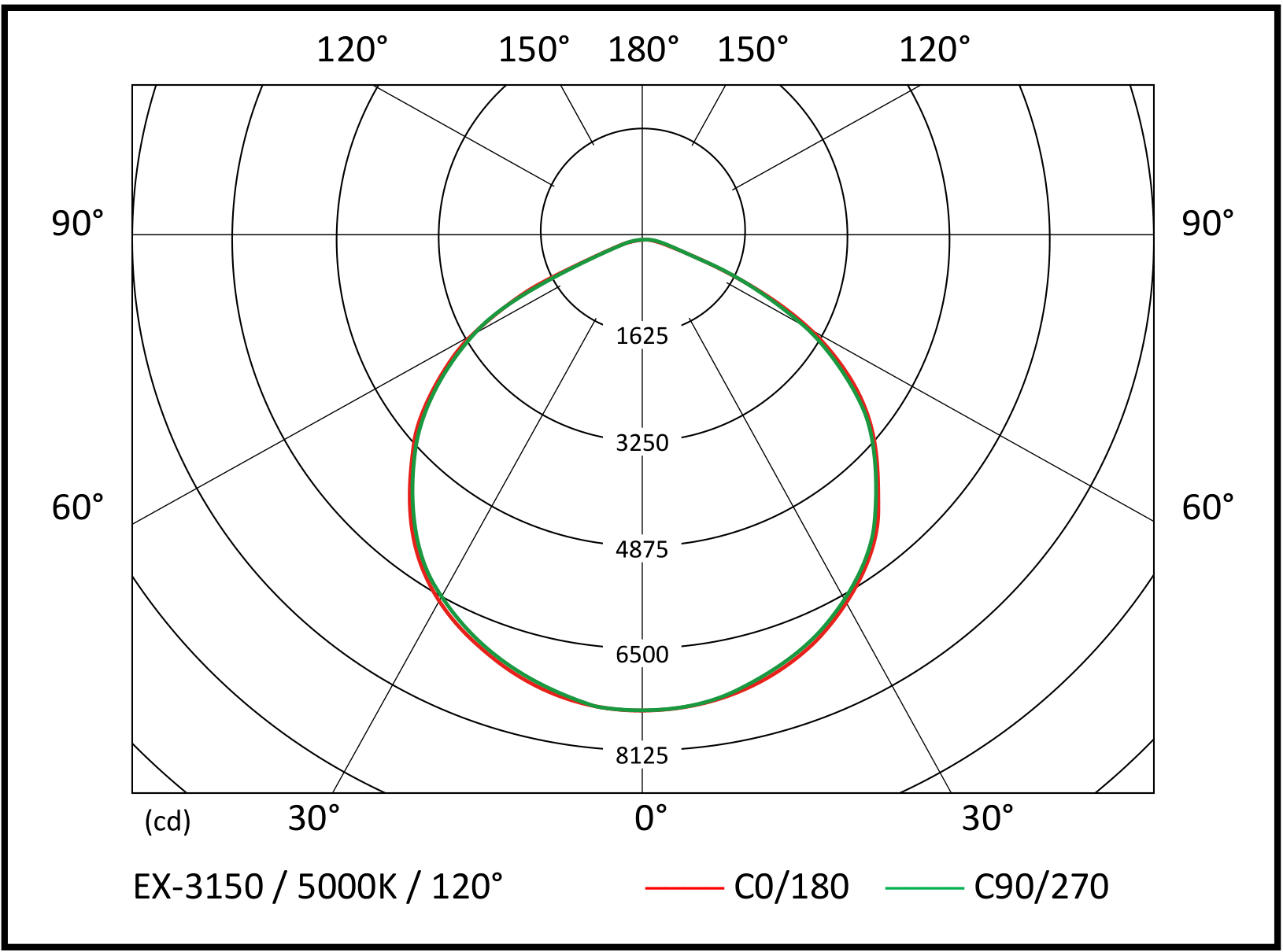

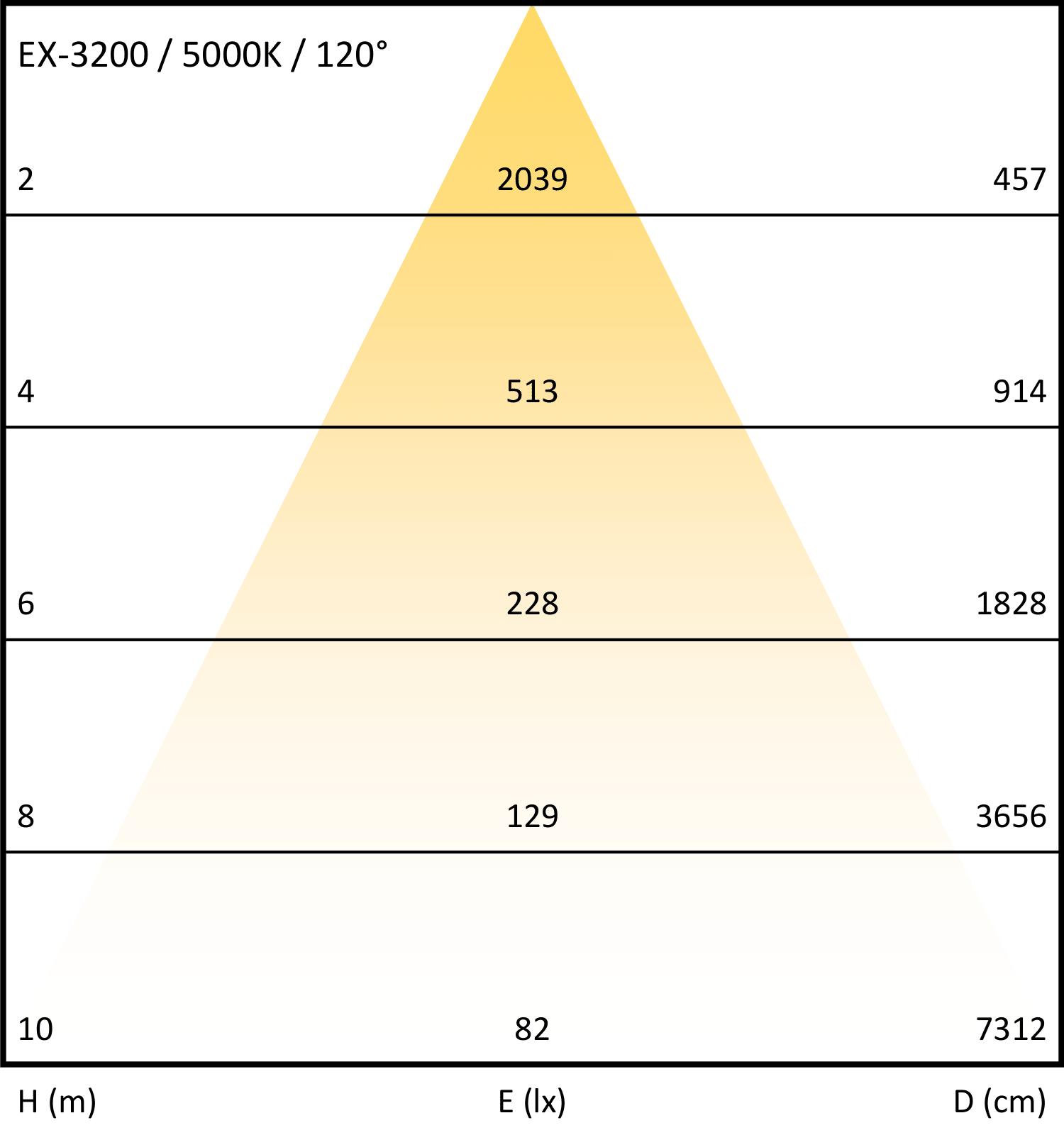

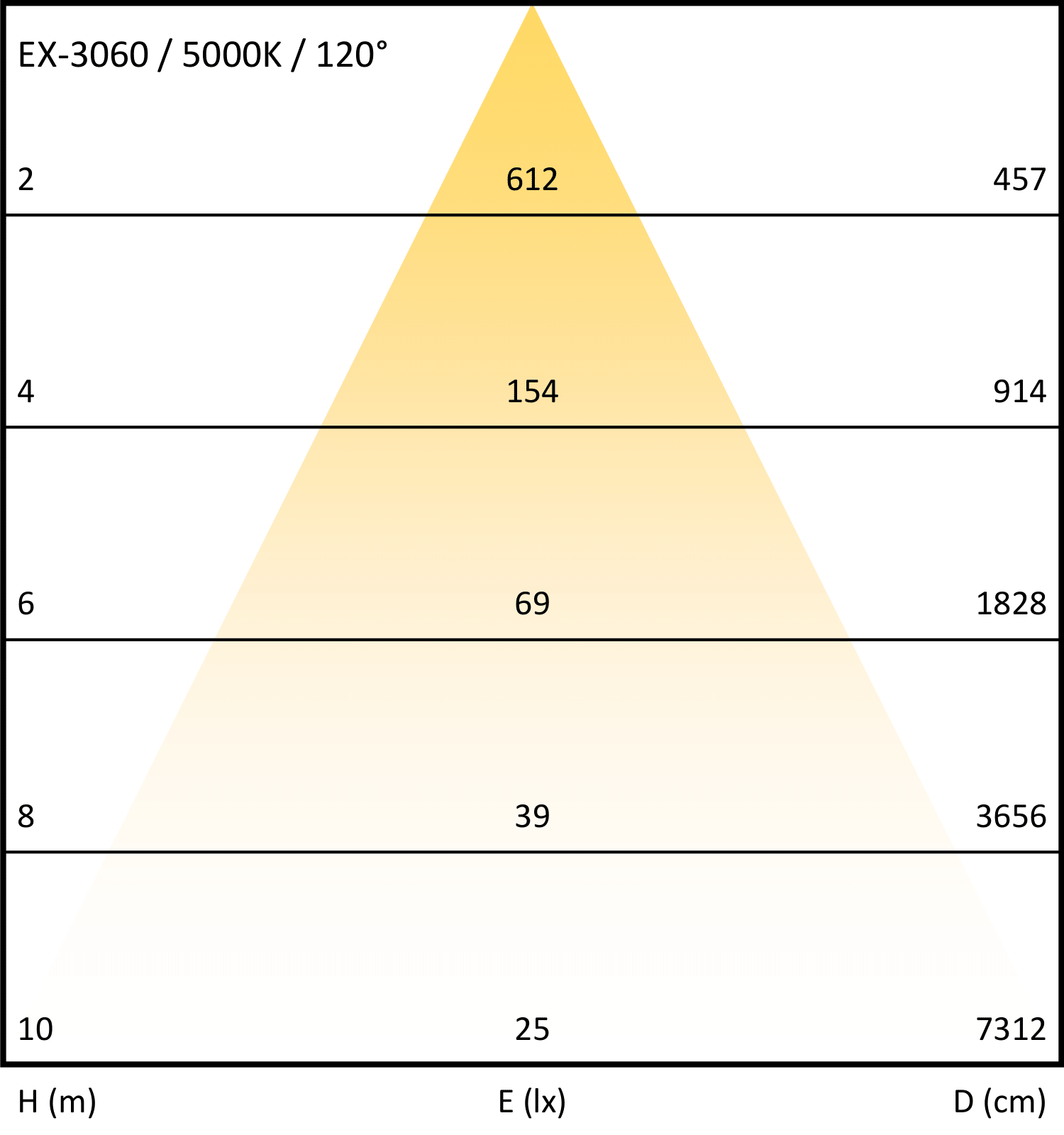

Photometrics
RELATED PRODUCTS
HAZ LOC
Flood Light
60W / 100W / 150W / 200W / 300W / 400W
120°
HAZ LOC
Light Bar
20W / 40W / 60W / 80W / 100W / 120W
120°
HAZ LOC
Jelly Jar
10W / 20W / 30W / 40W
120°
HAZ LOC
Area Light
100W / 150W / 200W
120°

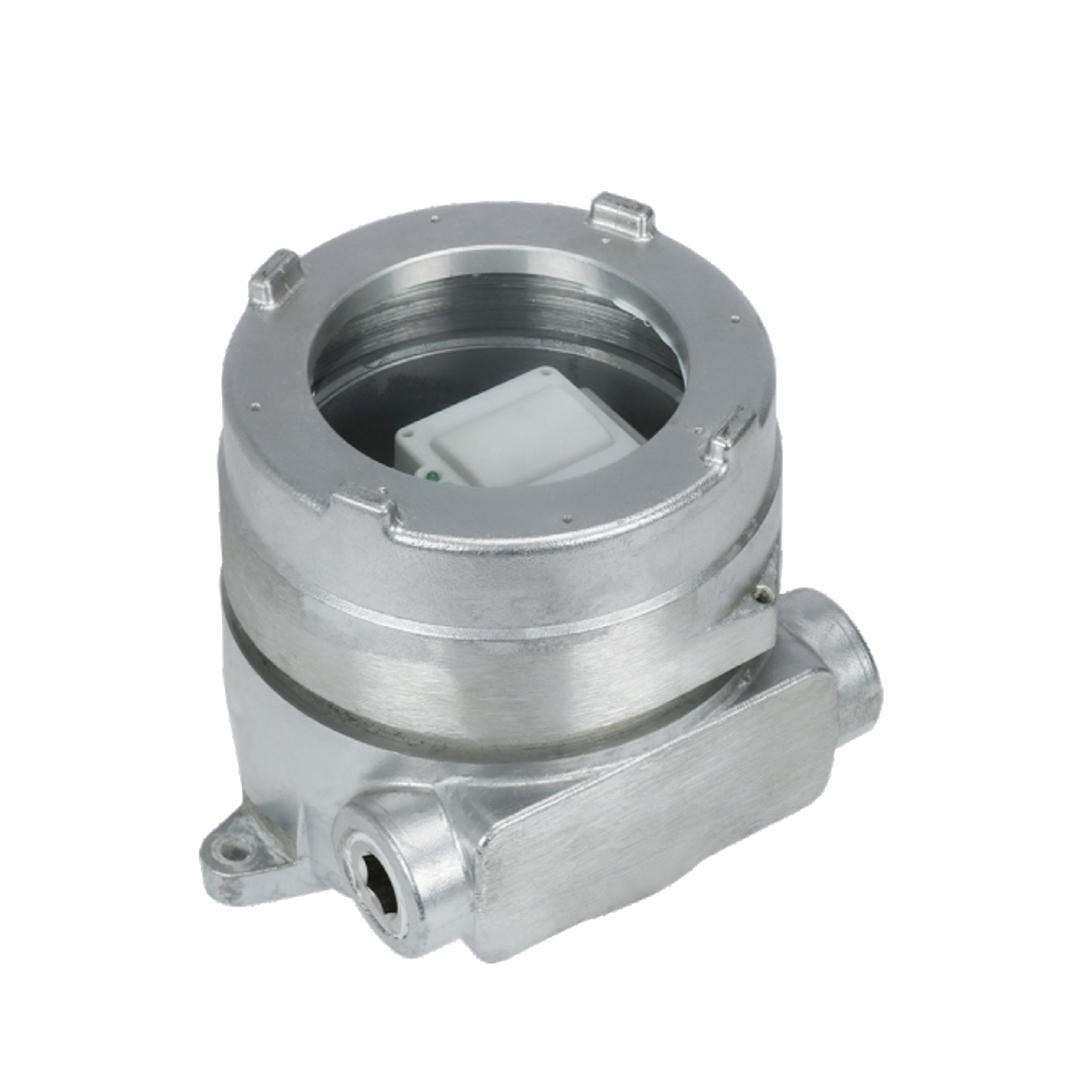

MOTION SENSOR

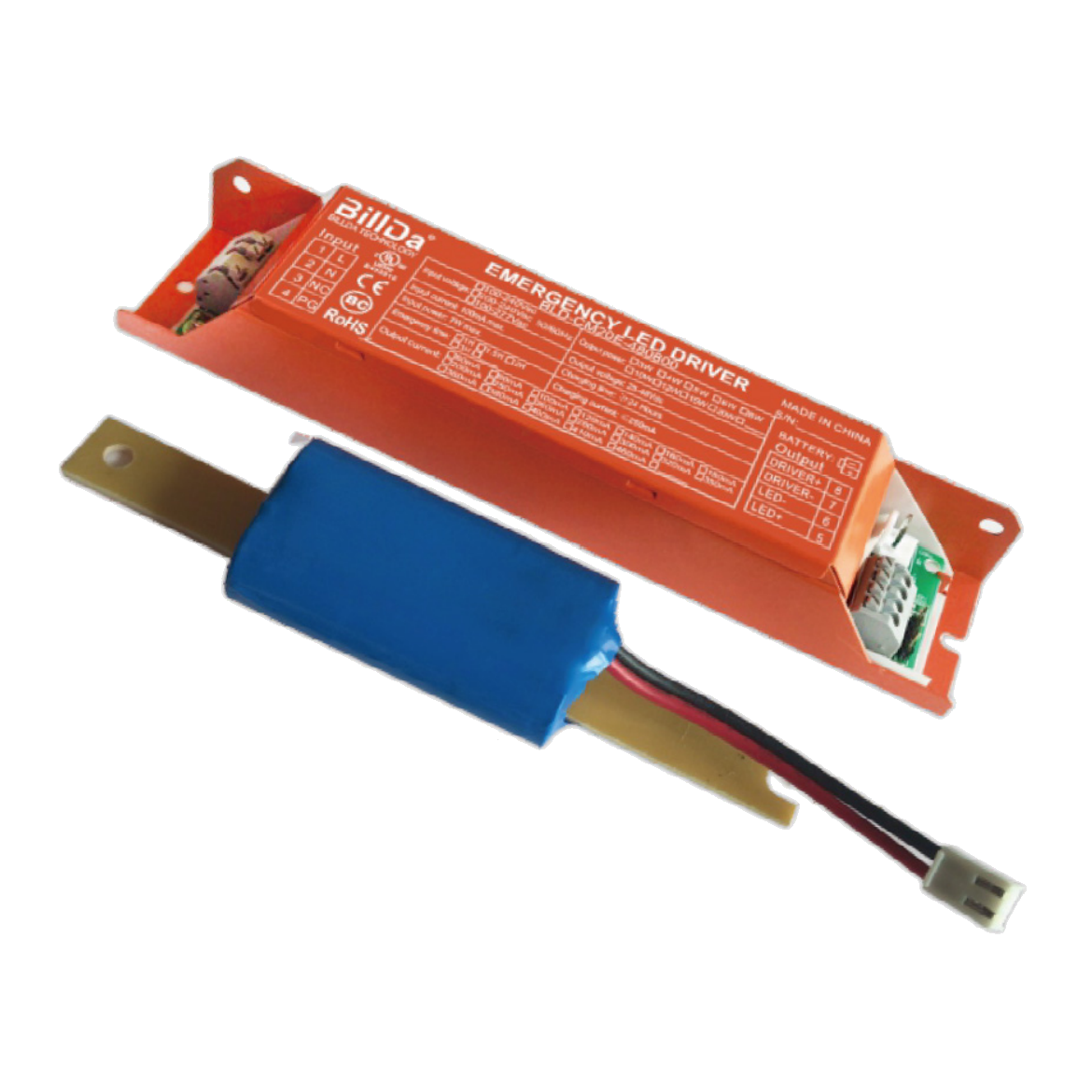

BATTERY BACKUP
