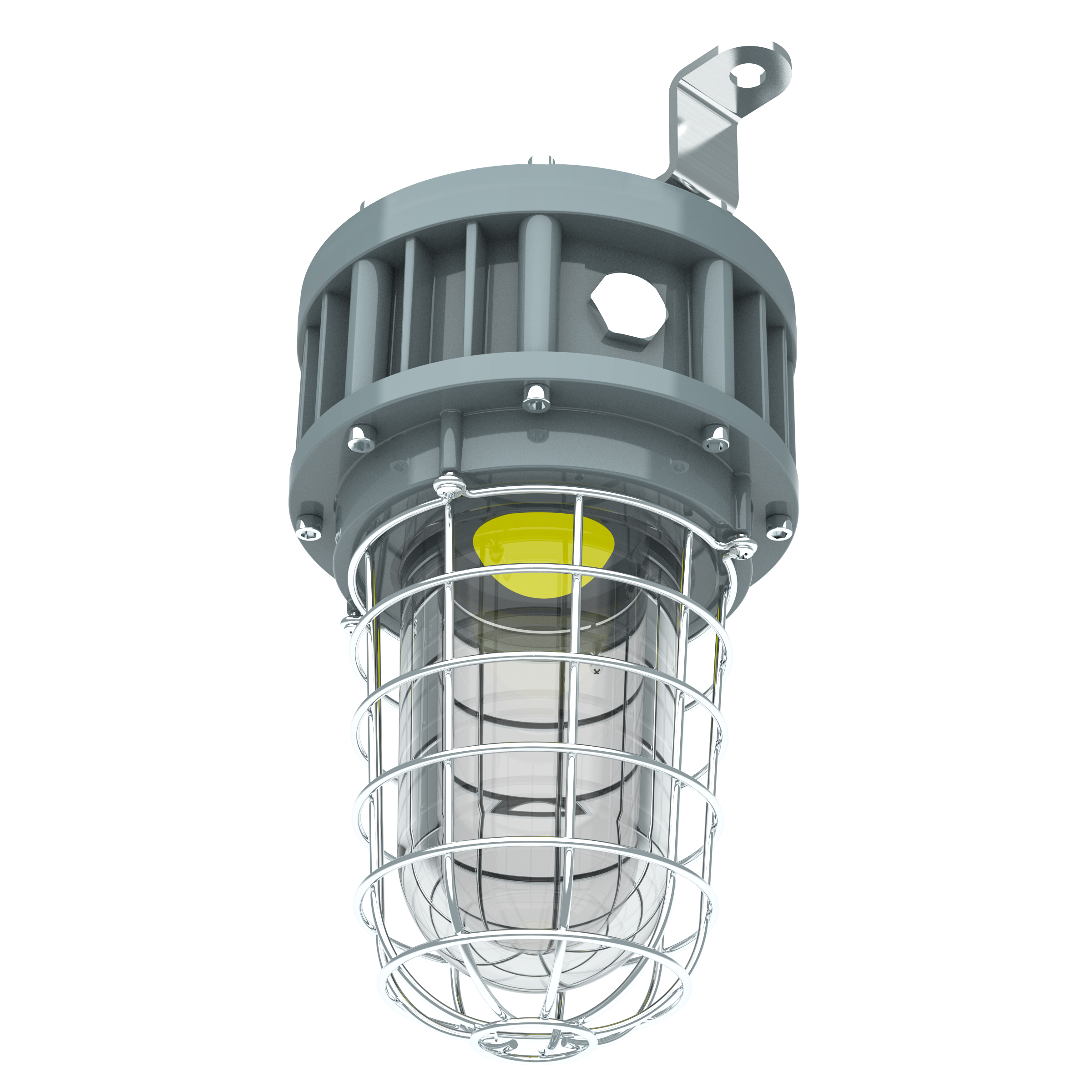

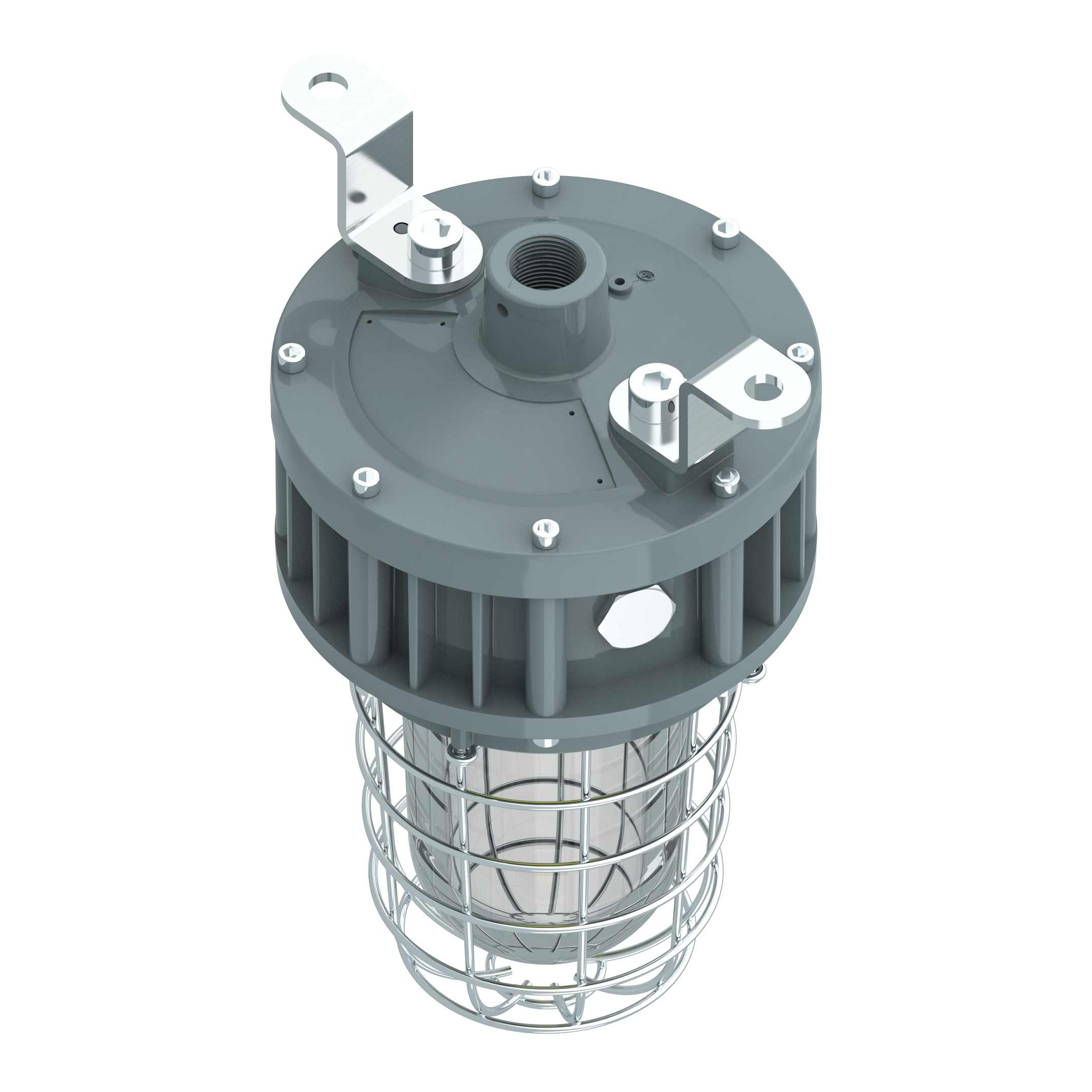

Hazardous Location Jelly Jar
Hazardous Location Jelly Jar
Power: 10W, 20W, 30W, 40W
Luminous Flux: 1,330lm - 5,400lm
Luminous Efficacy: 133lm/W - 135lm/W
Color Temperature: 4000K, 5000K
CRI: ≥73
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC, 200-480V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +50°C / -40°F ~ +122°F
Lifetime: ≥ 50,000hrs
UL 1598A Listed
Class I, Division I, Groups C, D
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Specification Table
EX-2010
1,330-1,350lm
133-135lm/W
Ø 6.88 inches
10.36 pounds
EX-2020
2,660-2,700lm
133-135lm/W
Ø 6.88 inches
10.36 pounds
EX-2030
3,990-4,050lm
133-135lm/W
Ø 6.88 inches
10.36 pounds
EX-2040
5,320-5,400lm
133-135lm/W
Ø 6.88 inches
10.36 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 8
PRODUCT
PHOTOS
qty 3
Photometrics
