Hazardous Location Light Bar
Hazardous Location Light Bar
Power: 20W, 40W, 60W, 80W, 100W, 120W
Luminous Flux: 2,660lm - 16,800lm
Luminous Efficacy: 133lm/W - 140lm/W
Color Temperature: 4000K, 5000K
CRI: ≥73
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC, 200-480V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +60°C / -40°F ~ +140°F
Lifetime: ≥ 50,000hrs
UL 1598A Listed
Class I, Division I, Groups C, D
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Specification Table
EX-4020
2,660-2,800lm
133-140lm/W
2 foot
22.27 pounds
EX-4040
5,320-5,600lm
133-140lm/W
2 foot / 4 foot
40.78 pounds
EX-4060
7,980-8,400lm
133-140lm/W
2 foot / 4 foot
40.78 pounds
EX-4080
10,640-11,200lm
133-140lm/W
2 foot / 4 foot
40.78 pounds
EX-4100
13,300-14,000lm
133-140lm/W
4 foot
40.78 pounds
EX-4120
15,960-16,800lm
133-140lm/W
4 foot
40.78 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 16
PRODUCT
PHOTOS
qty 4

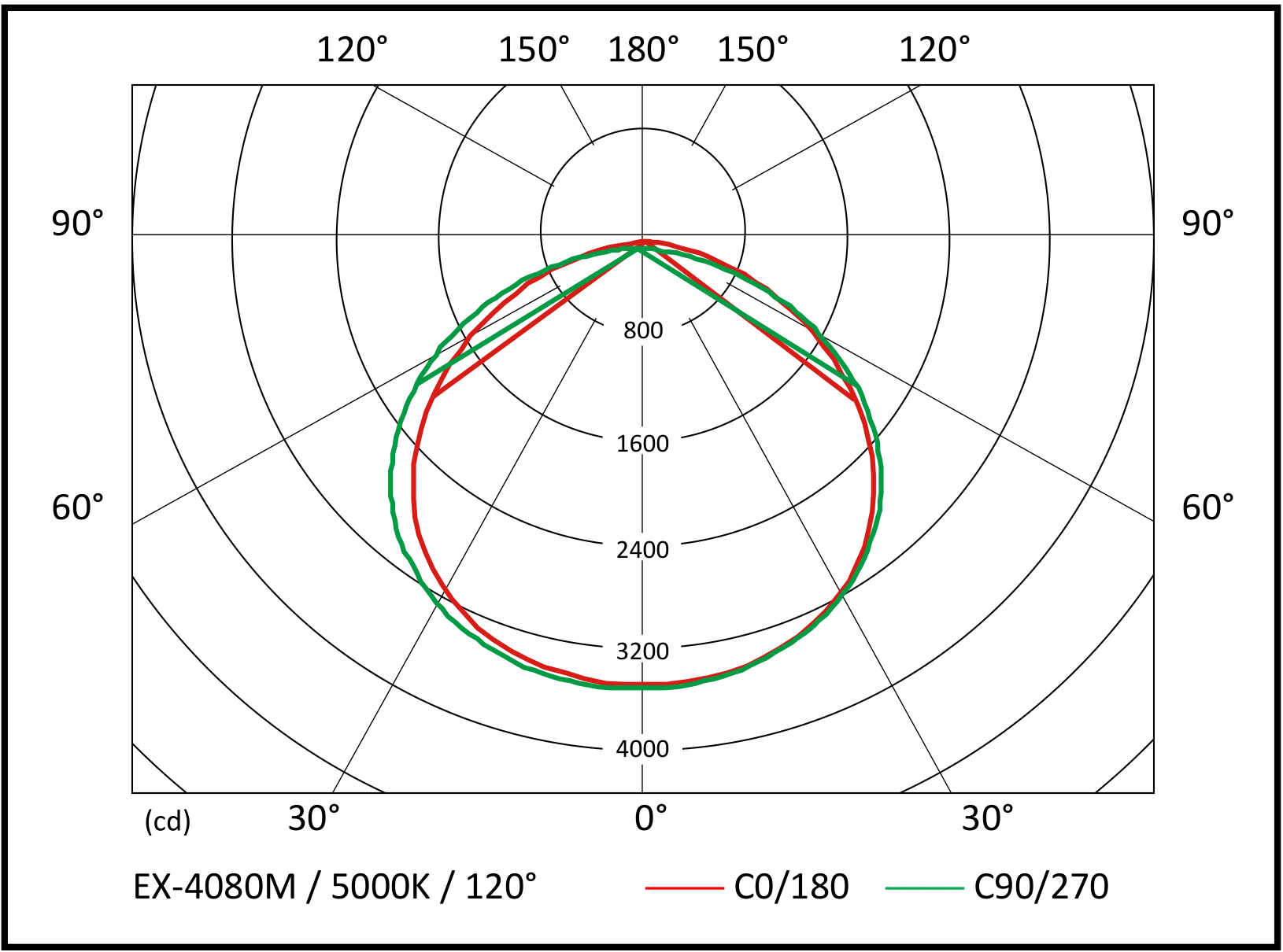

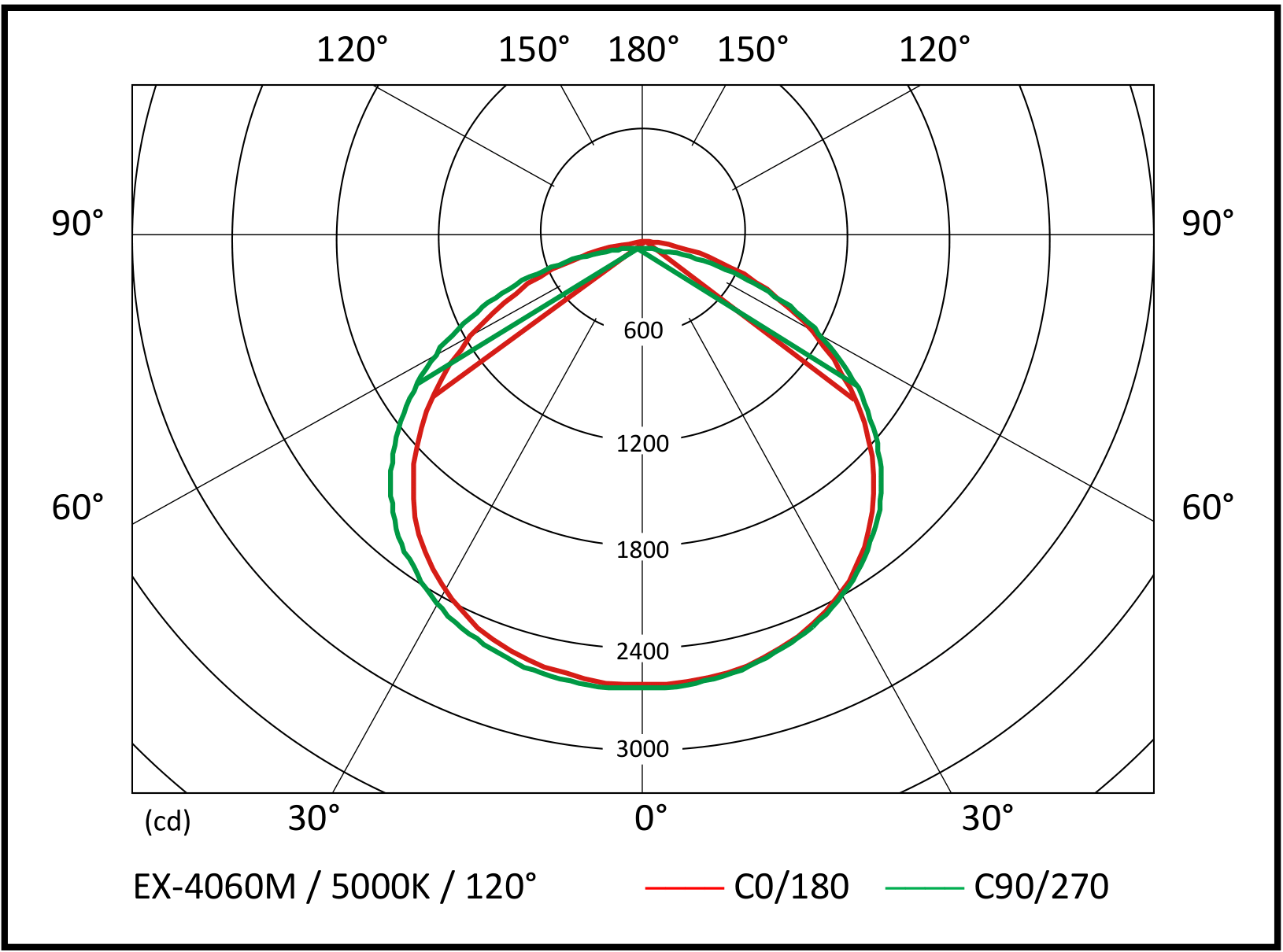

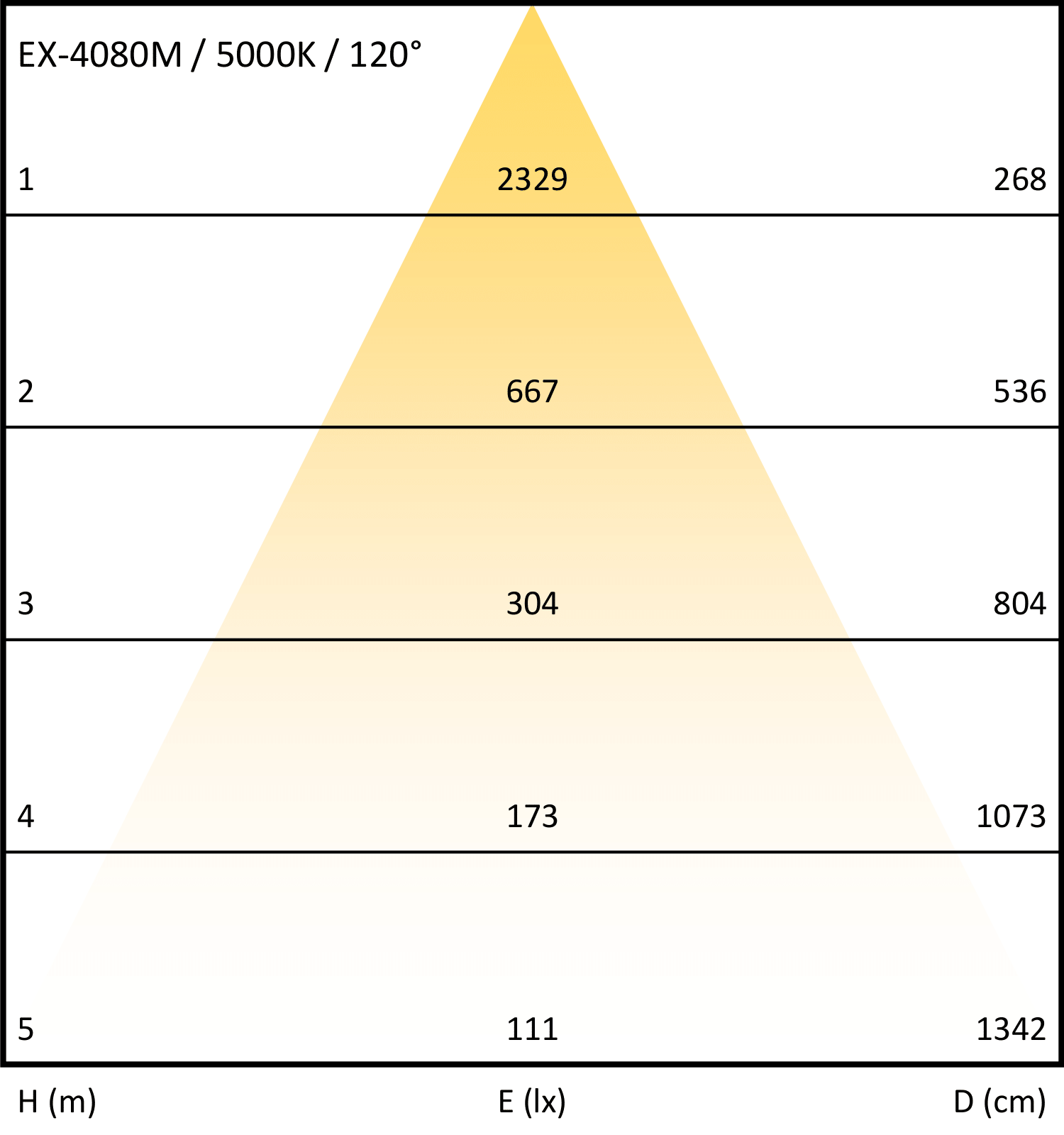

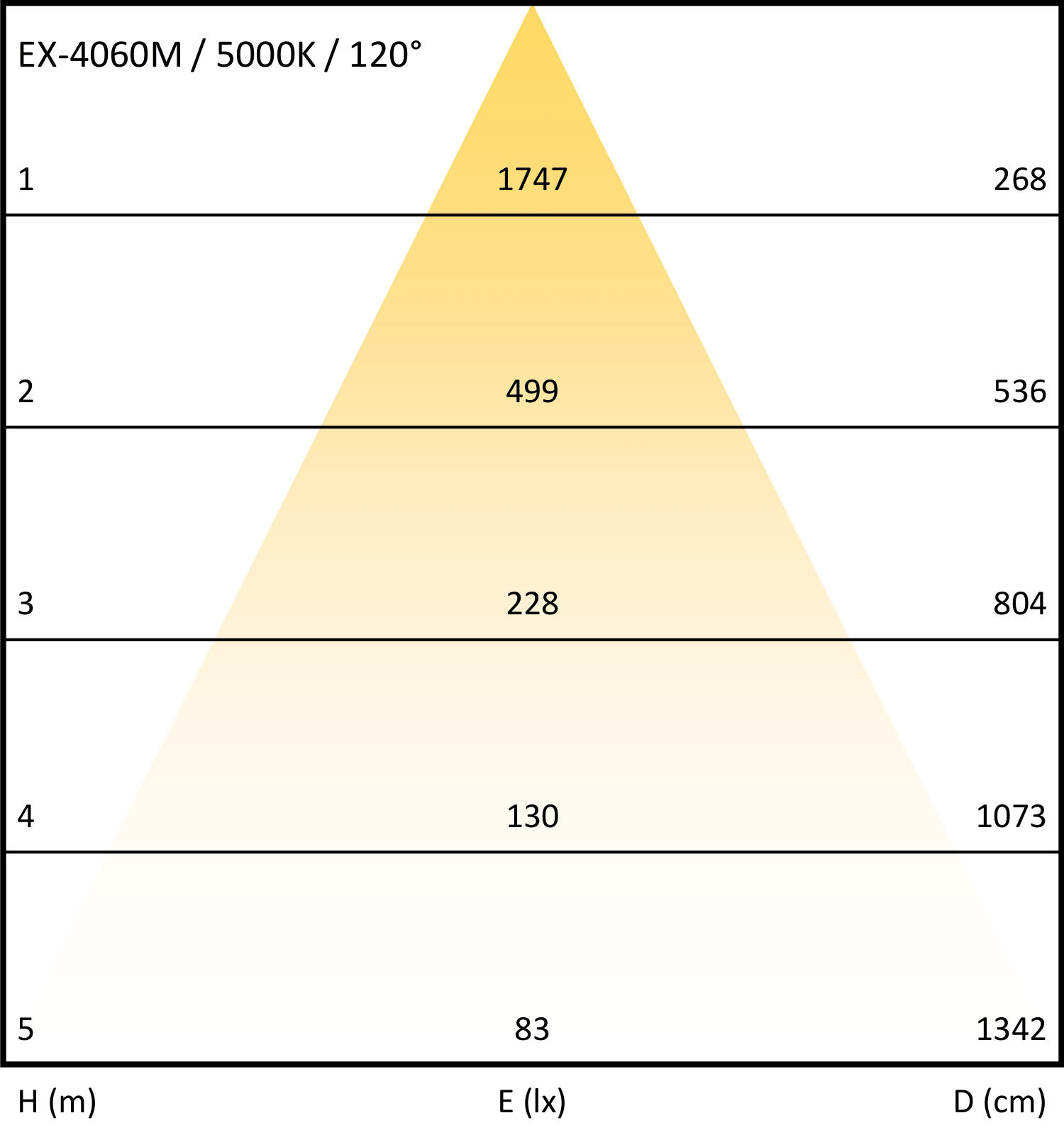

Photometrics
