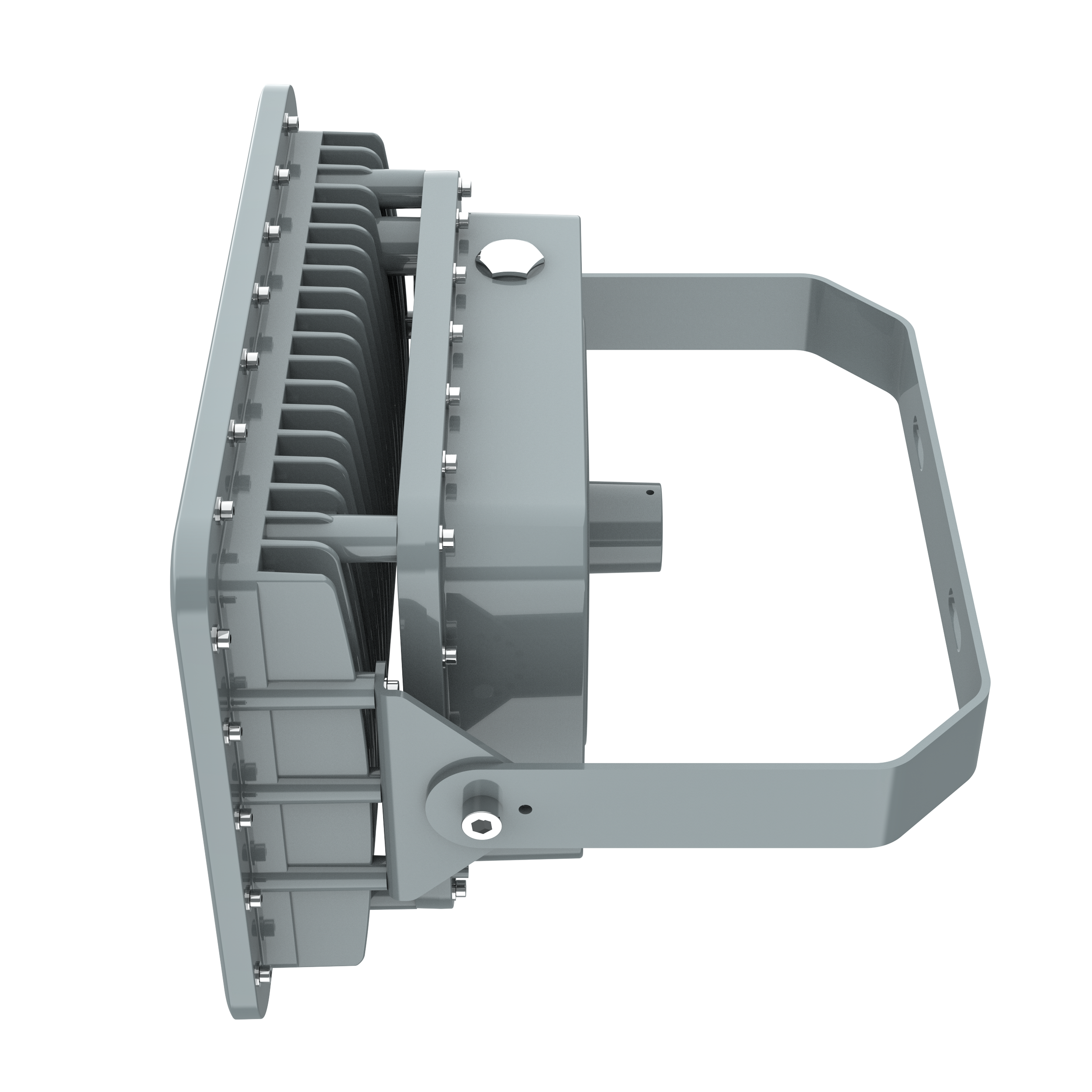

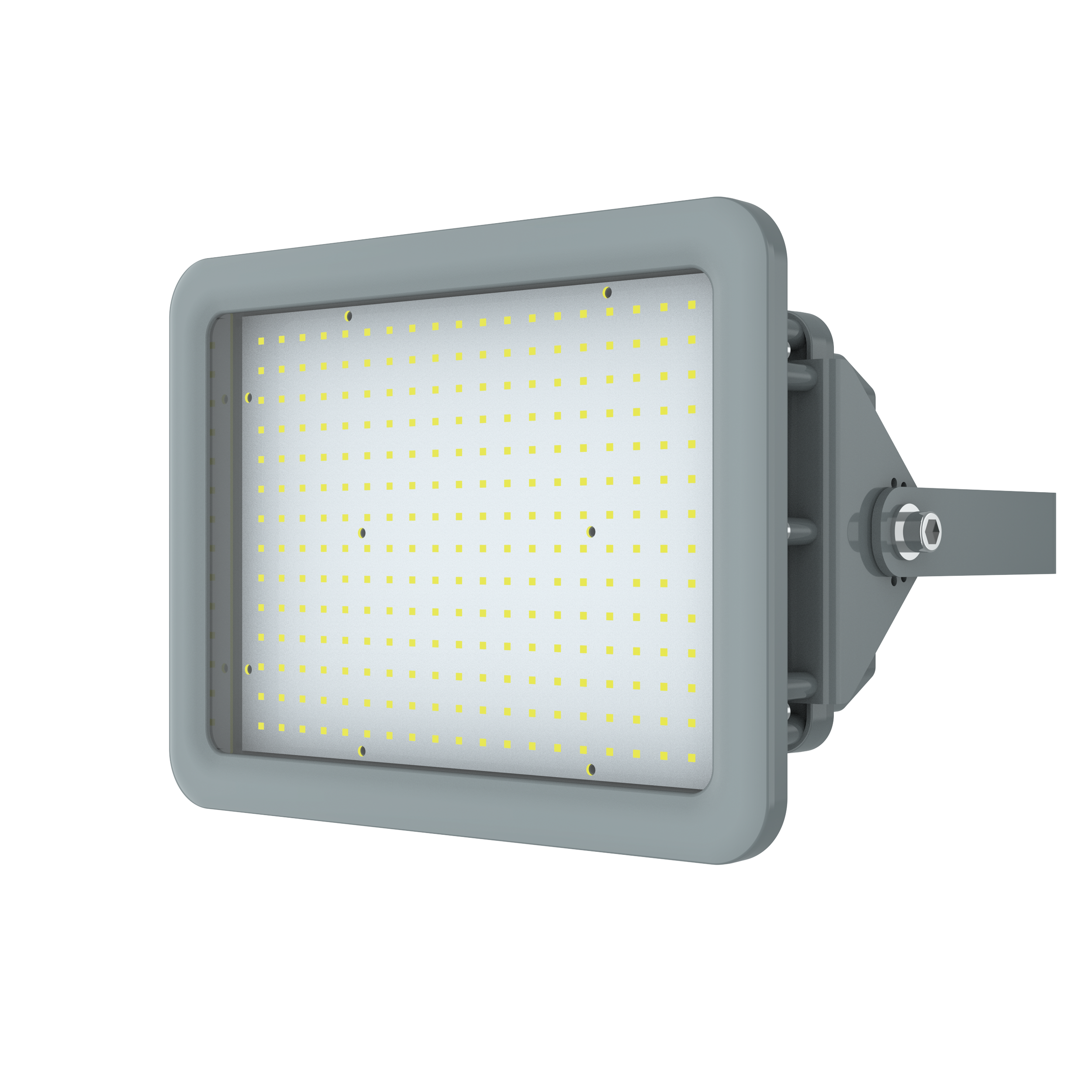

Hazardous Location Flood Light
Hazardous Location Flood Light
Power: 60W, 100W, 150W, 200W, 250W, 300W, 400W
Luminous Flux: 7,980lm - 56,000lm
Luminous Efficacy: 133lm/W - 140lm/W
Color Temperature: 4000K, 5000K
CRI: ≥73
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC, 200-480V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +50°C / -40°F ~ +122°F
Lifetime: ≥ 50,000hrs
UL 1598A Listed
Class I, Division I, Groups C, D
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Specification Table
EX-6060
7,980-8,400lm
133-140lm/W
1.47 ft² EPA
B3-U1-G0
15.21 pounds
EX-6100
13,300-14,000lm
133-140lm/W
1.47 ft² EPA
B3-U1-G0
39.46 pounds
EX-6150
19,950-21,000lm
133-140lm/W
1.47 ft² EPA
B4-U1-G1
39.46 pounds
EX-6200
26,600-28,000lm
133-140lm/W
1.47 ft² EPA
B4-U2-G2
39.46 pounds
EX-6250
33,250-35,000lm
133-140lm/W
2.26 ft² EPA
B4-U2-G2
46.03 pounds
EX-6300
39,900-42,000lm
133-140lm/W
2.26 ft² EPA
B4-U2-G2
46.03 pounds
EX-6400
53,200-56,000lm
133-140lm/W
3.11 ft² EPA
B4-U2-G2
57.71 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 22
PRODUCT
PHOTOS
qty 11

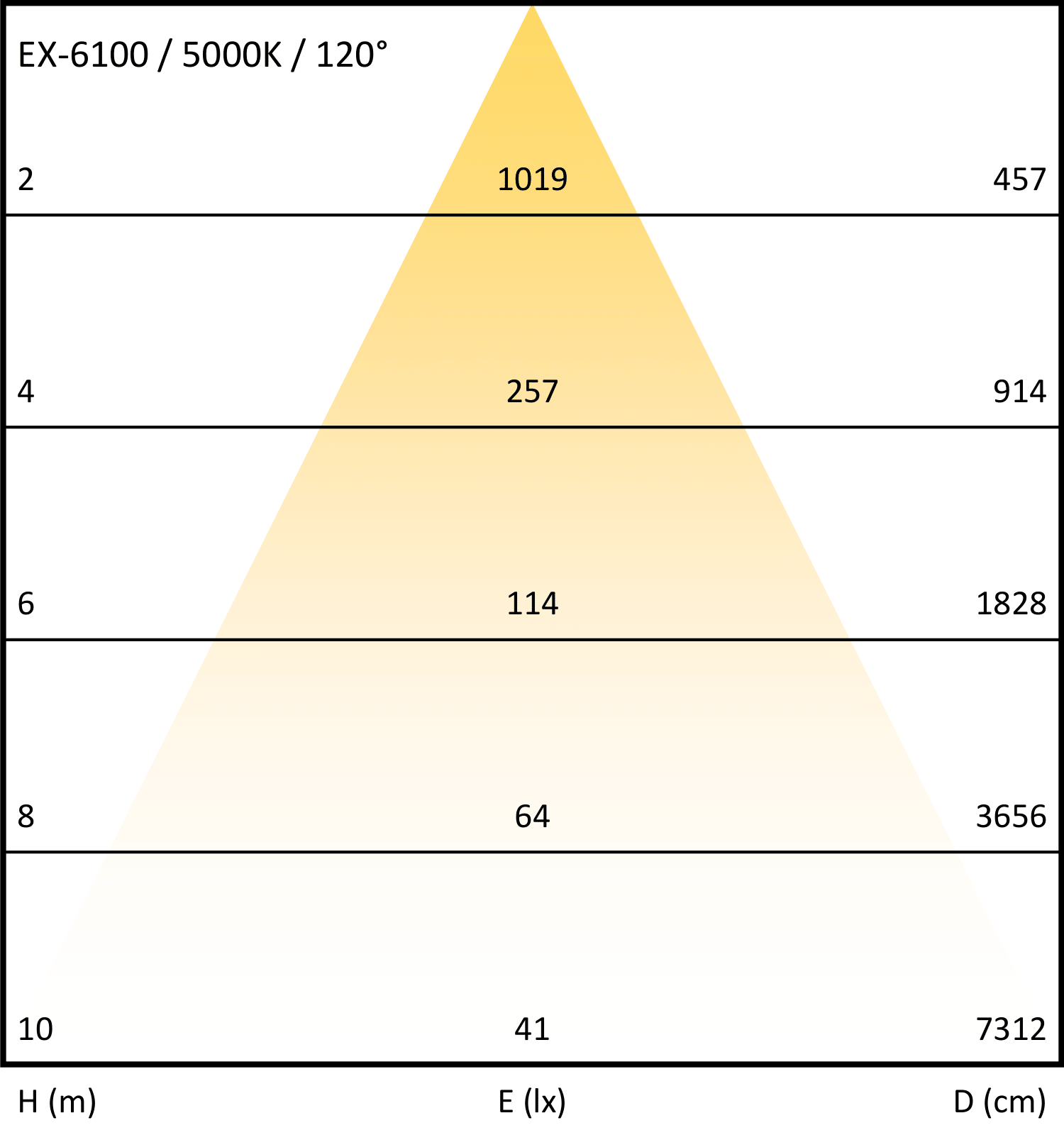

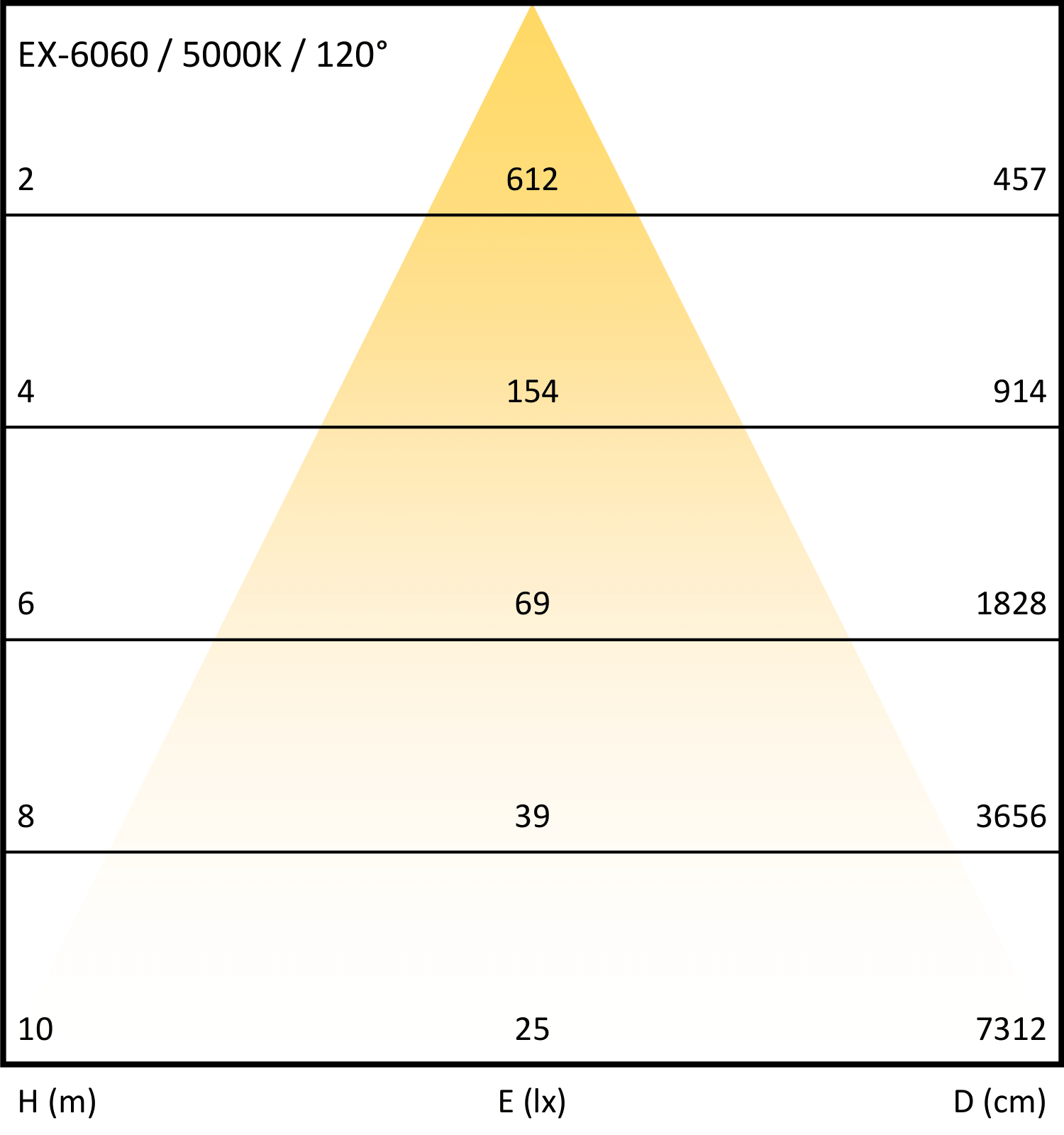

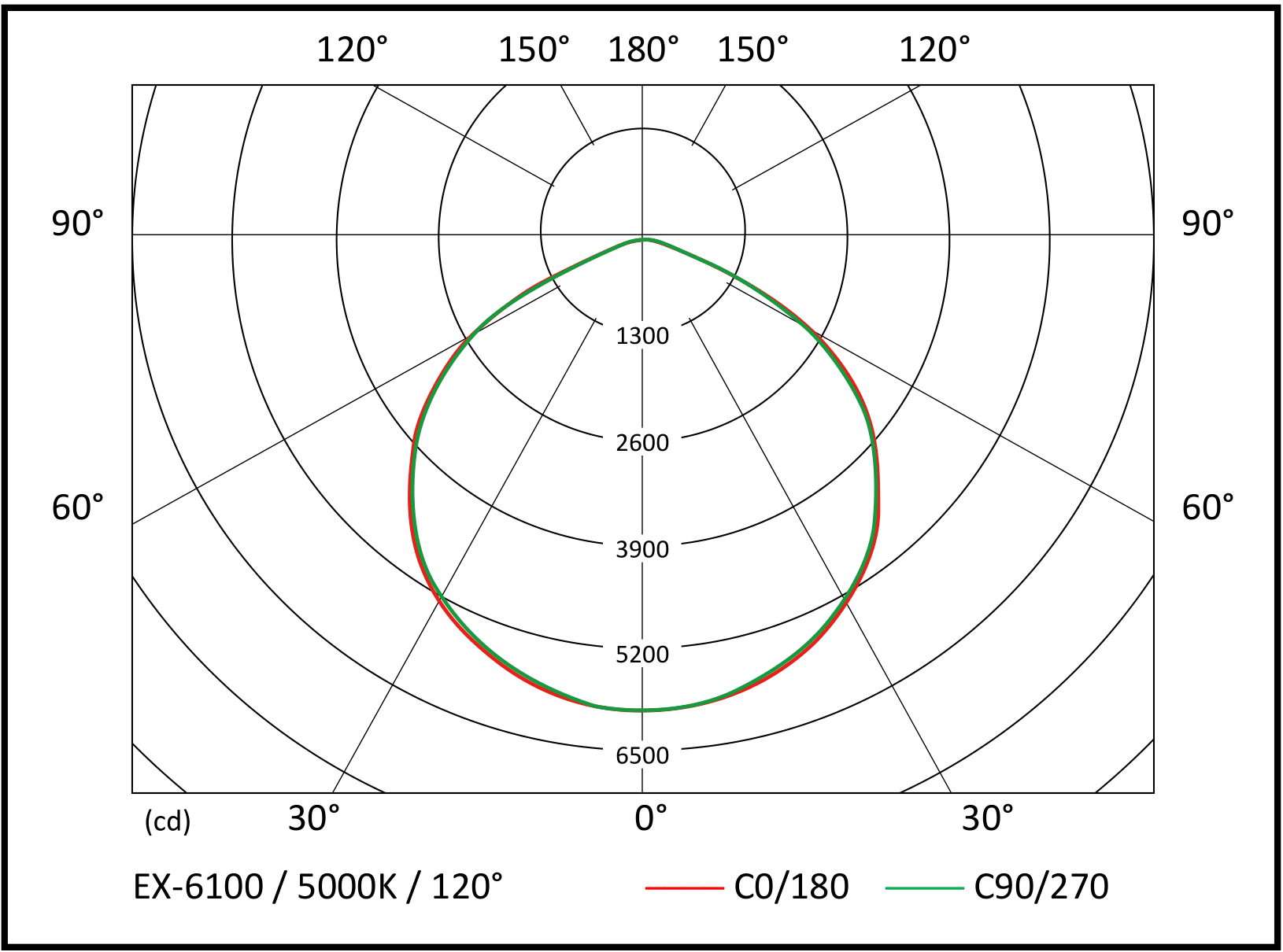

Photometrics
RELATED PRODUCTS
DELTA
30W / 60W / 150W / 250W /520W
60d / 90d / 120d
3K / 4K / 5K
EPSILON
30W / 60W / 150W / 250W /520W
60d / 90d / 120d
3K / 4K / 5K
PERMASTAR
30W / 60W / 150W / 250W /520W
60d / 90d / 120d
3K / 4K / 5K
VELOCITY
30W / 60W / 150W / 250W /520W
60d / 90d / 120d
3K / 4K / 5K

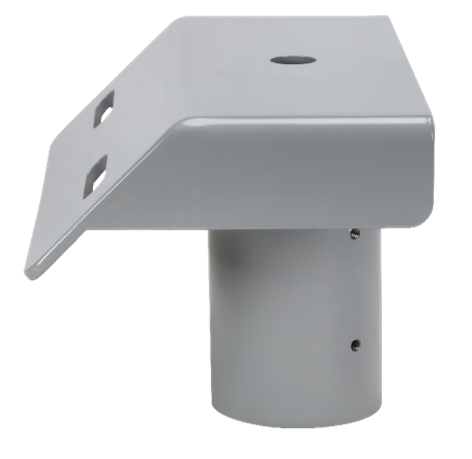

SLIPFITTER
