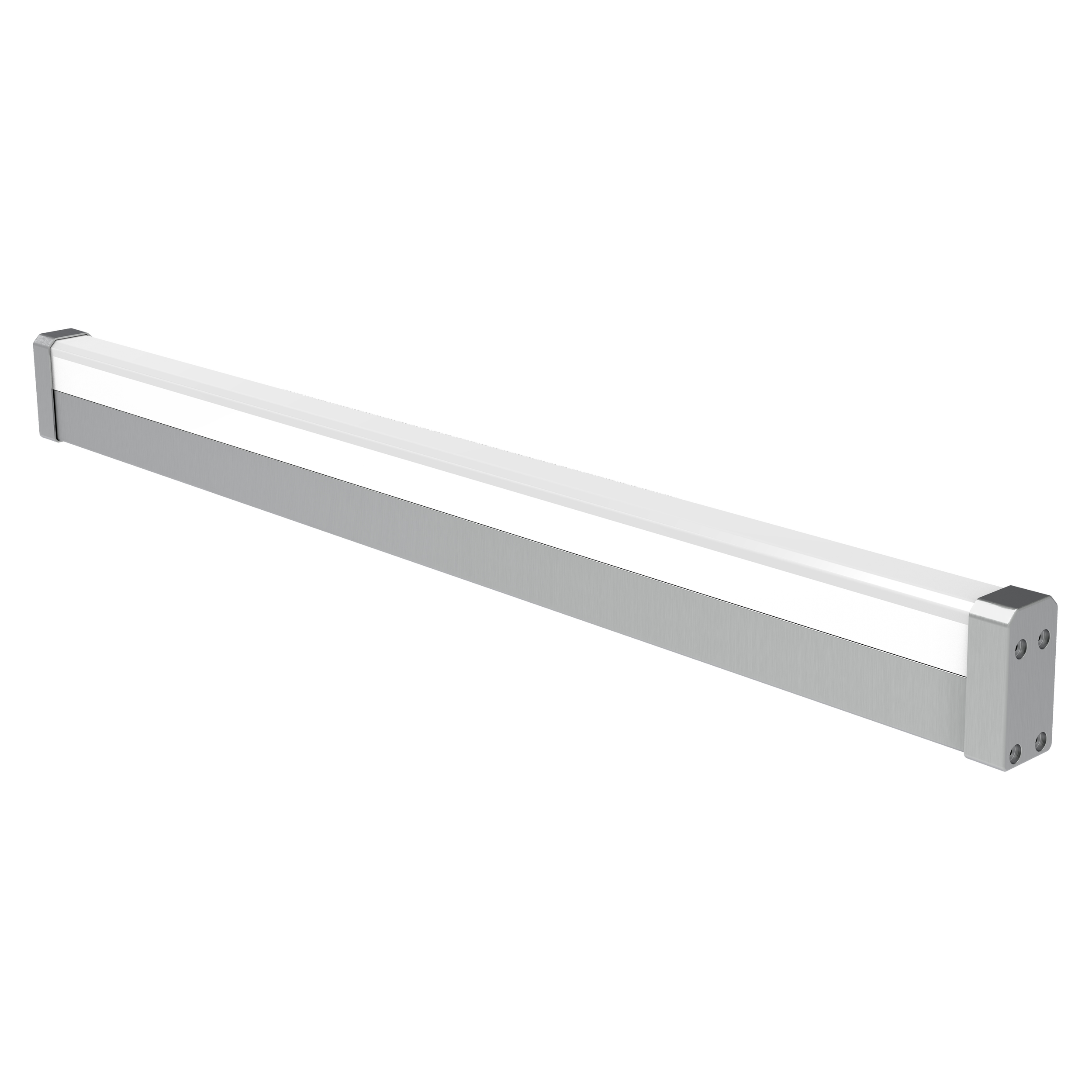

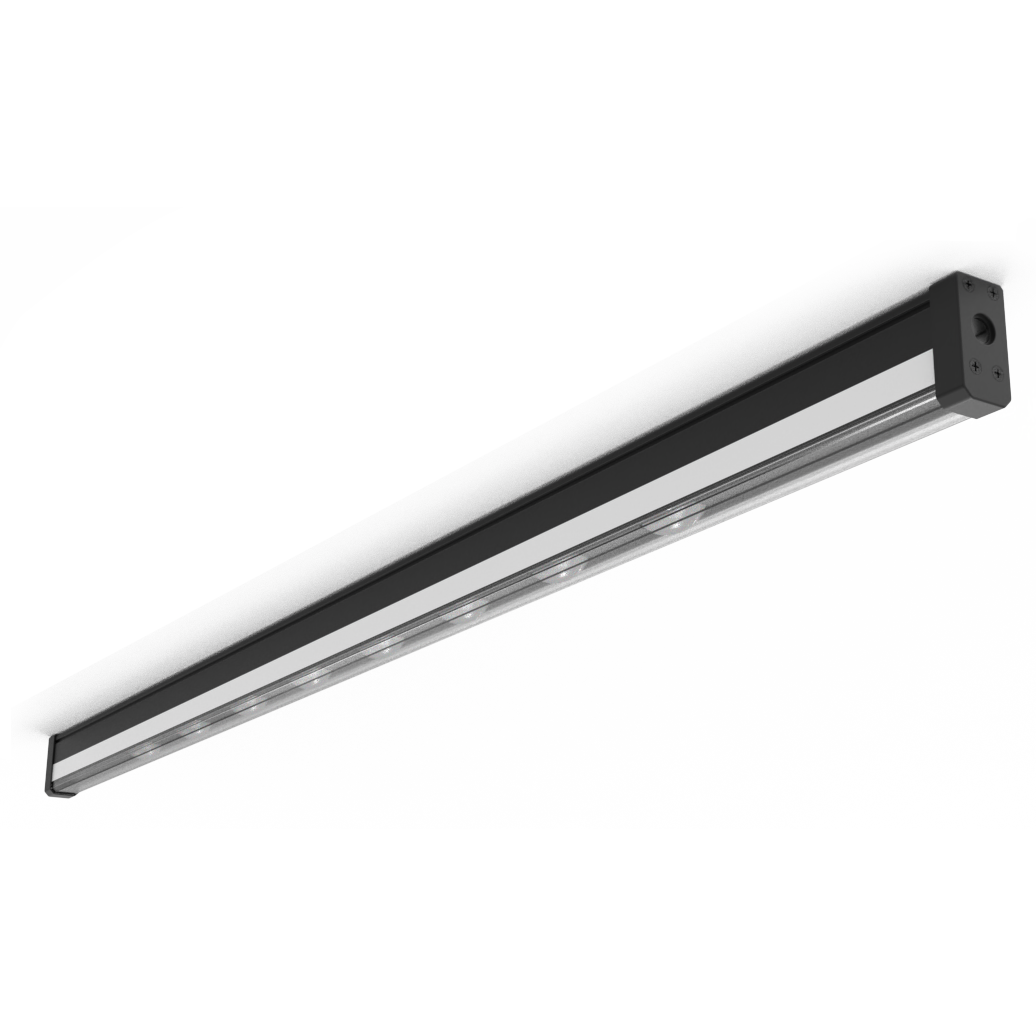

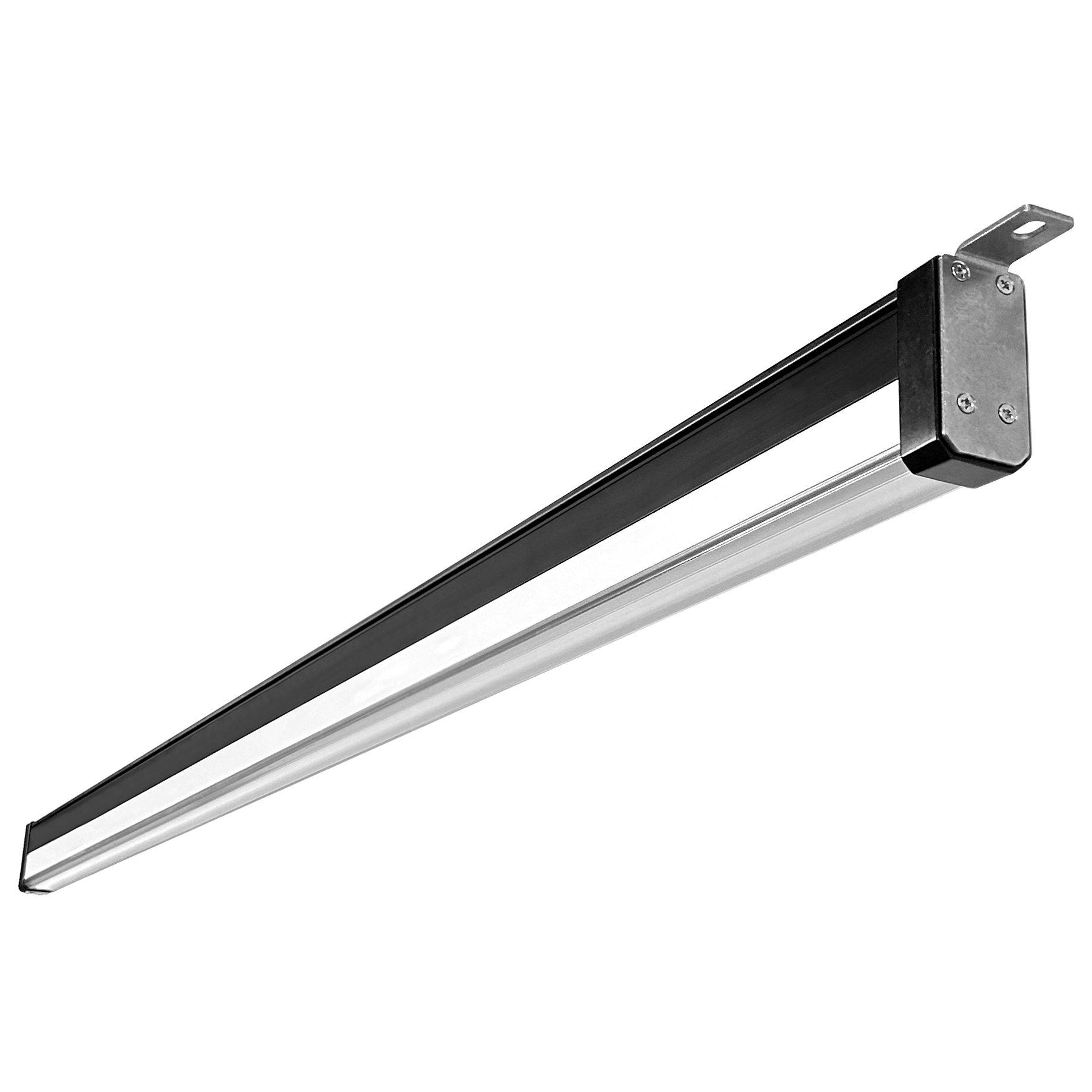

Obi Light Bar
Obi Light Bar
Power: 30W, 60W, 90W, 120W
Luminous Flux: 3,160lm - 16,320lm
Luminous Efficacy: 98lm/W - 167lm/W
Color Temperature: 3000K, 4000K, 5000K

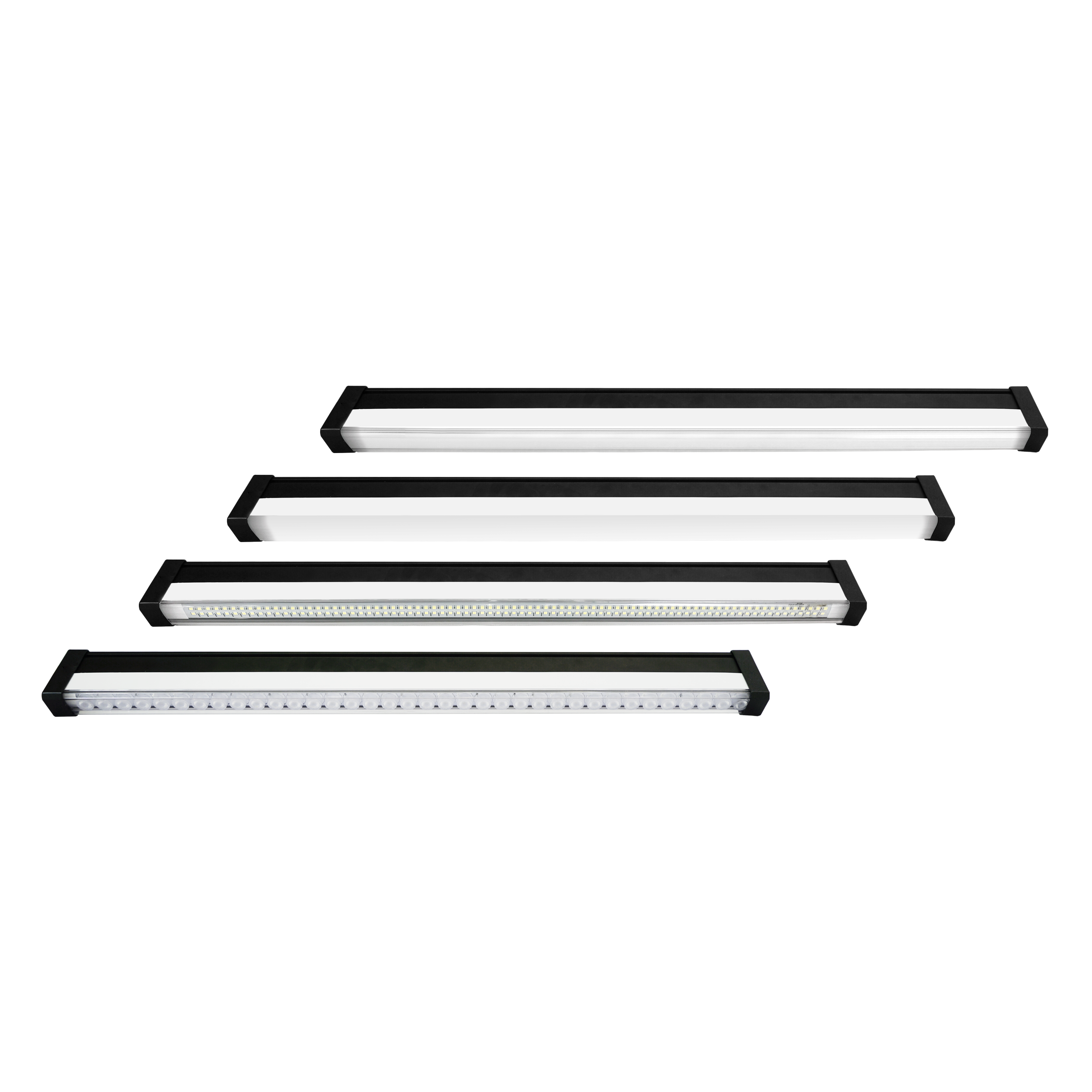

Length: 2ft, 4ft, 6ft, 8ft
CRI: ≥80
Beam Angle: 30°, 60°, 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: Yes
Housing Material: Aluminum
Lens Material: Polyacrylate
Finish: Black, White, Silver
Ambient Operating Temperature: -35°C ~ +65°C / -30°F ~ +149°F
Lifetime: ≥ 50,000hrs
Specification Table
LB-4030
3,084-4,664lm
106-167lm/W
2 & 4 foot
2.25/3.75 pounds
LB-4060
5,852-9,202lm
99-161lm/W
4 foot
3.75 pounds
LB-4090
8,778-13,803lm
99-159lm/W
6 foot
5.25 pounds
LB-4120
11,704-18,404lm
98-157lm/W
8 foot
6.75 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 60
PRODUCT
PHOTOS
qty 6

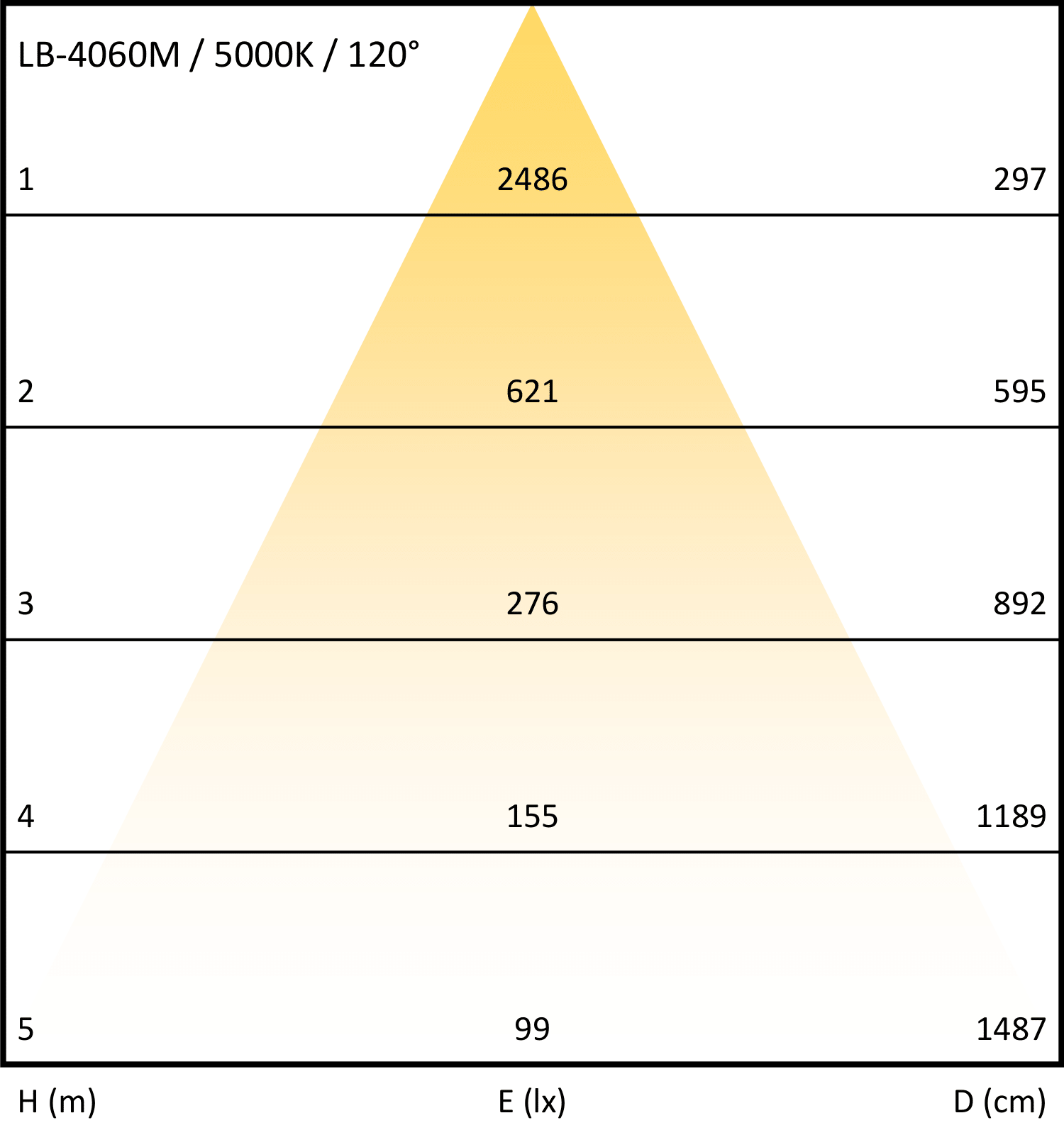

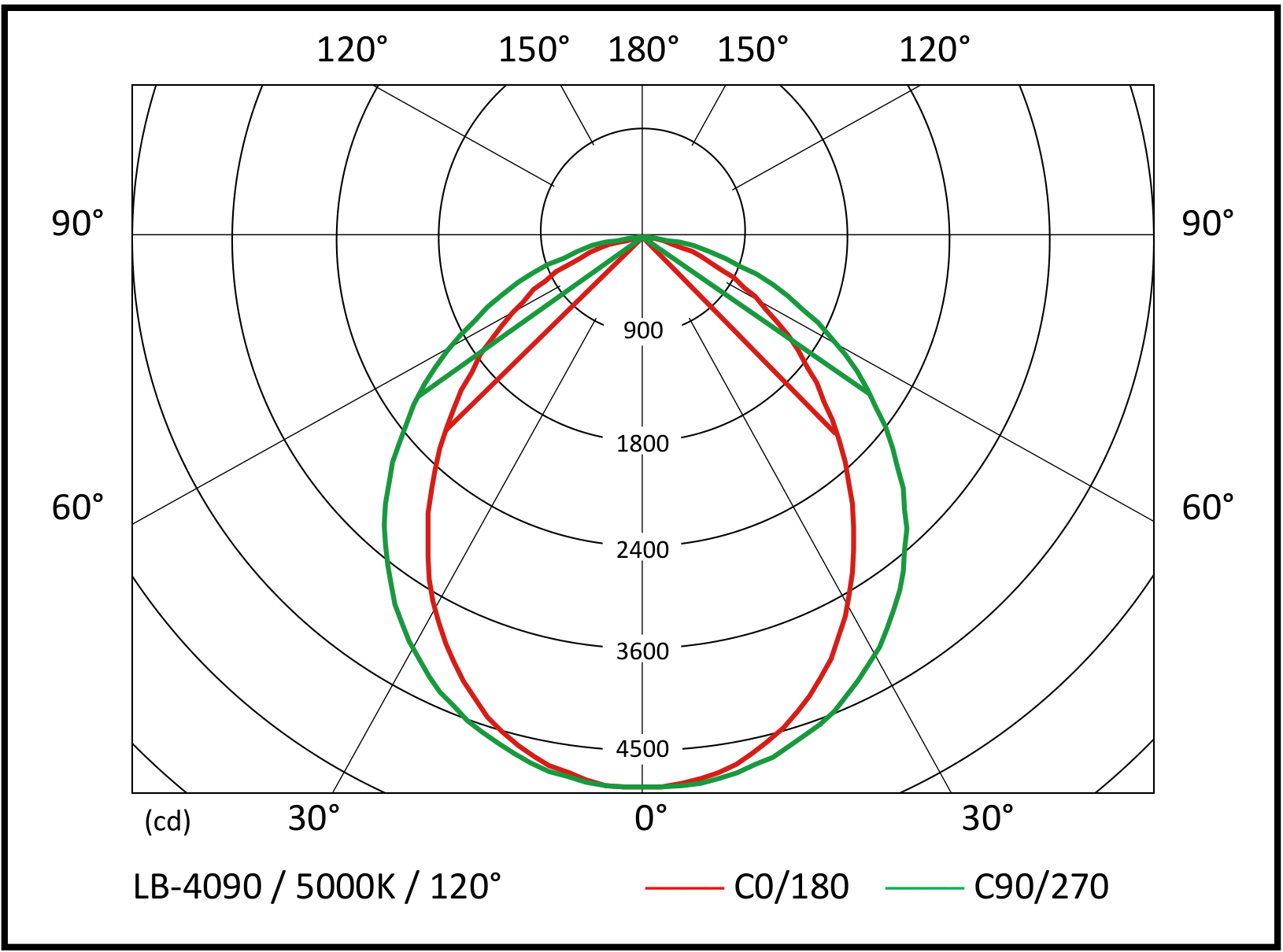

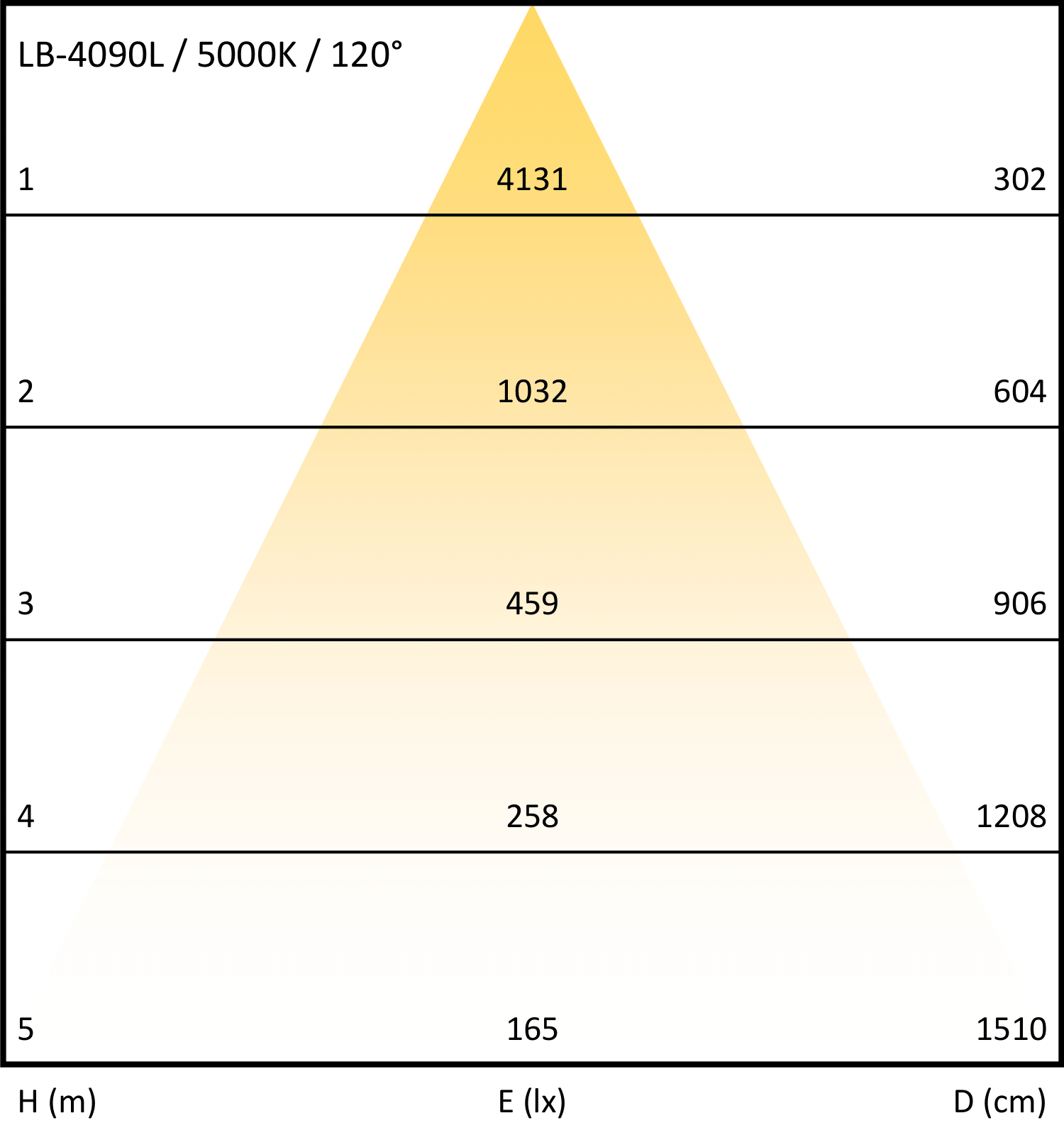

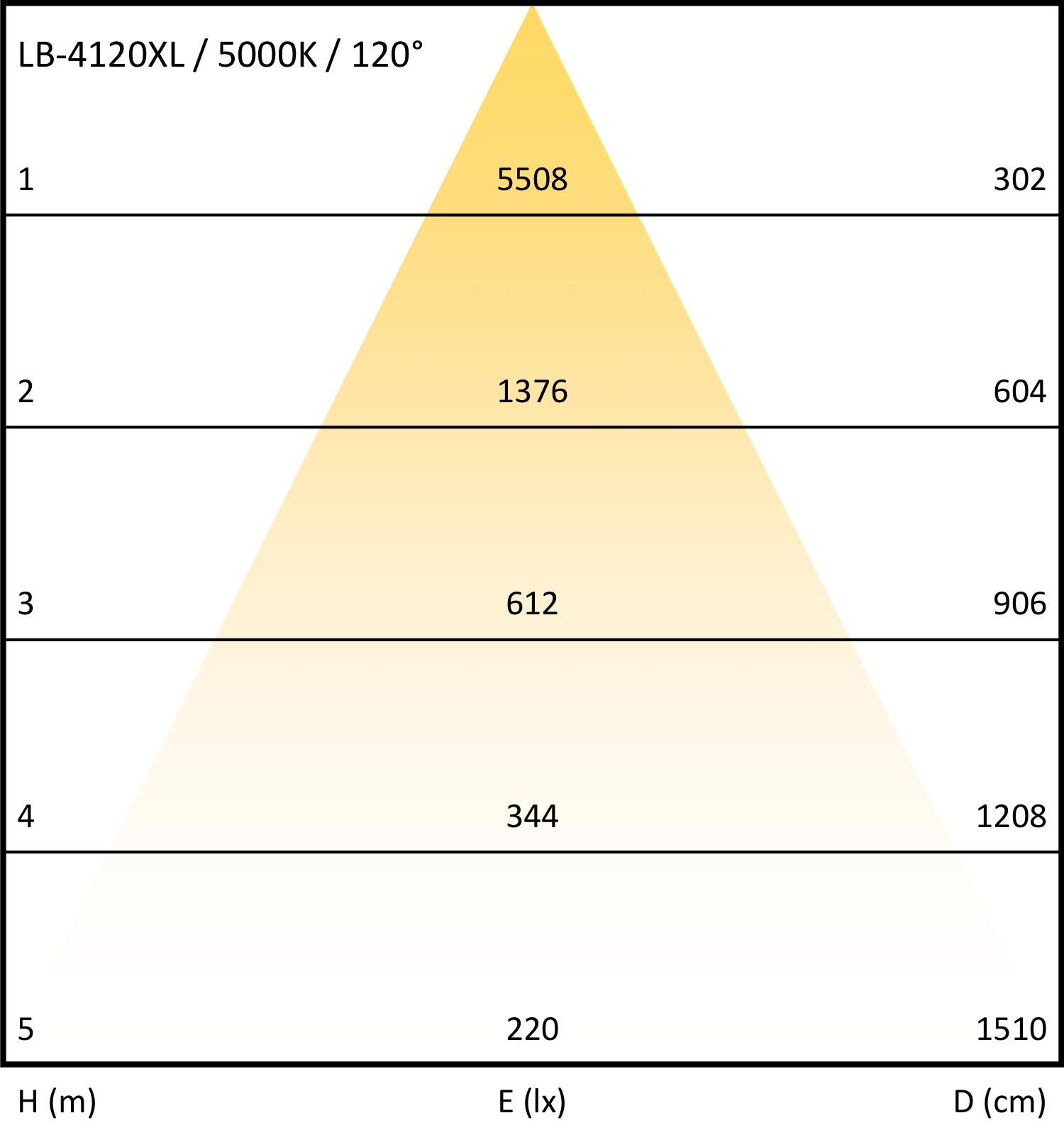

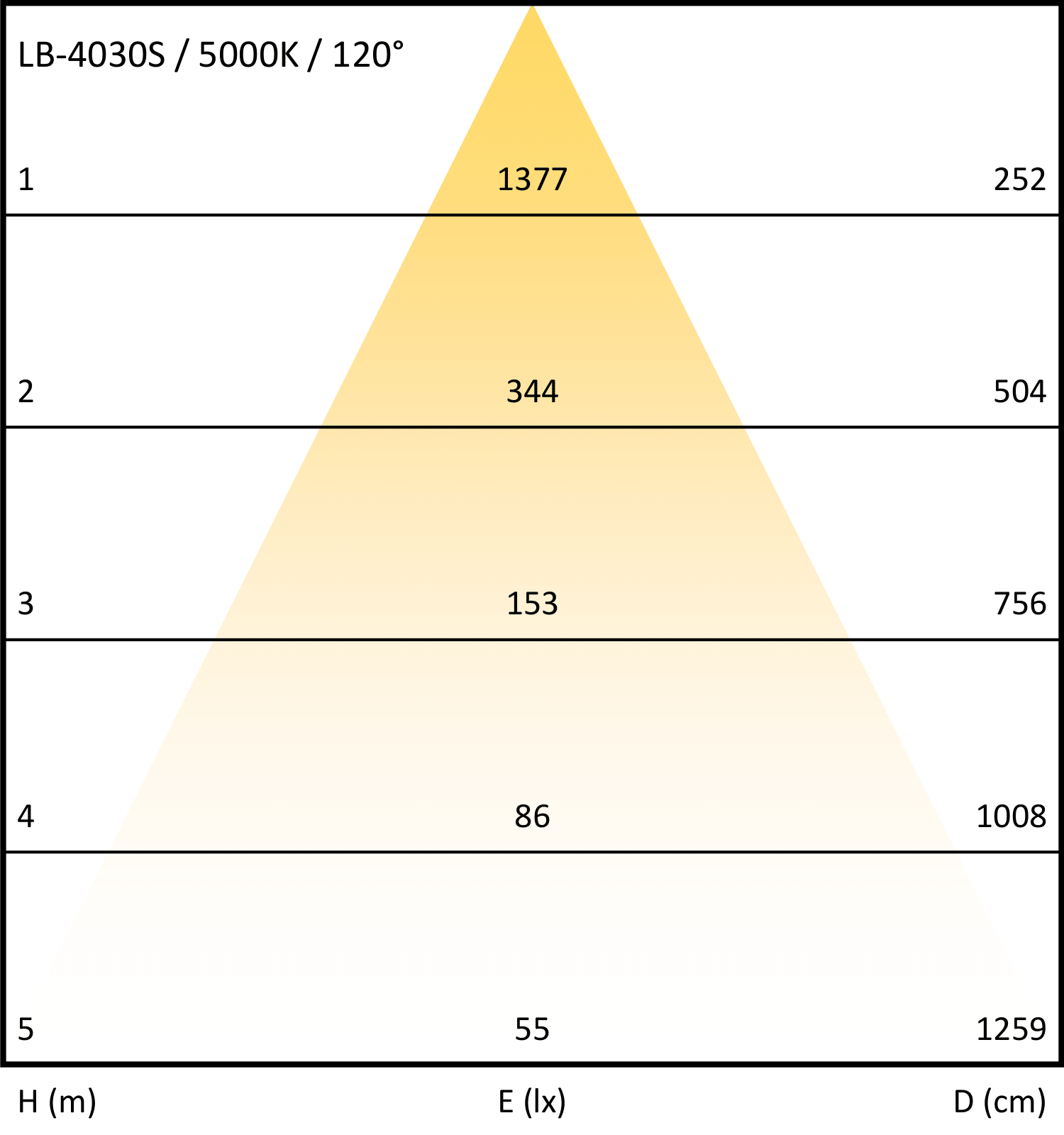

Photometrics
