Linear High Bay
Linear High Bay
Power: 124W
Luminous Flux: 16,098lm - 17,125lm
Luminous Efficacy: 130lm/W - 138lm/W
Color Temperature: 3000K, 4000K, 5000K
CRI: ≥80
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: Yes
Housing Material: Aluminum
Lens Material: Polyacrylate
Finish: Silver
Weight: 2.4kg / 5.29lbs
Dimensions: 1200 x 72 x 51mm / 47.24 x 2.83 x 2.00in
Ambient Operating Temperature: -25°C ~ +45°C / -13°F ~ +113°F
Lifetime: ≥ 50,000hrs
Single, Double, and Triple Bar configurations available
Specification Table
HB-5125-M1
16,098-17,125lm
130-138lm/W
Single Assembly
5.29 pounds
HB-5125-M2
32,195-34,250lm
130-138lm/W

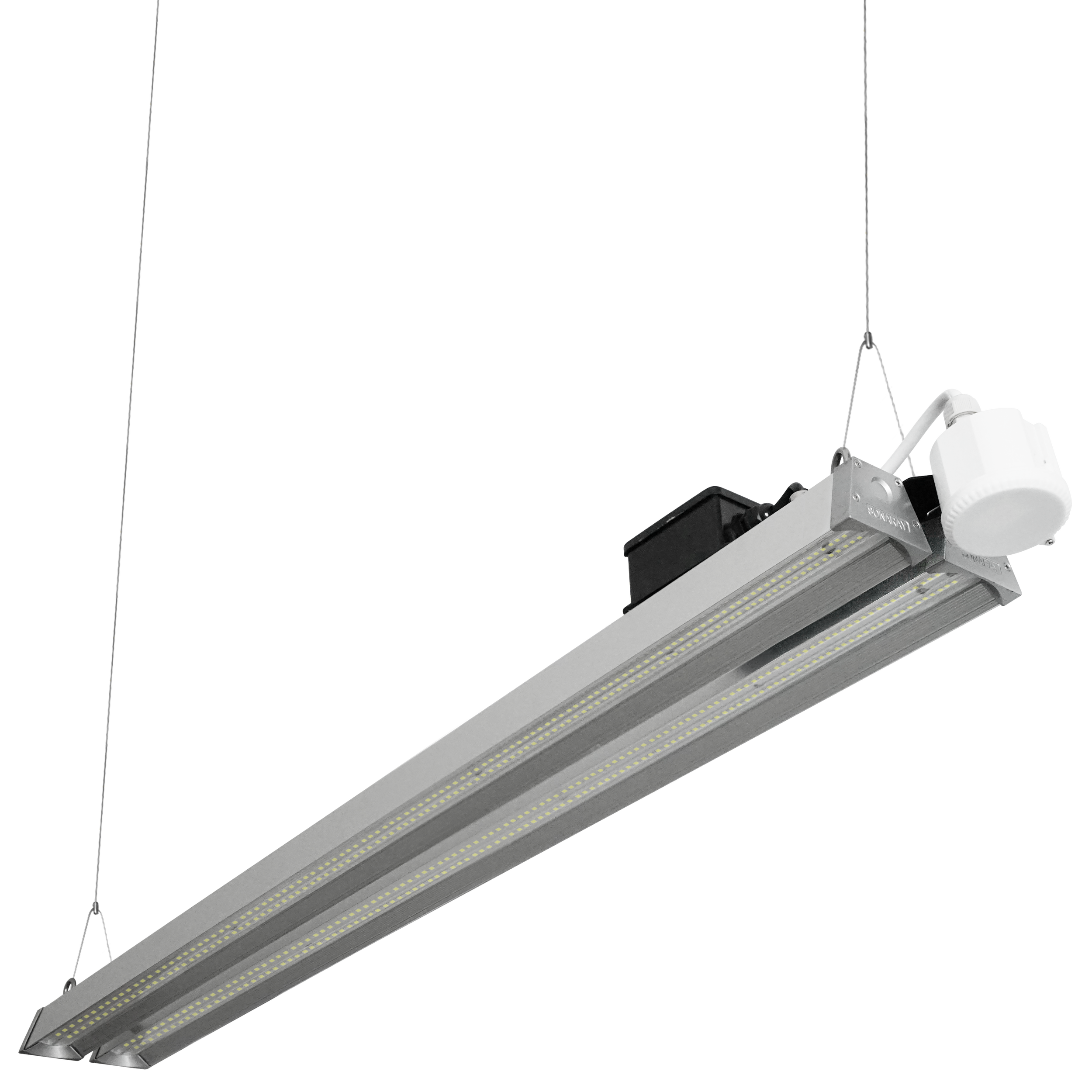

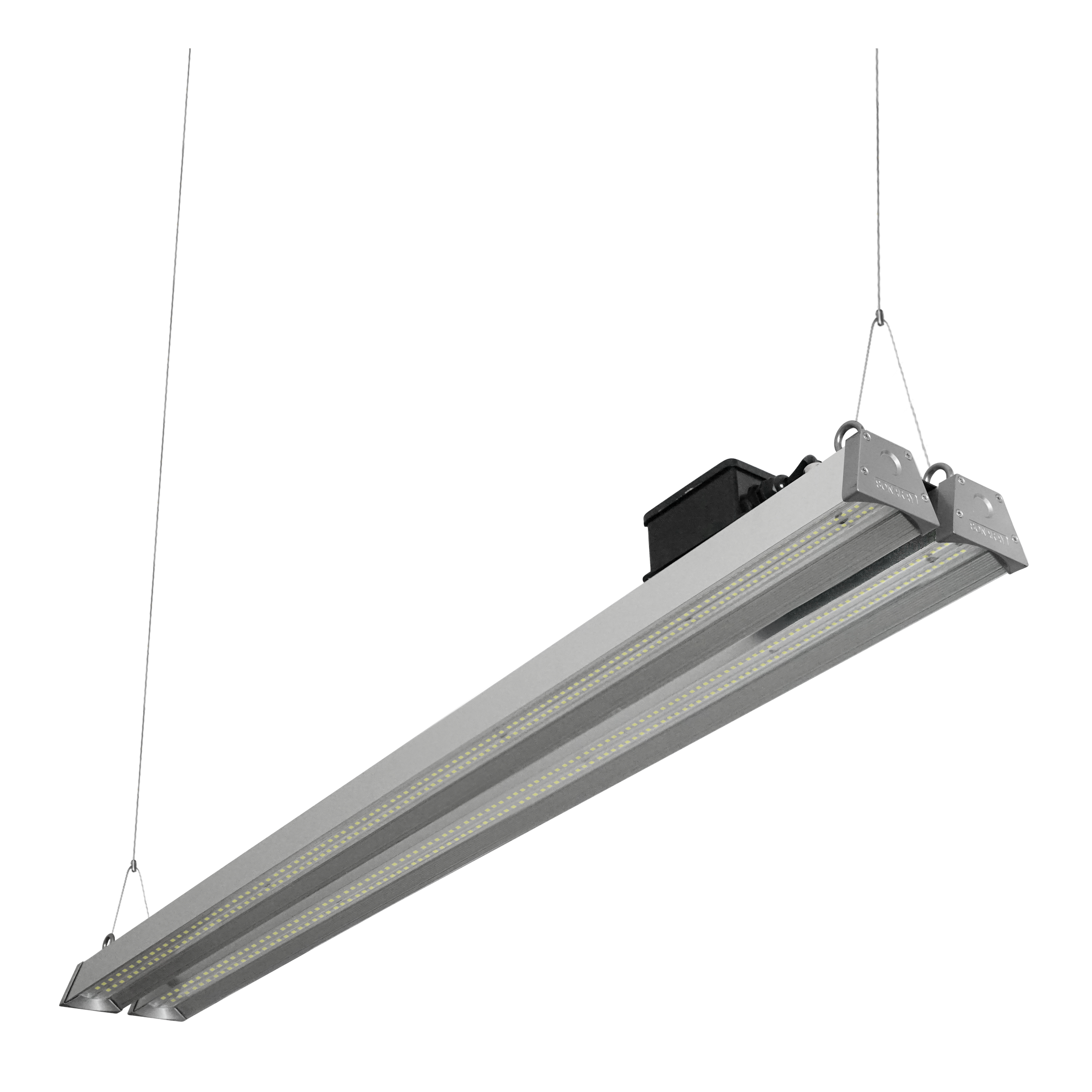

Double Assembly
10.68 pounds
HB-5125-M3
48,293-51,375lm
130-138lm/W
Triple Assembly
15.98 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 9
PRODUCT
PHOTOS
qty 6

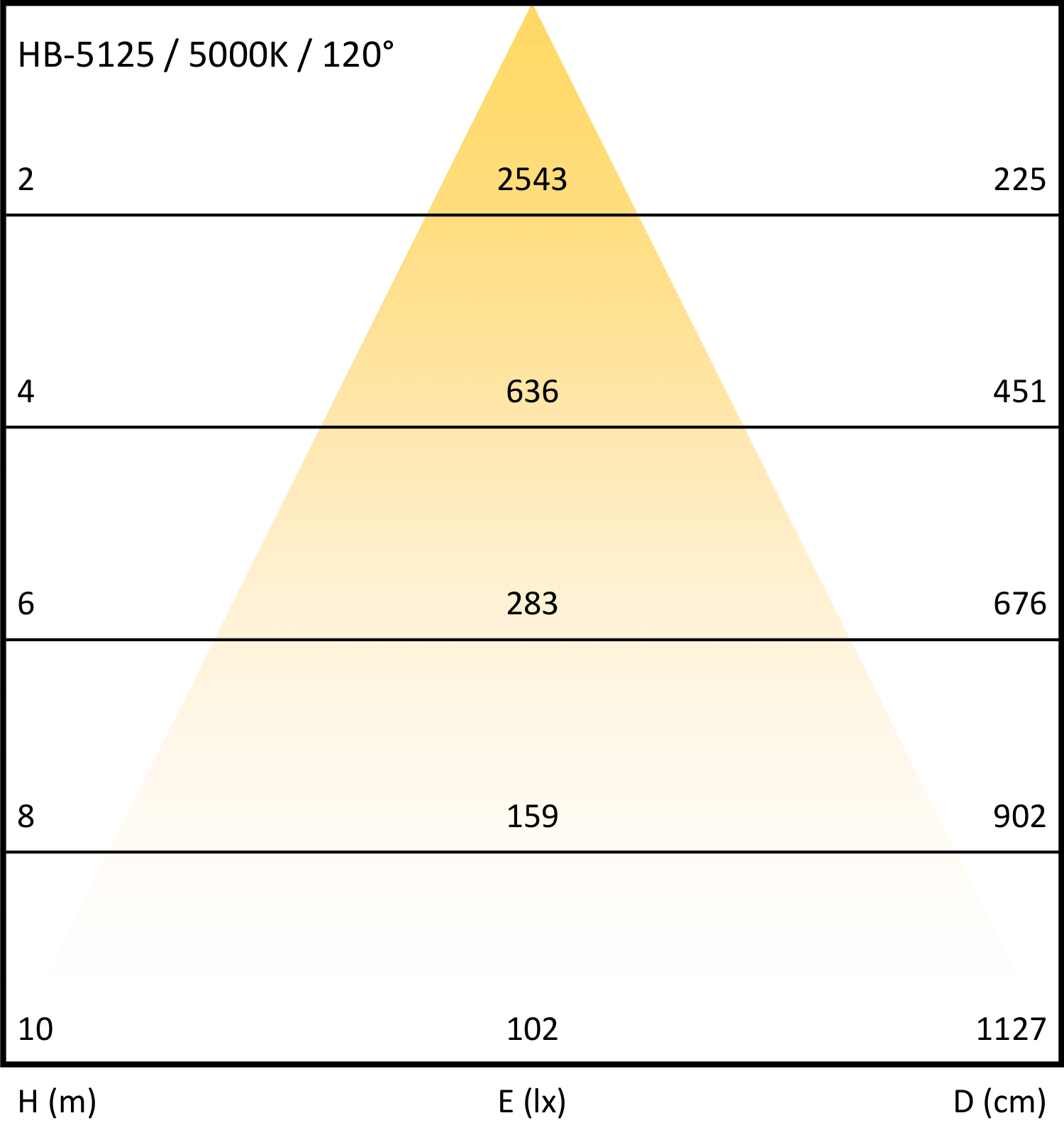

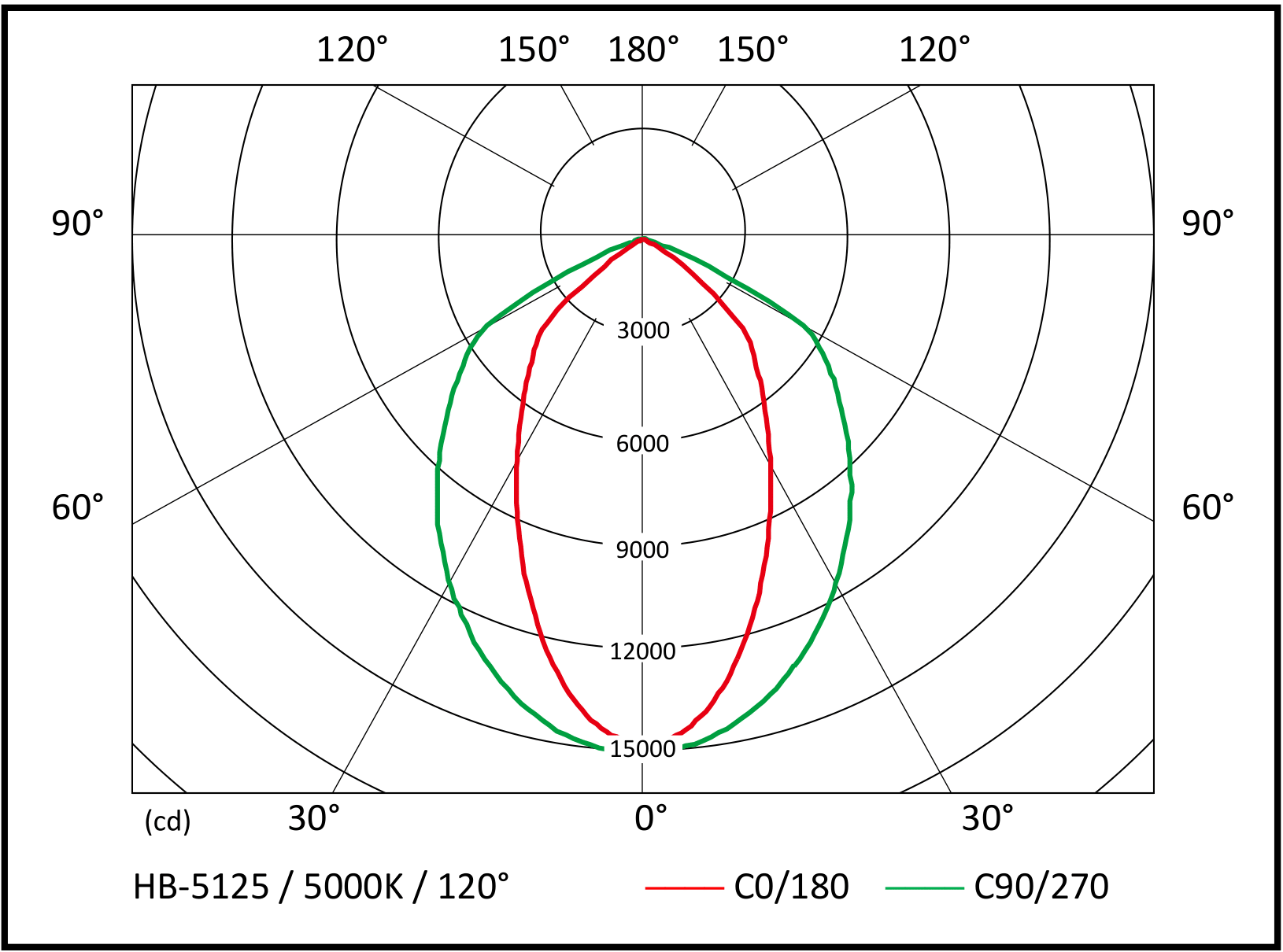

Photometrics
