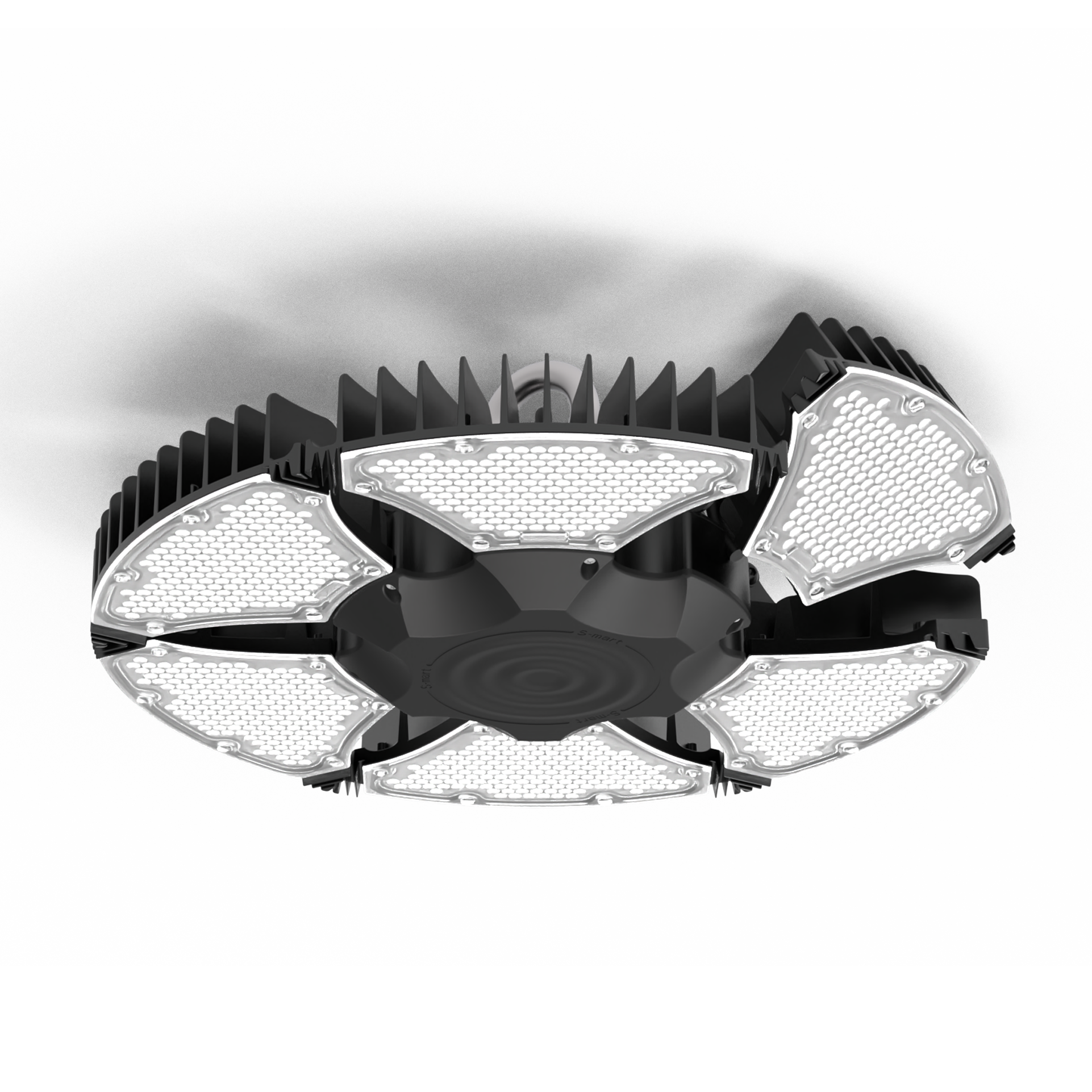

Standard LumaWedge High Bay


Standard LumaWedge High Bay

$0.00

  • Power: 88W, 133W, 176W, 254W

  • Luminous Flux: 13,545lm - 41,340lm

  • Luminous Efficacy: 153lm/W - 164lm/W

  • Color Temperature: 3000K, 4000K, 5000K

  • CRI: ≥80

  • Beam Angle: 80°

  • Power Supply: Built-In

  • Input Voltage: 100-277V AC ~ 50/60Hz

  • Power Factor: ≥ 0.9

  • Dimmable: Yes

  • Housing Material: Aluminum

  • Lens Material: Polycarbonate

  • Finish: Black, White

  • Ambient Operating Temperature: -40°C ~ +71°C / -40°F ~ +160°F
    High Temperature Model Available up to +93°C / +200°F

  • Lifetime: ≥ 50,000hrs

Quantity:
Add To Cart


Specification Table




HB-6090

13,545-14,400lm

154-164lm/W

2 wedges

5.29 pounds




HB-6135

20,430-21,735lm

154-163lm/W

3 wedges

6.61 pounds

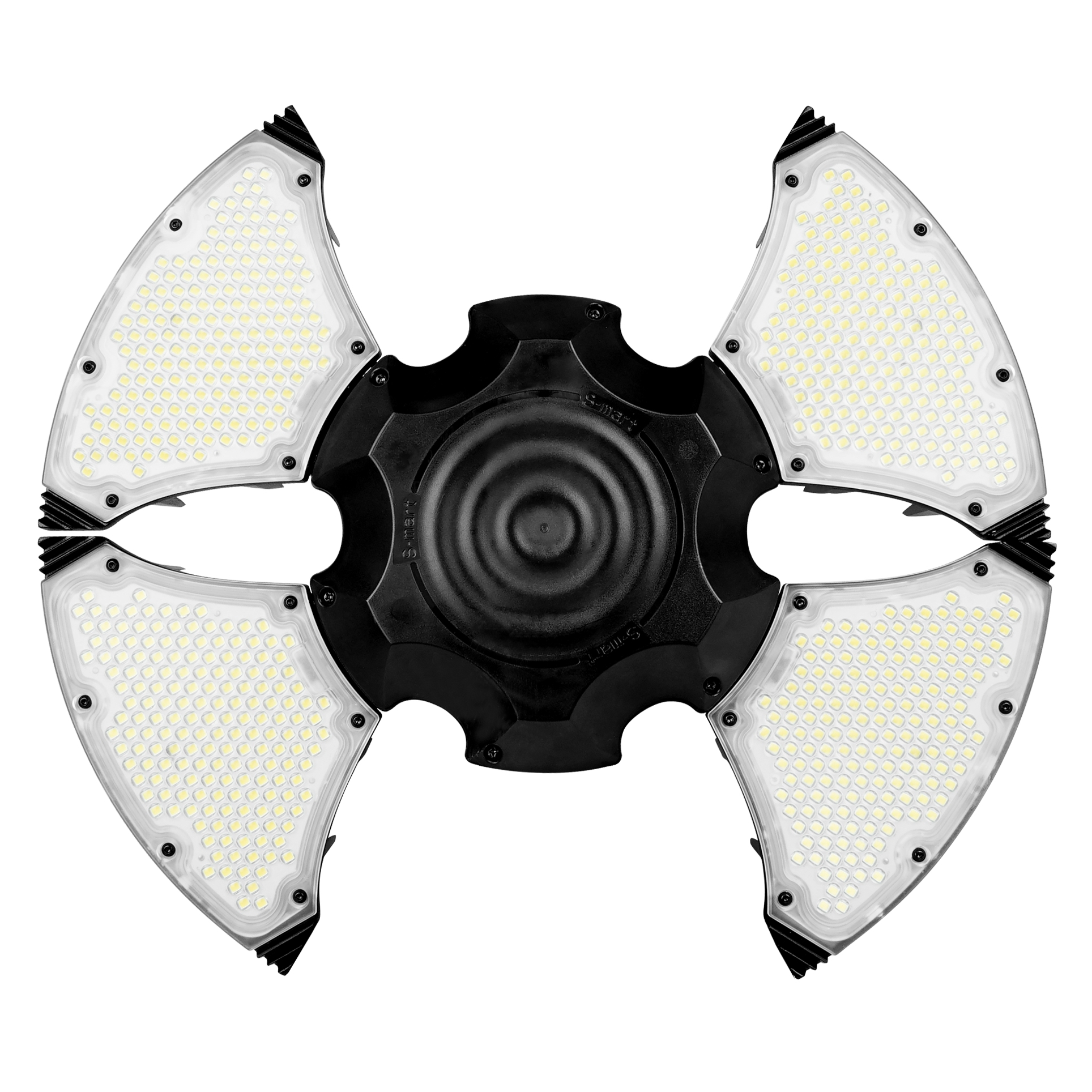

HB-6180

27,075-28,800lm

154-163lm/W

4 wedges

7.49 pounds

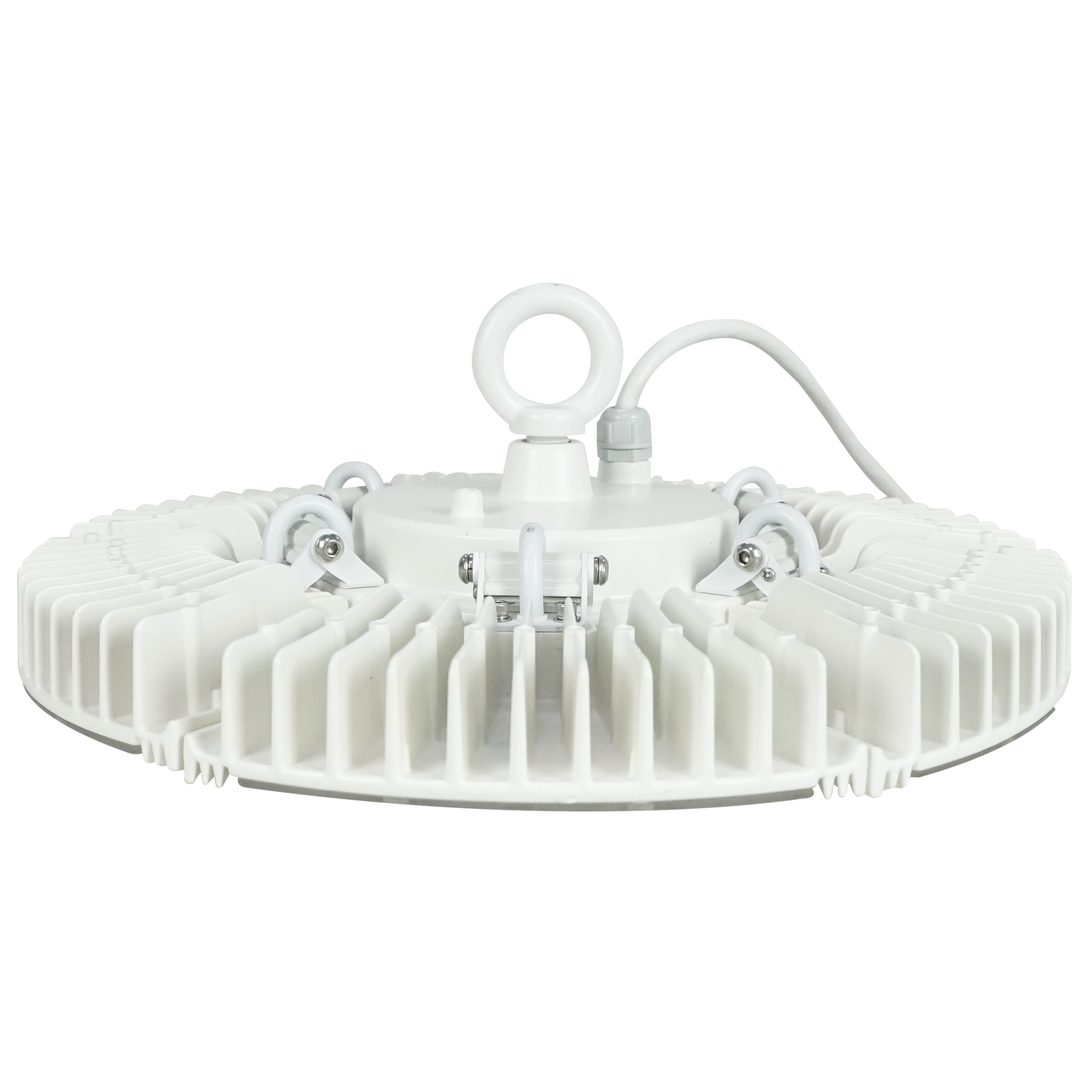

HB-6260

38,860-41,340lm

153-164lm/W

6 wedges

9.92 pounds




Applications



Certifications



Downloads

SPEC
SHEET
v. 2026.01.01

INSTALL
GUIDE
v. 2026.01.01

IES
FILES
qty 12

PRODUCT
PHOTOS
qty 21

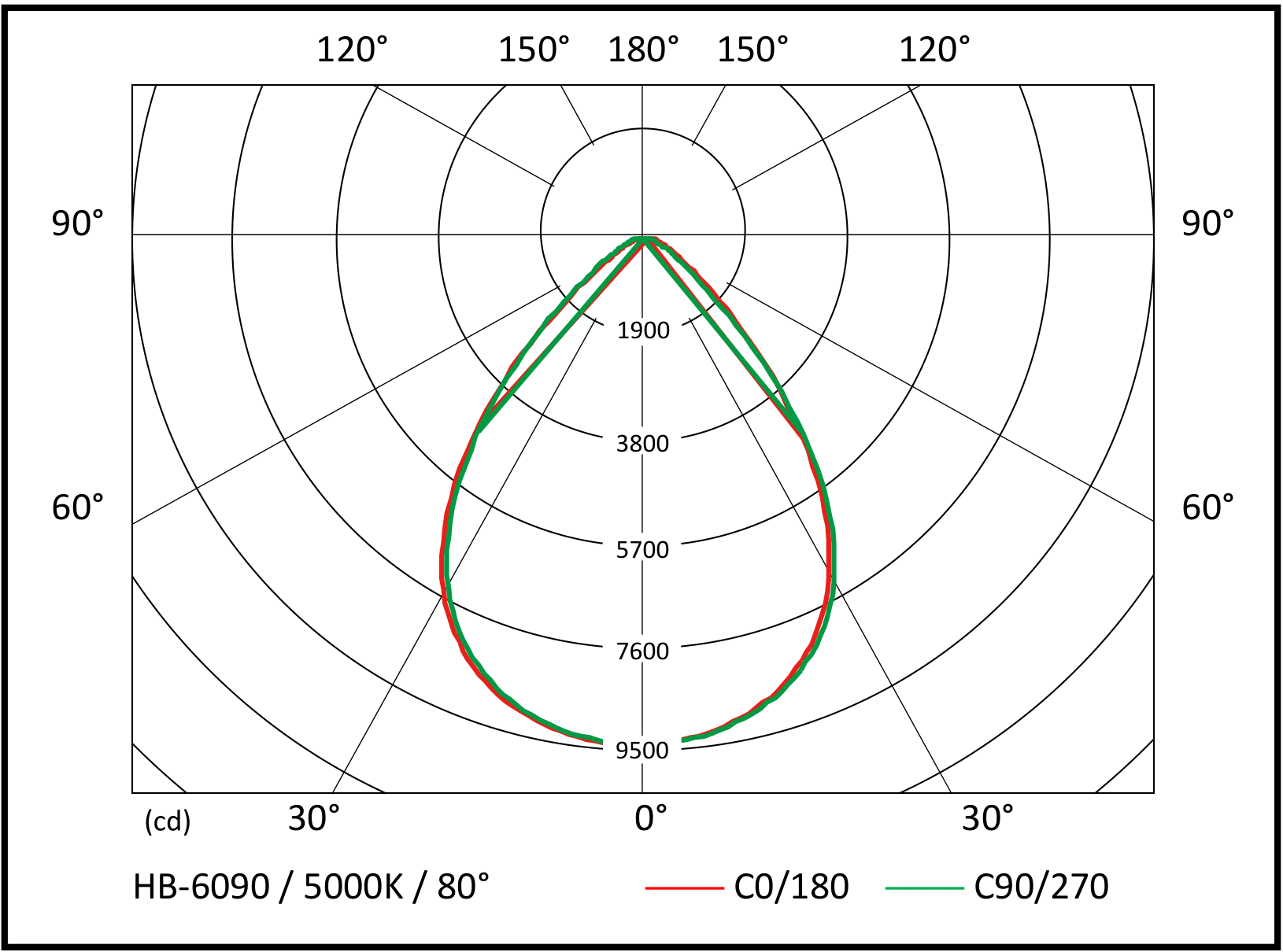

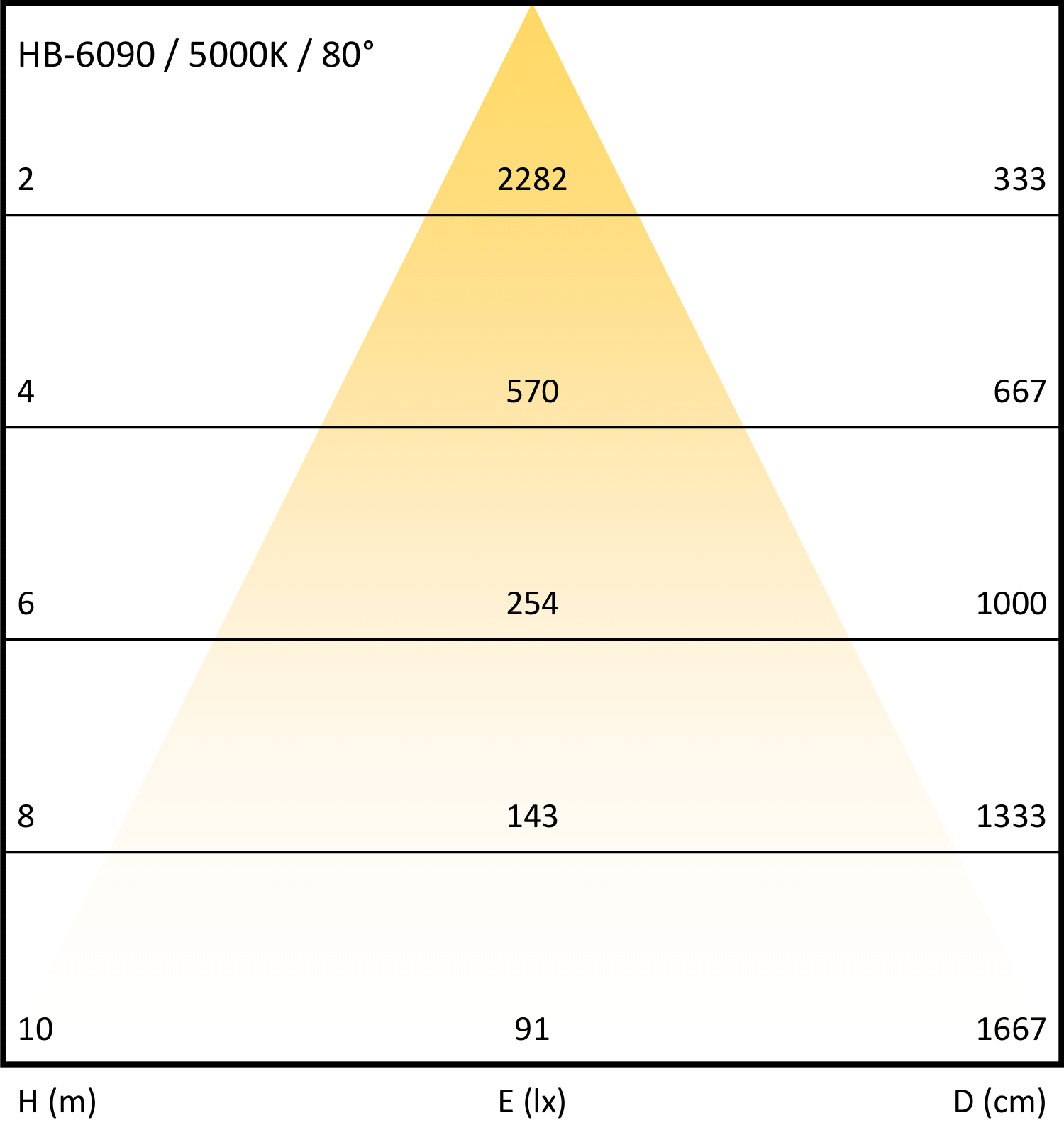

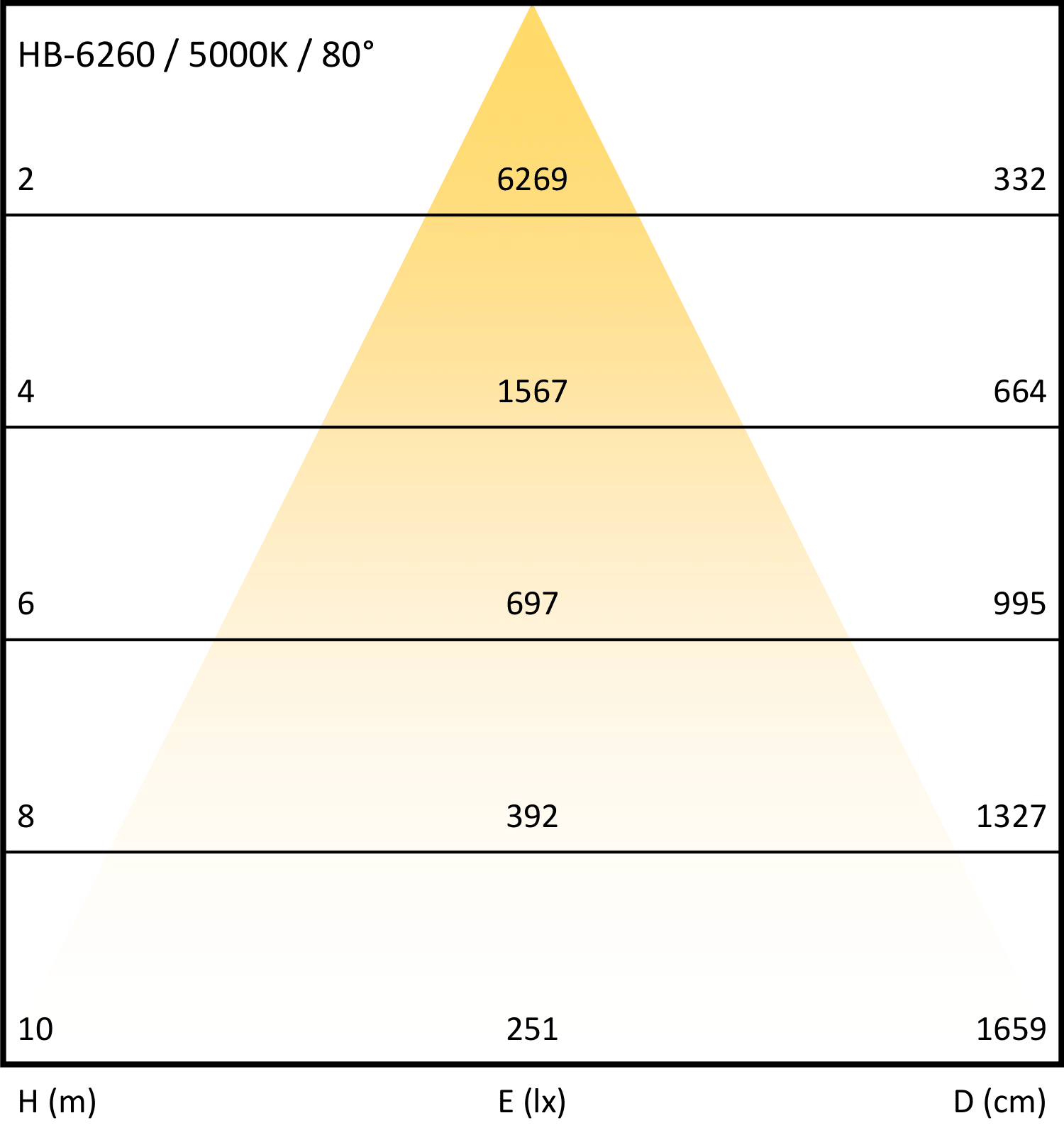

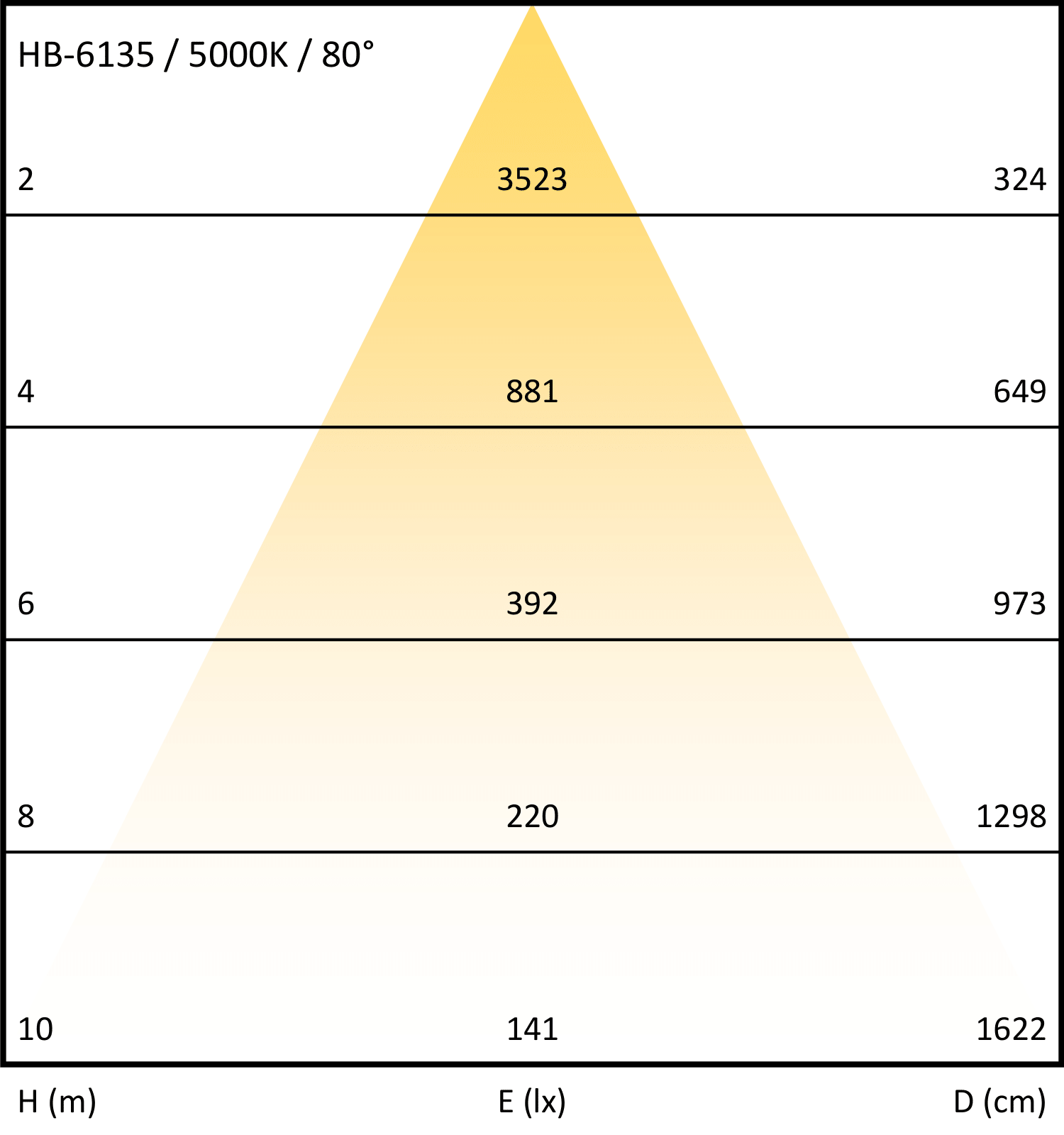

Photometrics
