High Temperature LumaWedge High Bay
High Temperature LumaWedge High Bay
Power: 50/70W, 75/105W, 100/140W, 150/210W
Luminous Flux: 7,700lm - 34,440lm
Luminous Efficacy: 153lm/W - 164lm/W
Color Temperature: 3000K, 4000K, 5000K
CRI: ≥80
Beam Angle: 80°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: Yes
Housing Material: Aluminum
Lens Material: Polycarbonate
Finish: Black, White
Ambient Operating Temperature: -25°C ~ +93°C / -13°F ~ +200°F
Lifetime: ≥ 50,000hrs
Specification Table

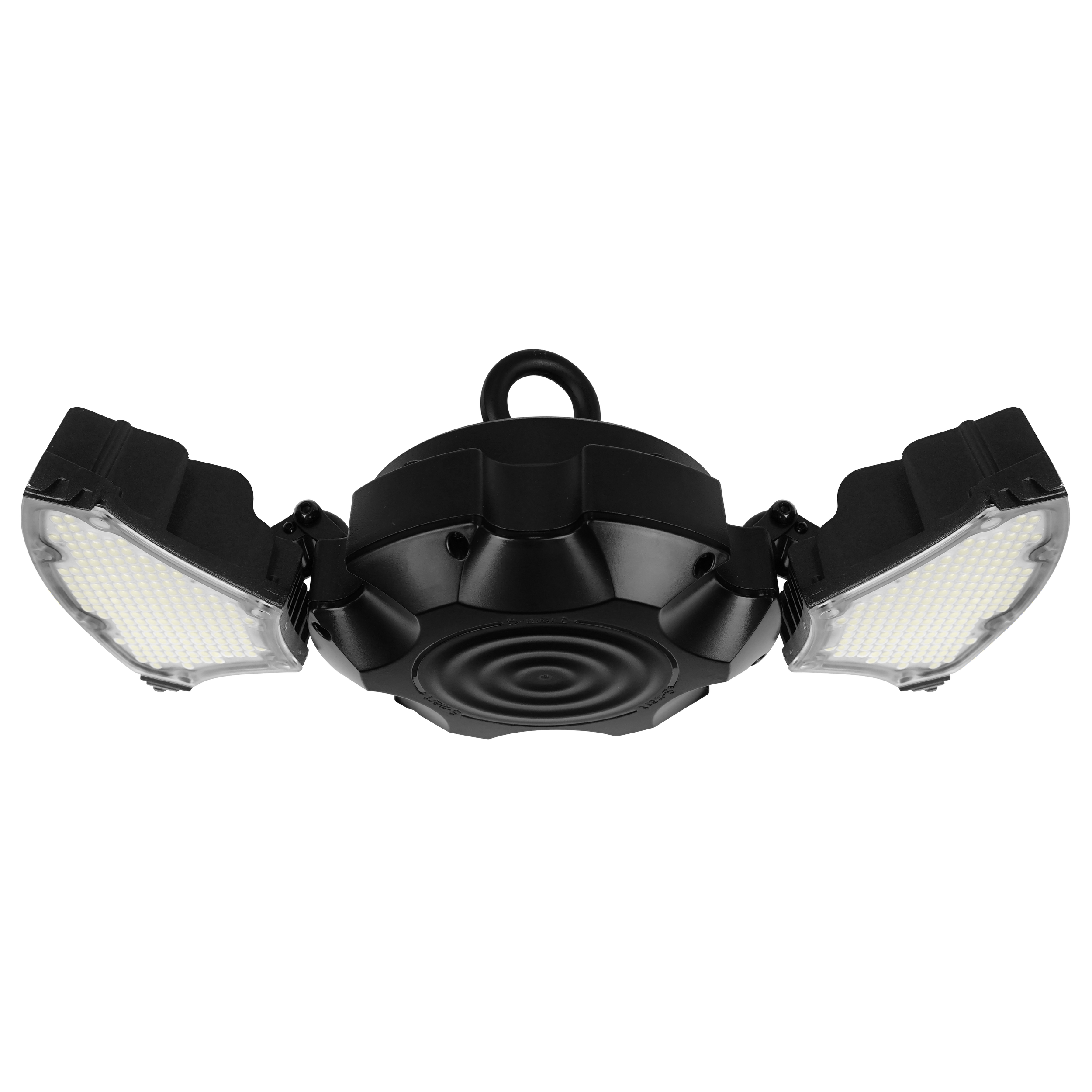

HB-6090
+93°C - 50W
+85°C - 70W
7,700-11,410lm
154-163lm/W
2 wedges
5.29 pounds

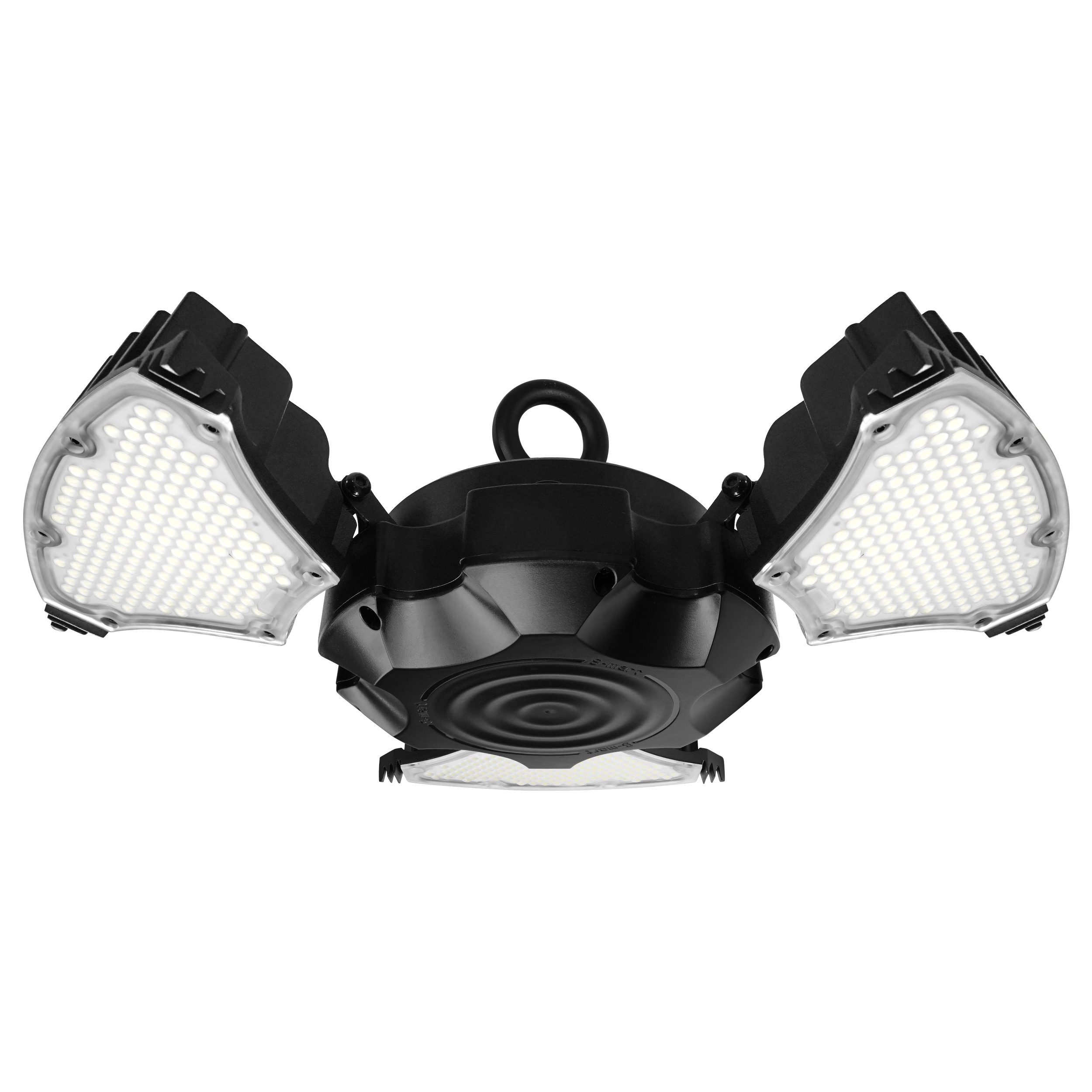

HB-6135
+93°C - 75W
+85°C - 105W
11,550-17,115lm
154-163m/W
3 wedges
6.61 pounds
HB-6180
+93°C - 100W
+85°C - 140W
15,400-22,960lm
154-164m/W
4 wedges
7.49 pounds

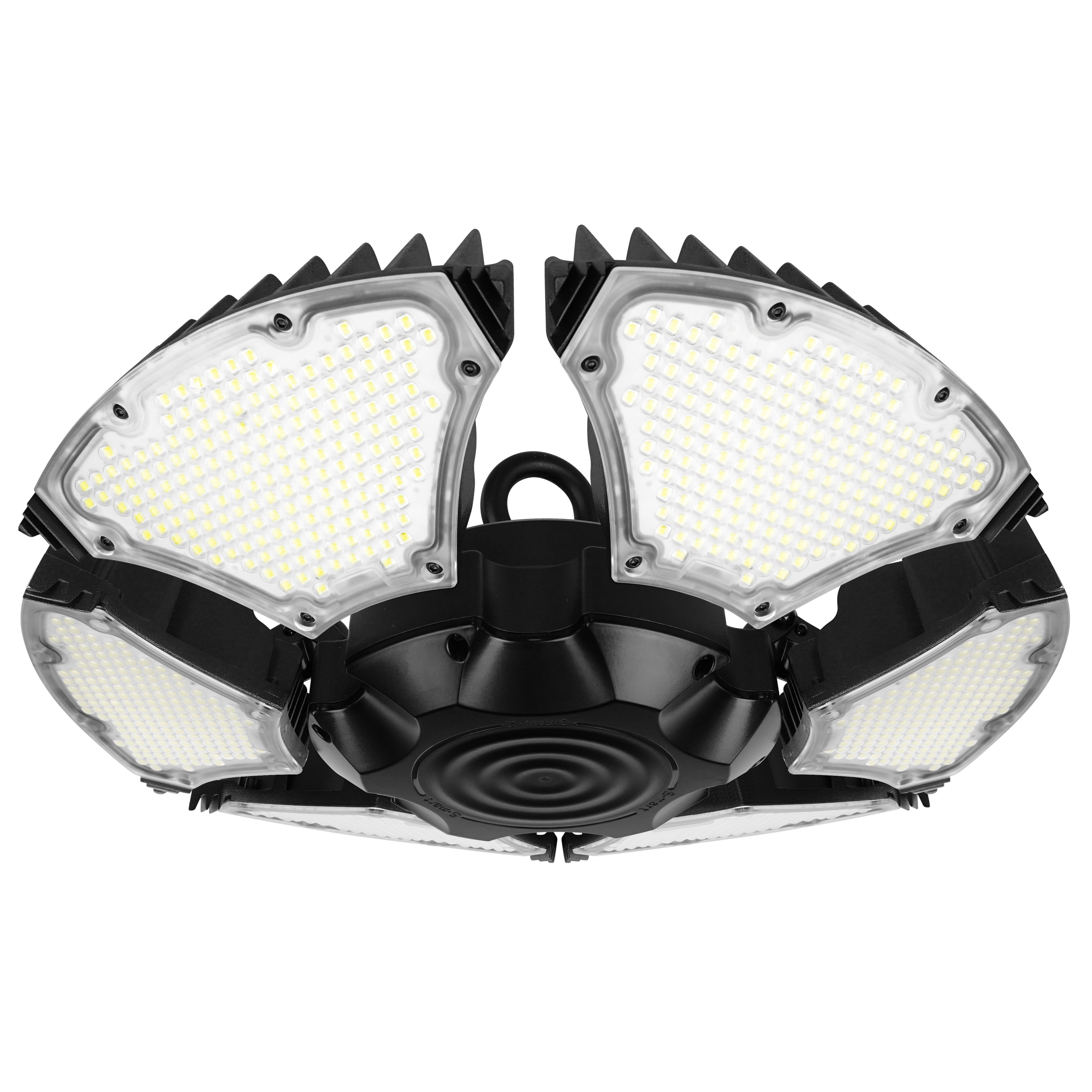

HB-6260
+93°C - 150W
+85°C - 210W
22,950-34,440lm
153-164m/W
6 wedges
9.92 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 24
Photometrics
