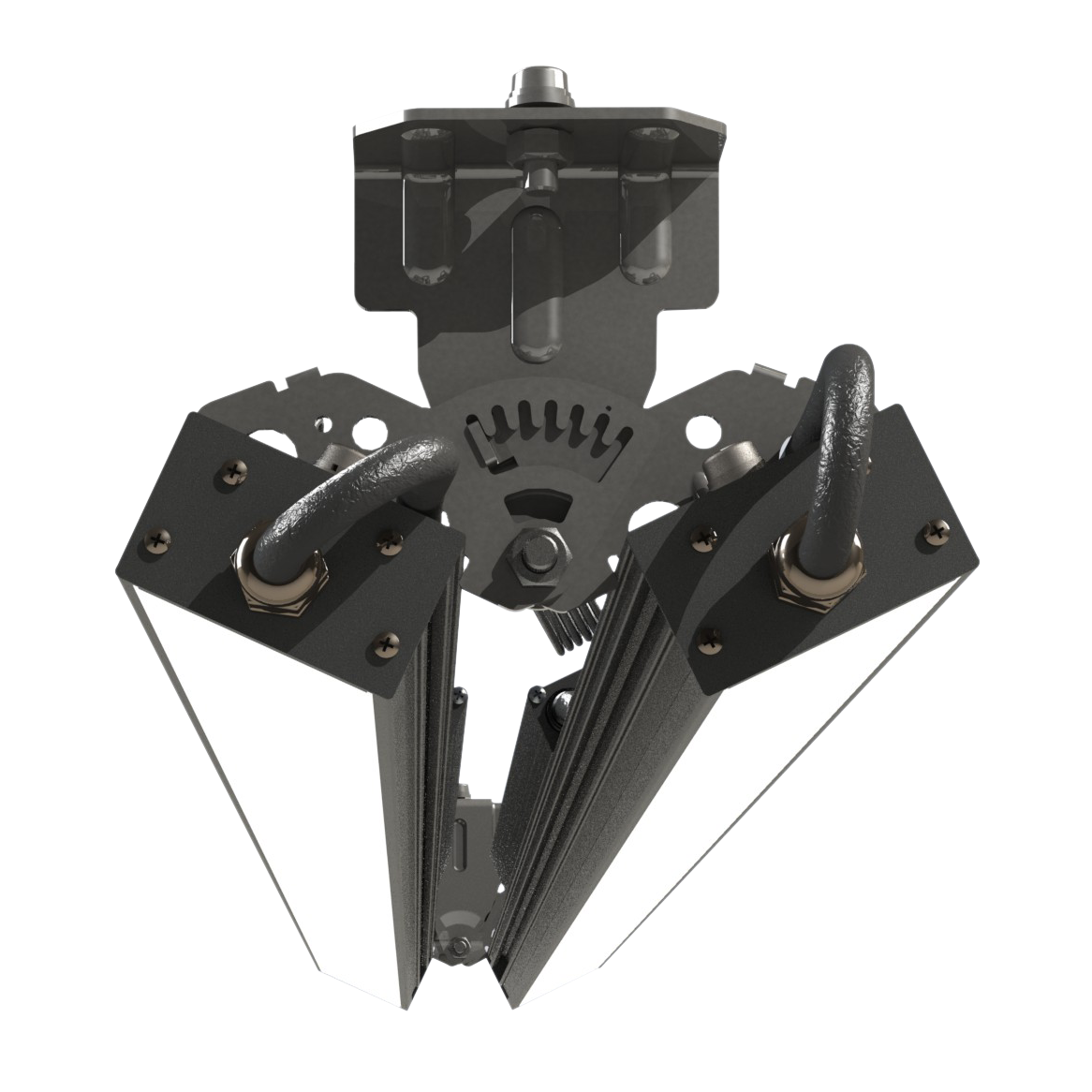

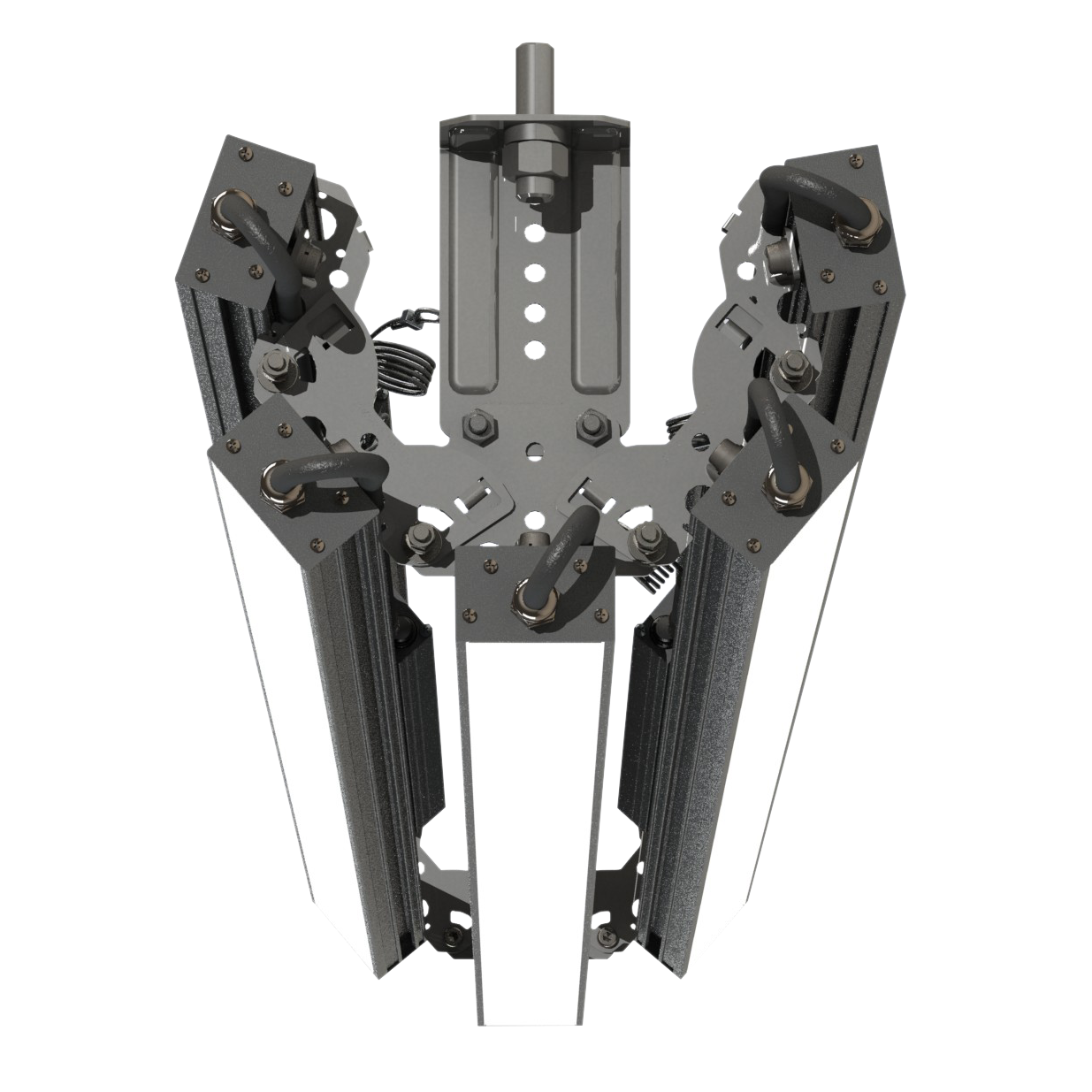

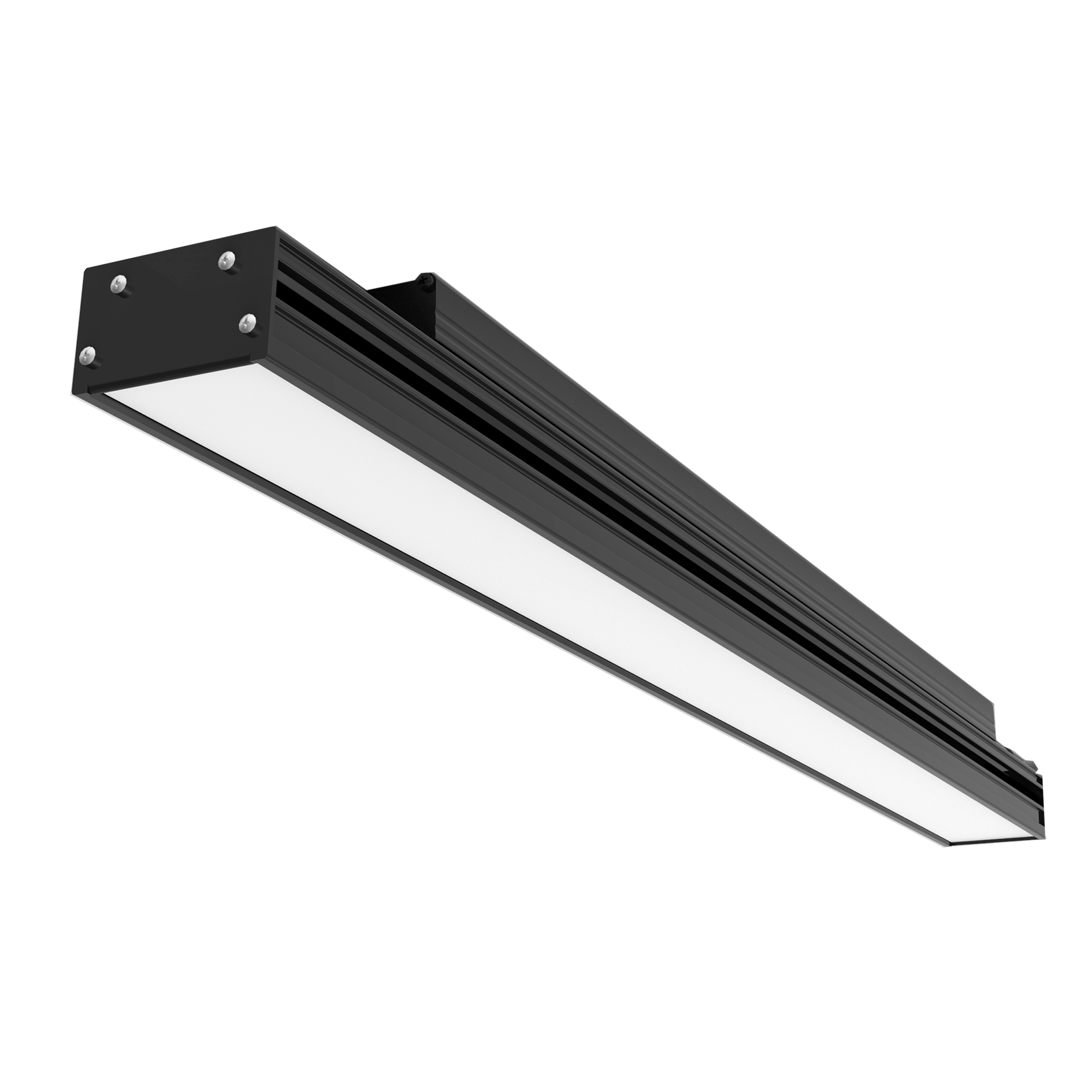

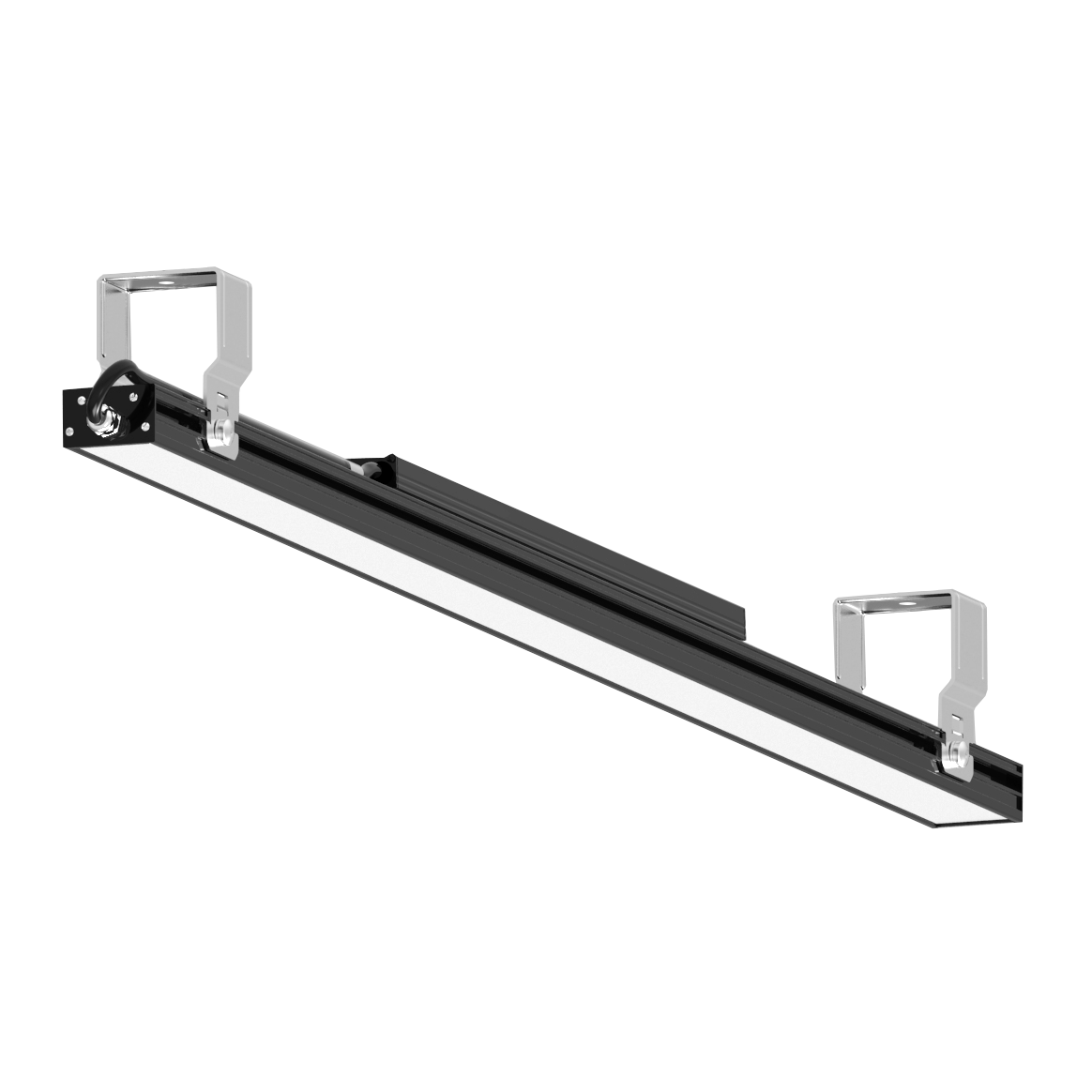

Matrix Light Bar
Matrix Light Bar
Power: 10W, 18W, 22W, 44W
Luminous Flux: 959lm - 5,852lm
Luminous Efficacy: 96lm/W - 143lm/W
Color Temperature: 3000K, 4000K, 5000K, 6000K
Length: 2ft, 4ft
CRI: ≥80
Beam Angle: 93°
Power Supply: Mounted
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Polyacrylate
Finish: Black, White
Ambient Operating Temperature: -25°C ~ +45°C / -13°F ~ +113°F
Lifetime: ≥ 50,000hrs
Specification Table
LB-1010A
959-1,020lm
135-147lm/W
2 foot
2.65 pounds
LB-1018A
1,624-1,728lm
107-113lm/W
2 foot
2.65 pounds
LB-1018B
1,794-1,908lm
96-102lm/W
4 foot
4.41 pounds
LB-1022B
2,089-2,222lm
106-112lm/W
4 foot
4.41 pounds
LB-1044B
4,177-4,444lm
99-106lm/W
4 foot
4.41 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 16

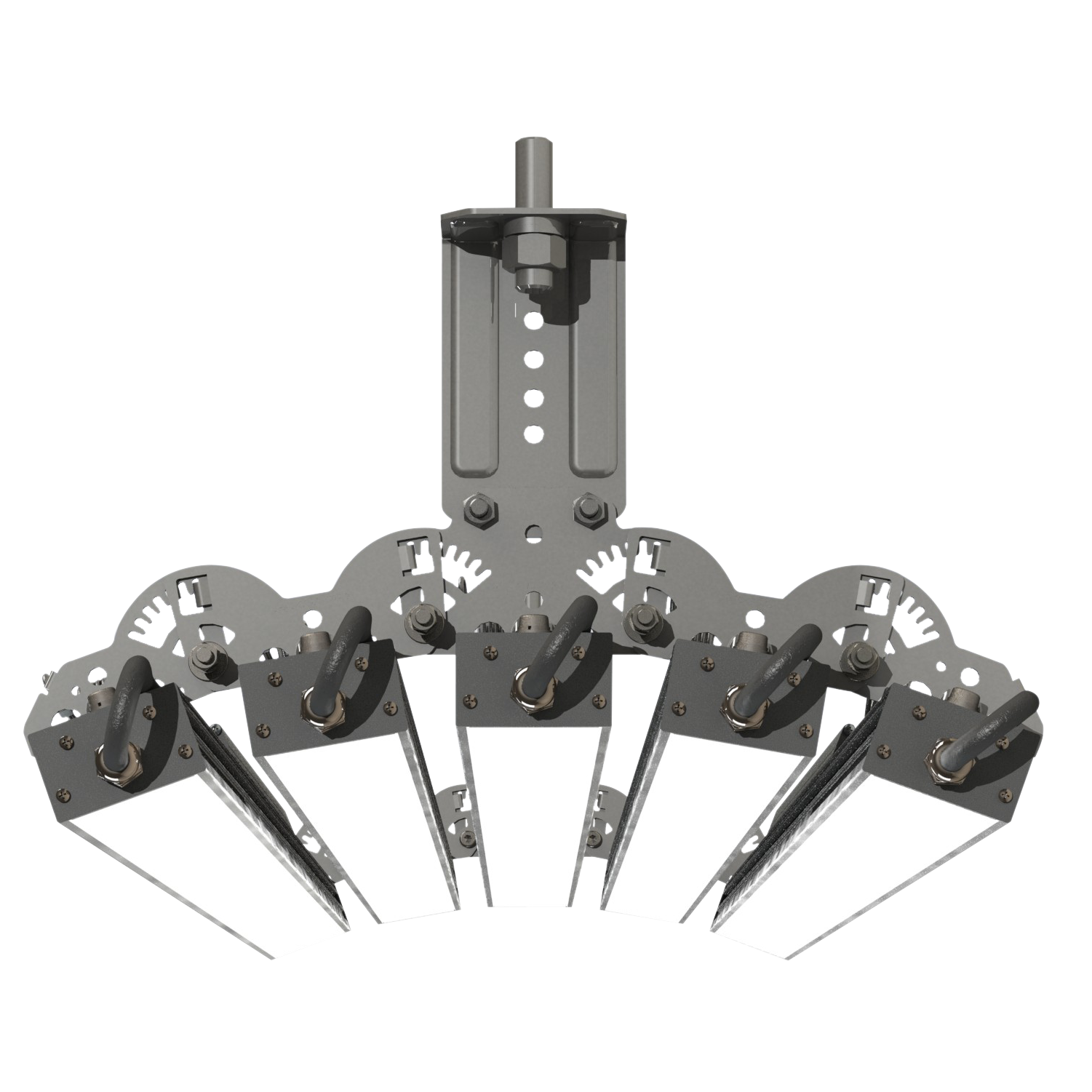

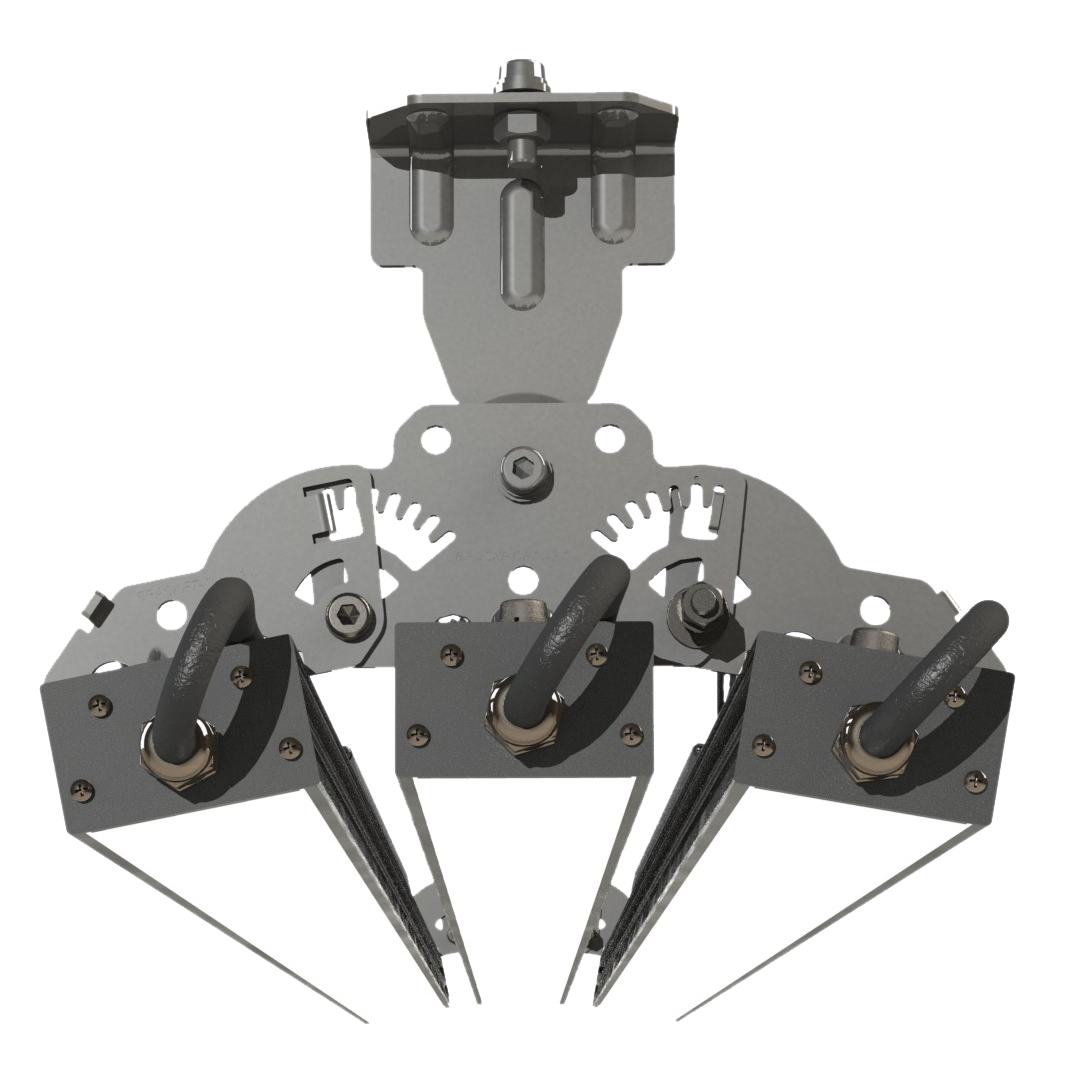

PRODUCT
PHOTOS
qty 6

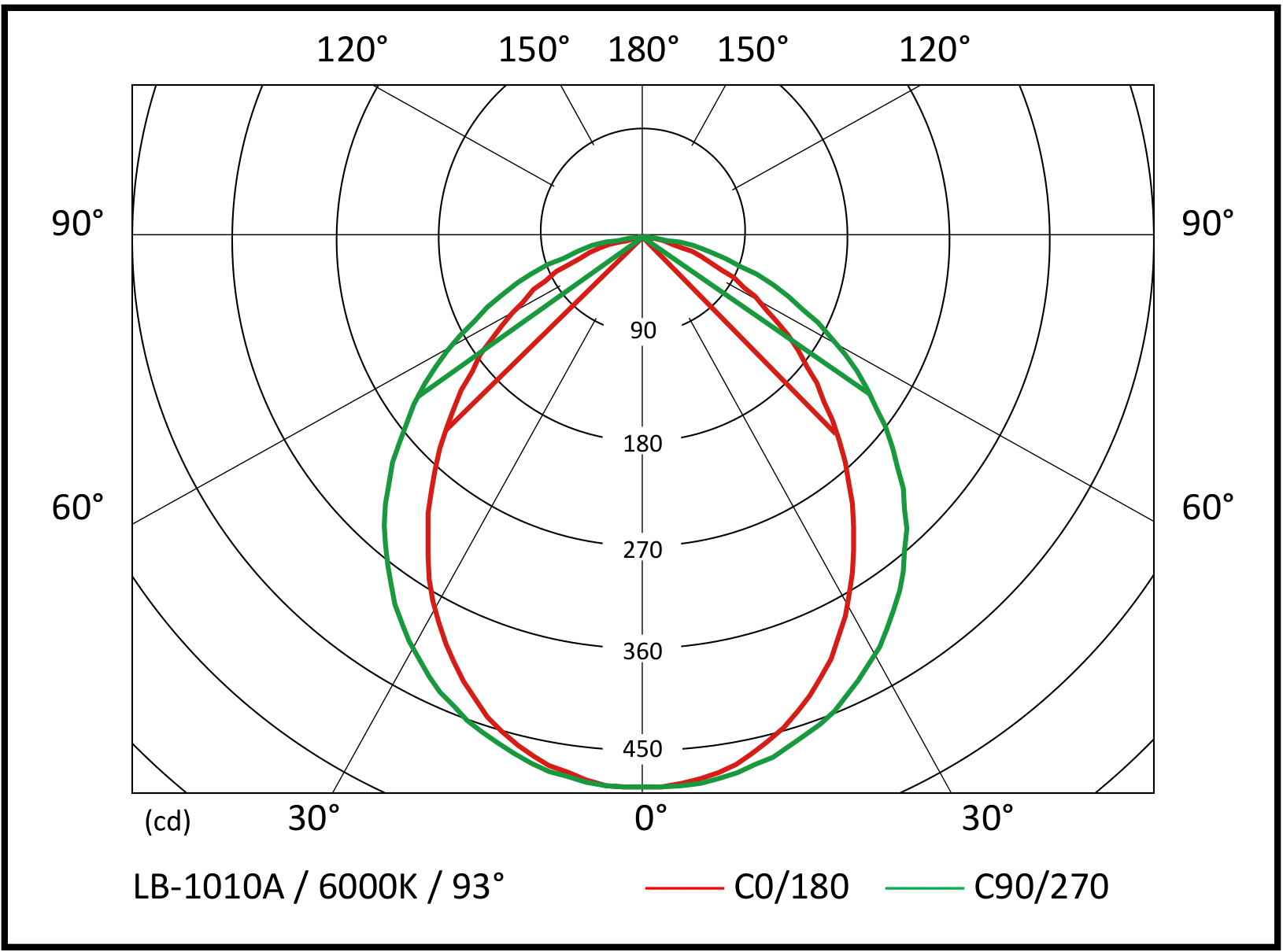

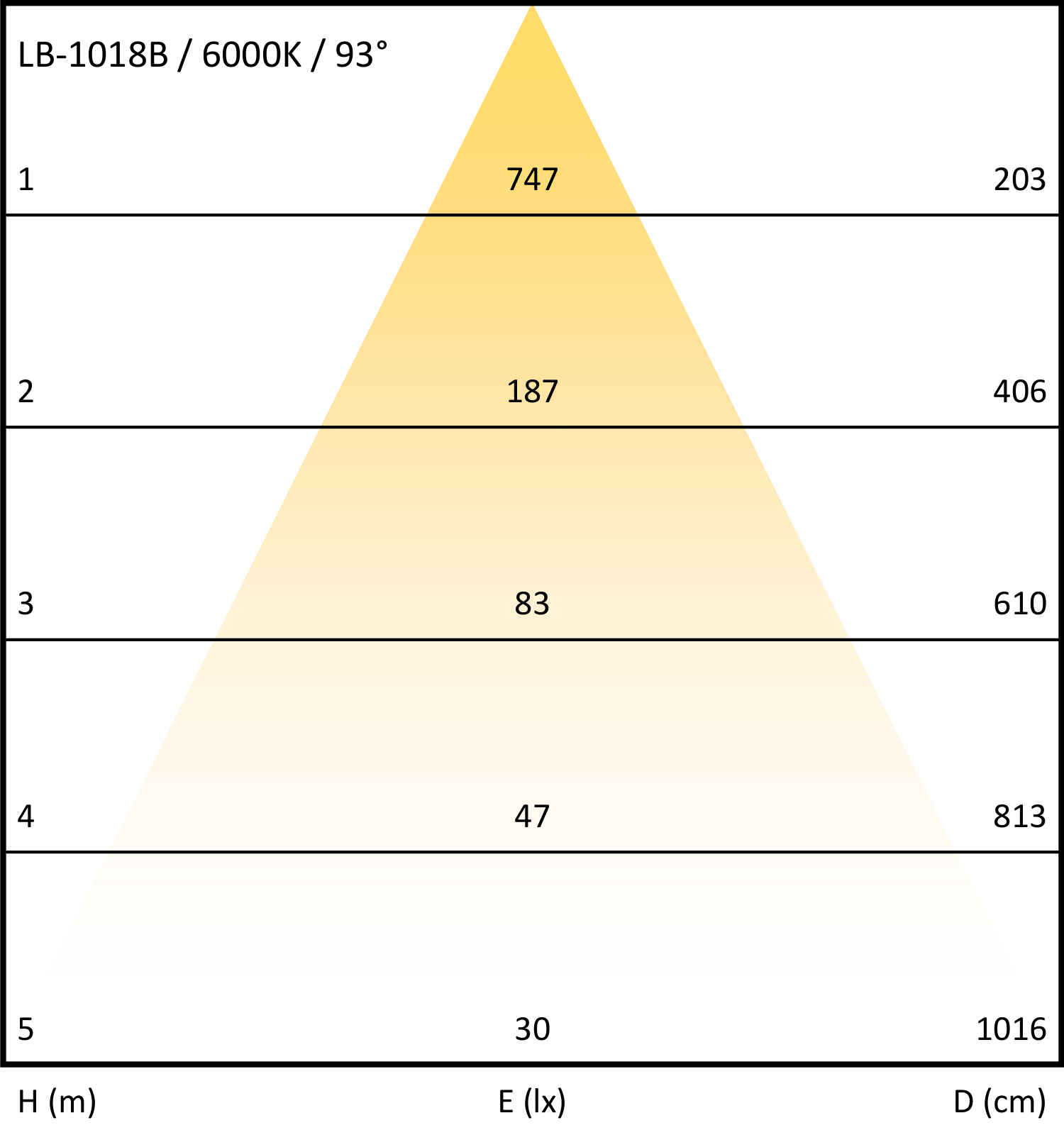

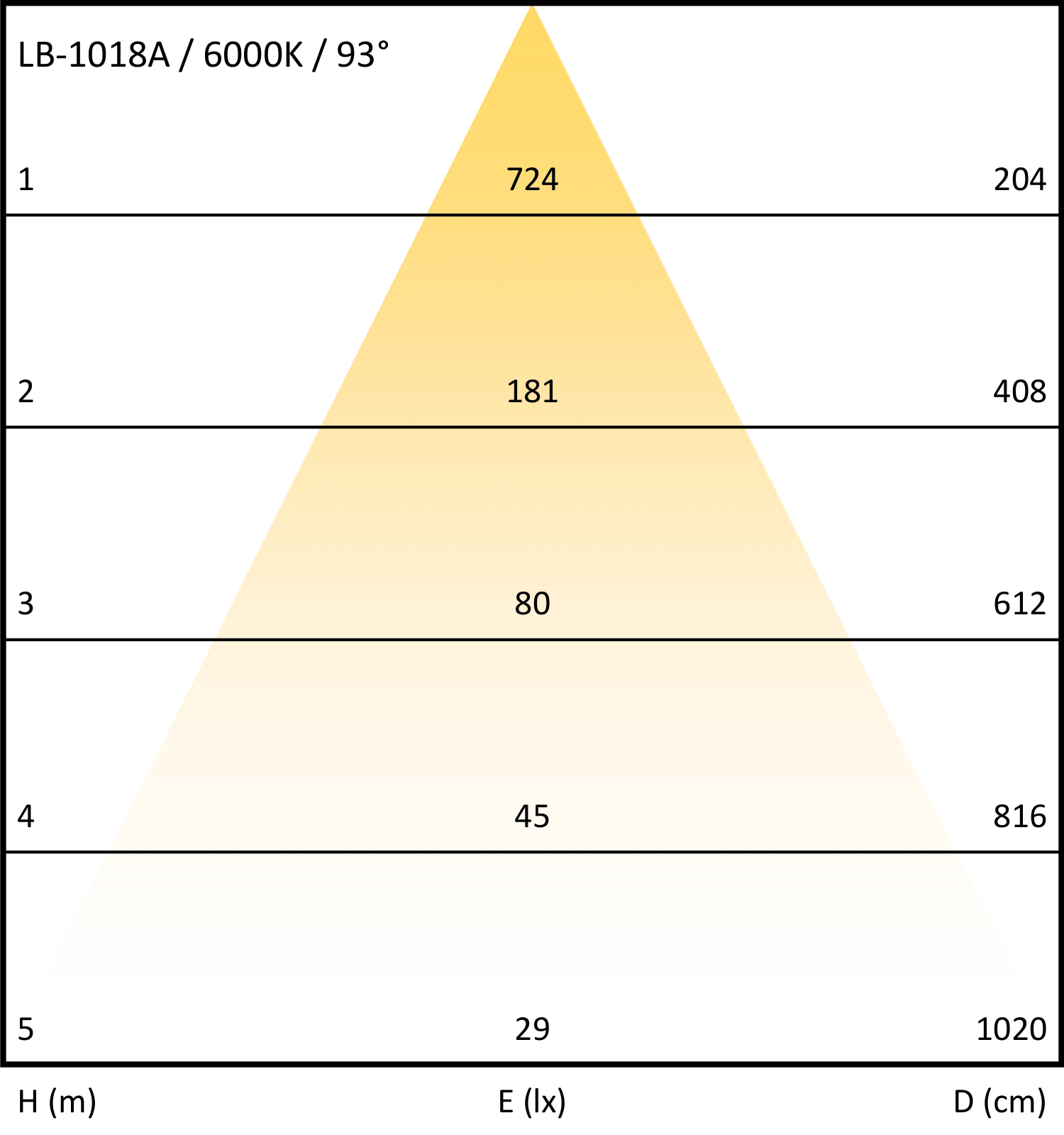

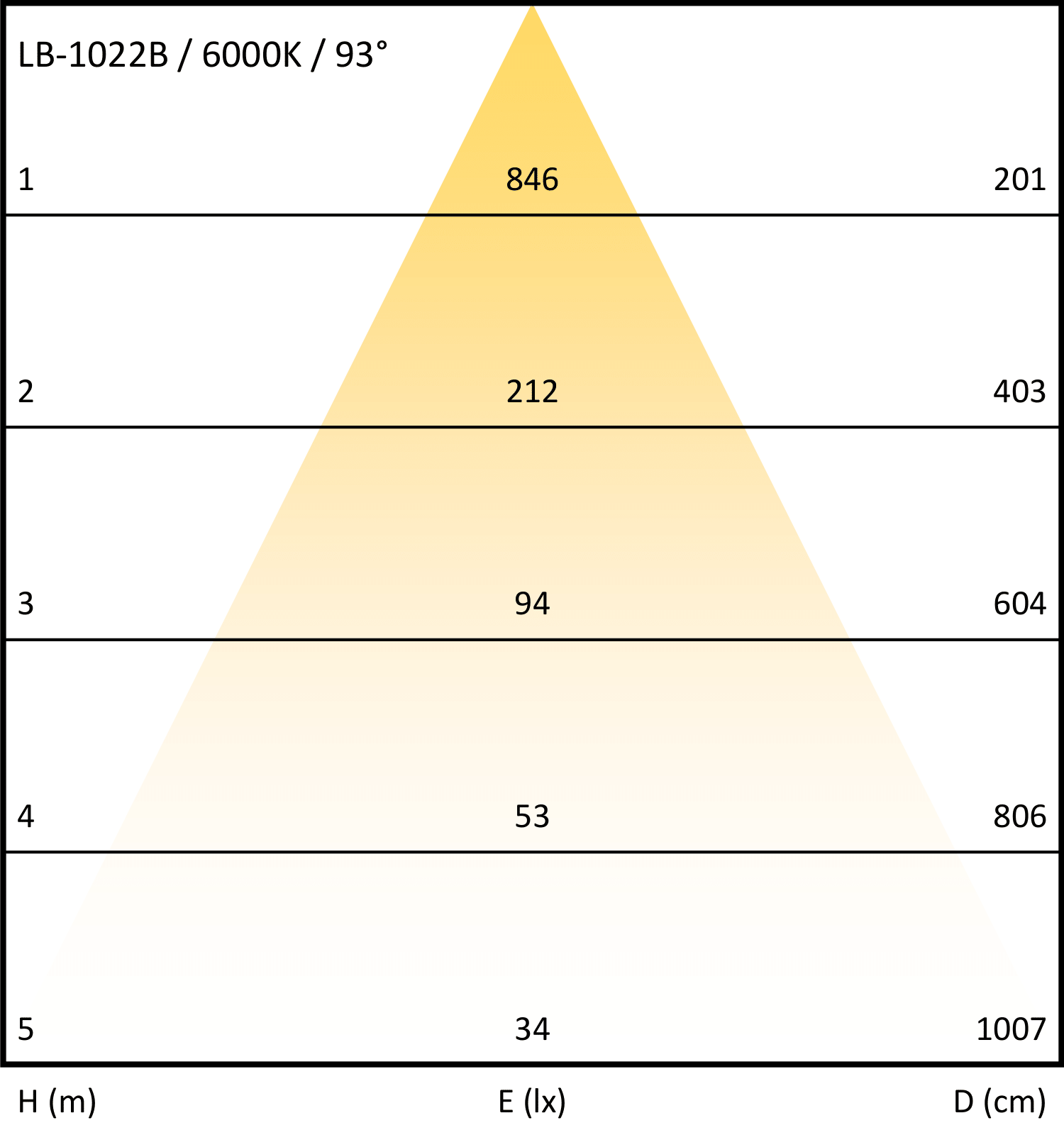

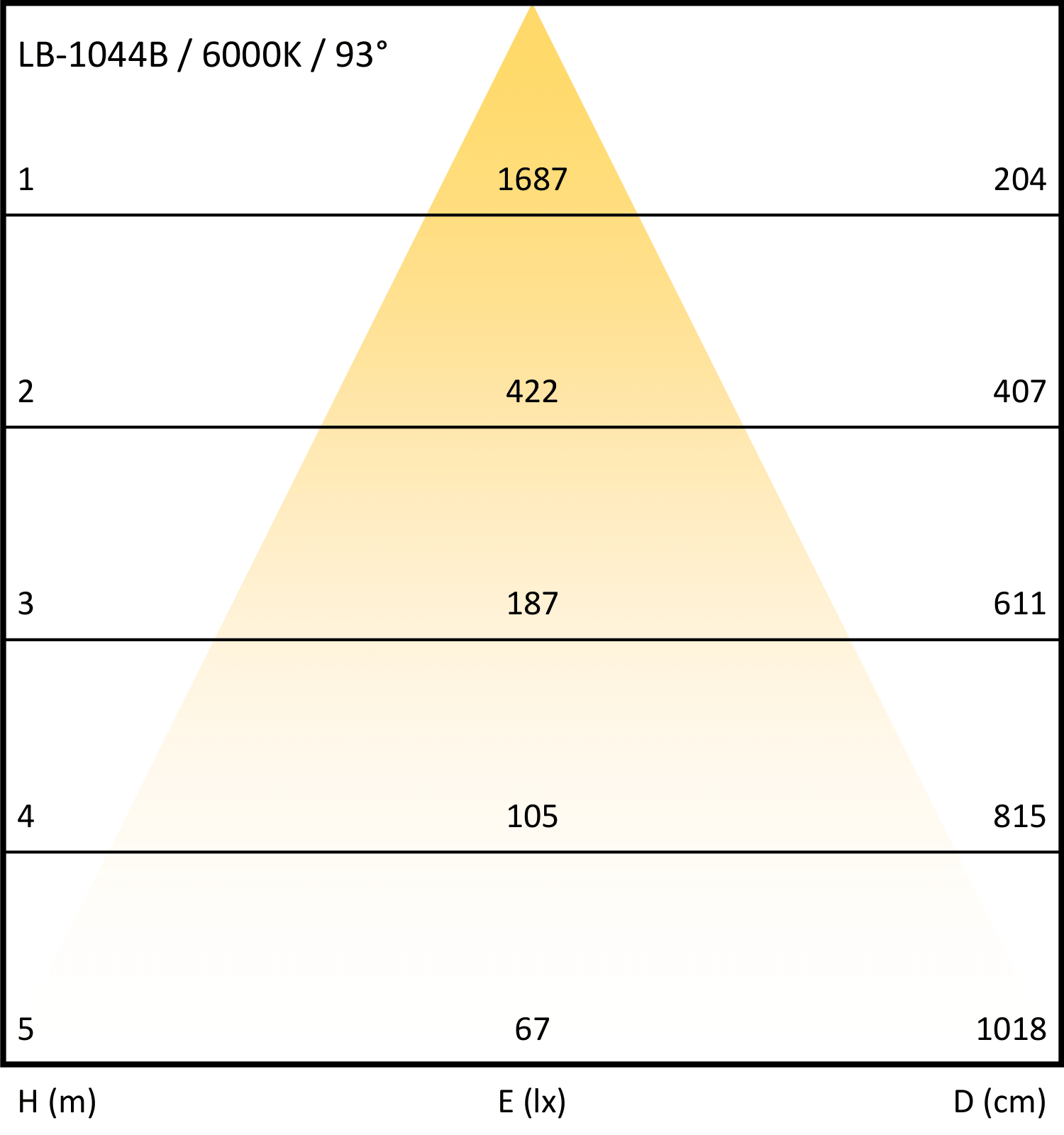

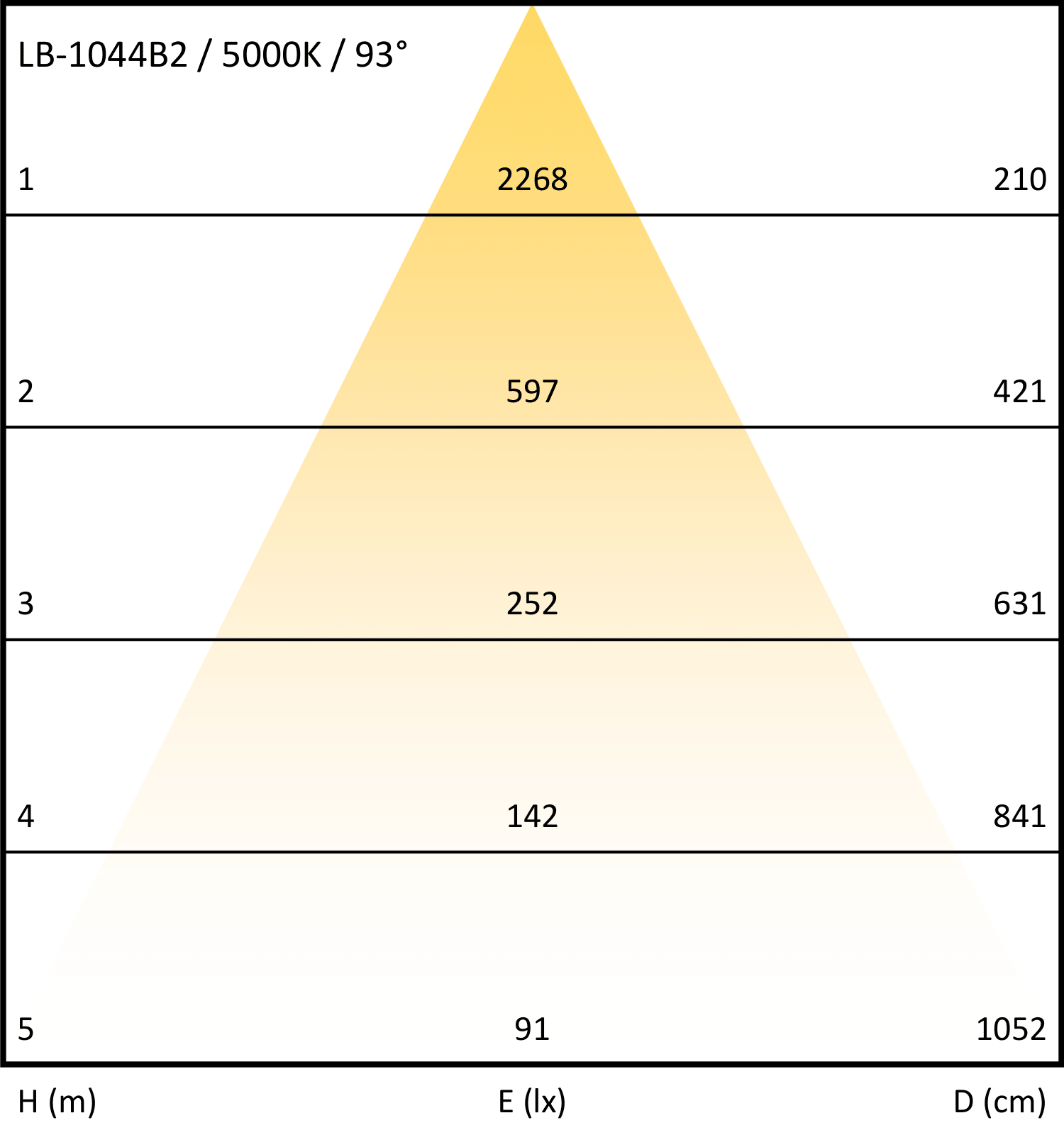

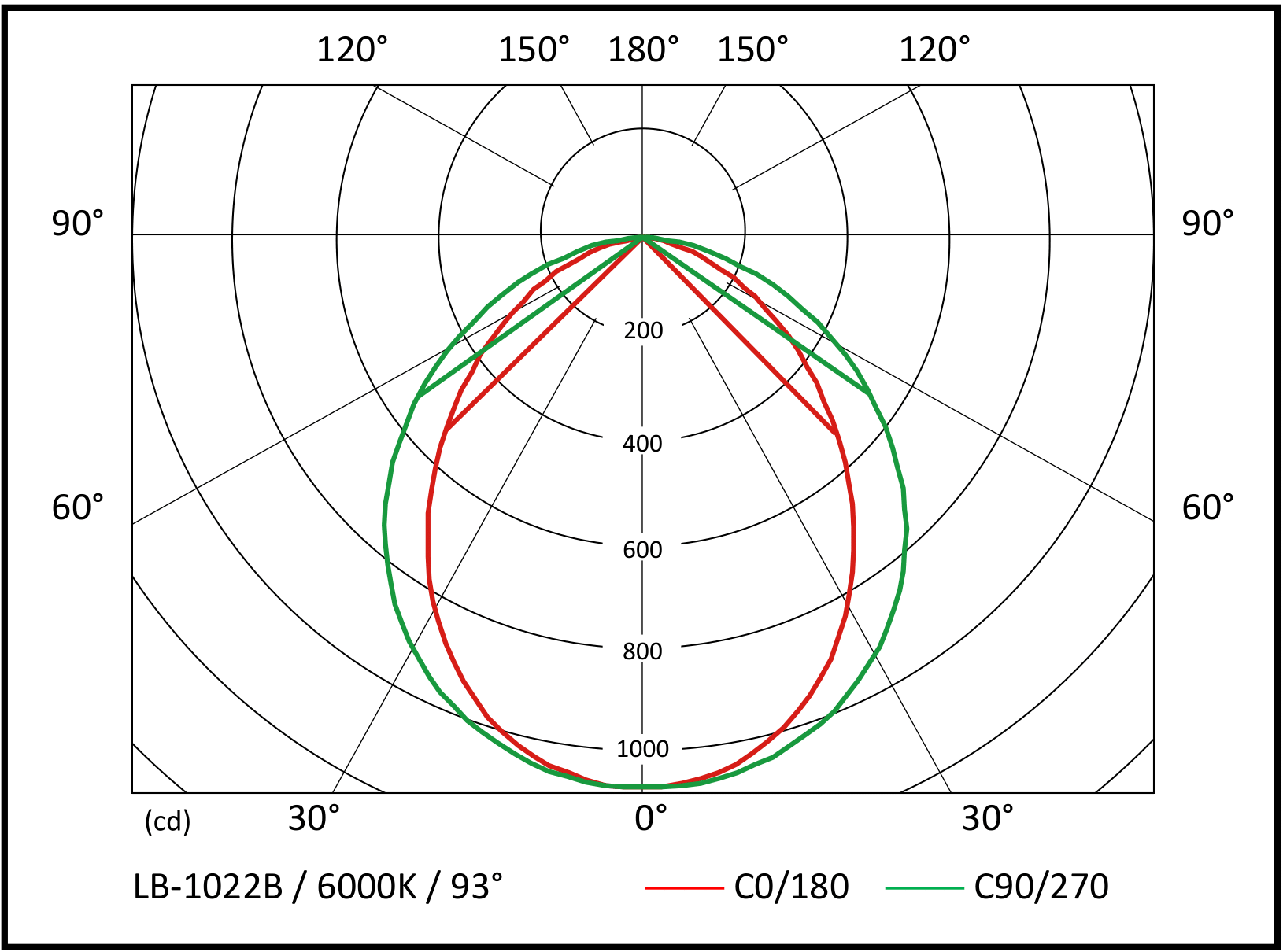

Photometrics
