Solar Obi Light Bar
Solar Obi Light Bar
Luminaire Power: 30W, 60W
Luminous Flux: 3,227lm - 8,160lm
Luminous Efficacy: 106lm/W - 151lm/W
Color Temperature: 4000k, 5000K
CRI: ≥80
Beam Angle: 30°, 120°
Lighting Duration: 19hrs
Full Charge Duration: 6hrs
Luminaire Housing Material: Aluminum
Luminaire Finish: Black
Solar Panel Size: 110W - 175W
Solar Panel Frame Material: Aluminum
Battery Location: Built-In on the Panel
Charging Operating Temperature: 0°C ~ +45°C / 32°F ~ +113°F
Discharging Operating Temperature: -20°C ~ +60°C / -4°F ~ +140°F
Specification Table
SLB-4030-N
3,227-3,362lm
111-116lm/W
8.41 ft² EPA
2 foot / 4 foot
18.5 pounds
SLB-4030-WW
4,058-4,227lm
145-151lm/W
8.41 ft² EPA
2 foot / 4 foot
18.5 pounds
SLB-4060-N
6,253-6,514lm
106-110lm/W
12.89 ft² EPA
4 foot
26.8 pounds
SLB-4060-WW
7,833-8,160lm
137-143lm/W
12.89 ft² EPA
4 foot
26.8 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 12
PRODUCT
PHOTOS
qty 4

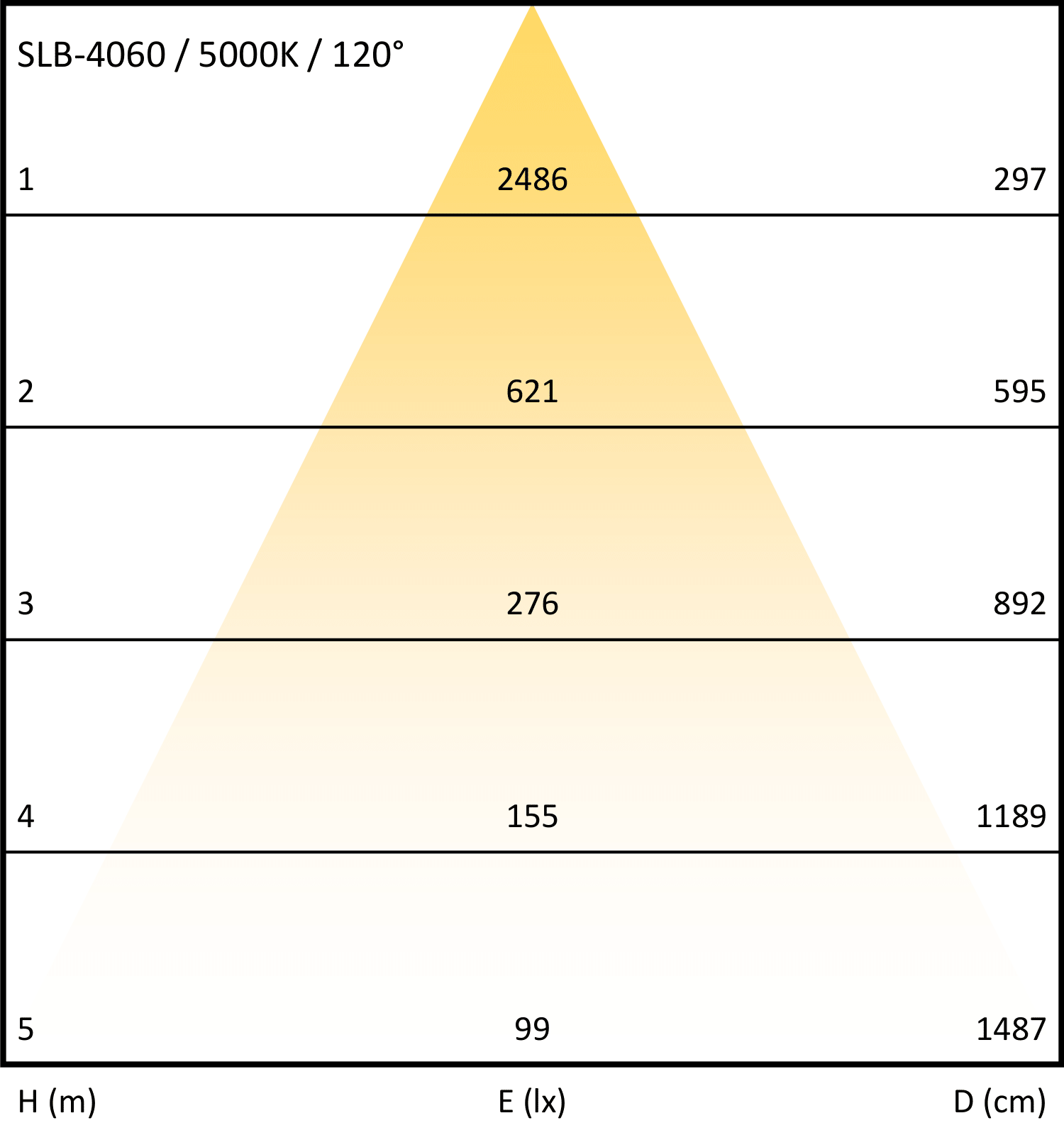

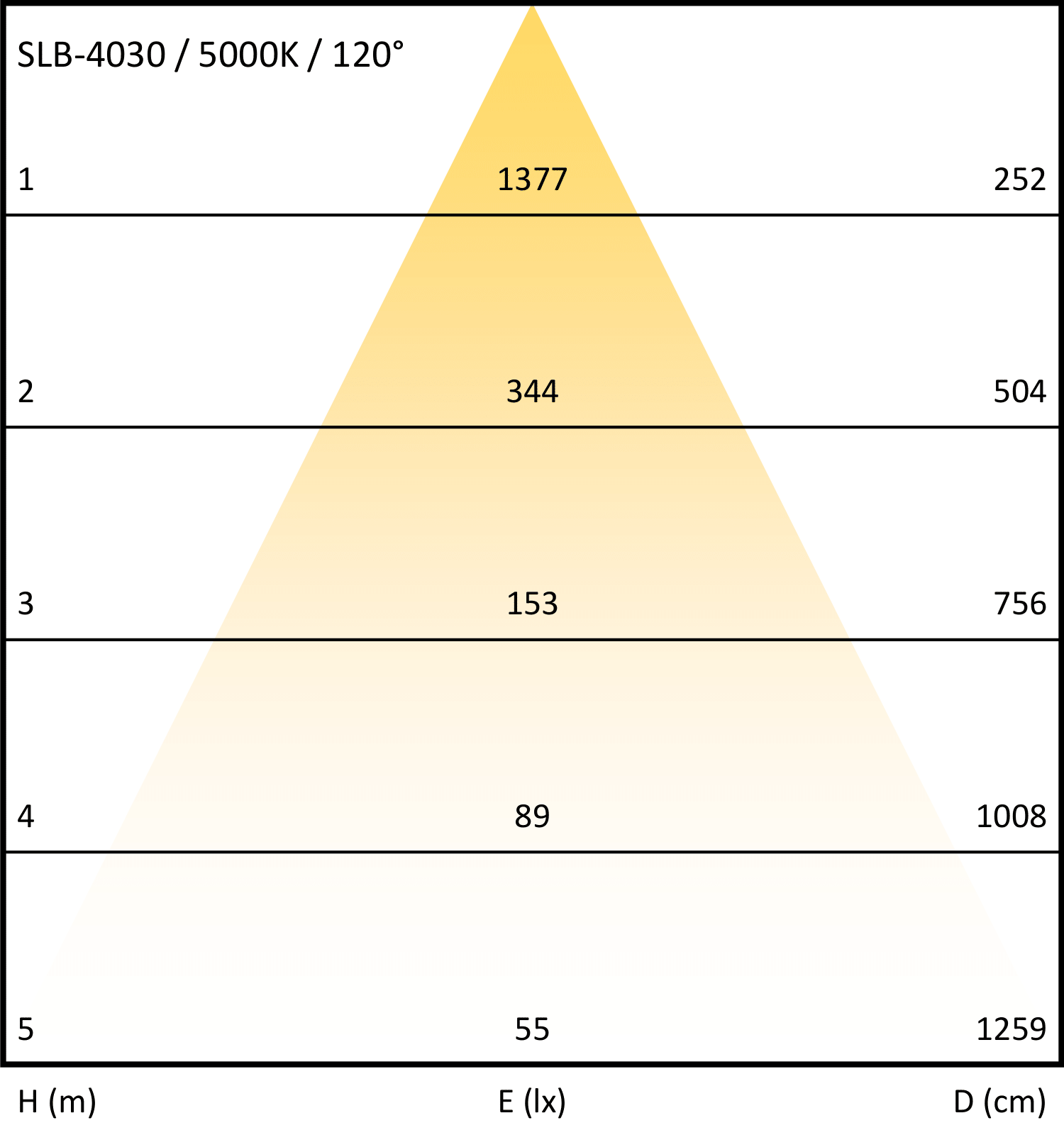

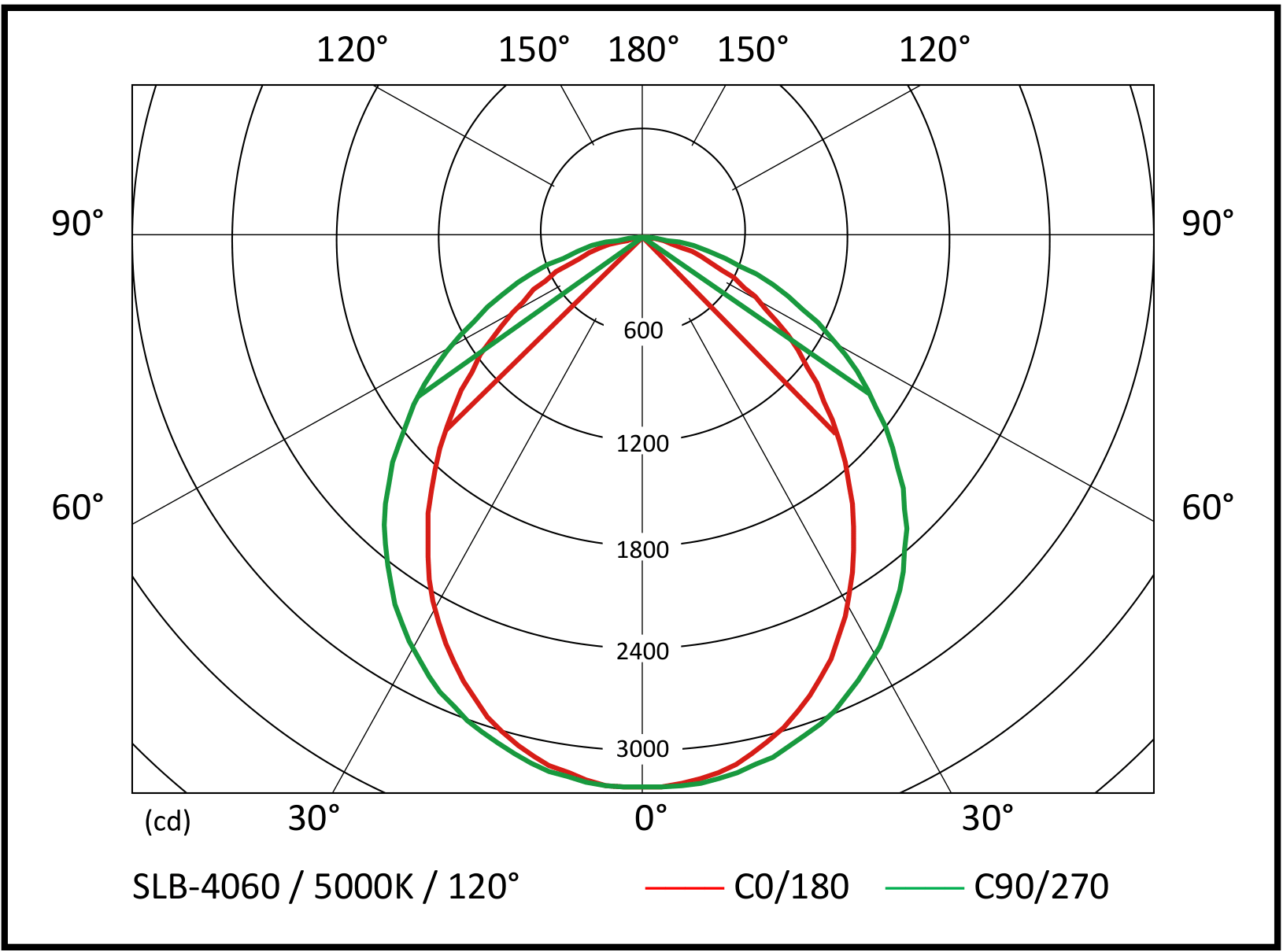

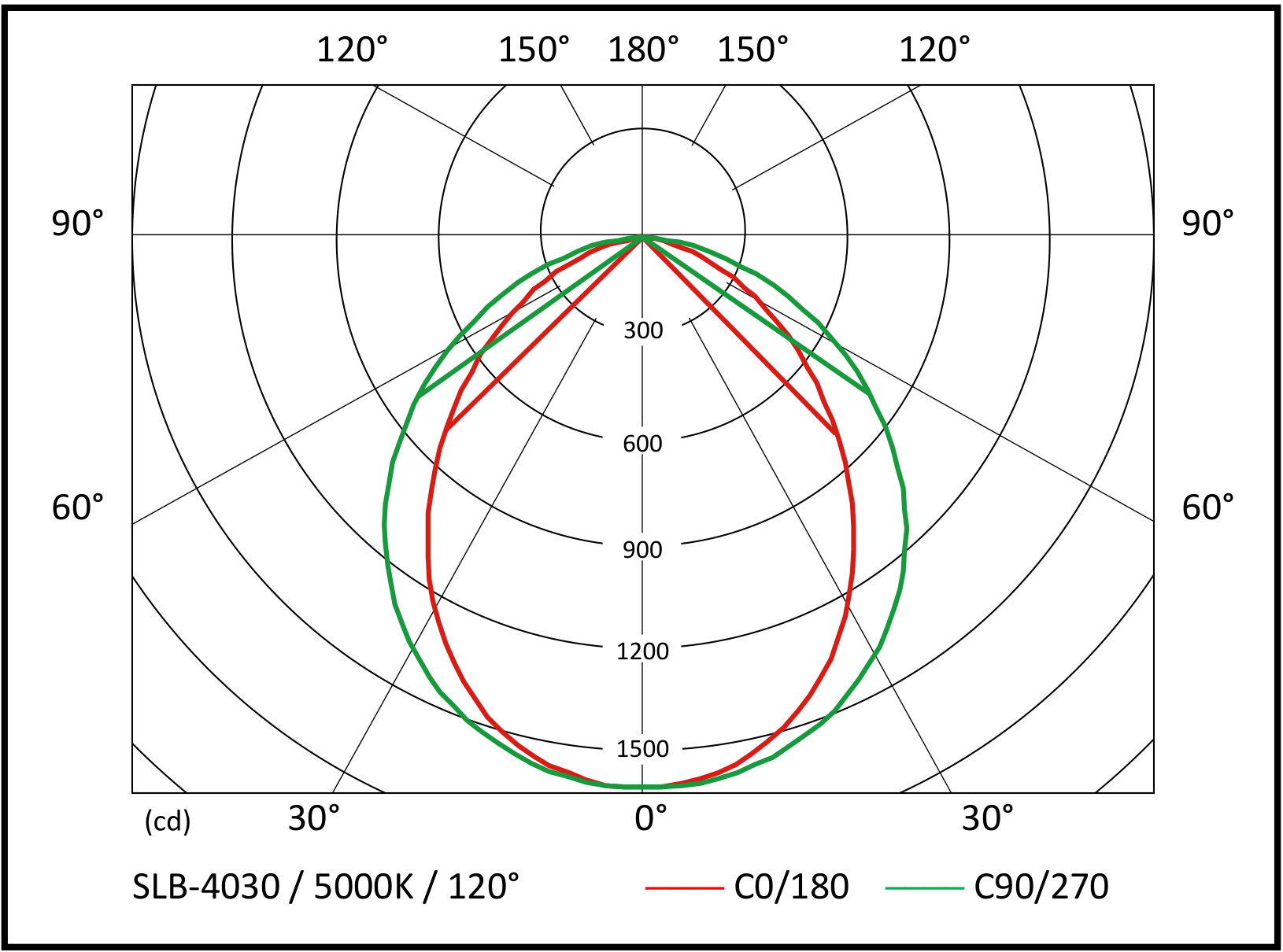

Photometrics
