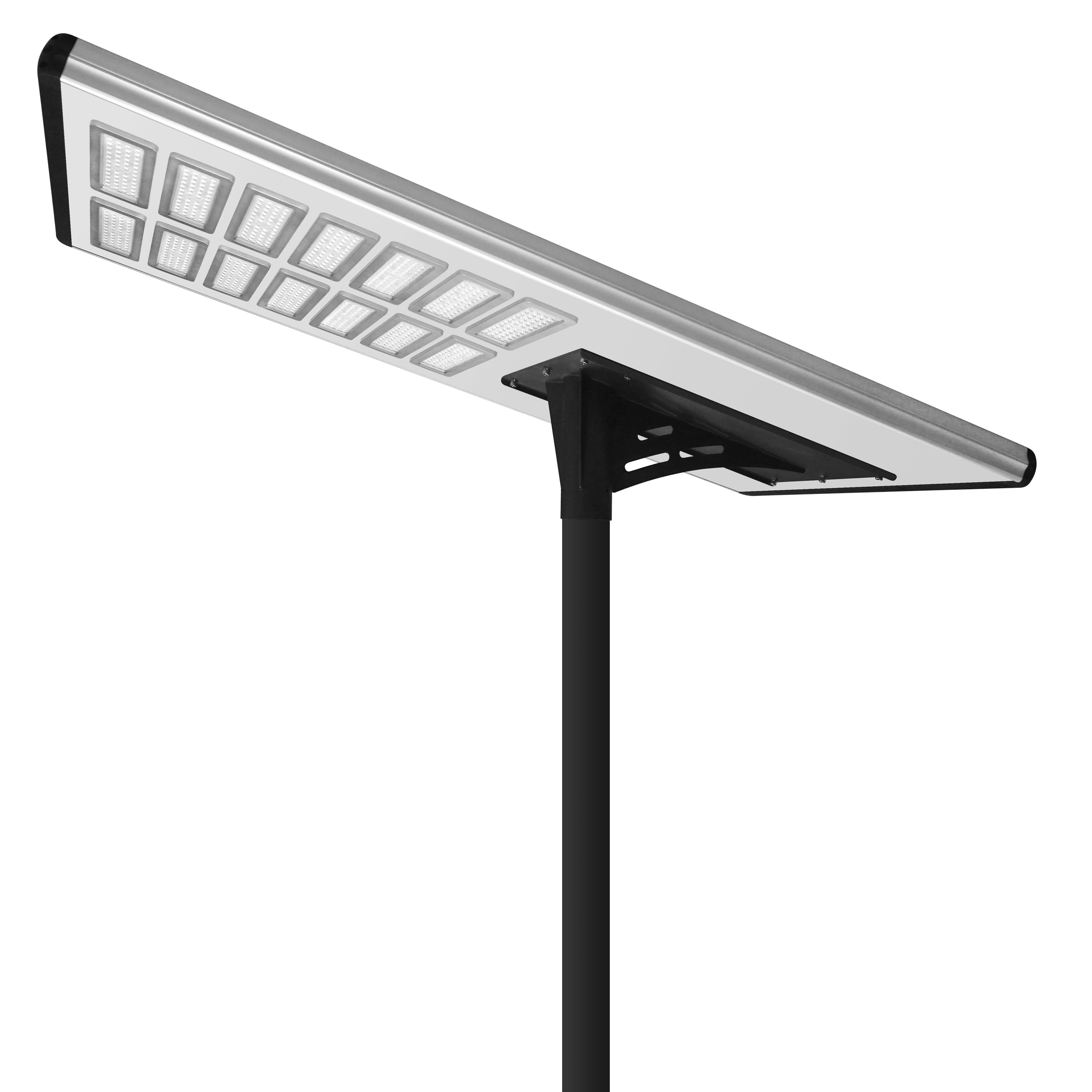

Gemini Solar Area Light
Gemini Solar Area Light
Luminaire Power: 120W
Luminous Flux: 19,680lm - 20,400lm
Luminous Efficacy: 164lm/W - 170lm/W
Color Temperature: 3000K, 4000K, 5000K
CRI: ≥70
Beam Angle: TYPE III
Lighting Duration: 12hrs
Full Charge Duration: 9hrs
Fixture Weight: 99lbs
Luminaire Housing Material: Aluminum
Luminaire Finish: Light Gray with Black Trim
Solar Panel Size: 240W
Battery Location: Built-In on the Fixture
Charging Operating Temperature: -20°C ~ +55°C / -4°F ~ +131°F
Discharging Operating Temperature: -30°C ~ +60°C / -22°F ~ +140°F
Specification Table
SR-4120
19,680-20,400lm
164-170lm/W
15.91 ft² EPA
B4-U2-G2
99 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 3
PRODUCT
PHOTOS
qty 2

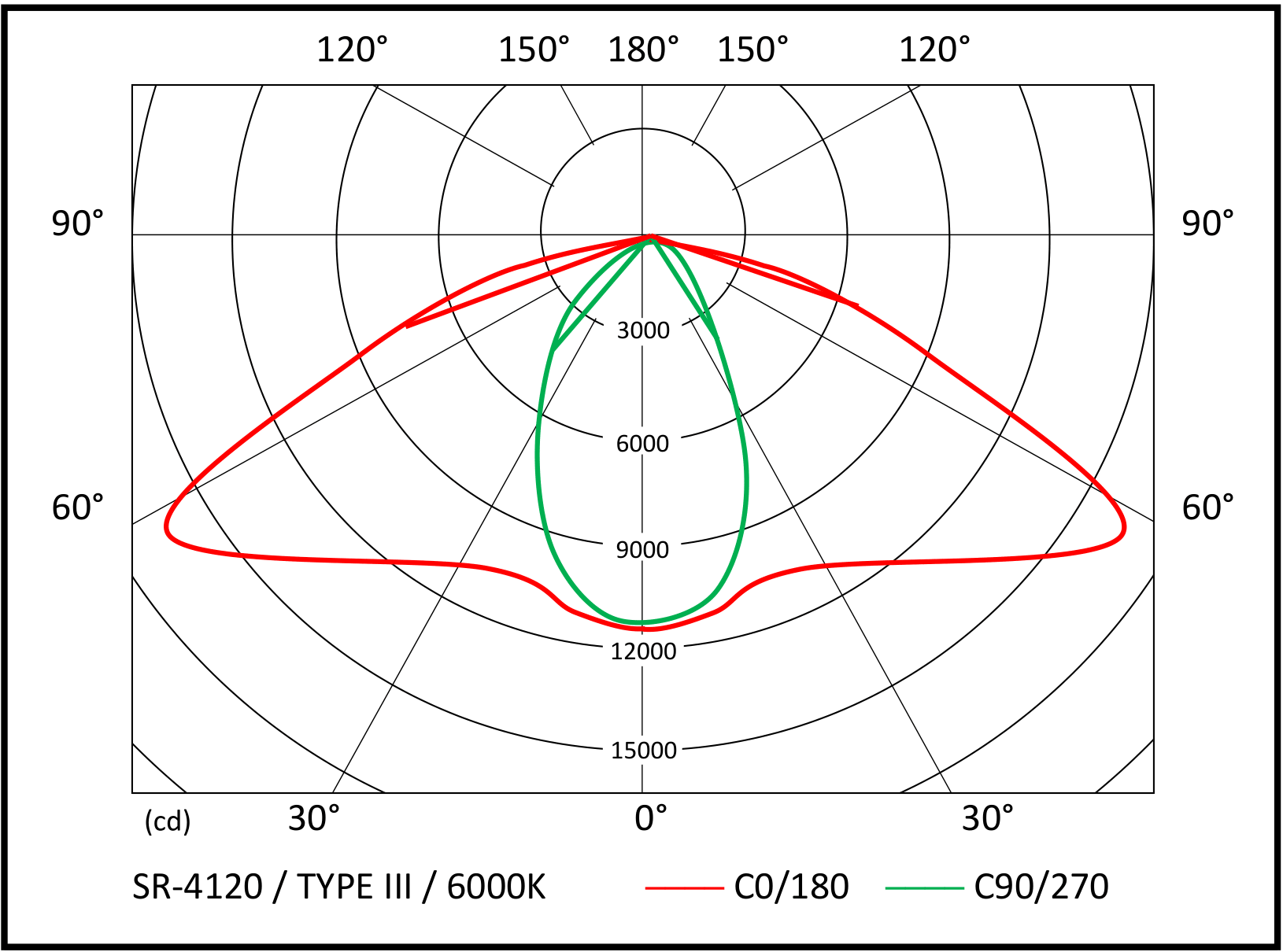

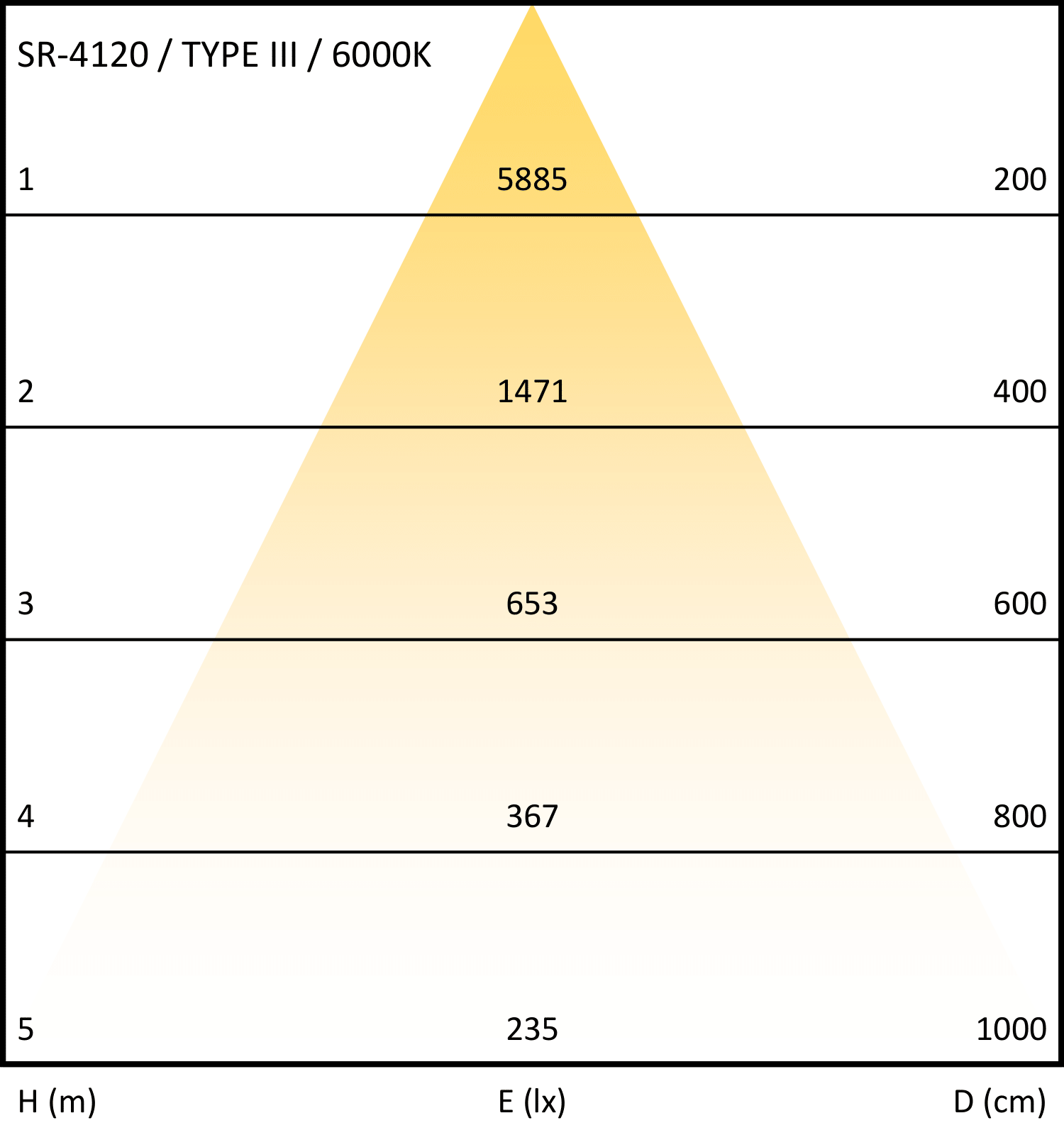

Photometrics
