Zenith Area Light


Zenith Area Light

$0.00

  • Power: Adjustable 50W/80W/100W/150W and 180W/200W/240W/320W

  • Luminous Flux: 7,300lm - 46,592lm

  • Luminous Efficacy: ~ 146lm/W

  • Color Temperature: Adjustable 3000K/4000K/5000K

  • CRI: ≥82

  • Beam Angle: Adjustable TYPE III/TYPEIV/TYPEV

  • Power Supply: Built-In

  • Input Voltage: 100-277V AC, 347-480V AC ~ 50/60Hz

  • Power Factor: ≥ 0.9

  • Dimmable: 0-10V dimmable

  • Housing Material: Aluminum

  • Lens Material: Polycarbonate

  • Finish: Bronze

  • Ambient Operating Temperature: -40°C ~ +40°C / -40°F ~ +104°F

  • Lifetime: ≥ 50,000hrs

Quantity:
Add To Cart


Specification Table




AL-1150T

7,120-22,850lm

142-152lm/W

1.63 ft² EPA

B3-U0-G3

11.16 pounds




AL-1320T

25,745-48,726lm

143-152lm/W

2.61 ft² EPA

B4-U0-G4

15.54 pounds




Applications



Certifications



Downloads

SPEC
SHEET
v. 2026.01.01

INSTALL
GUIDE
v. 2026.01.01

IES
FILES
qty 72

PRODUCT
PHOTOS
qty 10

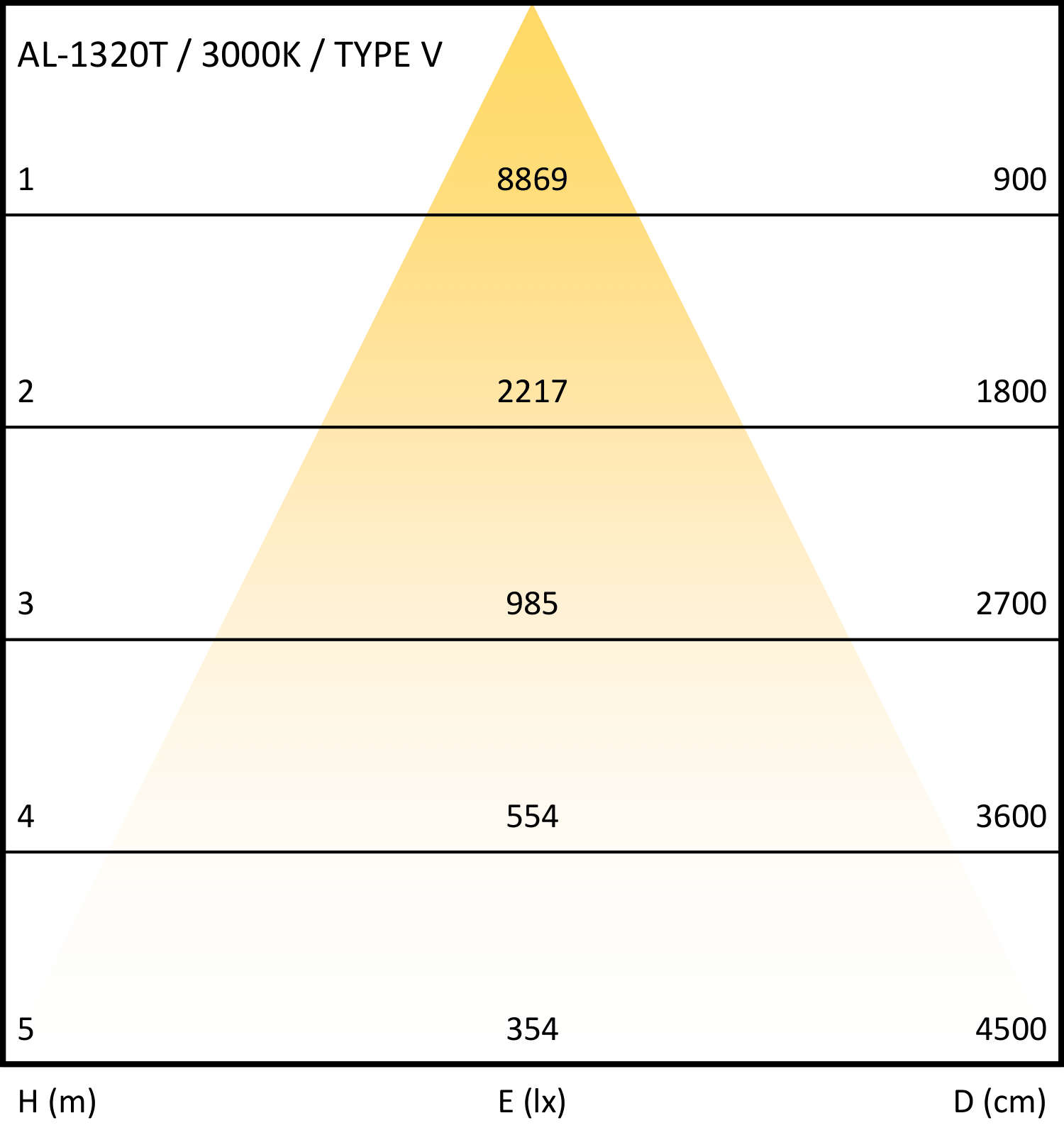

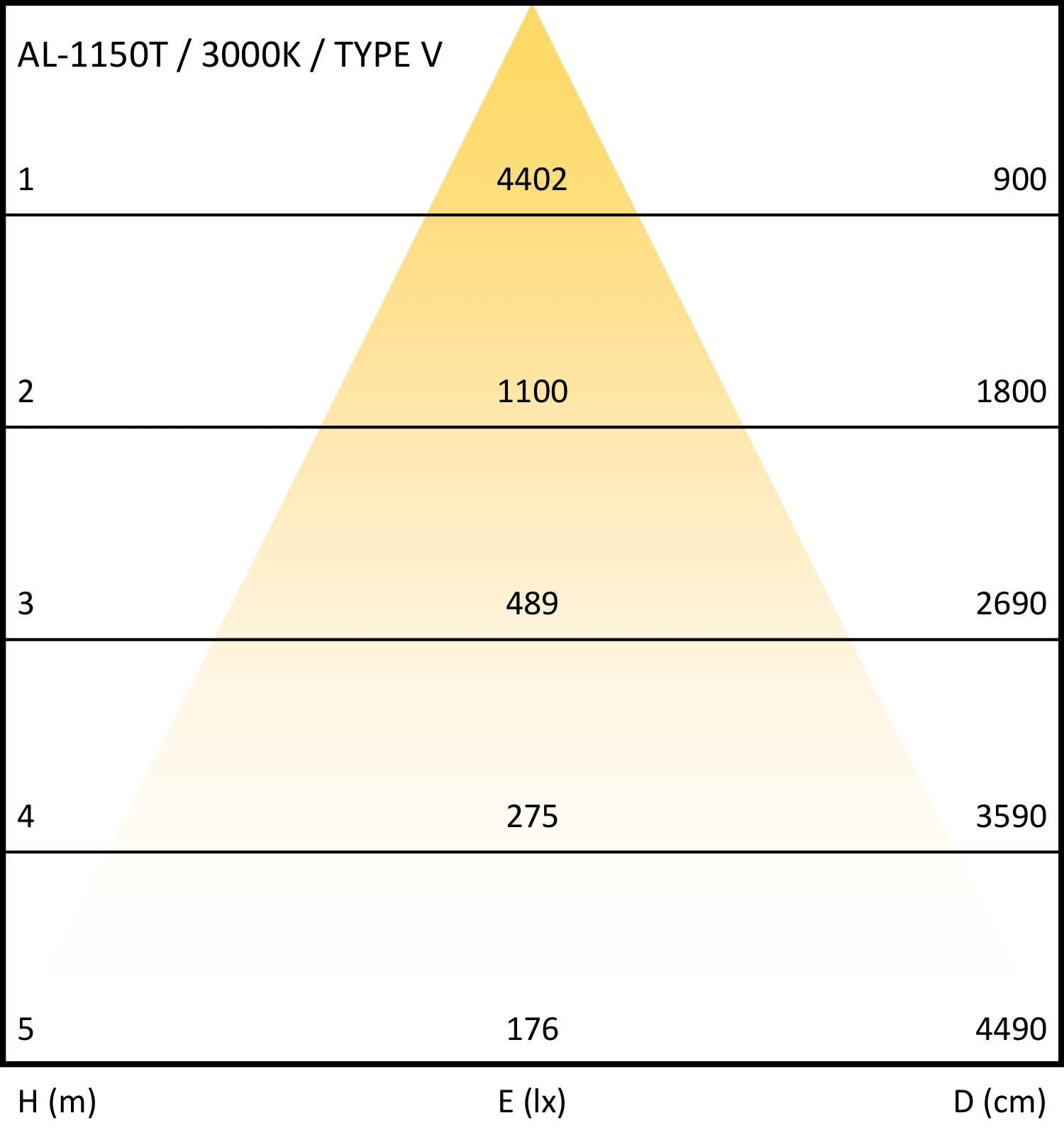

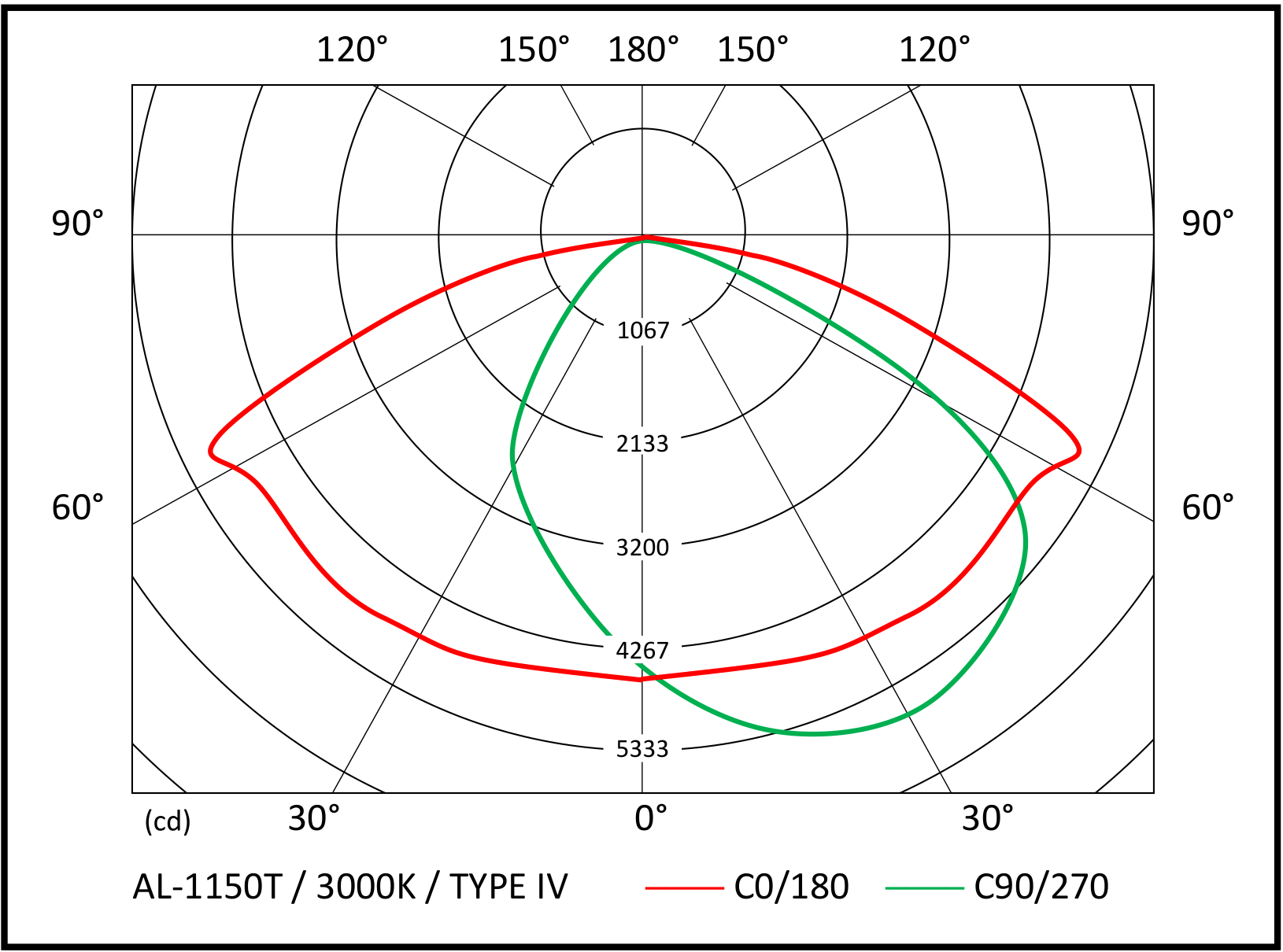

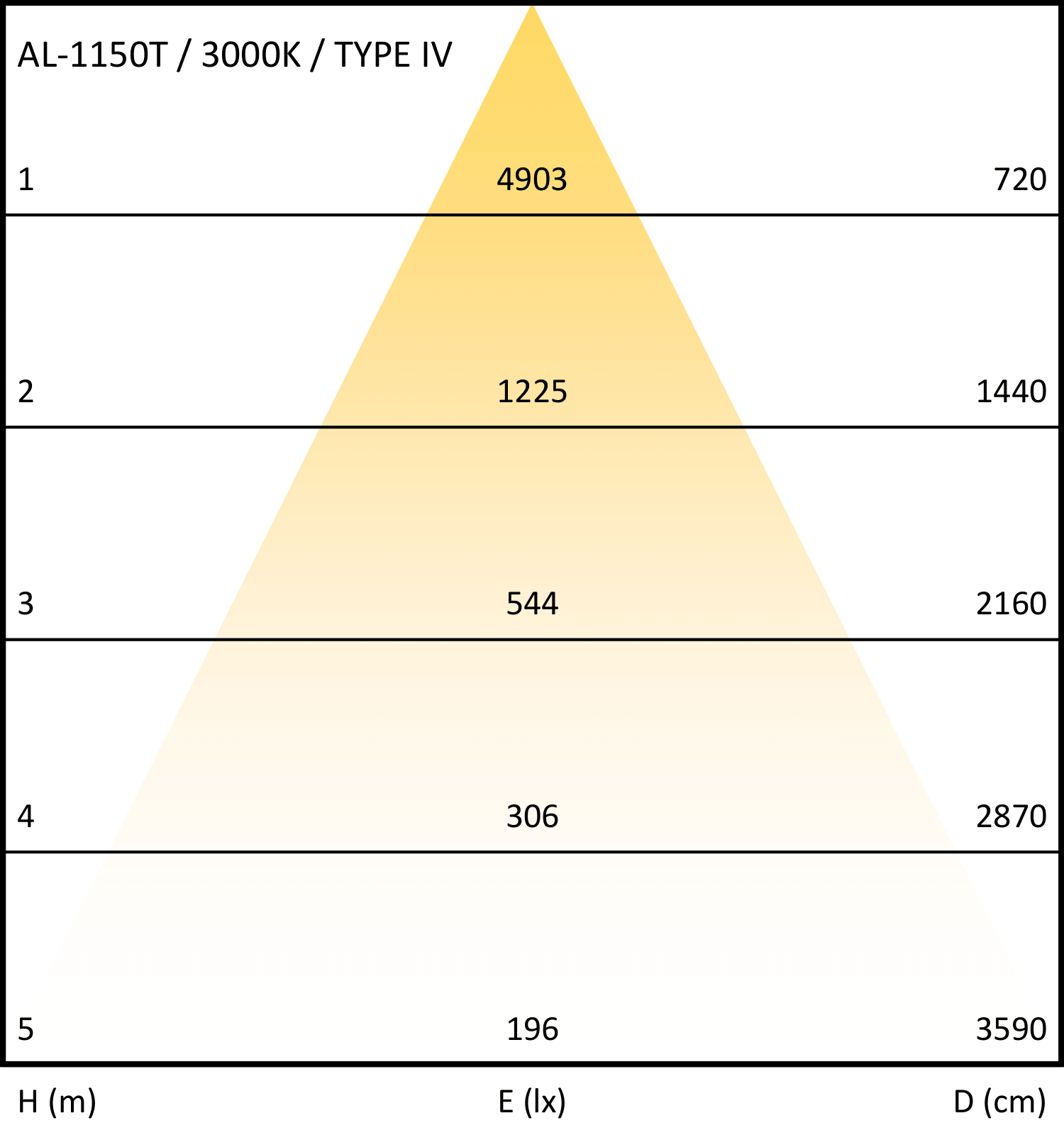

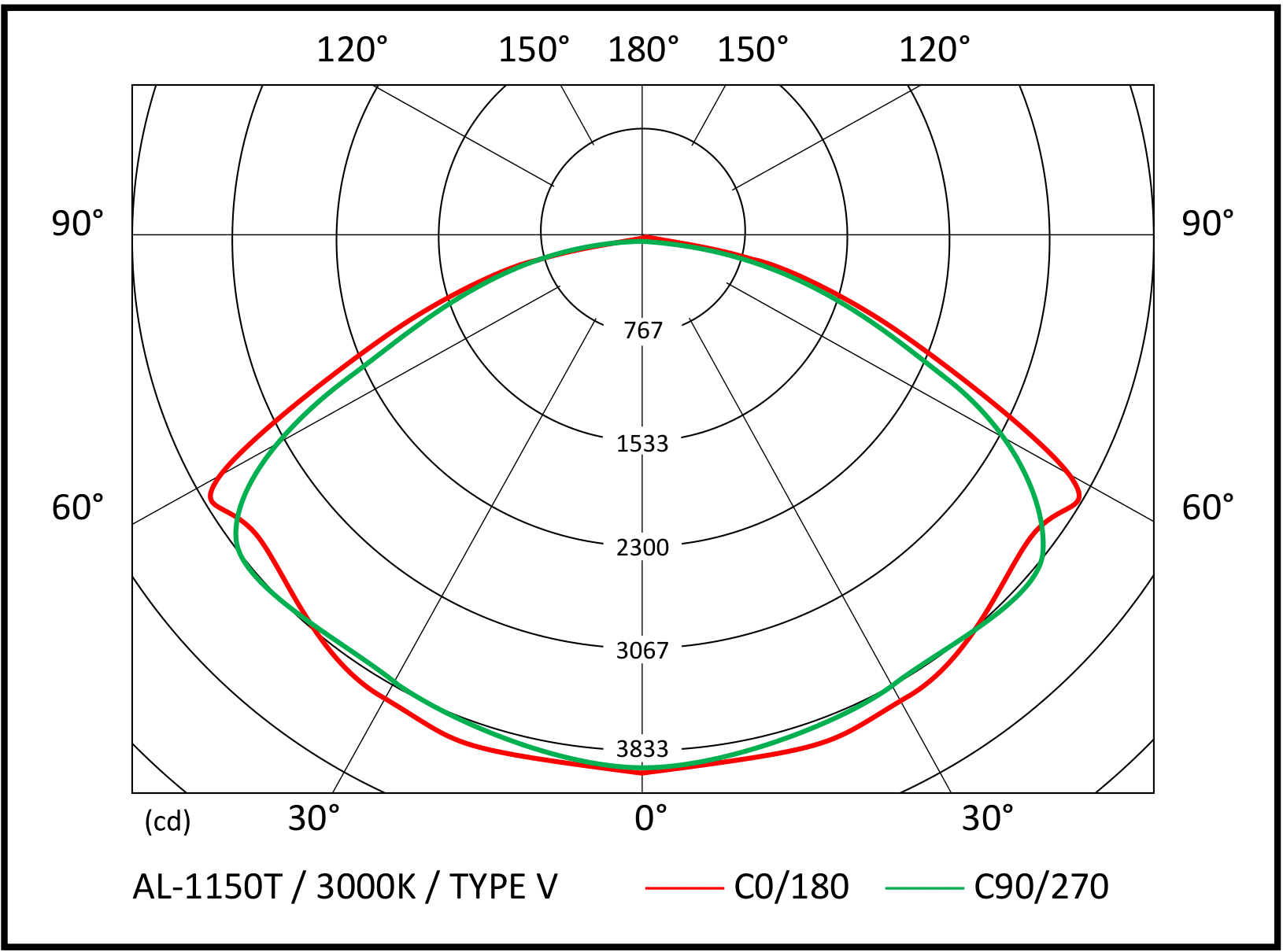

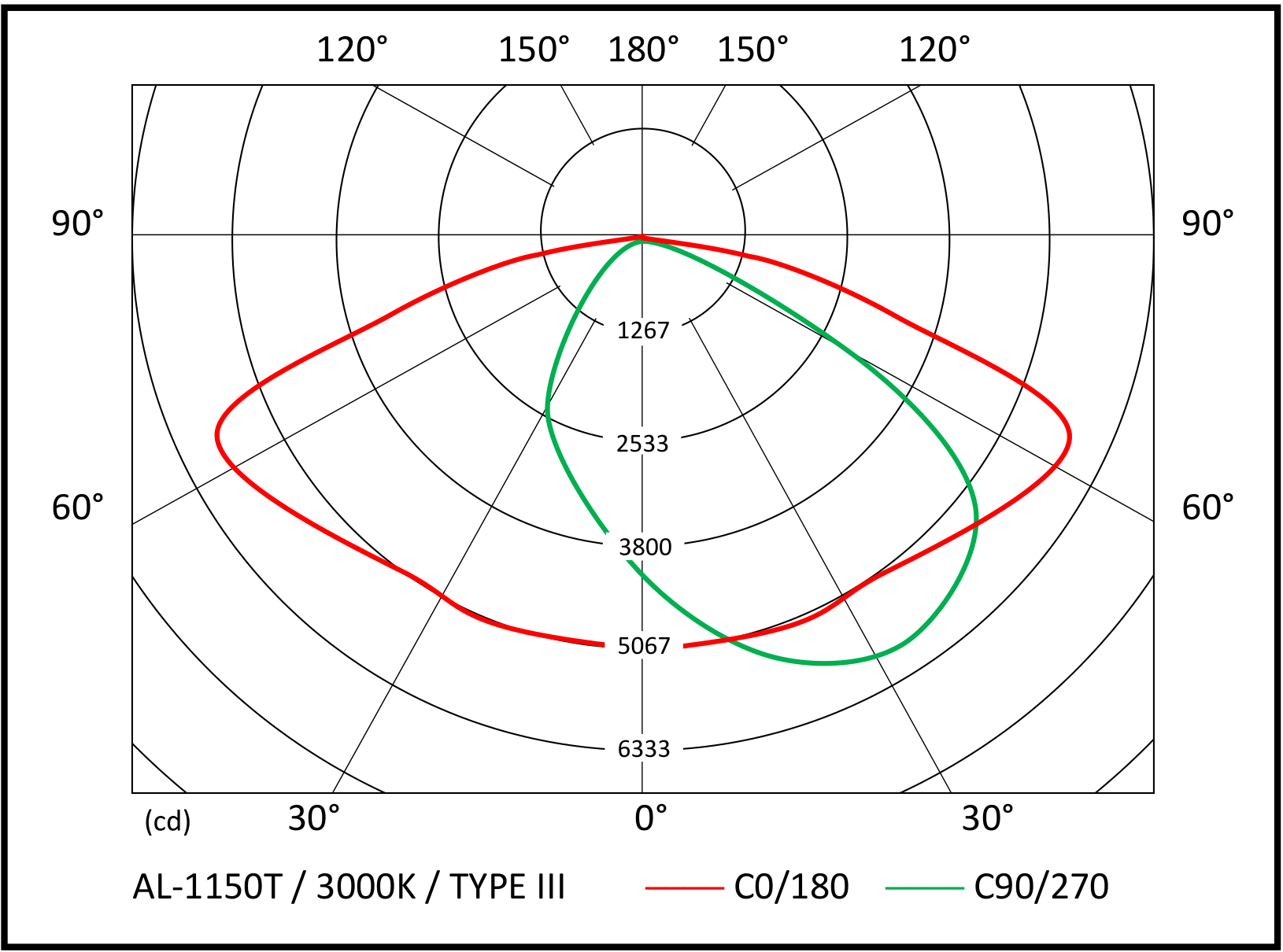

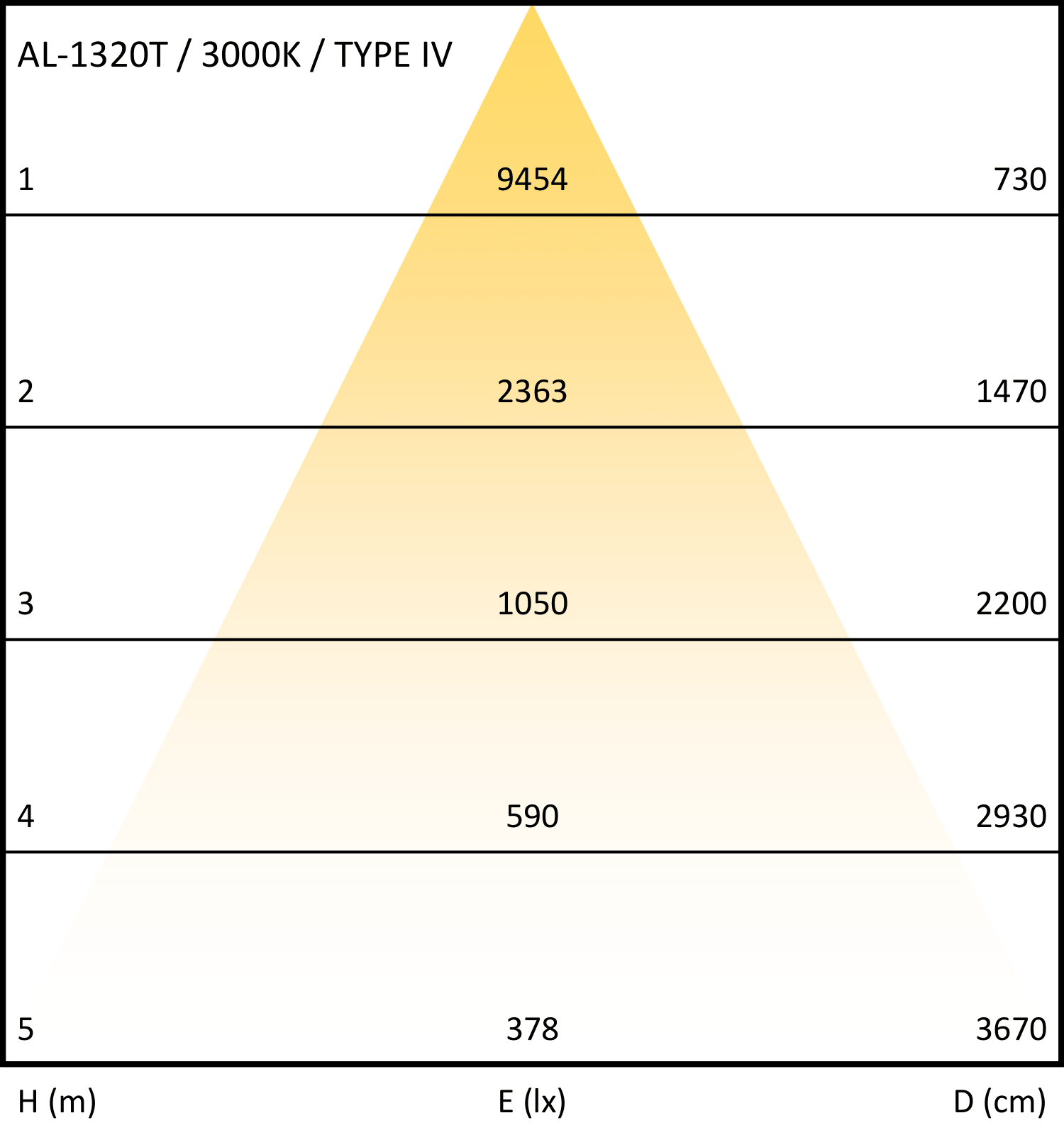

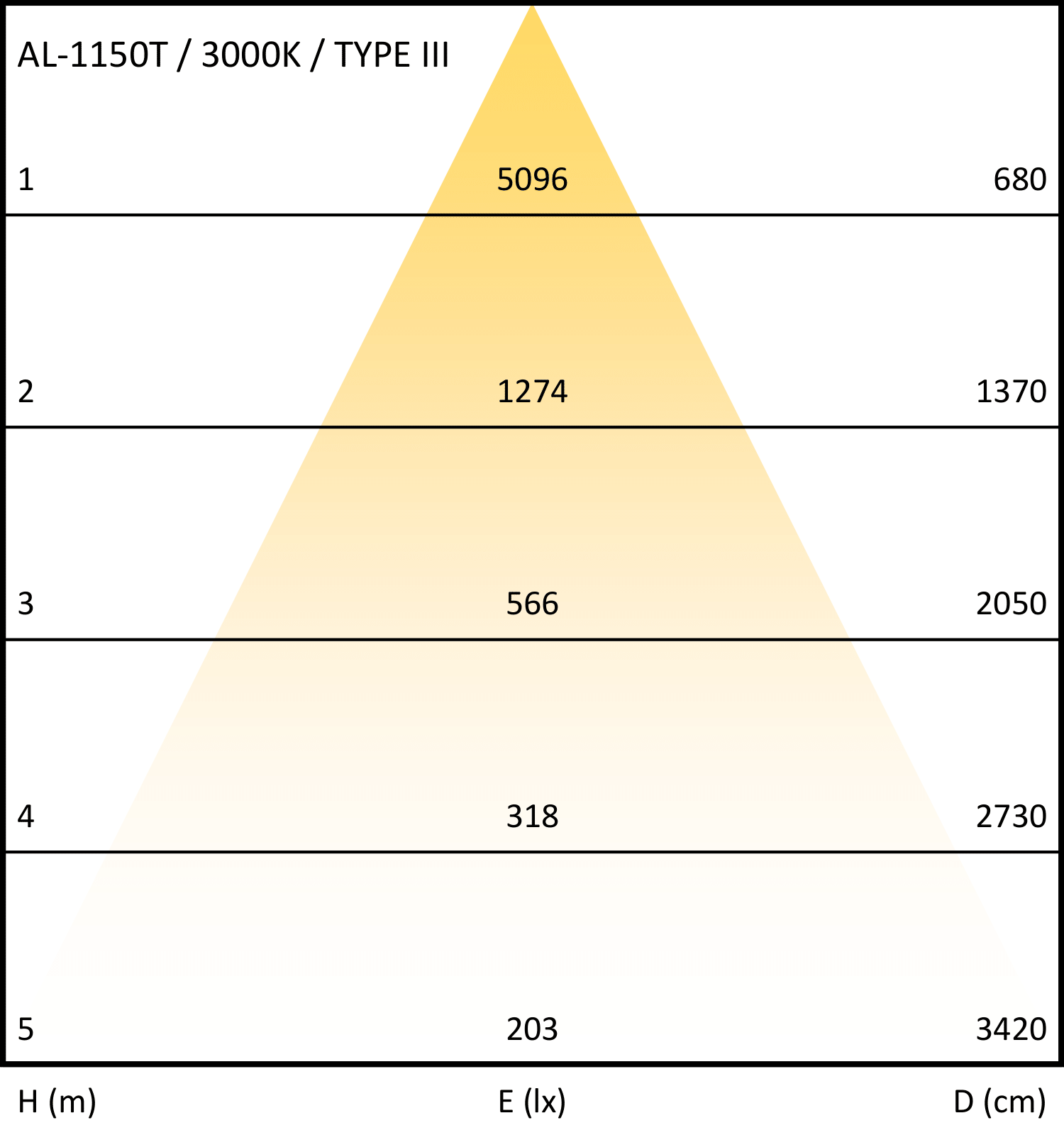

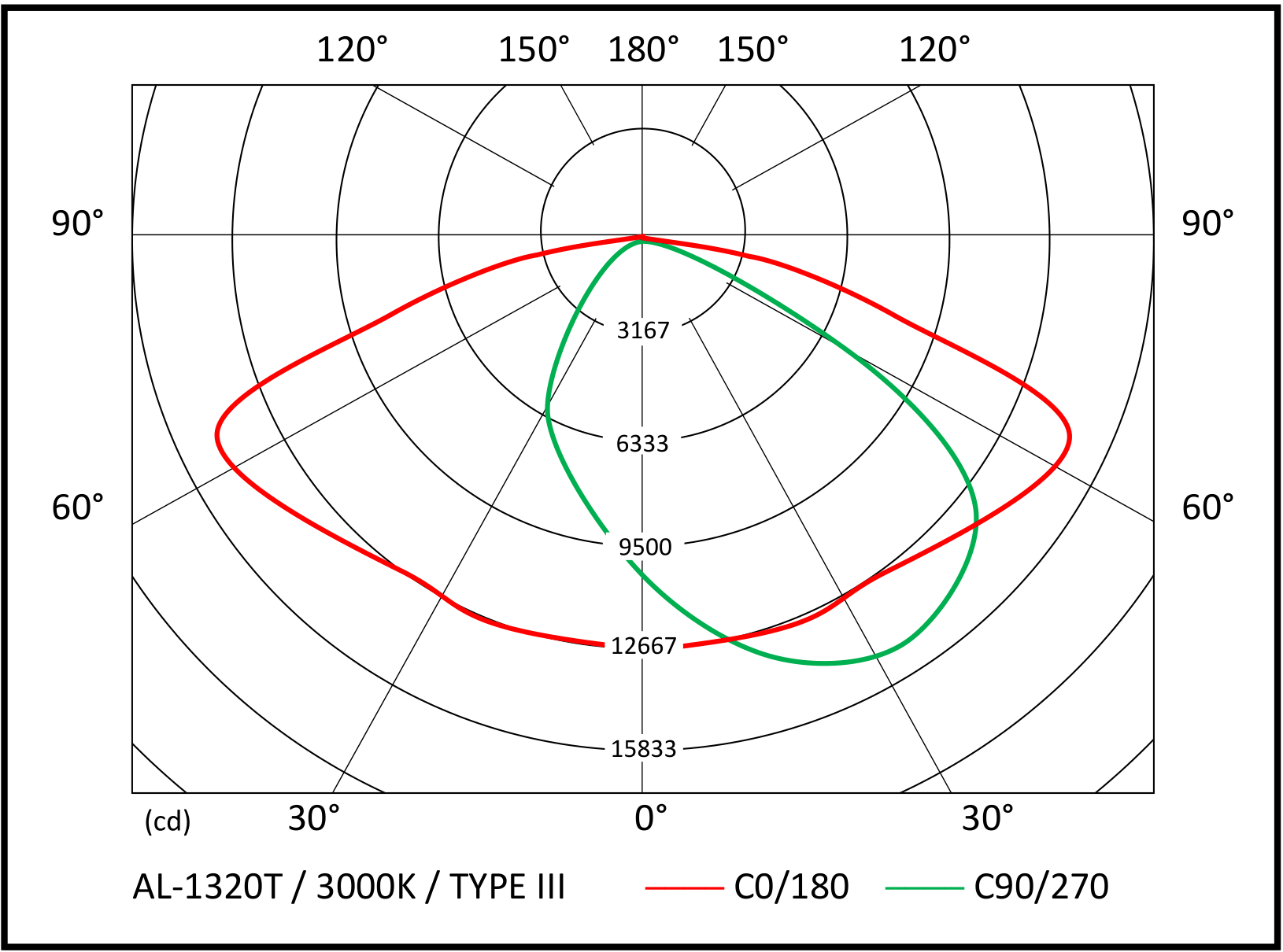

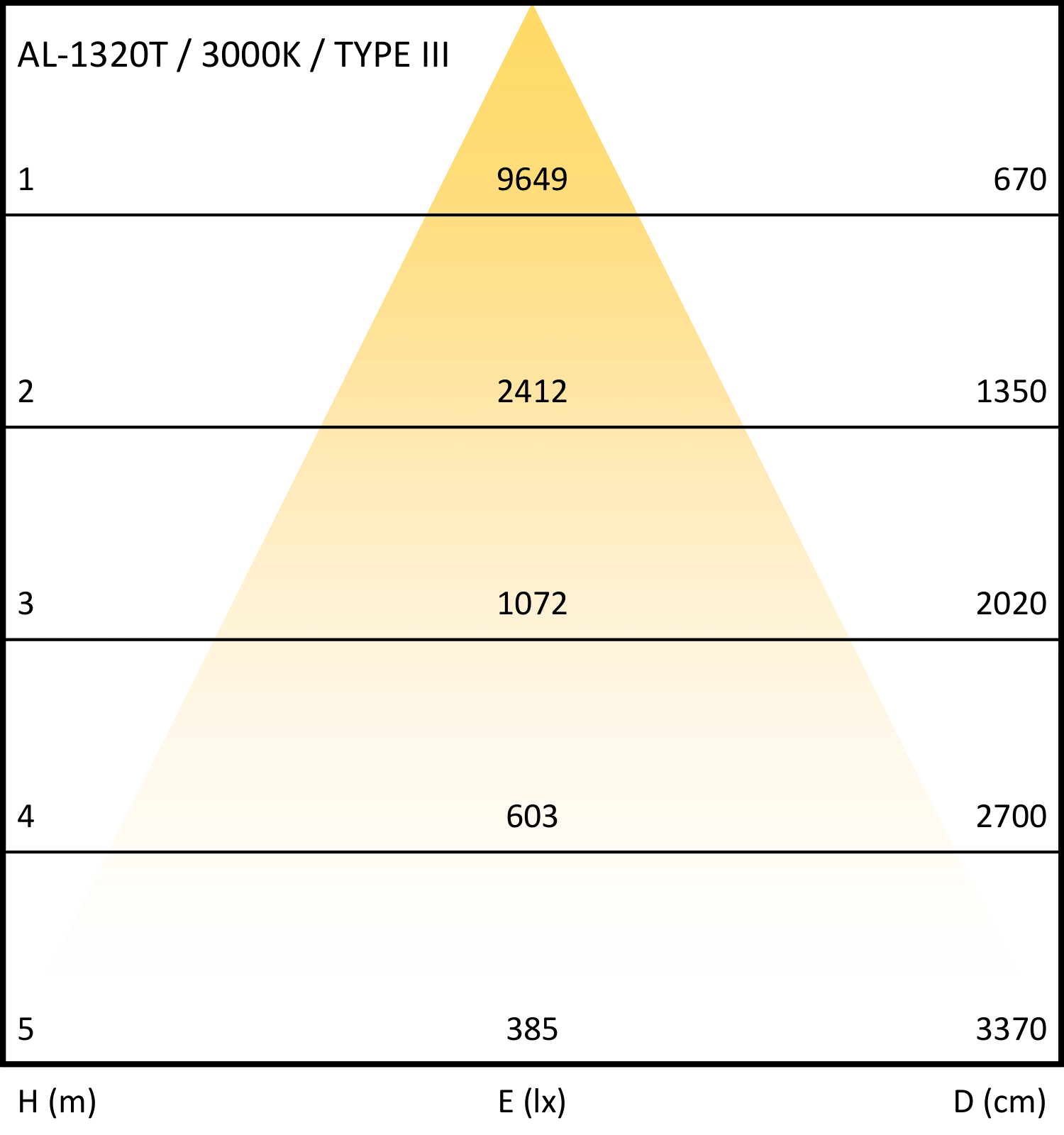

Photometrics
