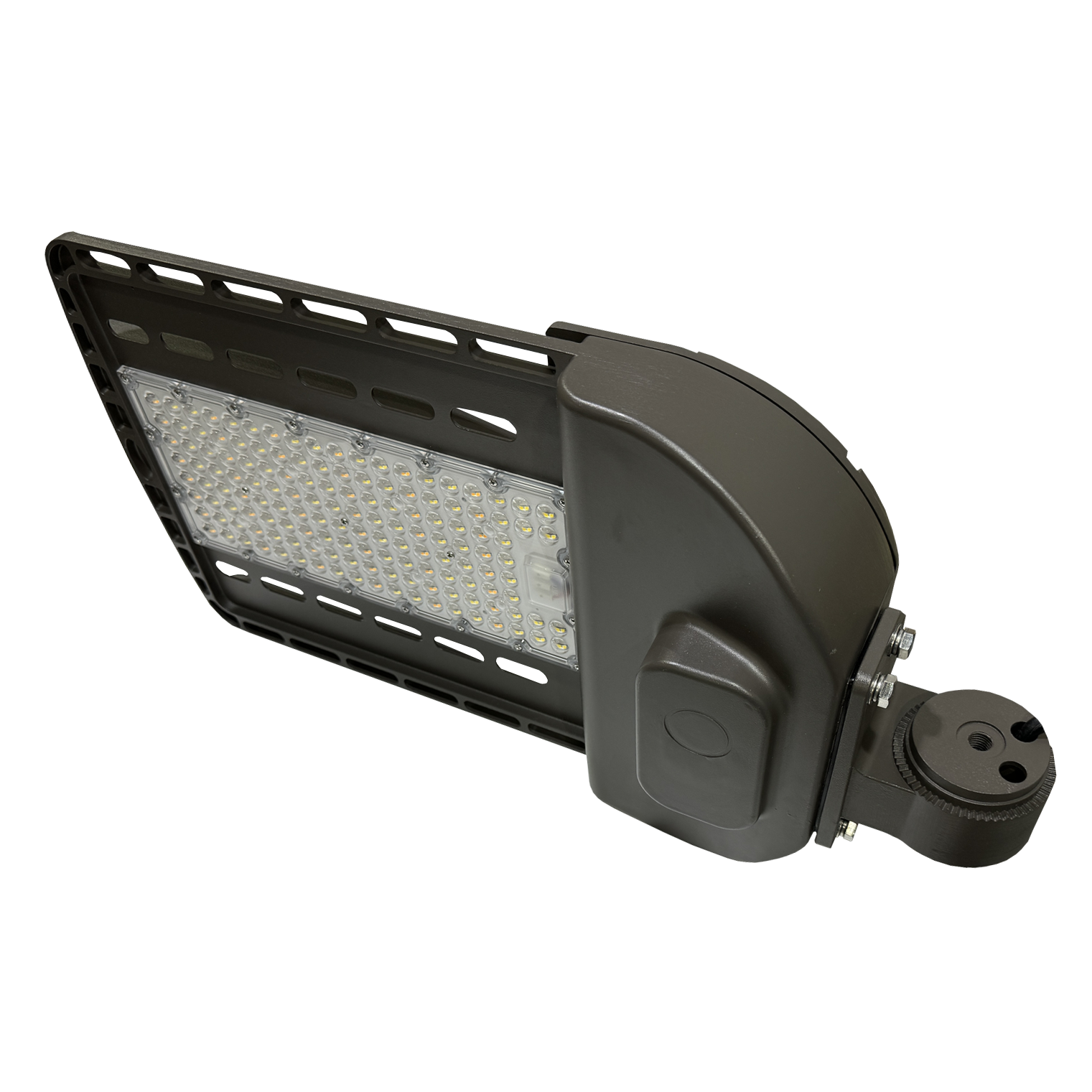

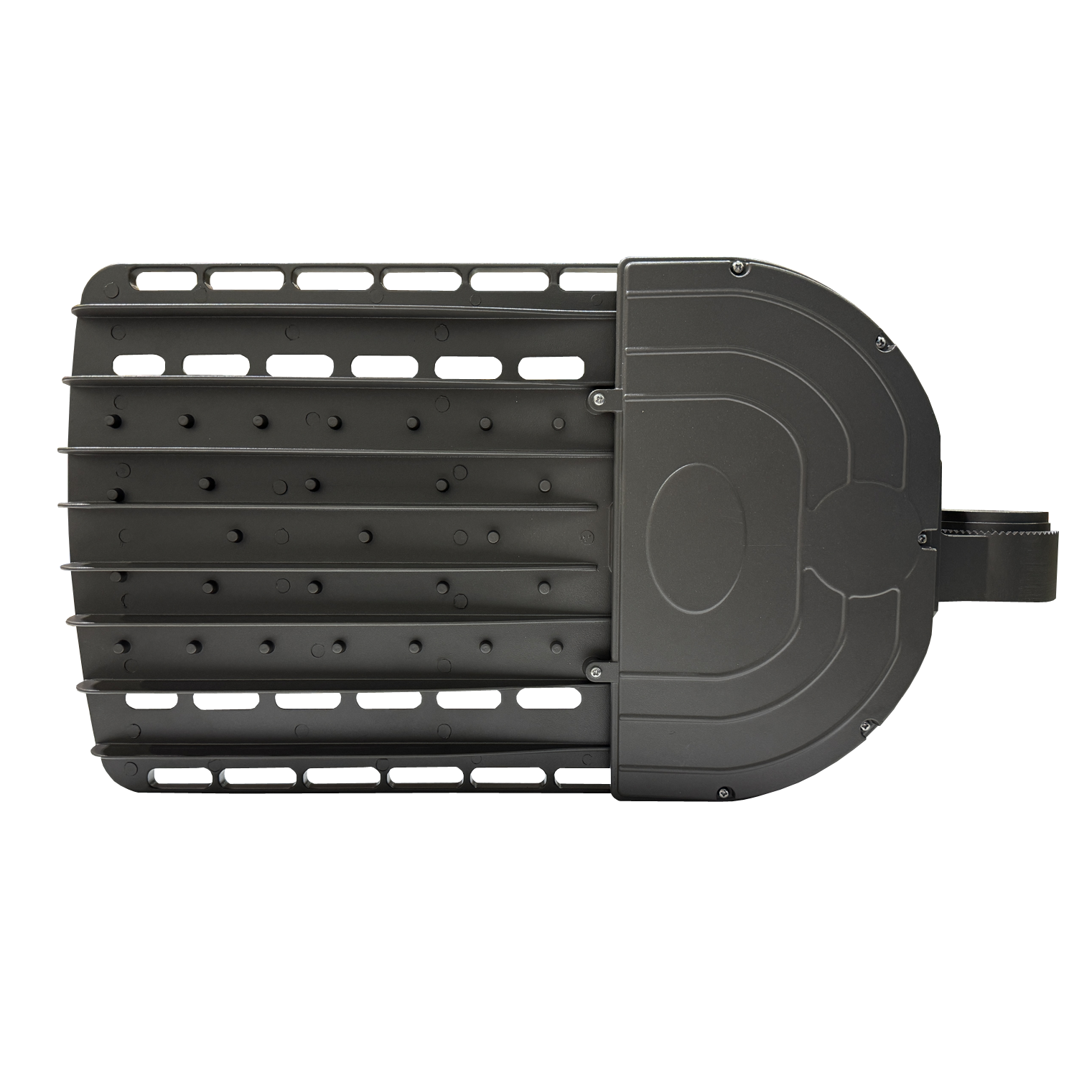

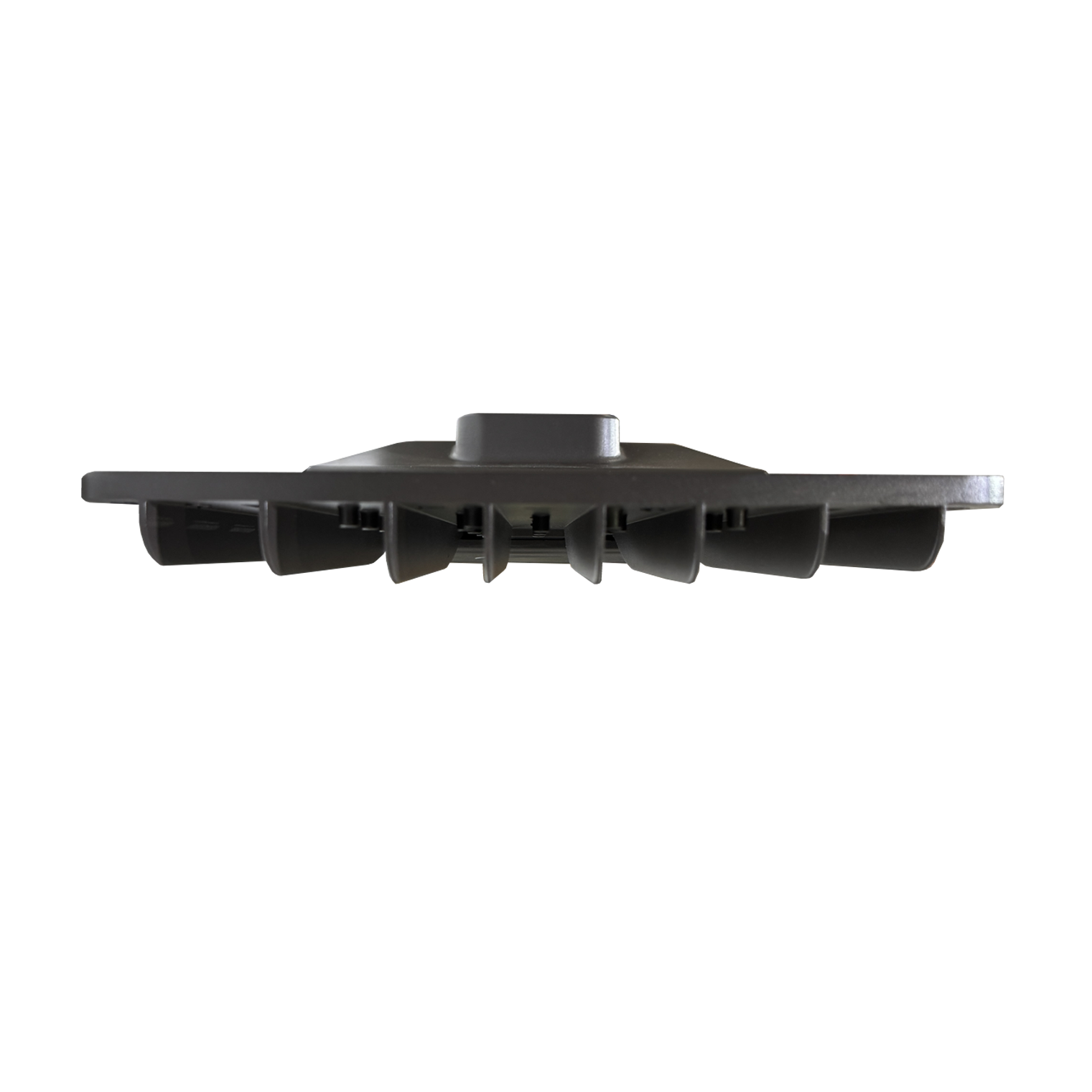

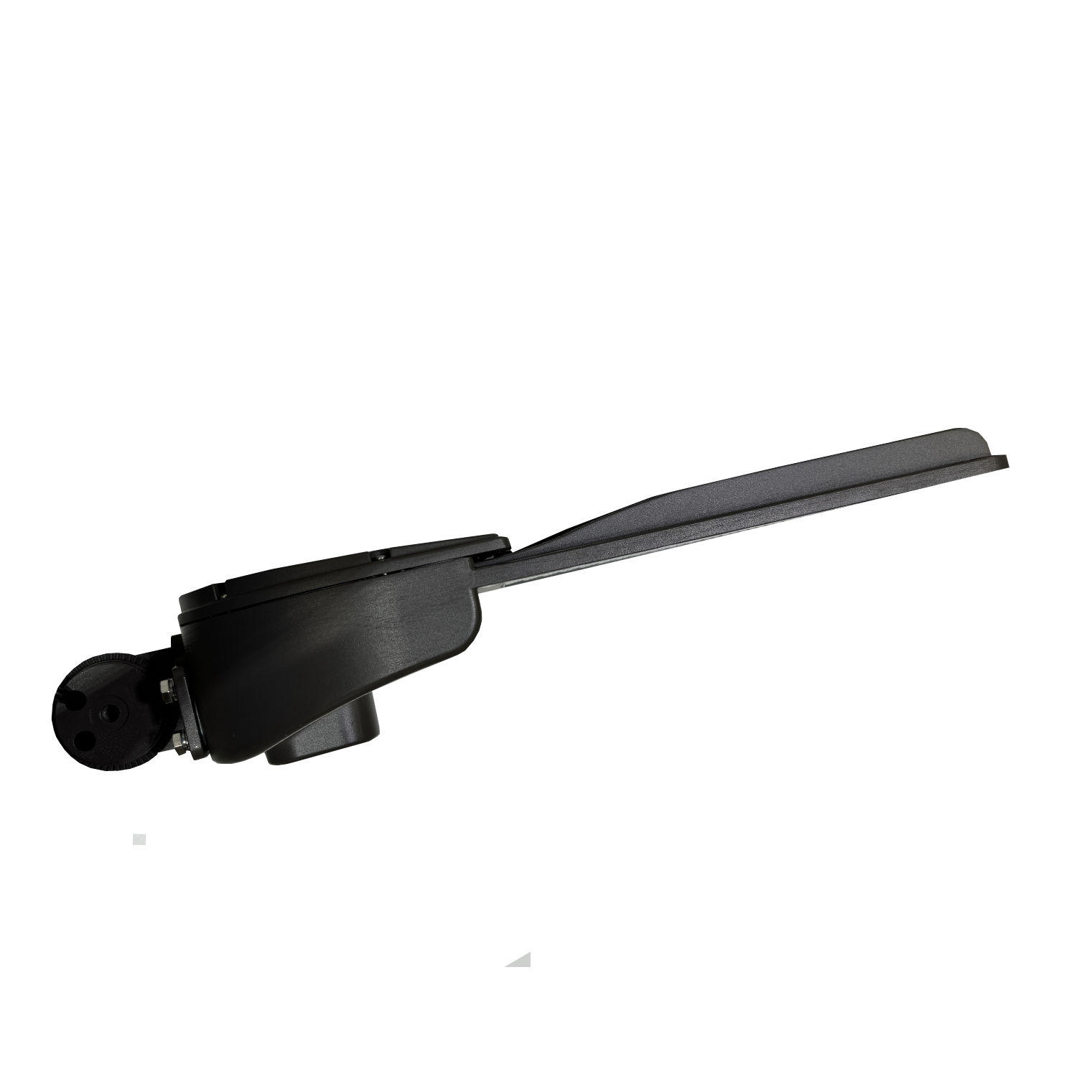

Adjustable Area Light


Adjustable Area Light

$0.00

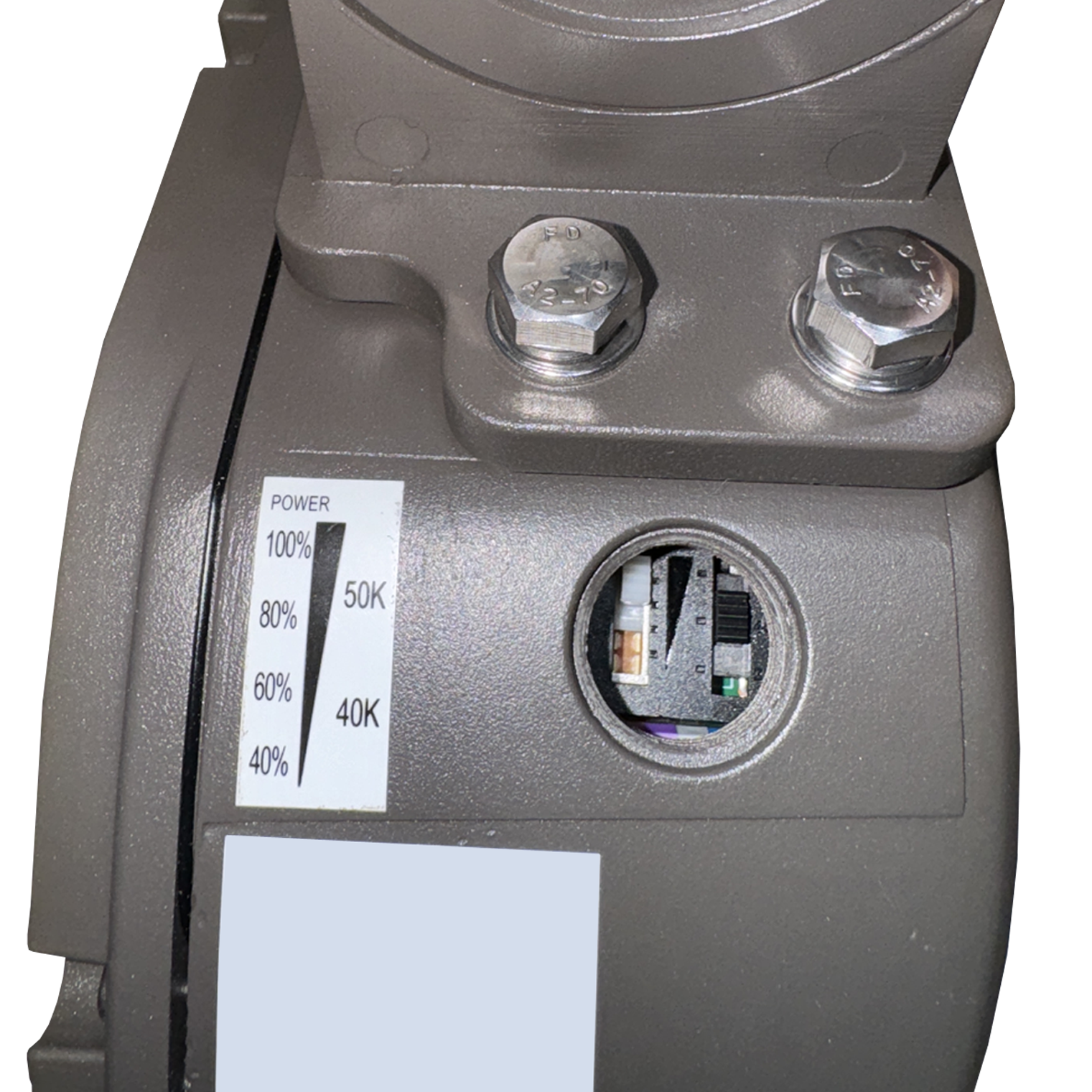

  • Power: Adjustable 60W/90W/120W/150W and 120W/180W/240W/300W

  • Luminous Flux: 8,700lm - 44,714lm

  • Luminous Efficacy: 135lm/W - 156lm/W

  • Color Temperature: Adjustable 4000K/5000K

  • CRI: ≥70

  • Beam Angle: 120° x 70°

  • Power Supply: Built-In

  • Input Voltage: 100-277V AC ~ 50/60Hz

  • Power Factor: ≥ 0.9

  • Dimmable: Yes

  • Housing Material: Aluminum

  • Lens Material: Polycarbonate

  • Finish: Dark Bronze

  • Ambient Operating Temperature: -40°C ~ +45°C / -40°F ~ +113°F

  • Lifetime: ≥ 75,000hrs

Quantity:
Add To Cart


Specification Table




ST-1150T

8,700-21,021lm

135-150lm/W

1.98 ft² EPA

B3-U0-G3

11.16 pounds




ST-1300T

17,880-44,714lm

143-156lm/W

2.36 ft² EPA

B4-U0-G4

16.01 pounds




Applications



Certifications



Downloads

SPEC
SHEET
v. 2026.01.01

INSTALL
GUIDE
v. 2026.01.01

IES
FILES
qty 16

PRODUCT
PHOTOS
qty 14

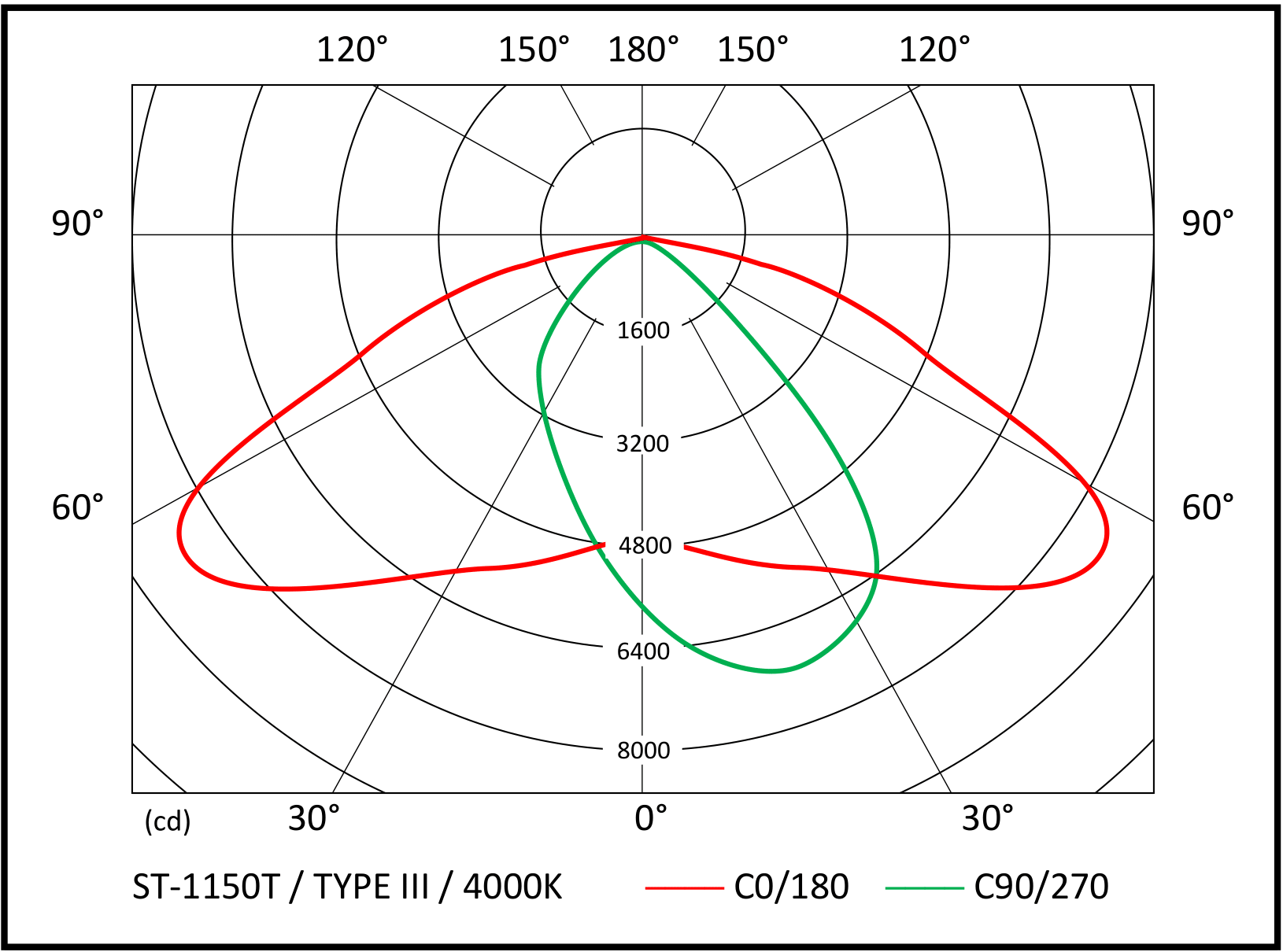

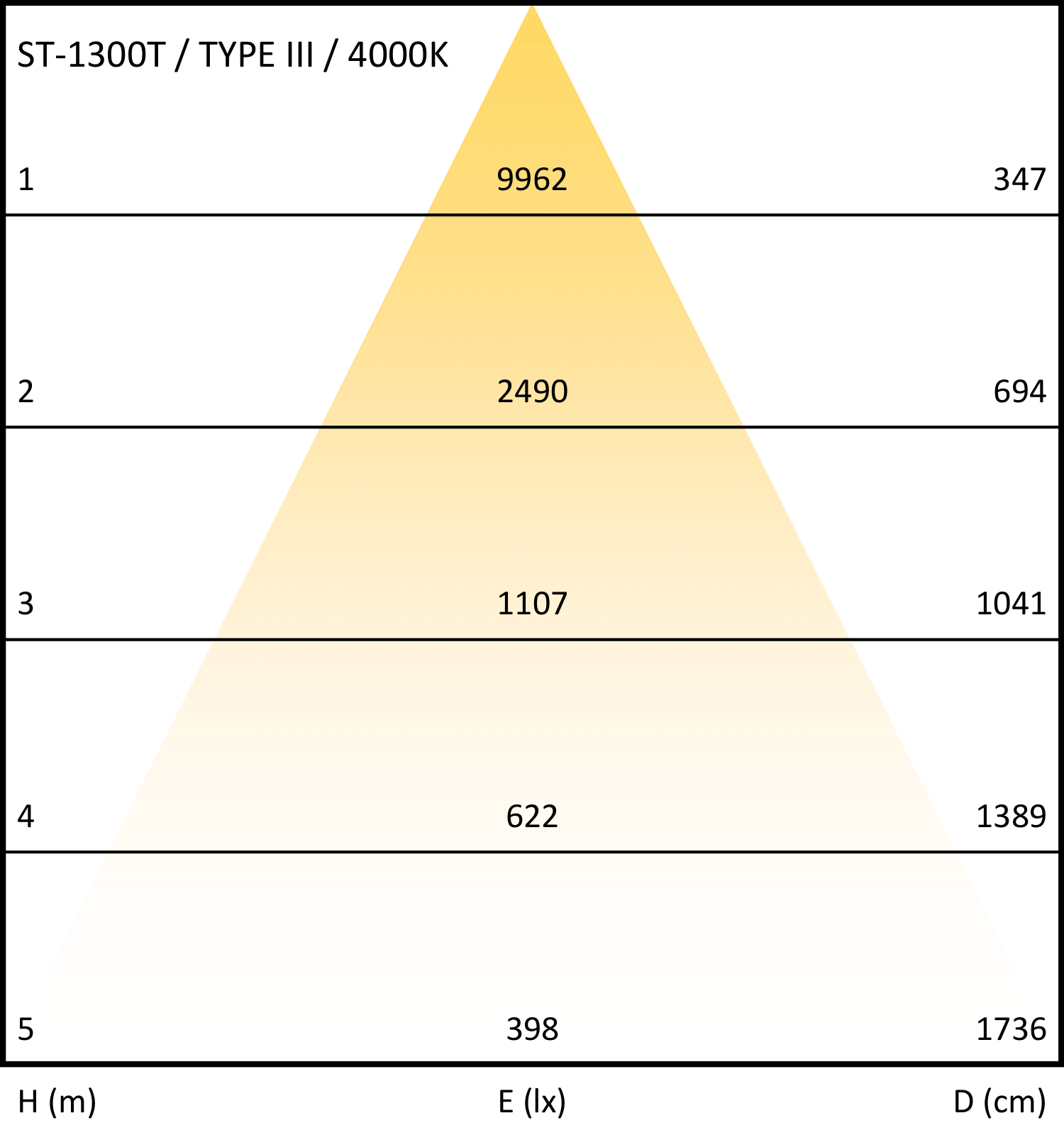

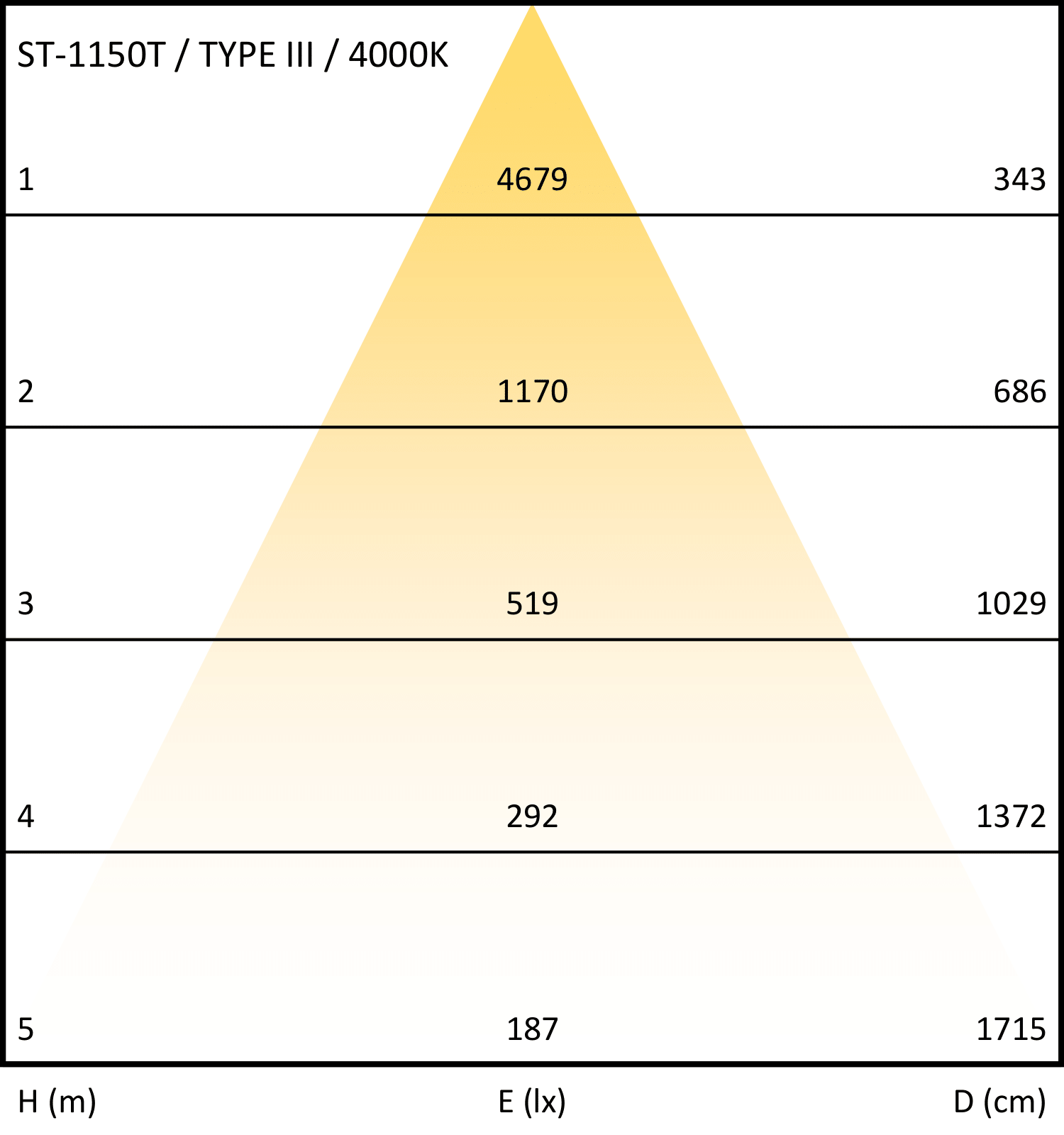

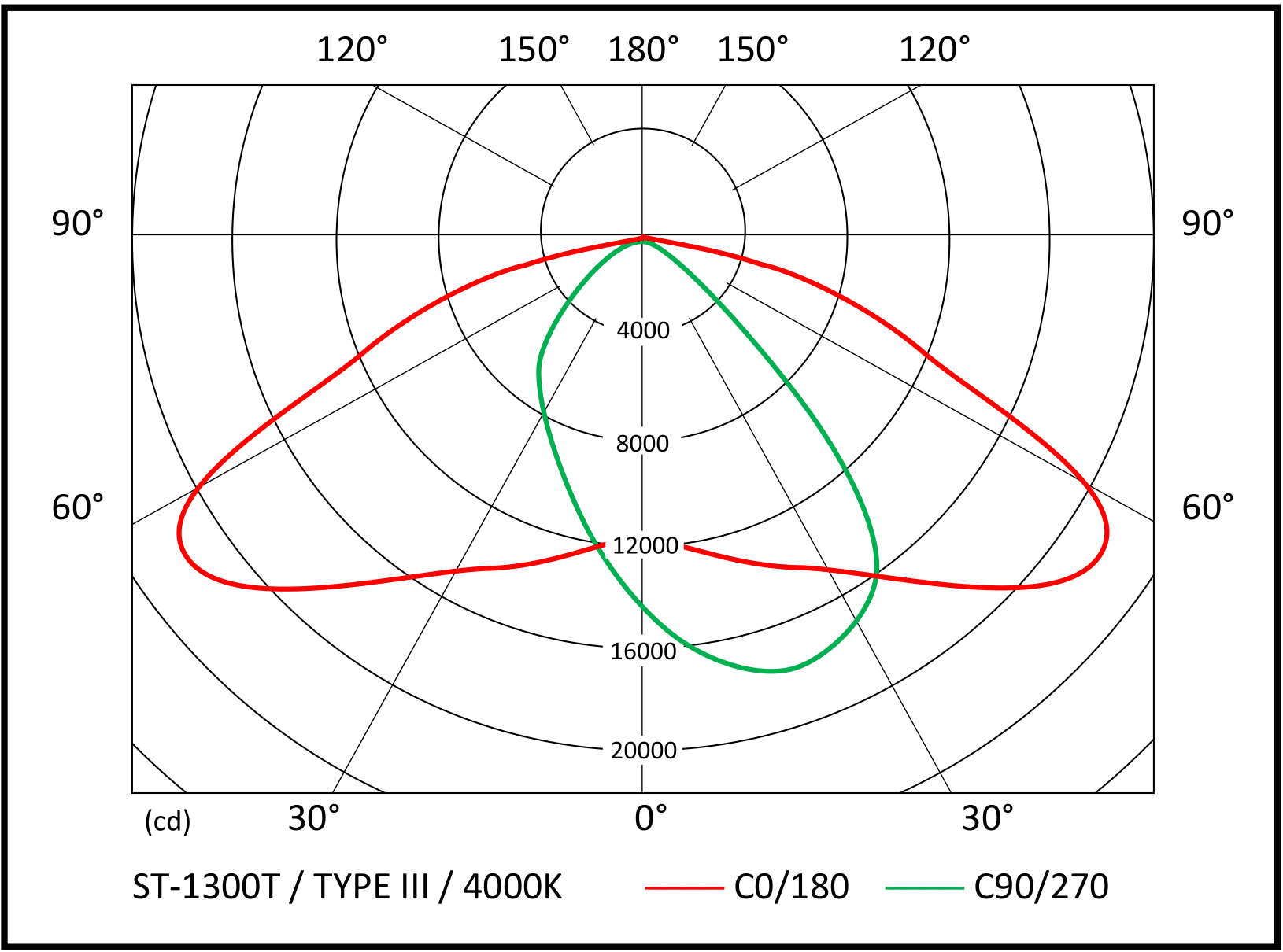

Photometrics
