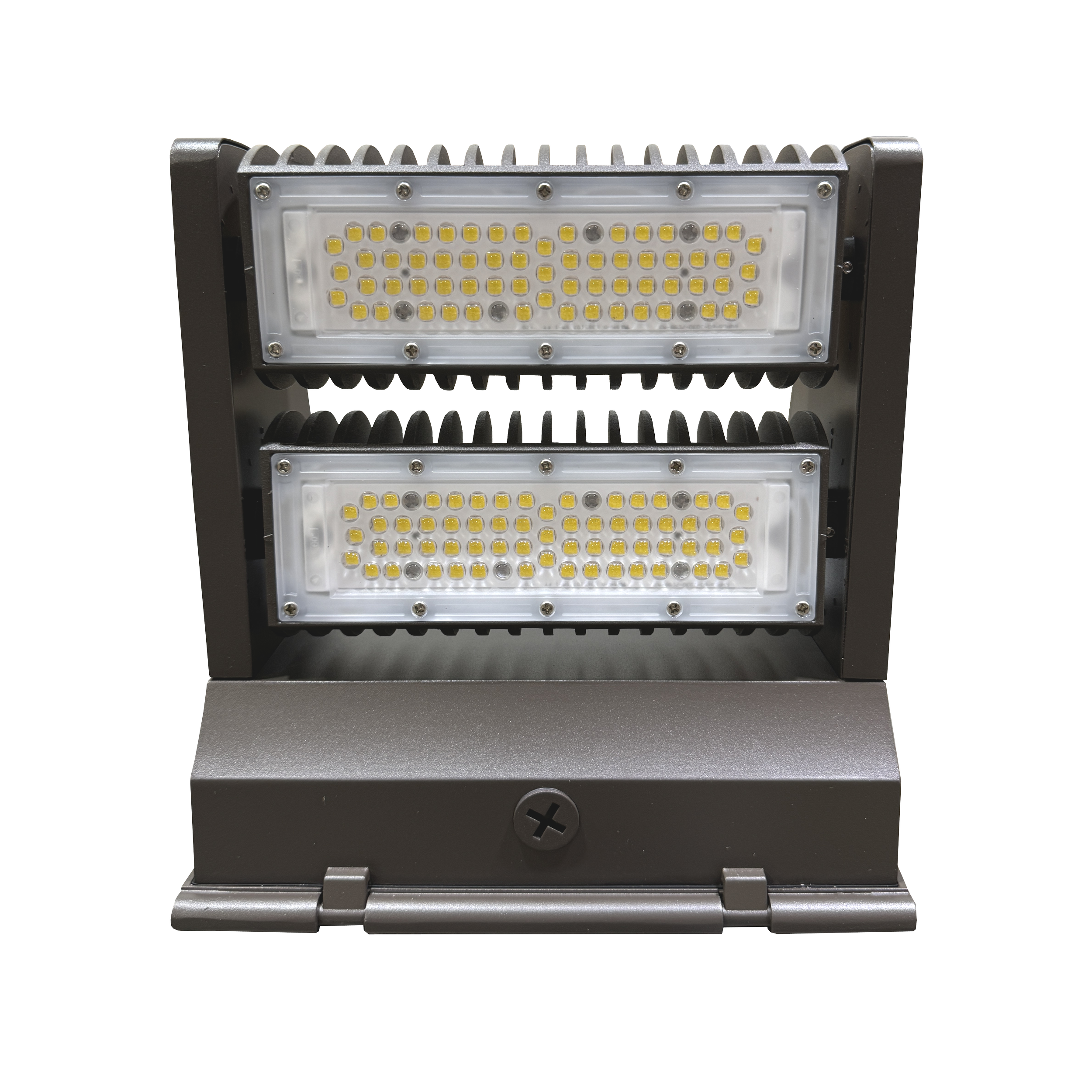

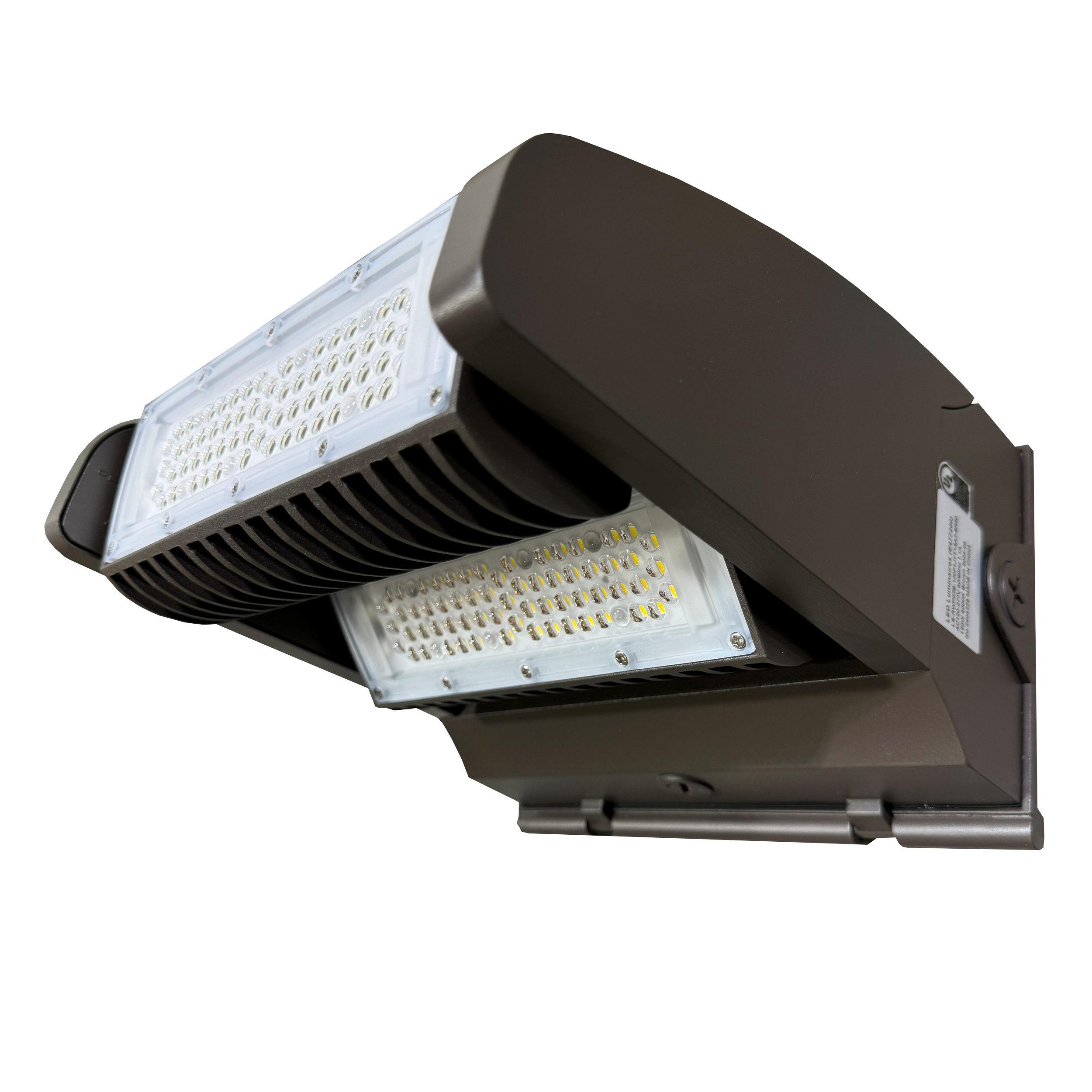

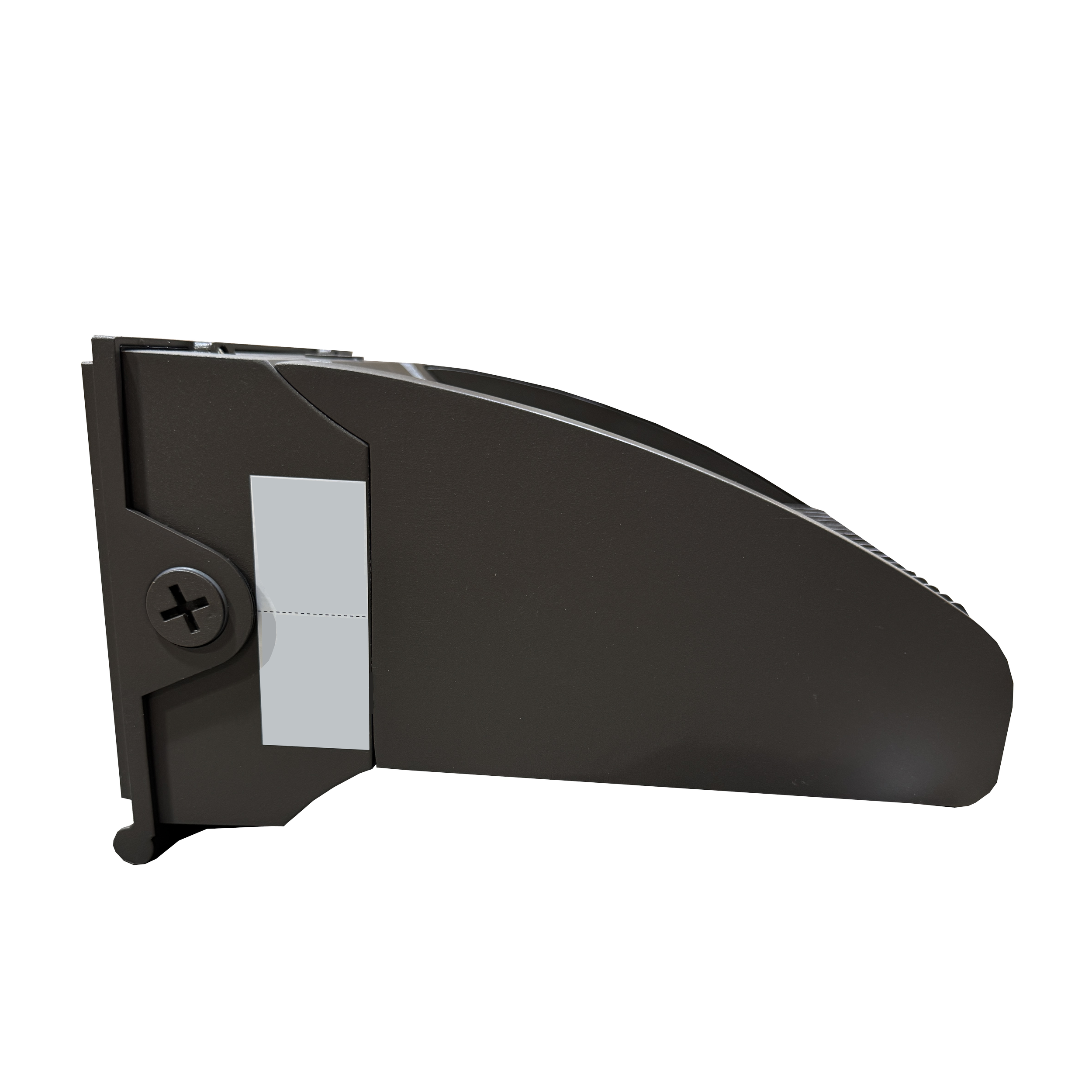

Rotatable Wall Pack
Rotatable Wall Pack
Luminaire Power: 80W, 120W
Luminous Flux: 10,800lm - 16,200lm
Luminous Efficacy: 135lm/W
Color Temperature: 5000K
CRI: ≥72
Beam Angle: 60°
Power Supply: Mounted
Input Voltage: 120-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Finish: Dark Bronze
Ambient Operating Temperature: -20°C ~ +50°C / -4°F ~ +122°F
Lifetime: ≥ 50,000hrs
Specification Table
WP-6080
10,800lm
135lm/W
5000K
12.4 pounds
WP-6120
16,200lm
135lm/W
5000K
12.4 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 2
PRODUCT
PHOTOS
qty 4

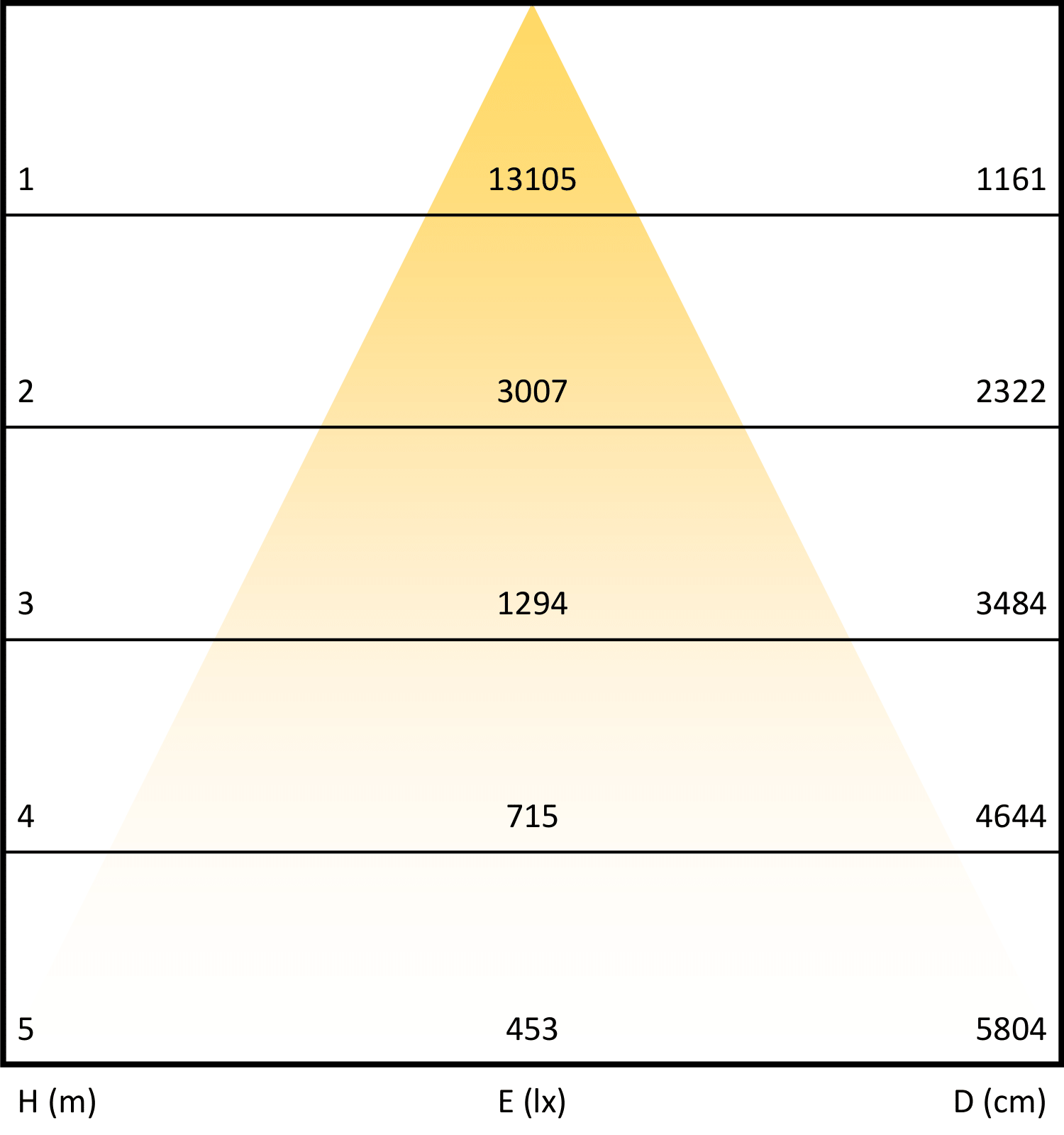

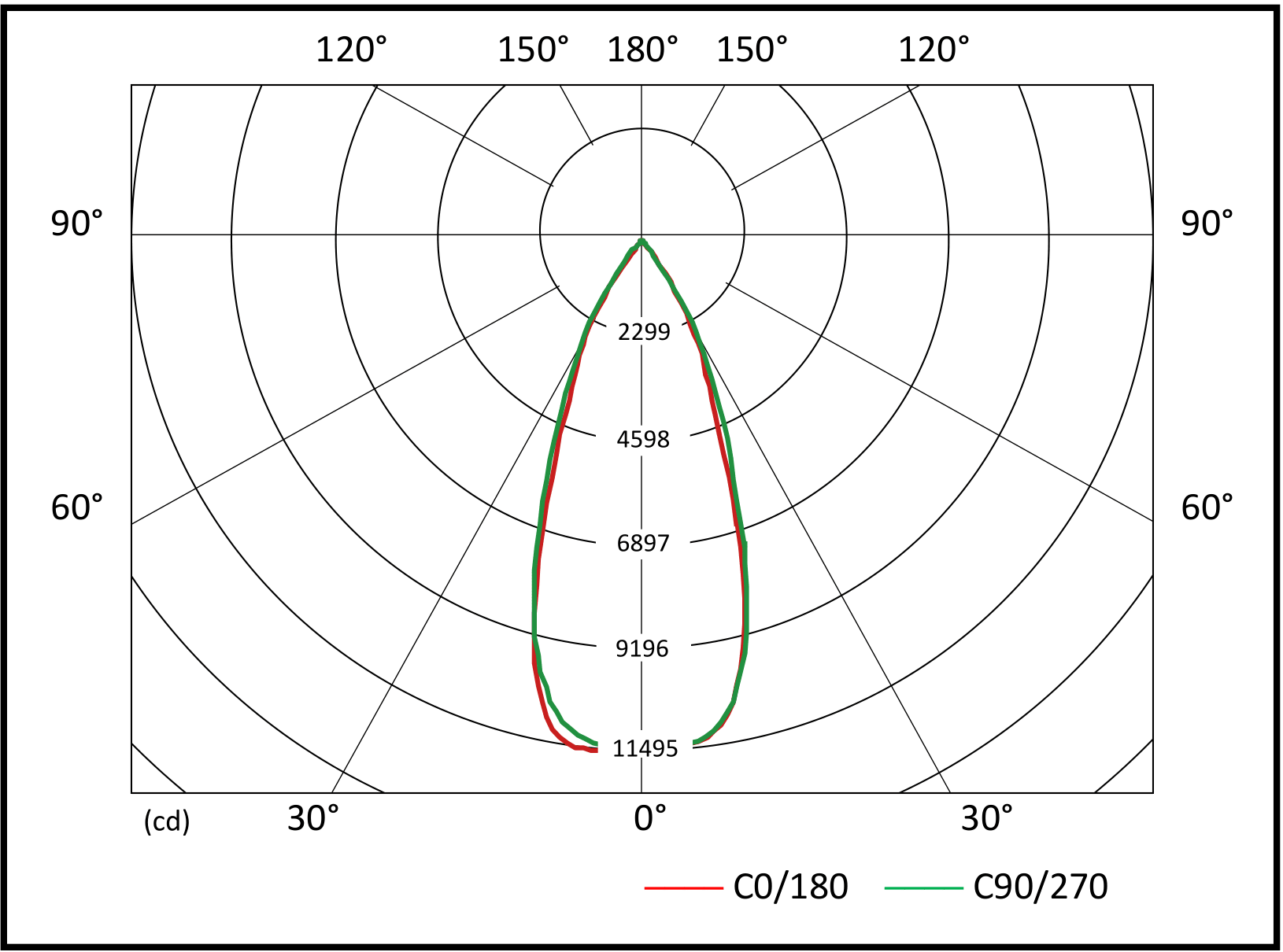

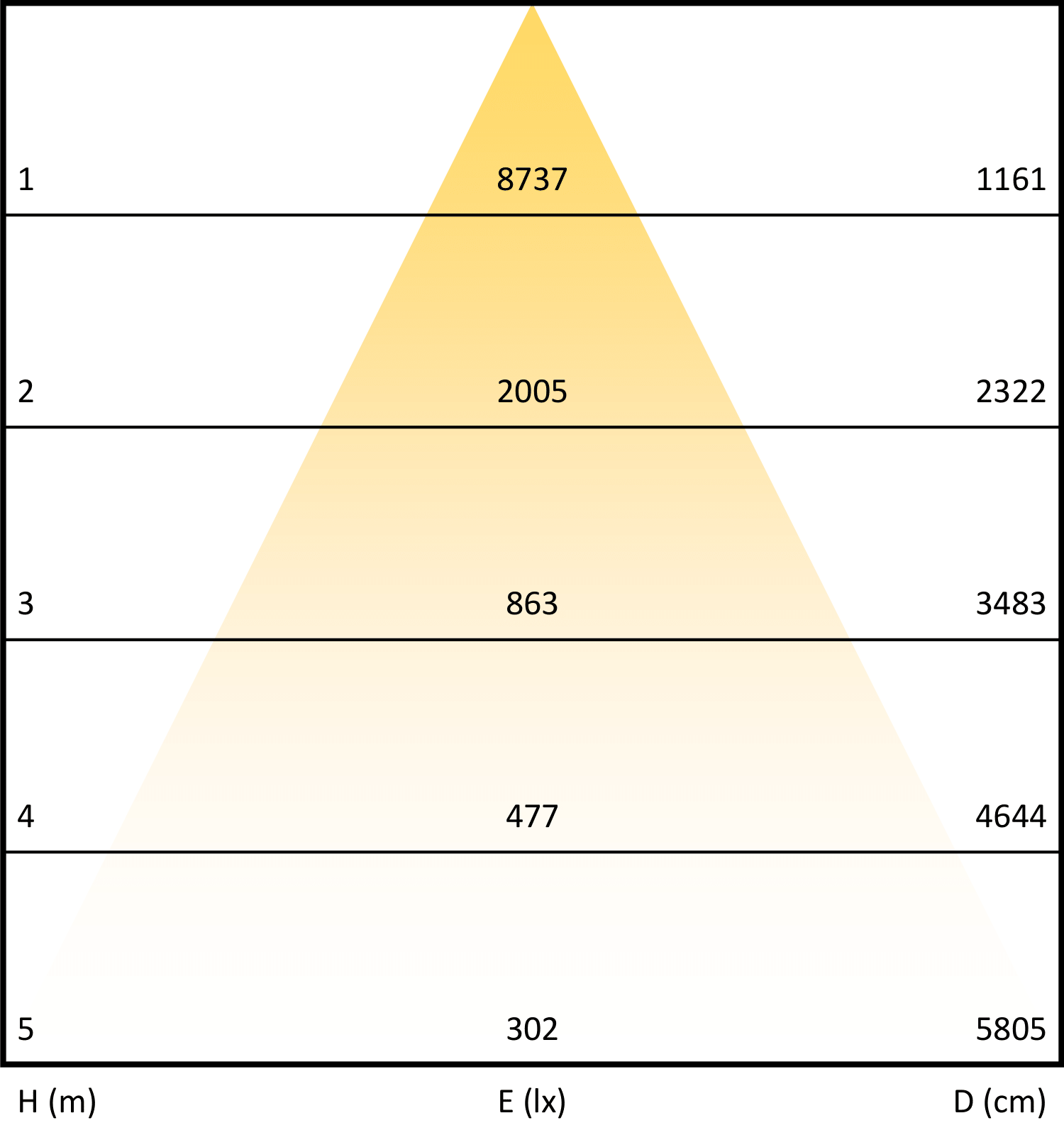

Photometrics
