Adjustable Noncutoff Wall Pack
Adjustable Noncutoff Wall Pack
Power: Adjustable 60W, 80W, 100W, 120W
Luminous Flux: 7,440lm - 15,600lm
Luminous Efficacy: 126lm/W - 130lm/W
Color Temperature: 3500K, 4000K, 5000K
CRI: ≥72
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Polycarbonate
Finish: Bronze
Ambient Operating Temperature: -36°C ~ +60°C / -33°F ~ +140°F
Lifetime: ≥ 50,000hrs
Specification Table
WP-5120
60W
7,440-7,800lm
124-130lm/W
B2-U4-G3
7.49 pounds
80W
9,920-10,400lm
124-130lm/W
B2-U4-G3
7.49 pounds
100W
12,400-13,000lm
124-130lm/W
B3-U5-G4
7.49 pounds
120W
14,880-15,600lm
124-130lm/W
B3-U5-G4
7.49 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 12
PRODUCT
PHOTOS
qty 4

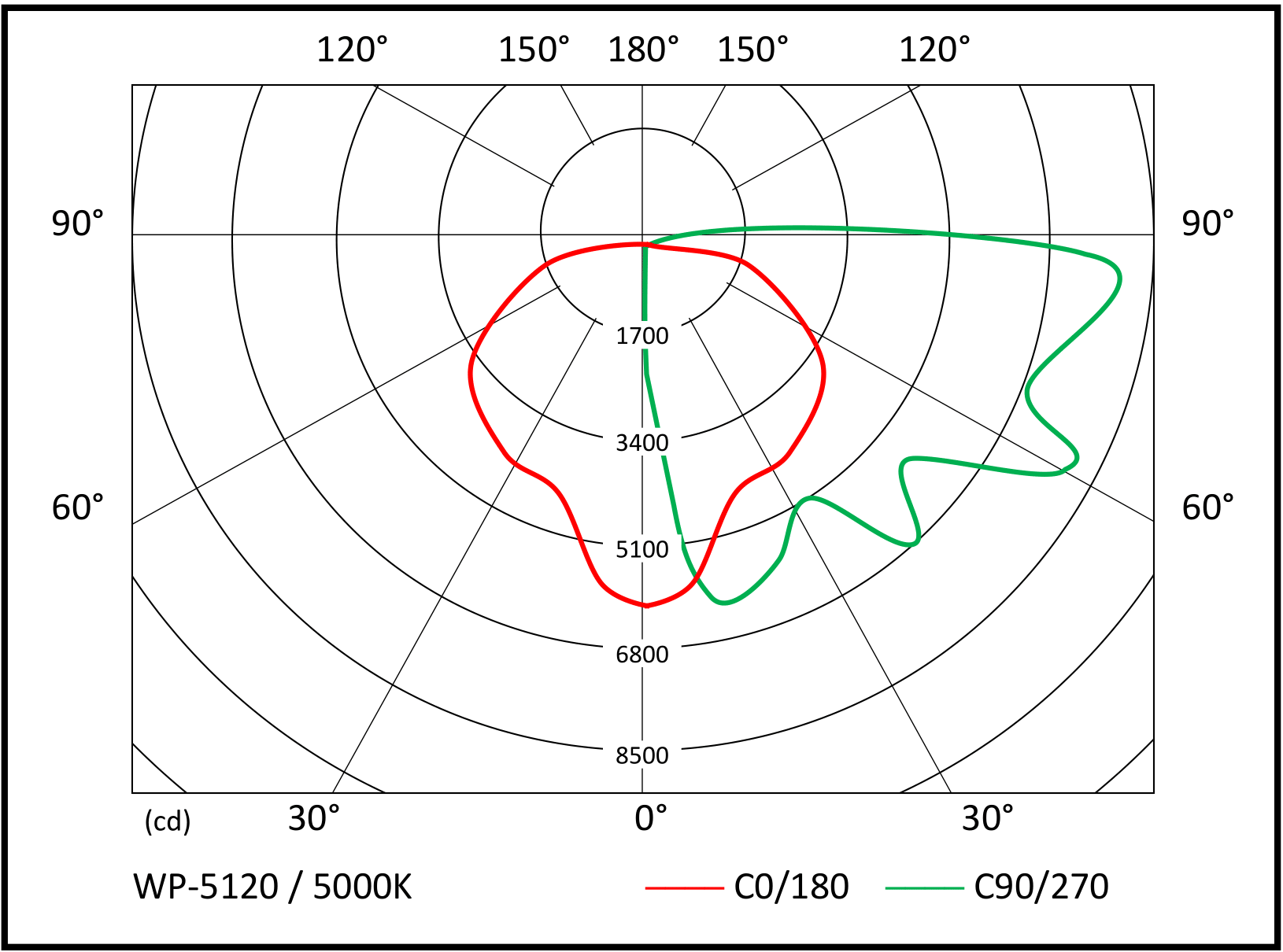

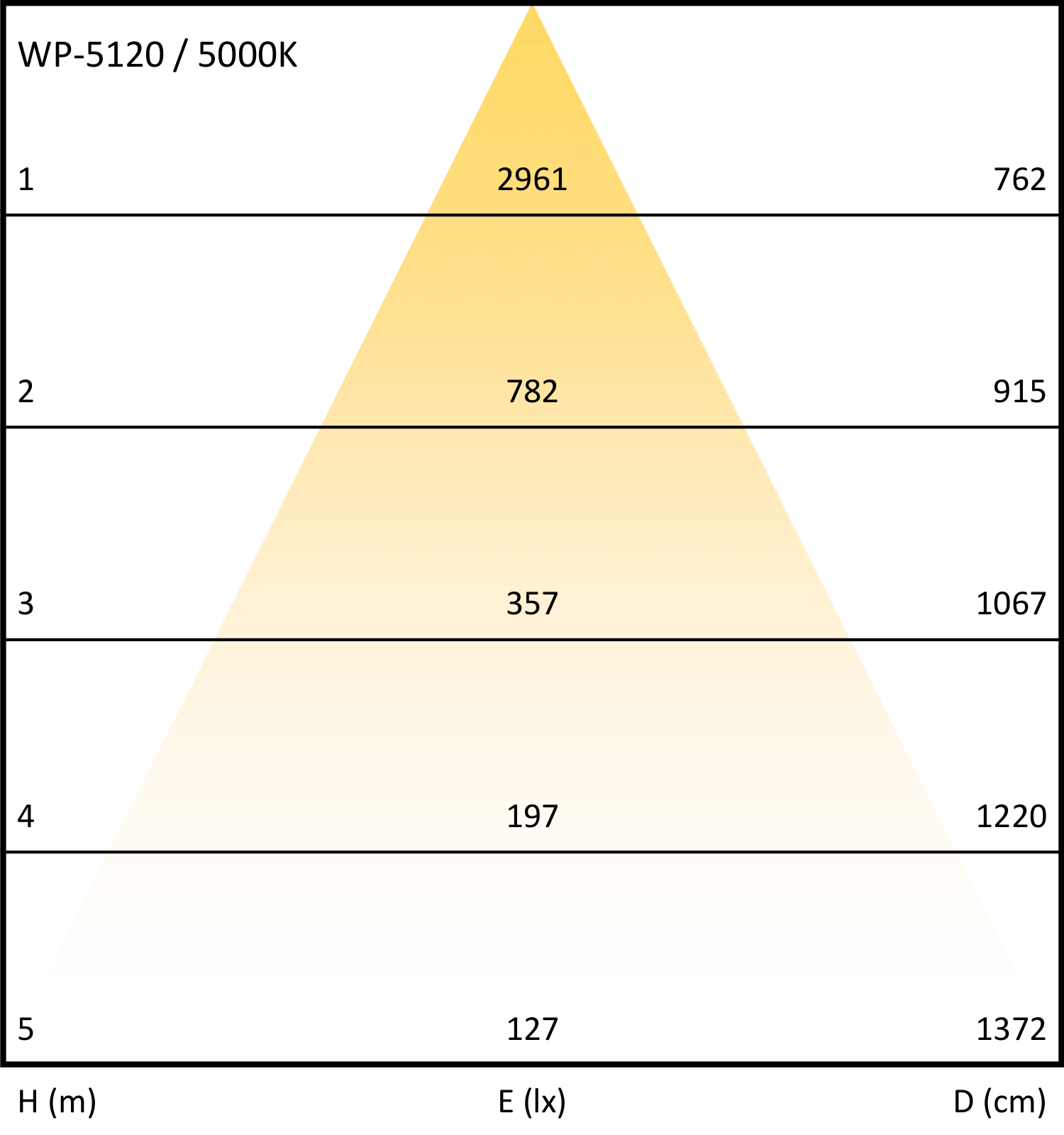

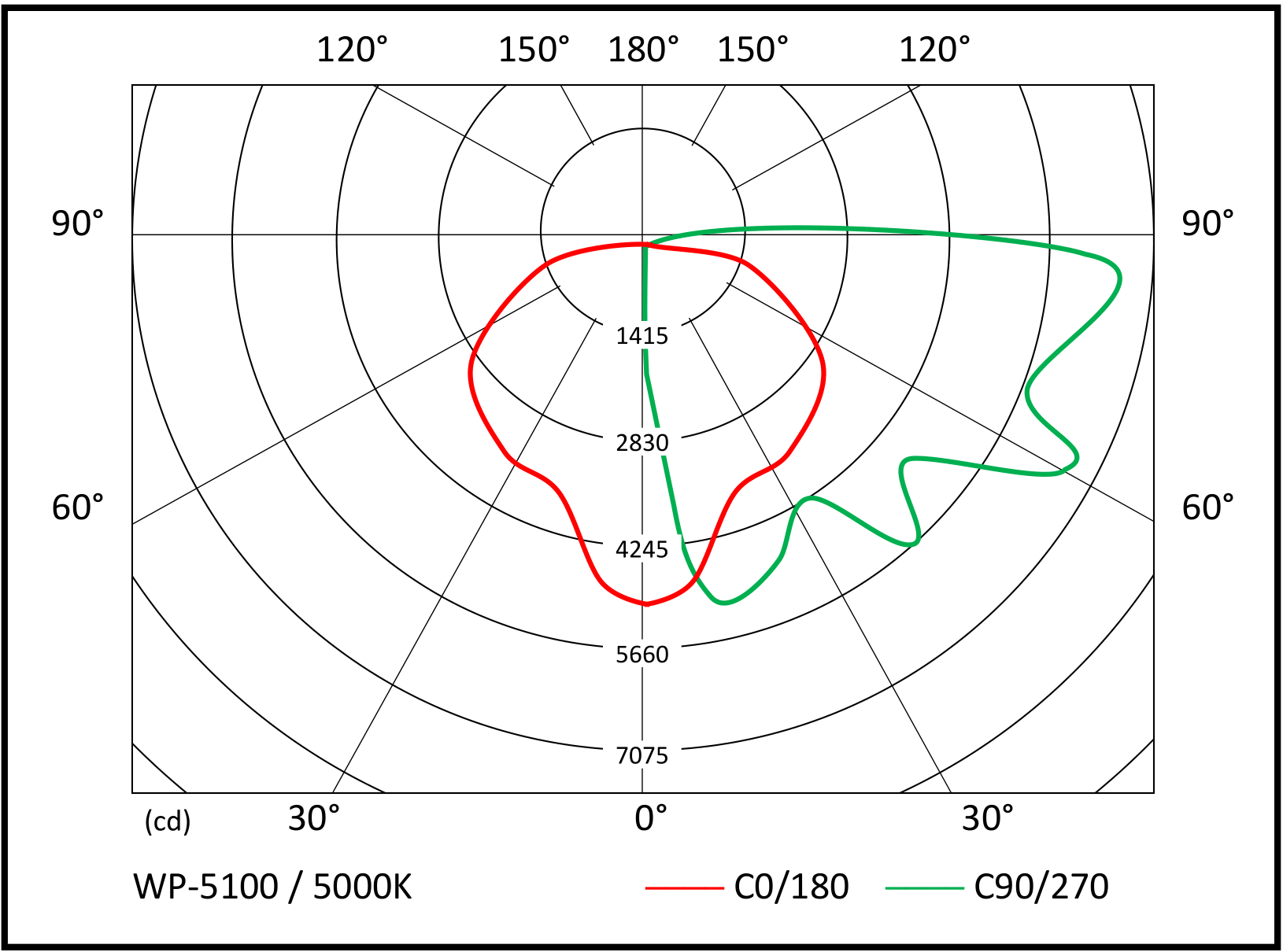

Photometrics
