Delta Linear Low Bay
Delta Linear Low Bay
Power: 39W, 60W, 77W
Luminous Flux: 4,597lm - 10,800lm
Luminous Efficacy: 115lm/W - 140lm/W
Color Temperature: 6000K
CRI: ≥80
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Polyacrylate
Finish: White
Ambient Operating Temperature: -25°C ~ +45°C / -13°F ~ +113°F
Lifetime: ≥ 50,000hrs
Specification Table
LWL-1040
4,597-5,397lm
118-138m/W
Frosted or Clear Lens
7.28 pounds
LWL-1060
6,896-8,095lm
115-135lm/W
Frosted or Clear Lens
7.28 pounds
LWL-1080
9,200-10,800lm
119-140lm/W
Frosted or Clear Lens
7.28 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 6

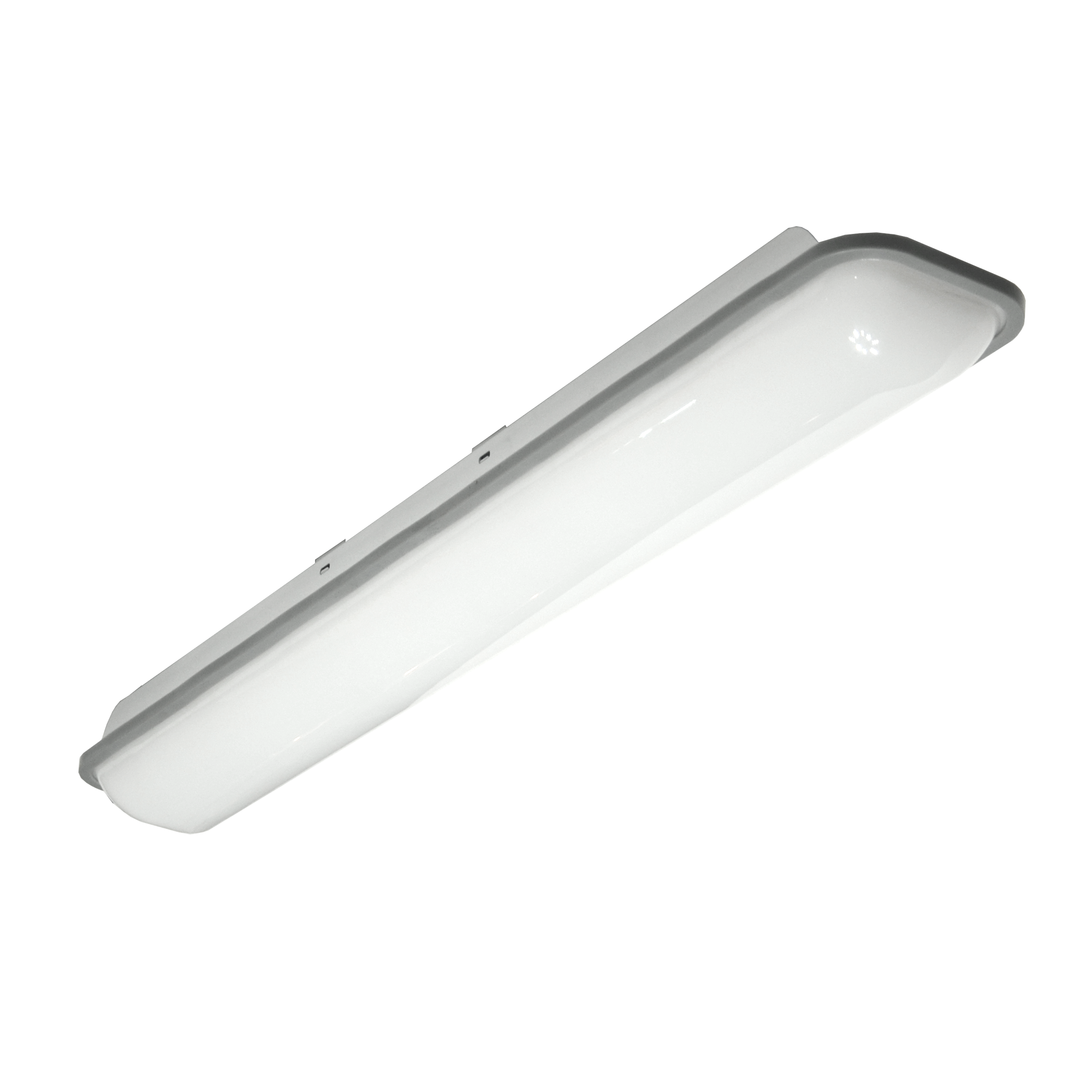

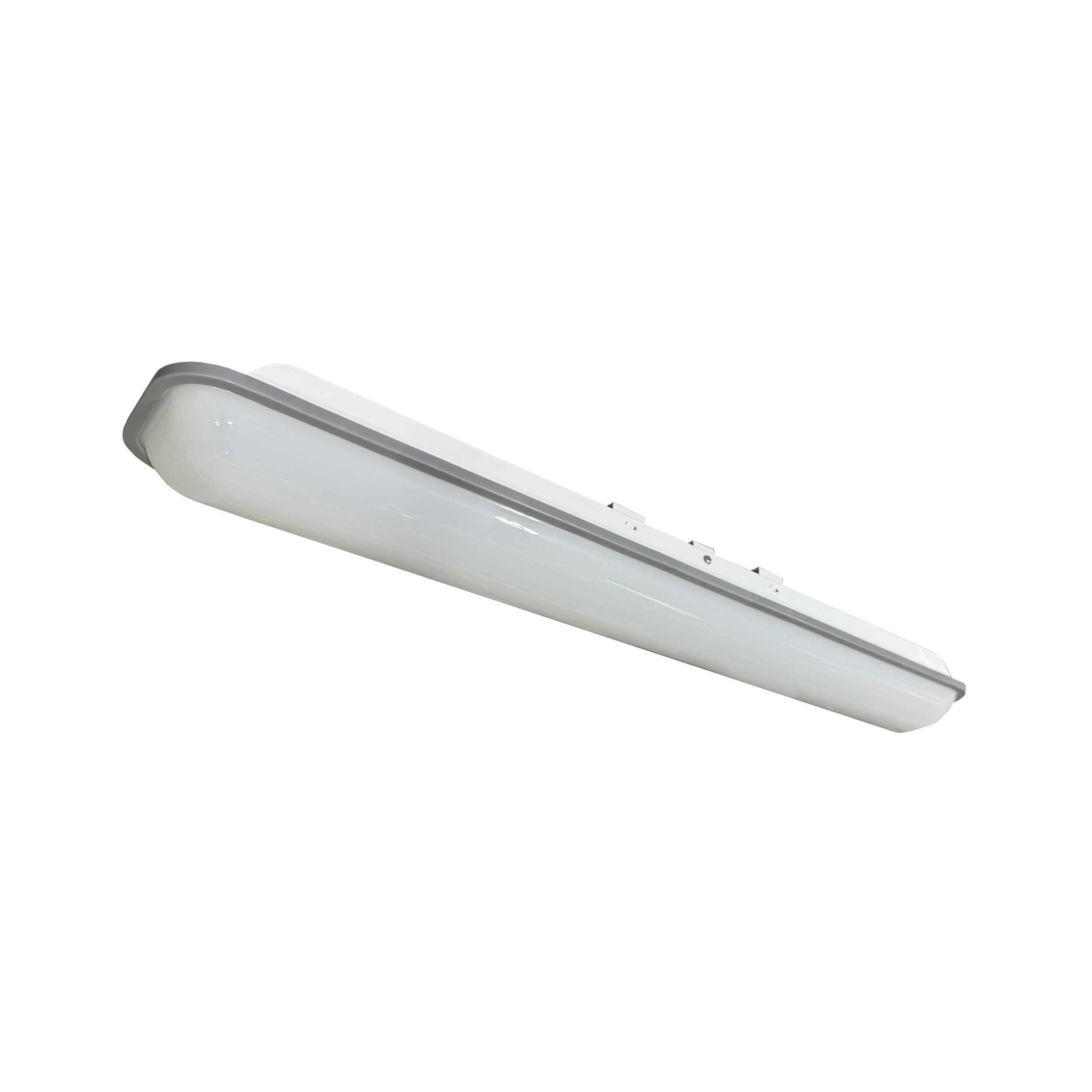

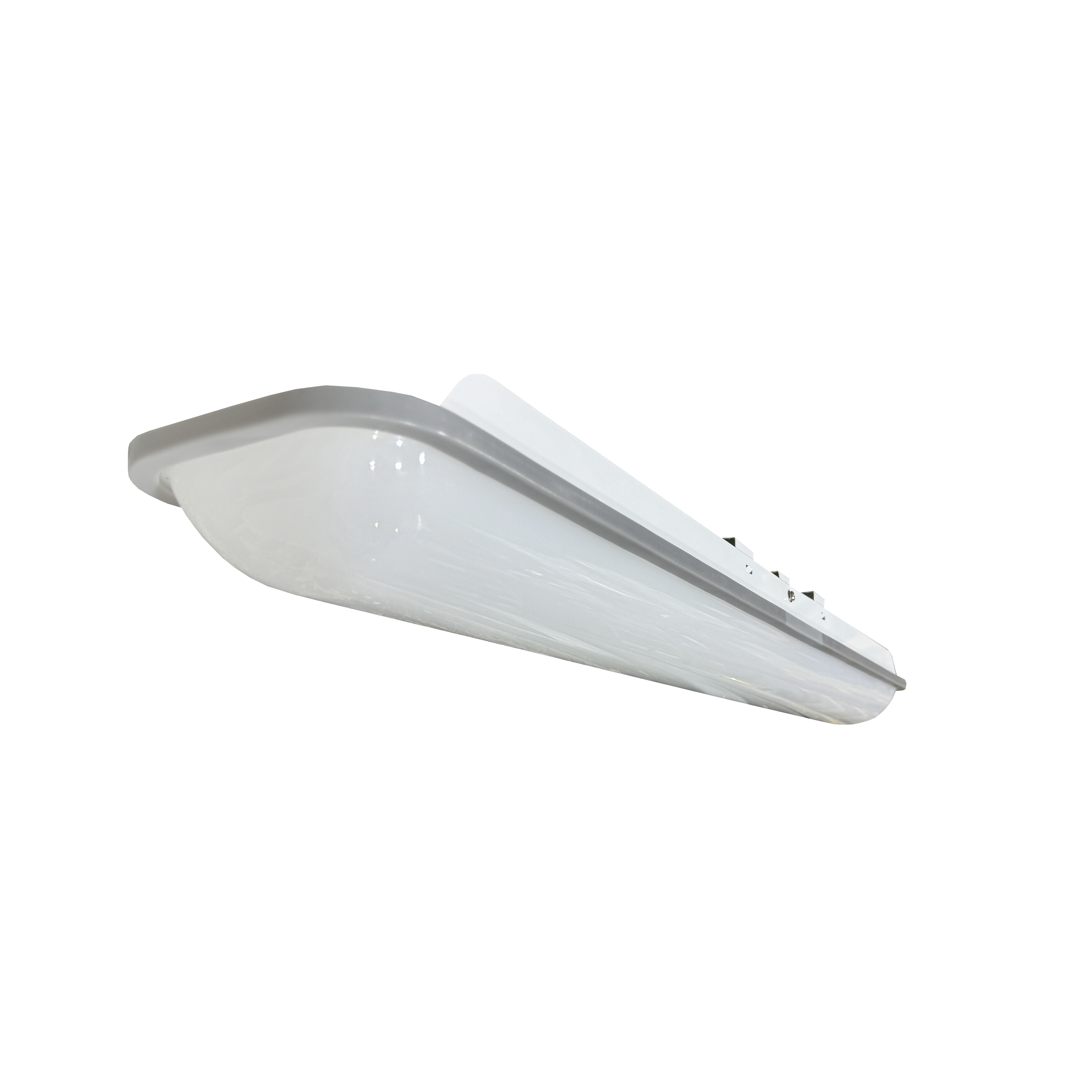

PRODUCT
PHOTOS
qty 5

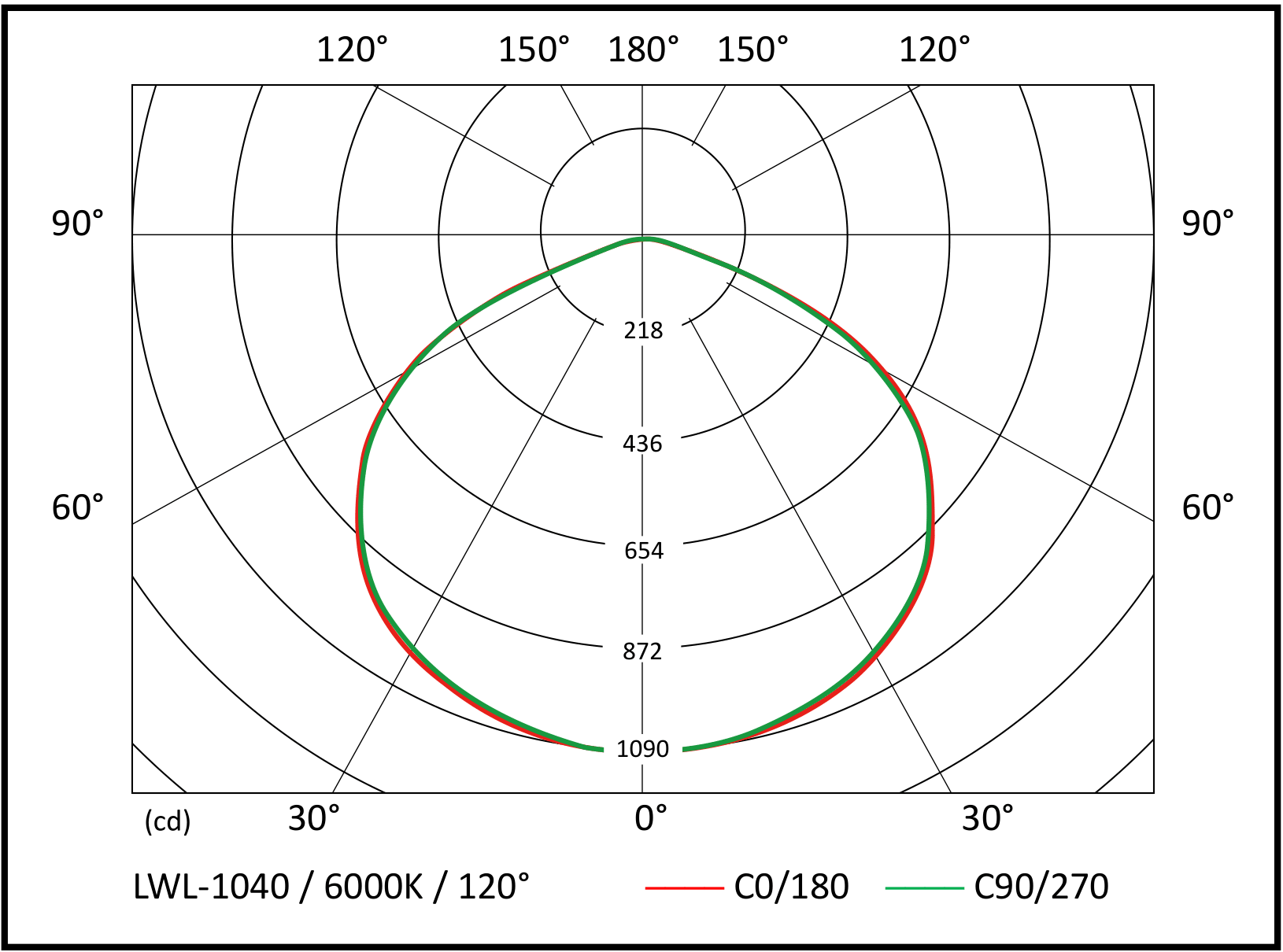

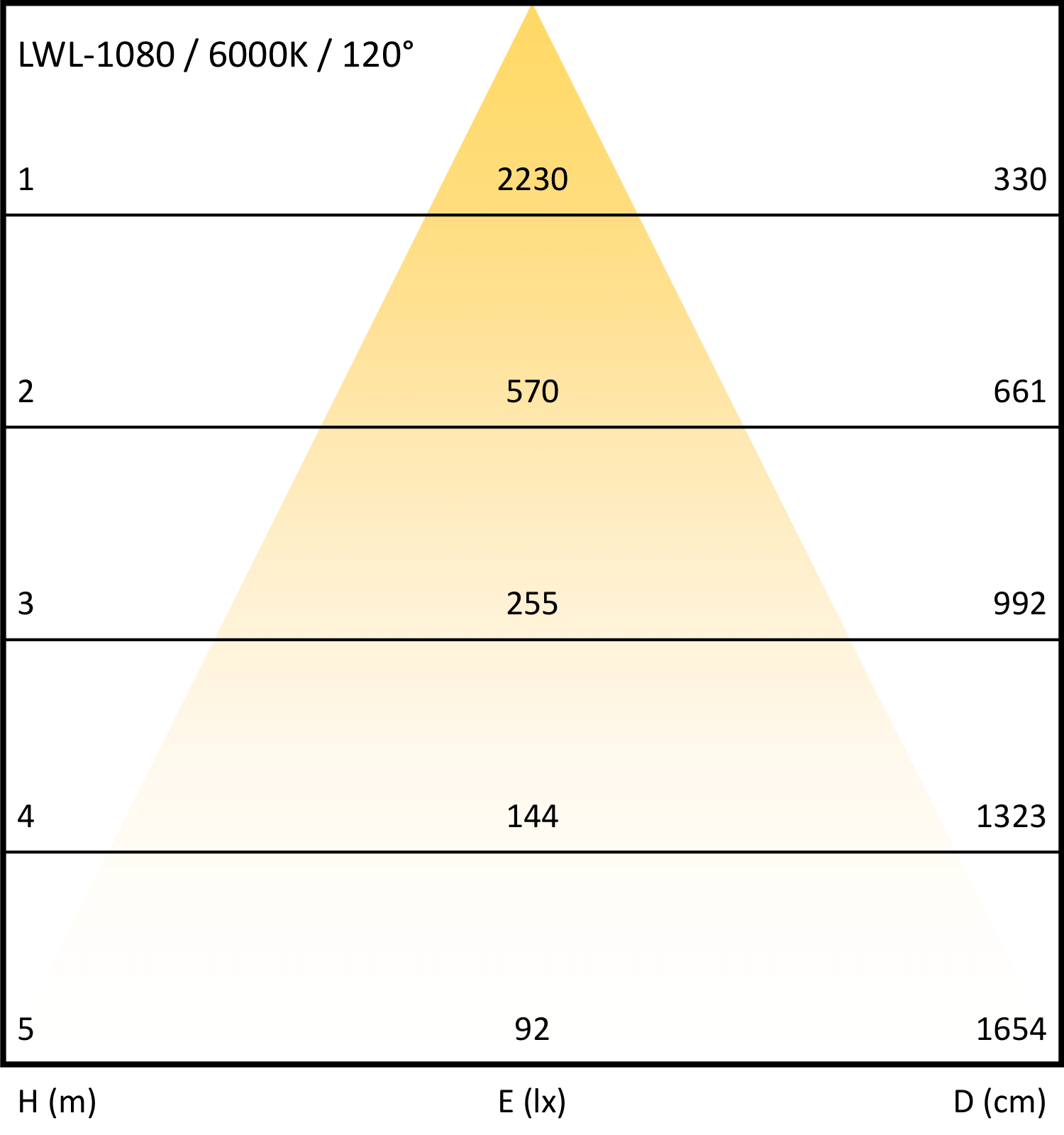

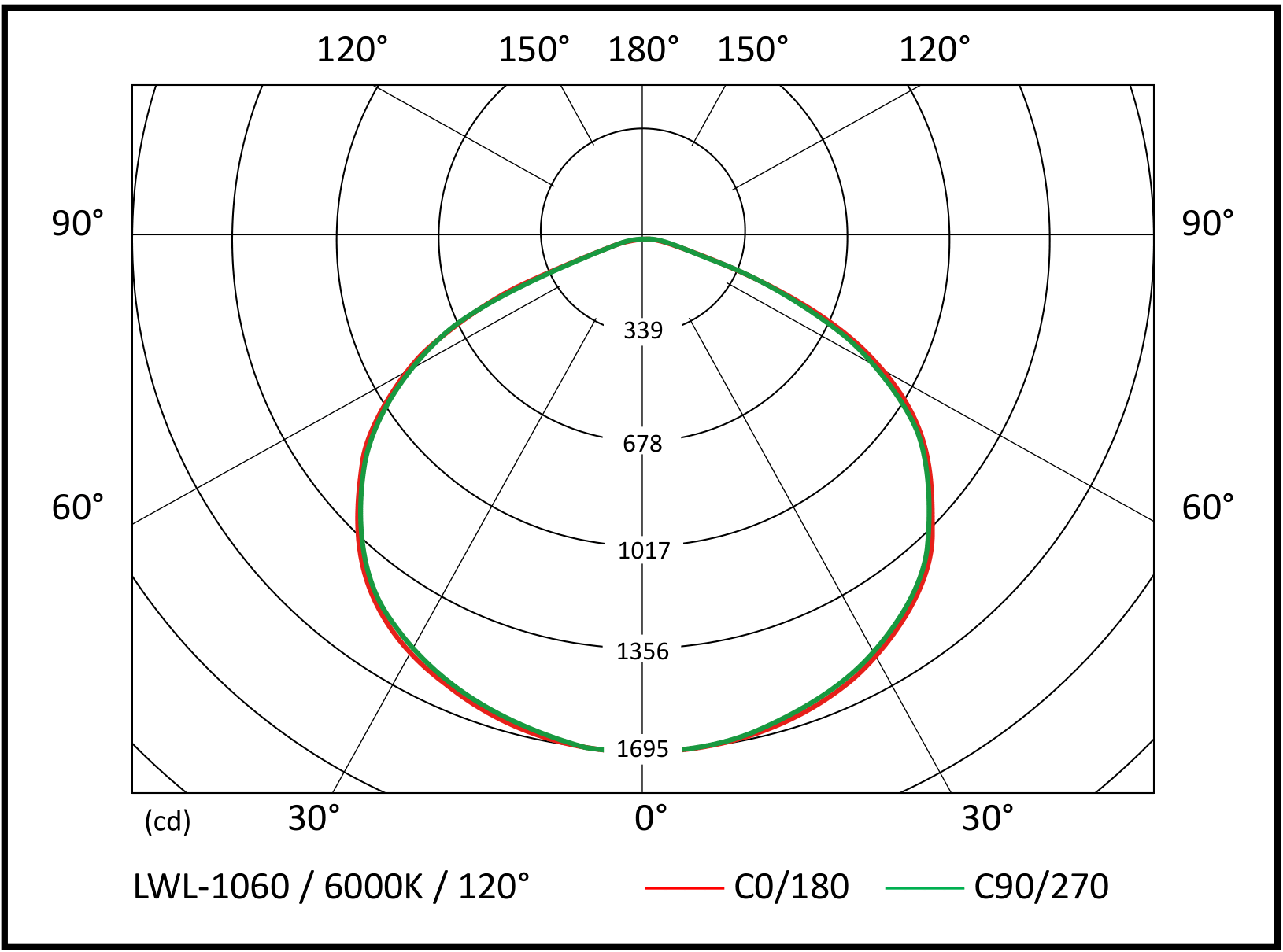

Photometrics
