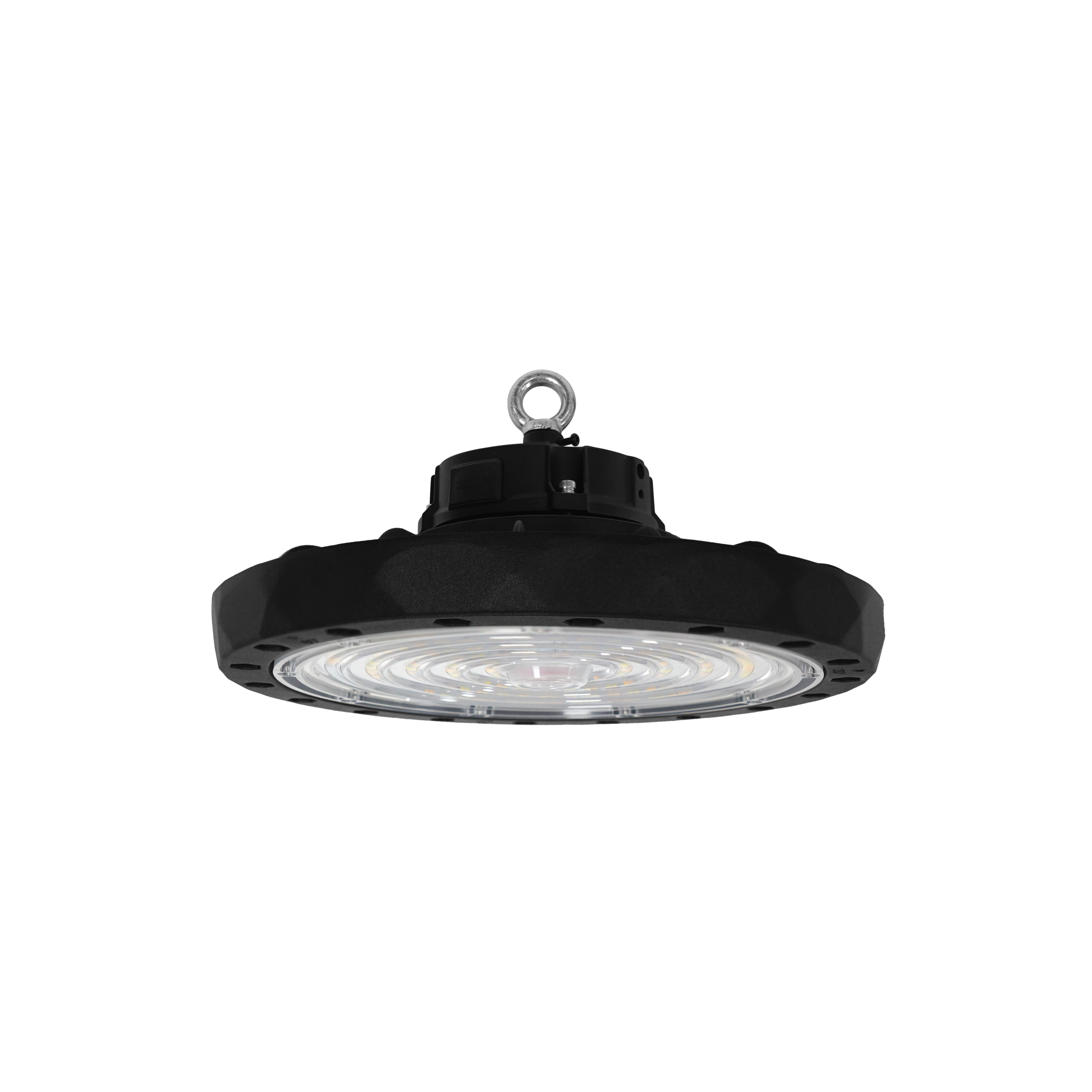

Flexcat High Bay
Flexcat High Bay
Power: 60W-100W, 90W-150W, 120W-200W
Luminous Flux: 14,000lm - 28,800lm
Luminous Efficacy: 132lm/W - 155lm/W
Color Temperature: 3000K, 4000K, 5000K
CRI: ≥70
Beam Angle: 60°, 90°, 120°

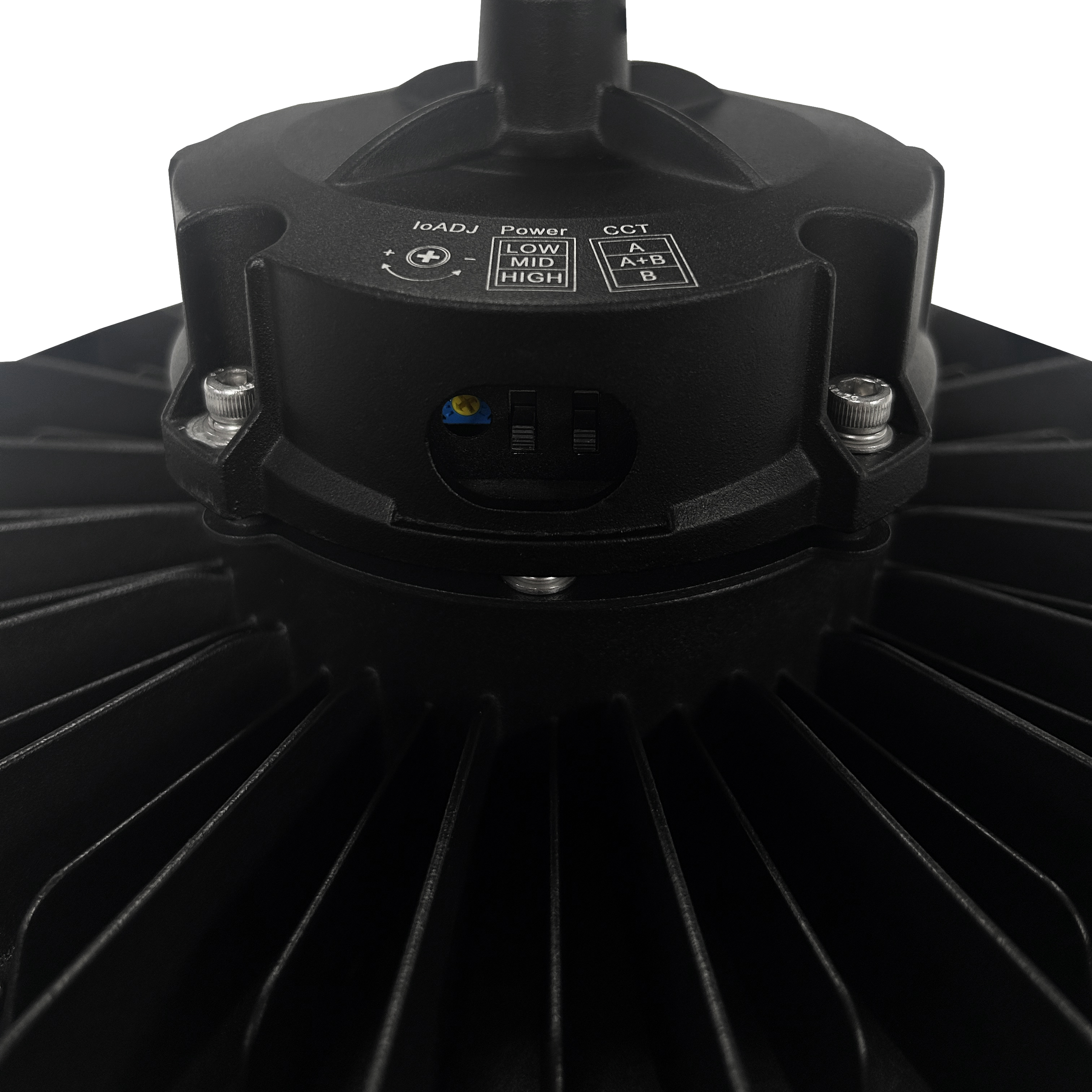

Power Supply: Built-In
Input Voltage: 100-277V AC, ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: Non-dimmable
Housing Material: Aluminum
Lens Material: Polycarbonate
Finish: Black
Ambient Operating Temperature: -20°C ~ +40°C / -4°F ~ +104°F
Lifetime: ≥ 50,000hrs
Specification Table
HB-4100
60W / 80W / 100W
8,400-15,500lm
140-155lm/W
Ø 9.80 inches
3.99 pounds
HB-4150
90W / 120W / 150W
12,240-22,650lm
136-151lm/W
Ø 11.25 inches
5.13 pounds
HB-4200
120W / 160W / 200W
15,840-28,800lm
132-144lm/W
Ø 12.41 inches
5.97 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 81
PRODUCT
PHOTOS
qty 6

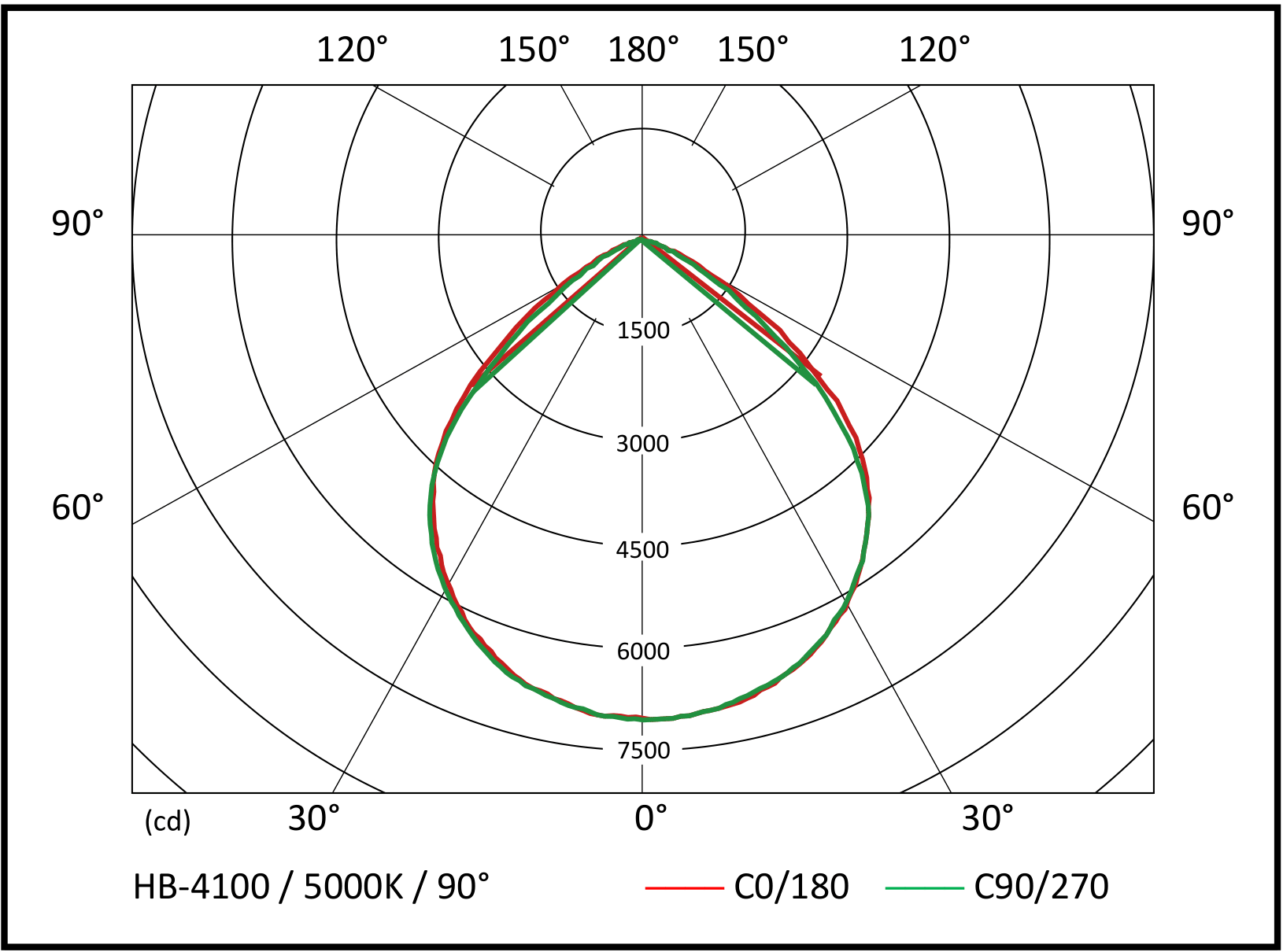

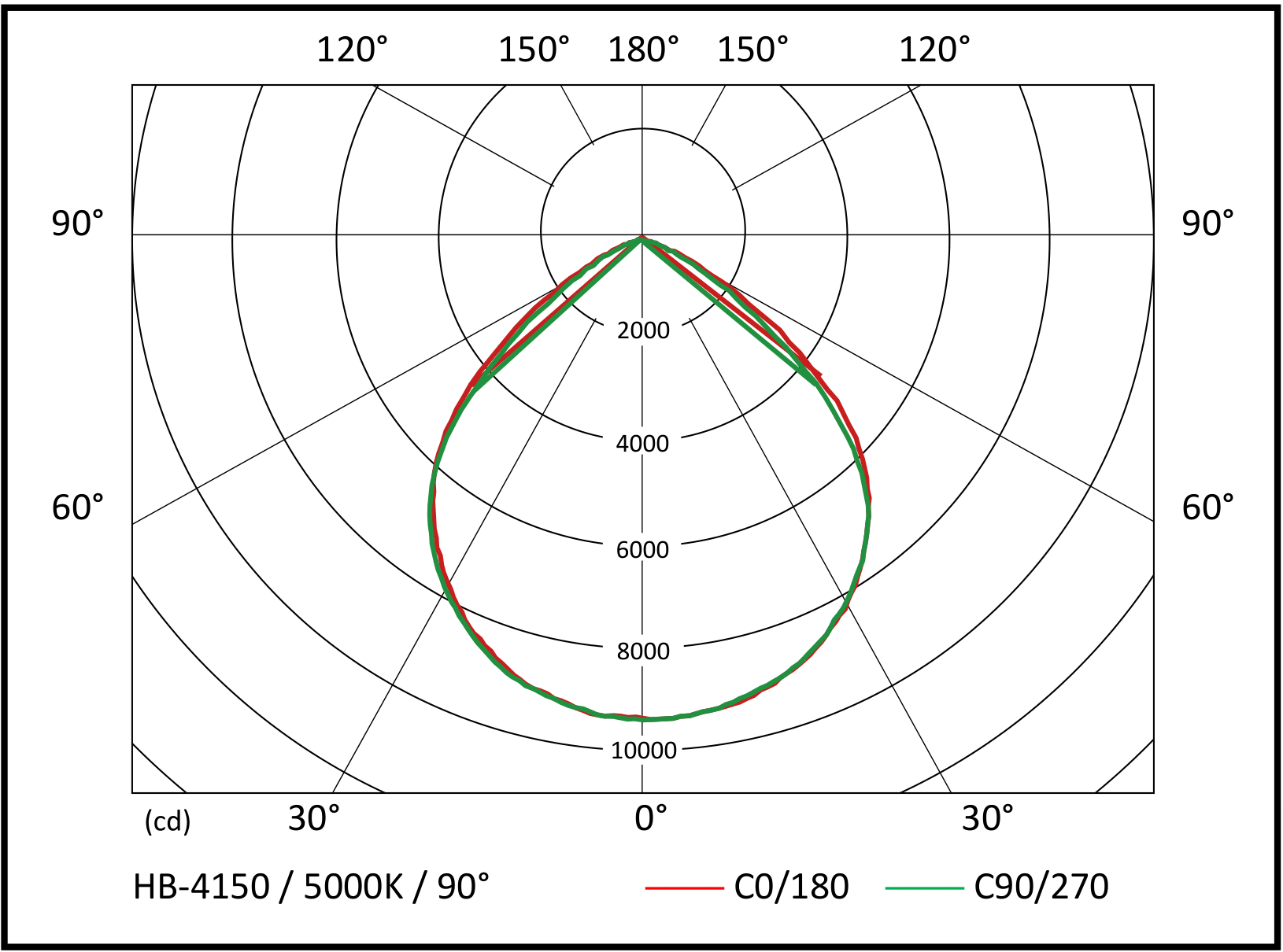

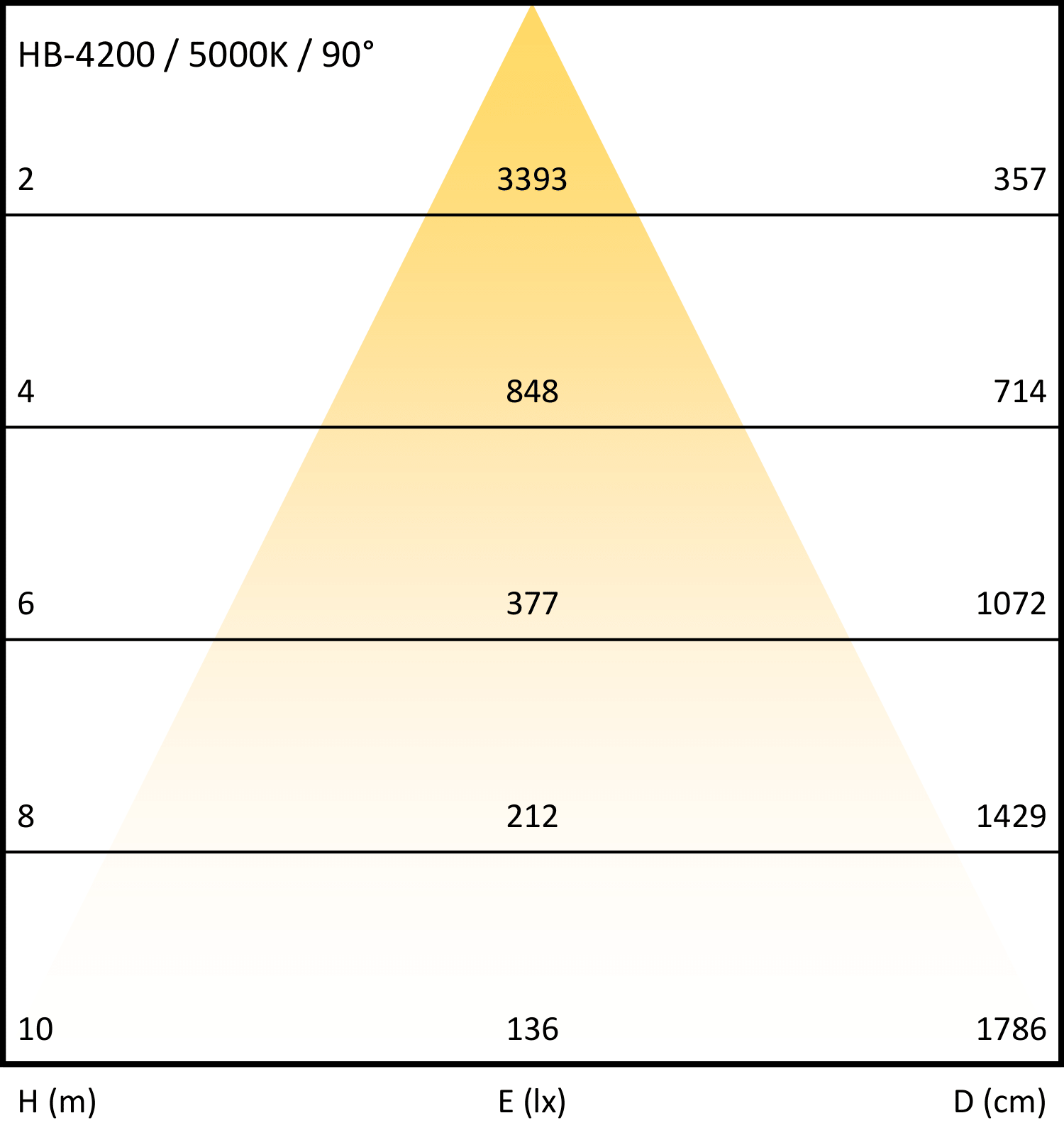

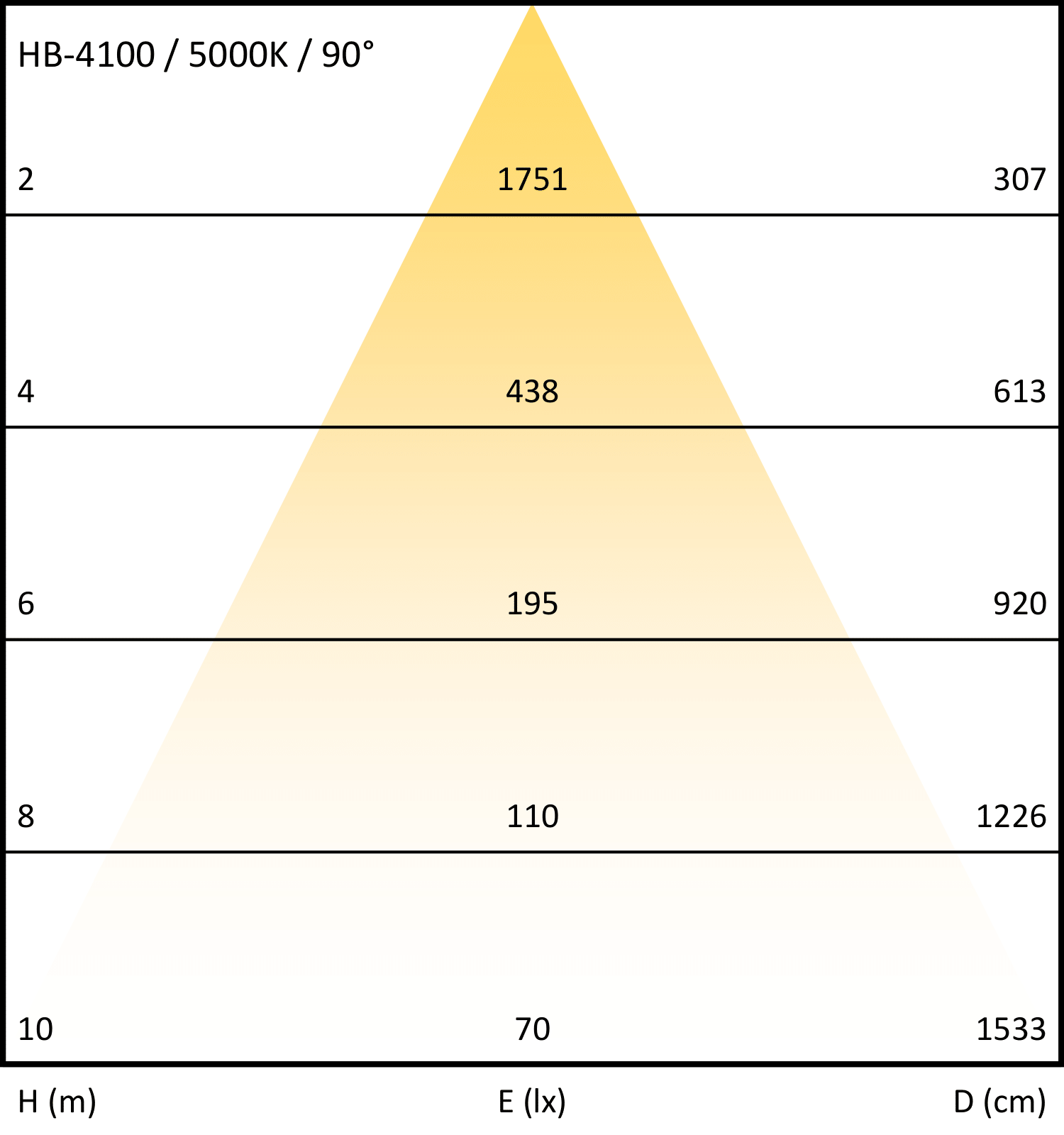

Photometrics
RELATED PRODUCTS
DELTA
97W / 149W / 239W
60° / 90° / 120°
Lumawedge
88W / 133W / 176W / 254W
80°
ice breaker
102W / 151W / 202W / 250W
120°
hazardous
60W / 100W / 150W / 200W / 300W / 400W
120°

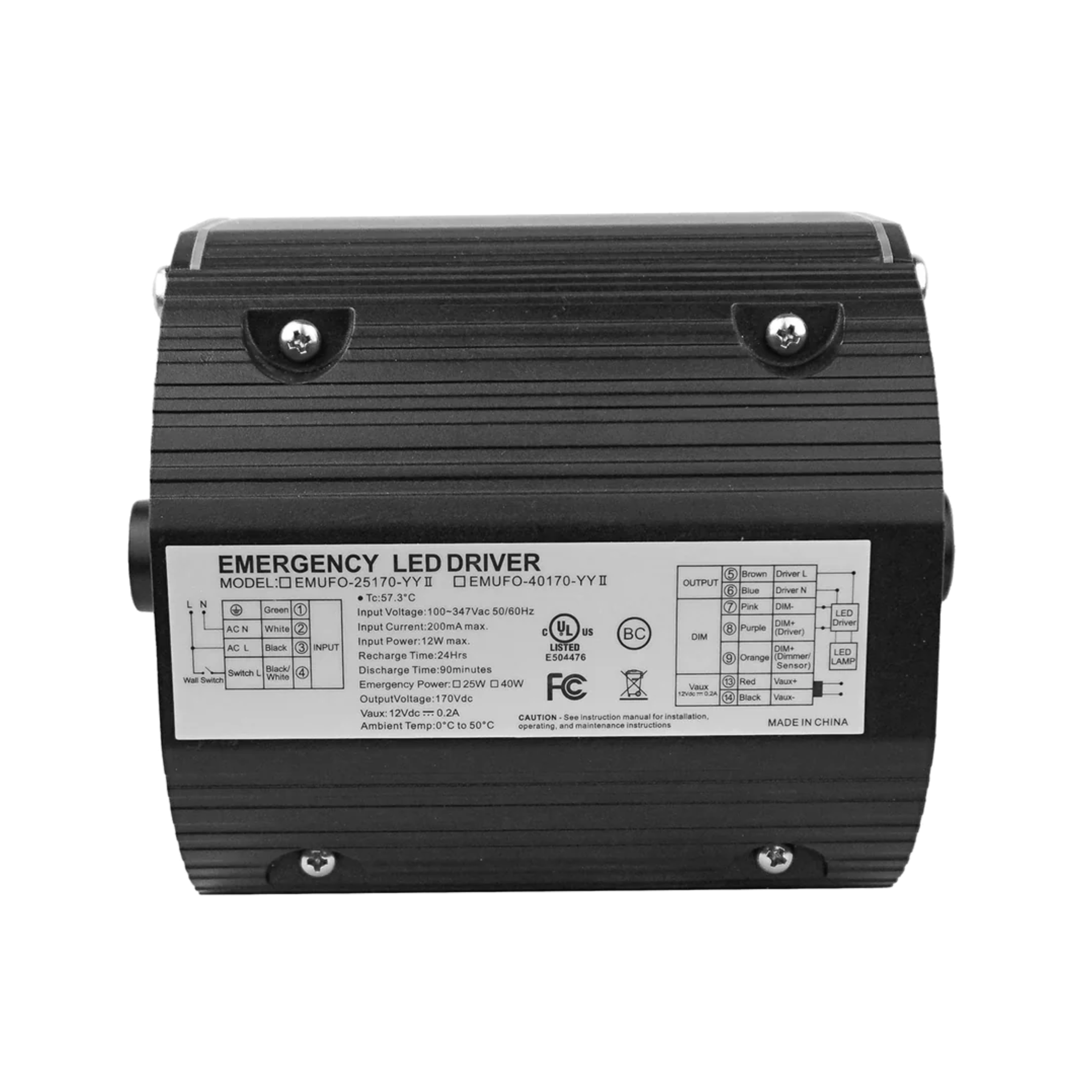

battery backup
