Delta High Bay
Delta High Bay
Power: 97W, 149W, 239W
Luminous Flux: 12,772lm - 34,250lm
Luminous Efficacy: 127lm/W - 143lm/W
Color Temperature: 3000K, 4000K, 5000K
CRI: ≥80
Beam Angle: 60°, 90°, 120°
Power Supply: Built-In
Input Voltage: 100-277V AC, ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: Optional
Housing Material: Aluminum
Lens Material: Polycarbonate
Finish: Dark Bronze
Ambient Operating Temperature: -25°C ~ +76°C / -13°F ~ +170°F
Lifetime: ≥ 50,000hrs
Specification Table

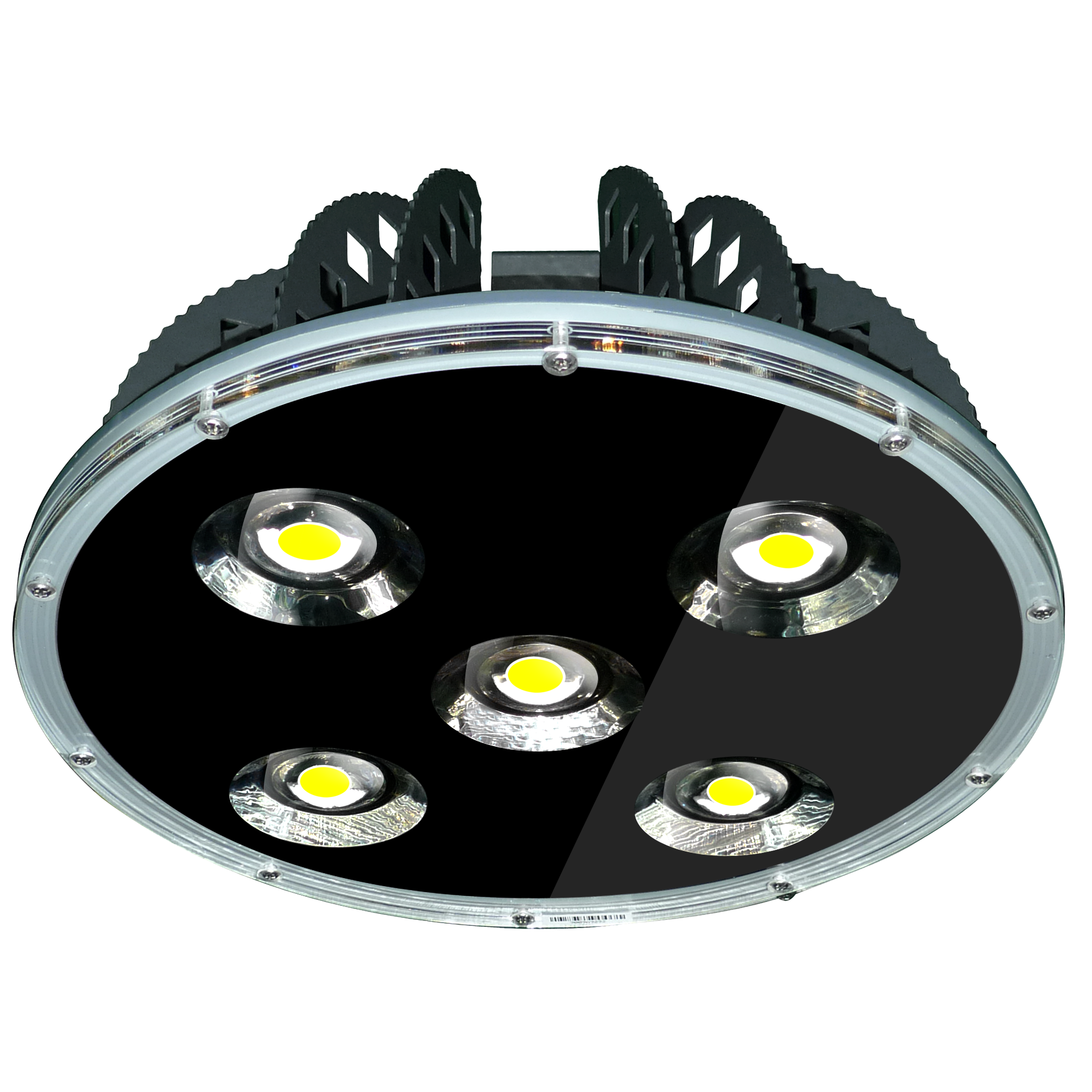

HB-3100A
12,772-13,876lm
132-143lm/W
Ø 13.18 inches
11.01 pounds

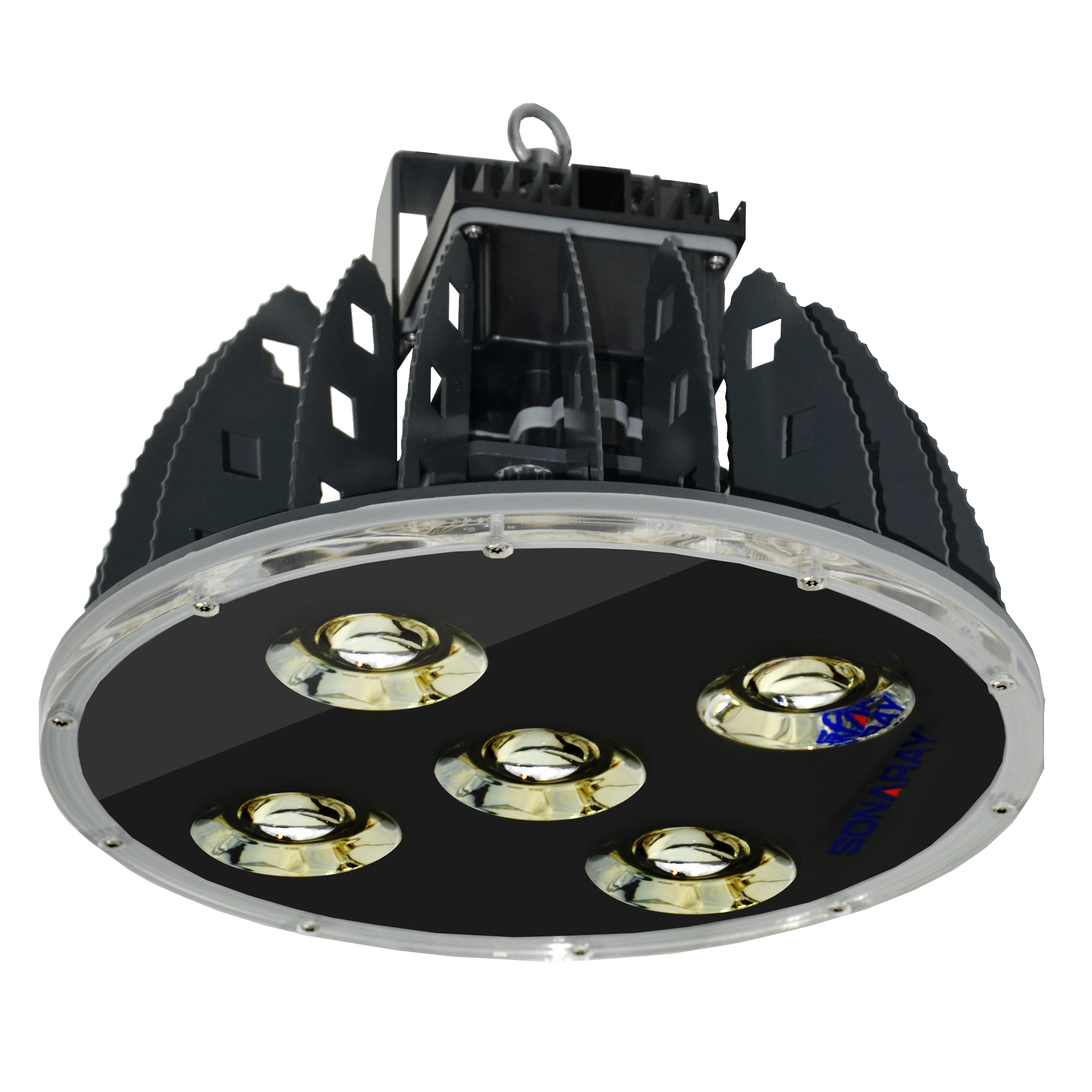

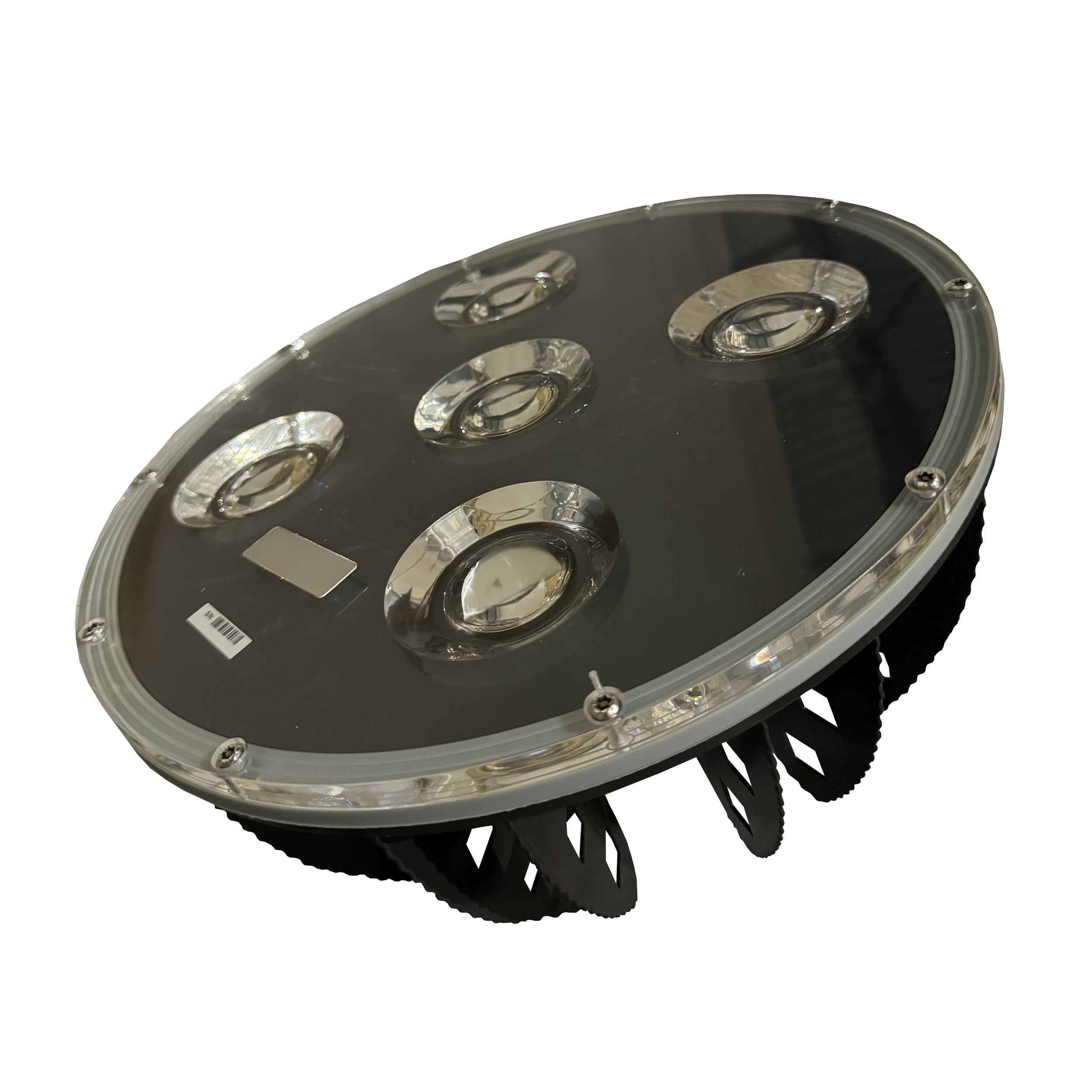

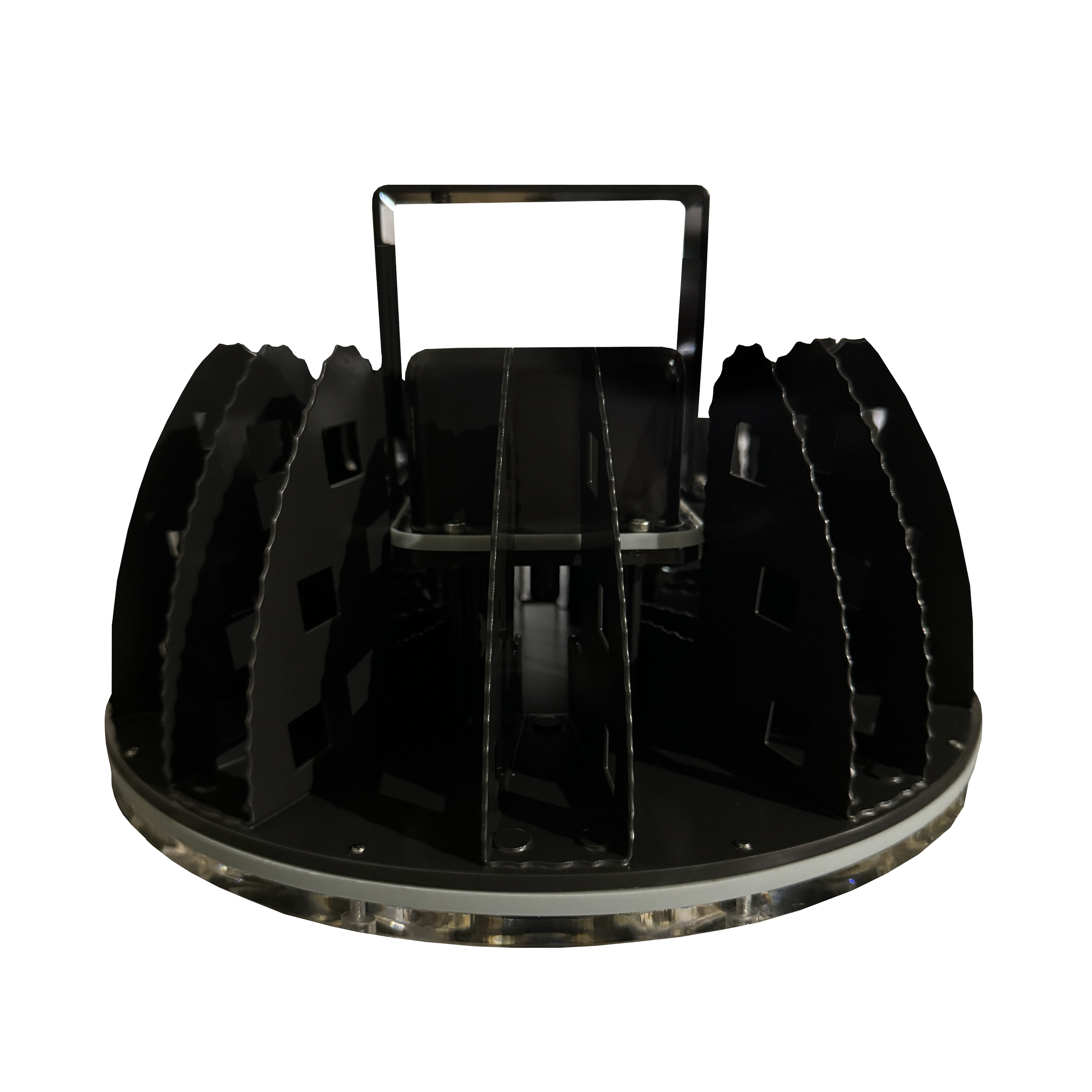

HB-3150A
18,977-20,446lm
127-137lm/W
Ø 13.18 inches
11.01 pounds

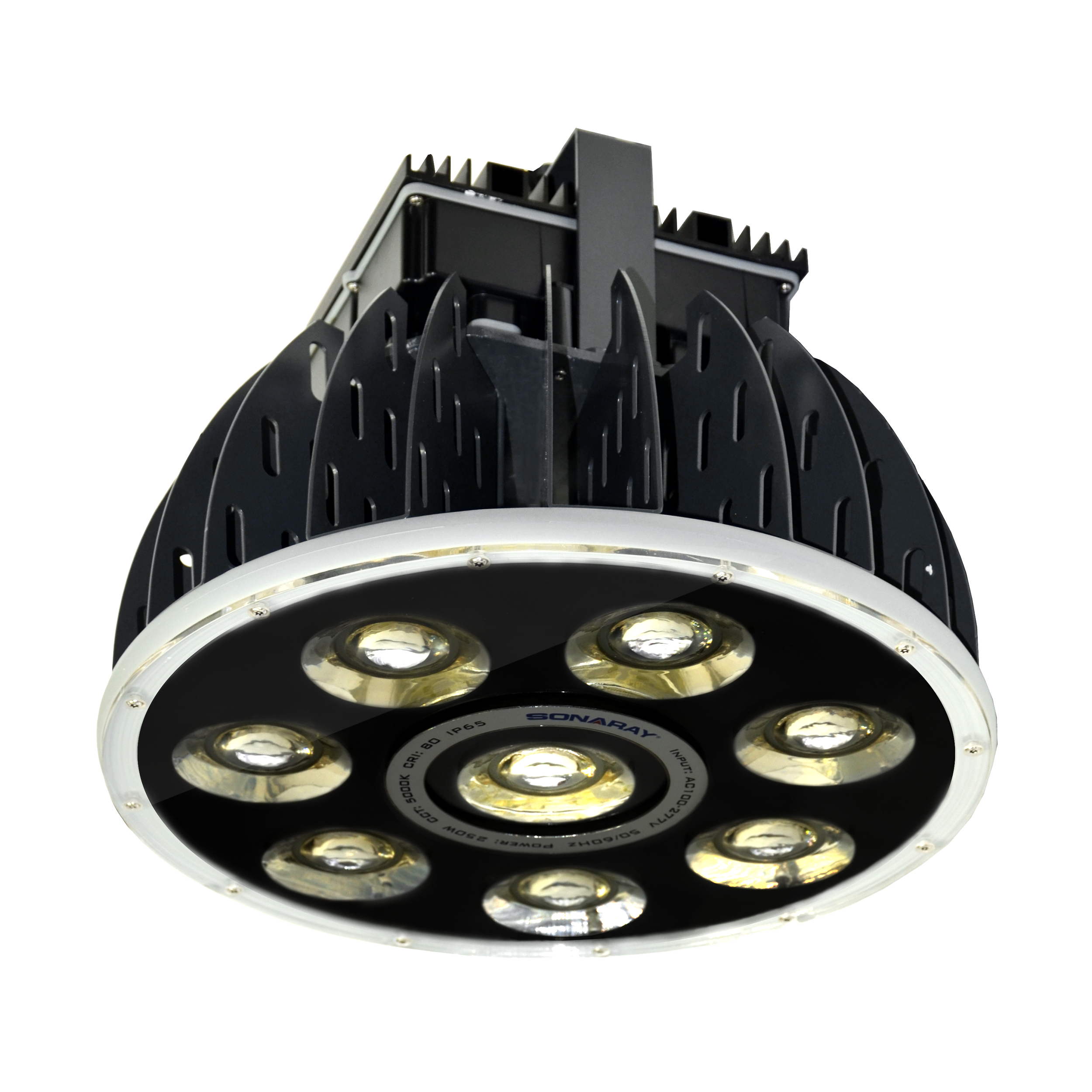

HB-3250A
31,794-34,250lm
133-143lm/W
Ø 12.99 inches
21.38 pounds
Applications
Certifications
Downloads
SPEC
SHEET
v. 2026.01.01
INSTALL
GUIDE
v. 2026.01.01
IES
FILES
qty 27
PRODUCT
PHOTOS
qty 7

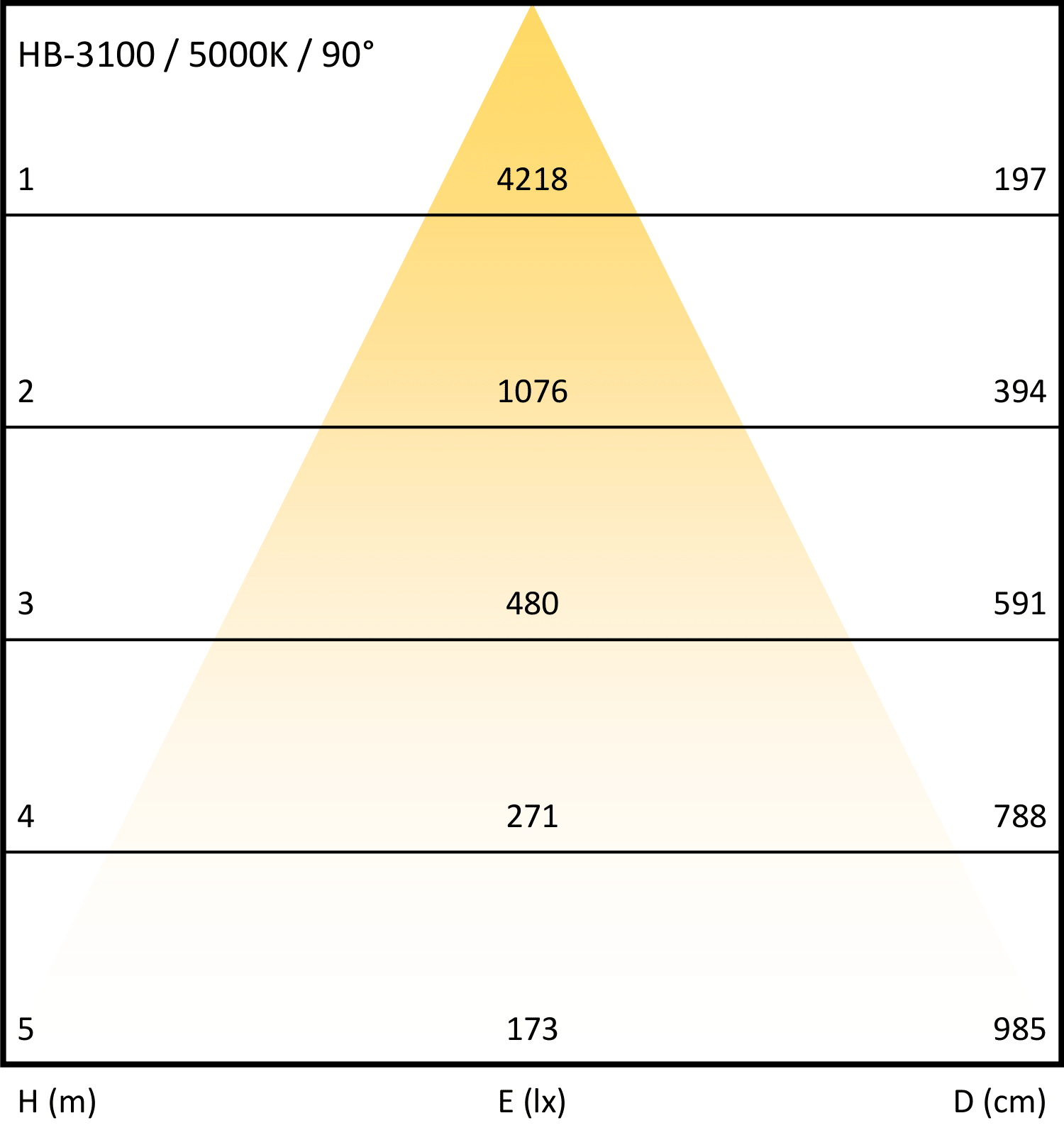

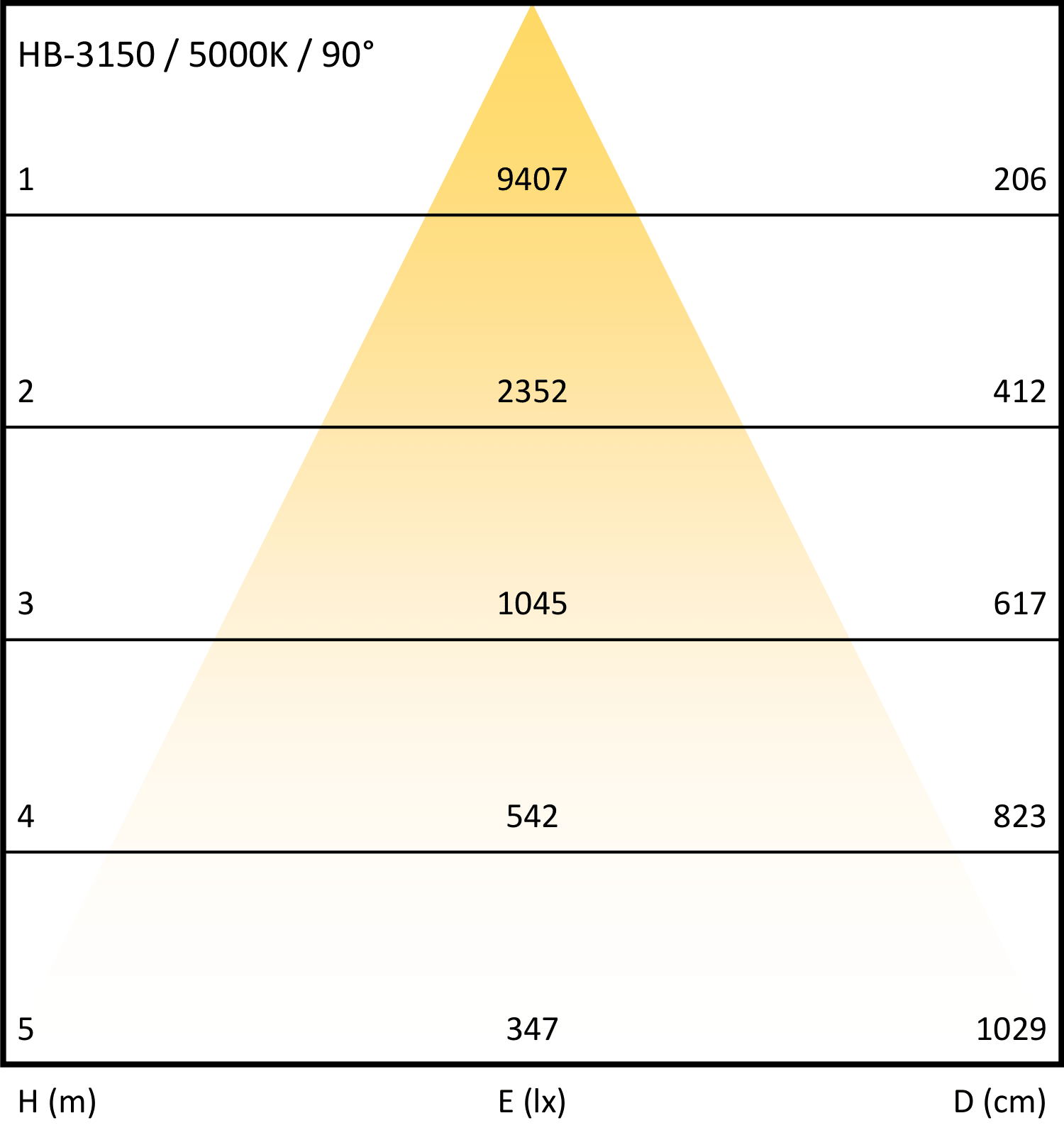

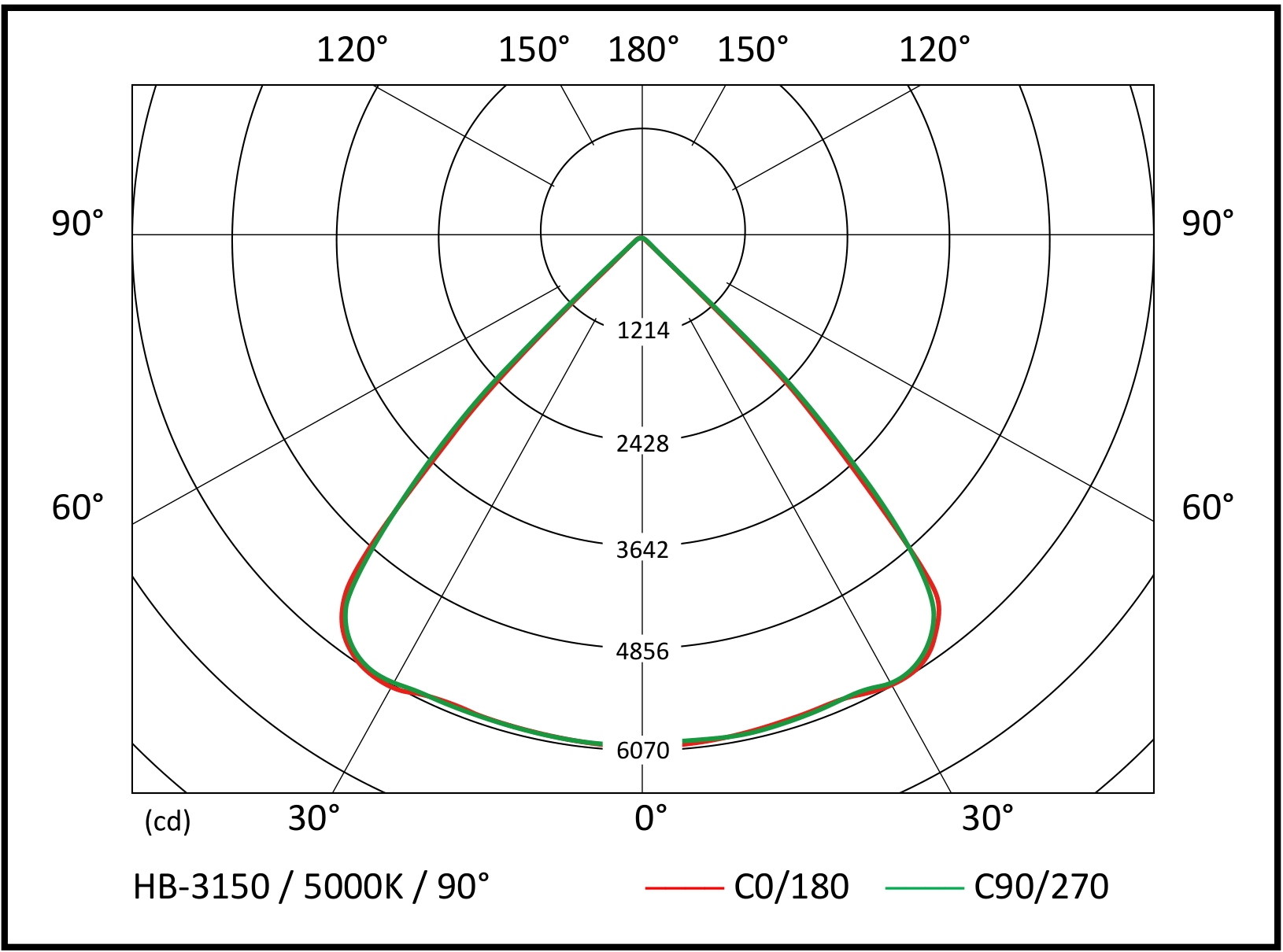

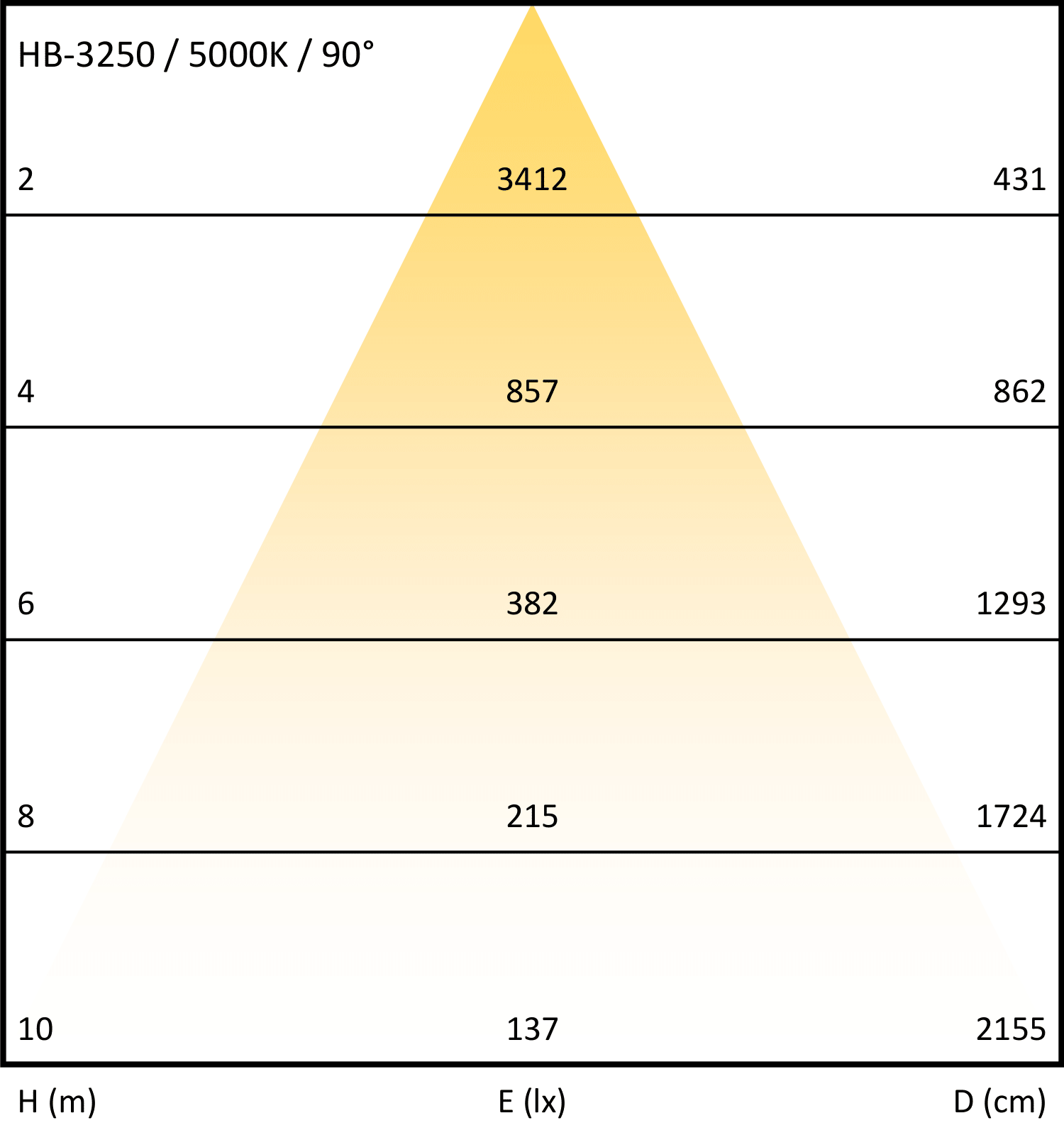

Photometrics
